Software Engineering

Software engineering applies systematic, disciplined, measurable practices to building and evolving software. The management challenge is to choose a lifecycle, expose uncertainty early, and create feedback fast enough to steer.

ProcessLifecycleAgileScrumDevOpsImprovement
01 · Foundation

Product, project, and process

A product delivers continuing value; a project is a temporary effort that creates or changes it; a process is the repeatable way work flows. Confusing them causes local optimization—finishing a project while leaving an unmaintainable product.

Core activities

Specification defines need and constraints. Development designs and implements. Validation checks fitness. Evolution adapts after delivery.

Three constraints

Scope, time, and cost interact; quality and risk sit across all three. A changed constraint requires an explicit trade-off, not wishful compression.

Quality attributes

Maintainability, dependability/security, efficiency, and acceptability influence architecture and the definition of done.

Exam lens: verification asks “did we build the product right?” Validation asks “did we build the right product?”

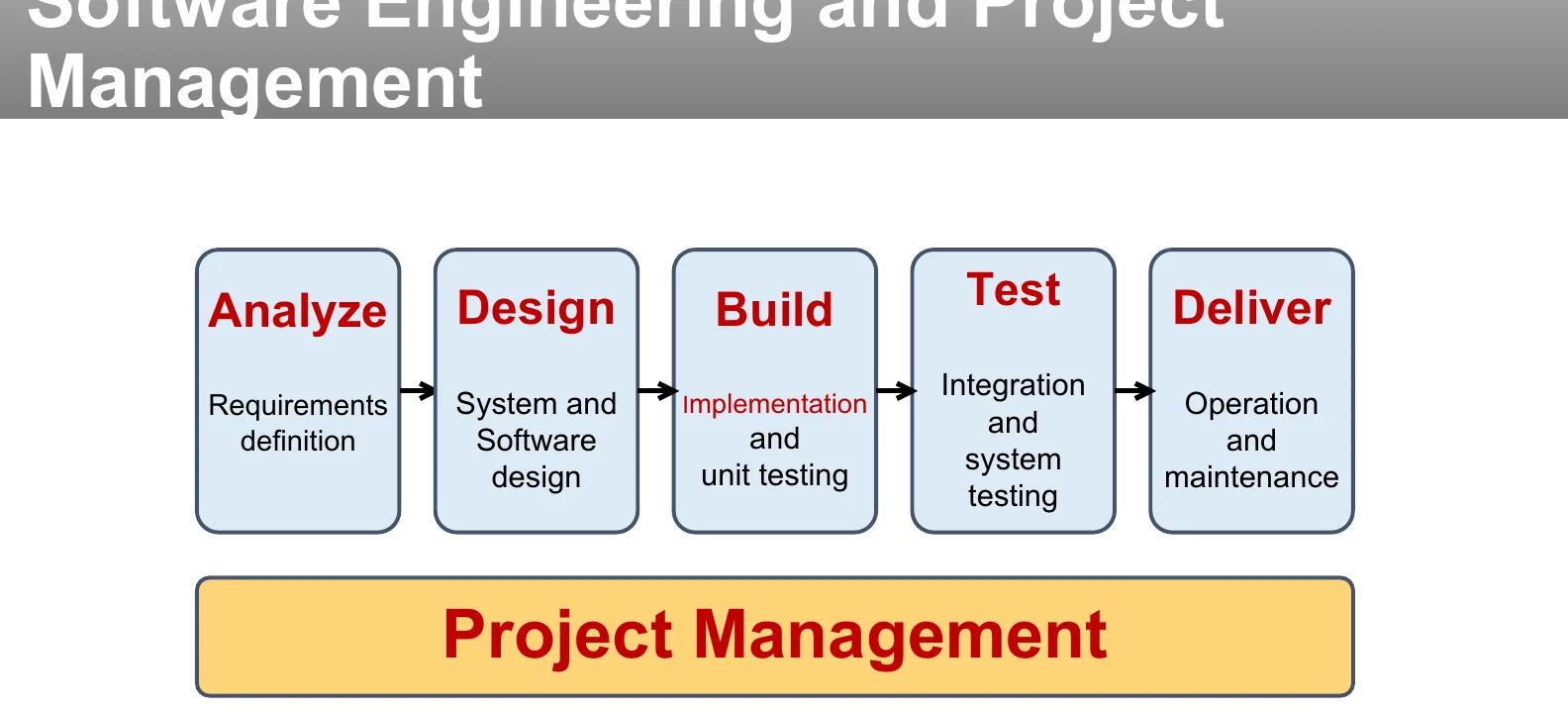

PDF page 5Software engineering and project management side by side.

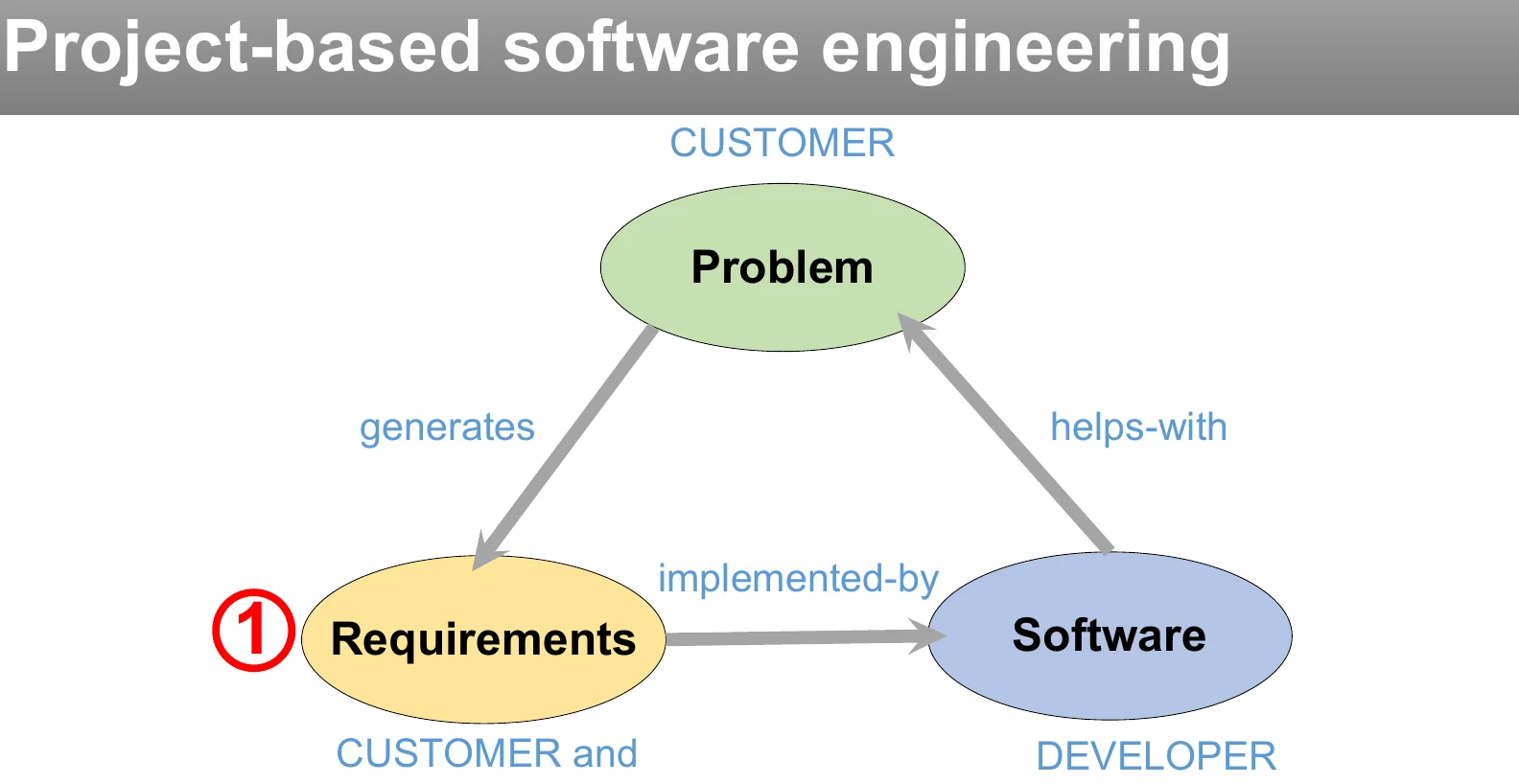

PDF page 11Project-based software engineering.

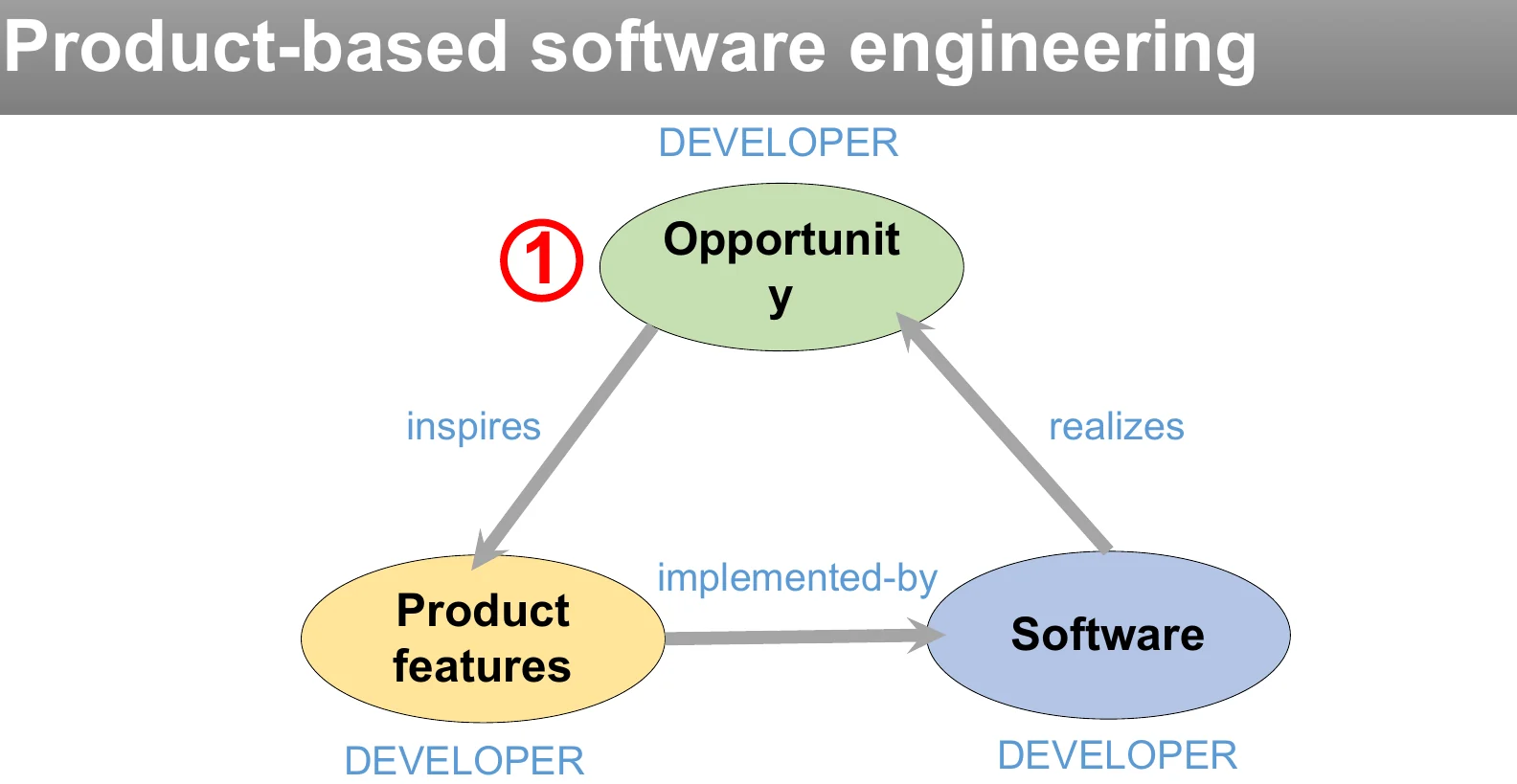

PDF page 13Product-based software engineering.

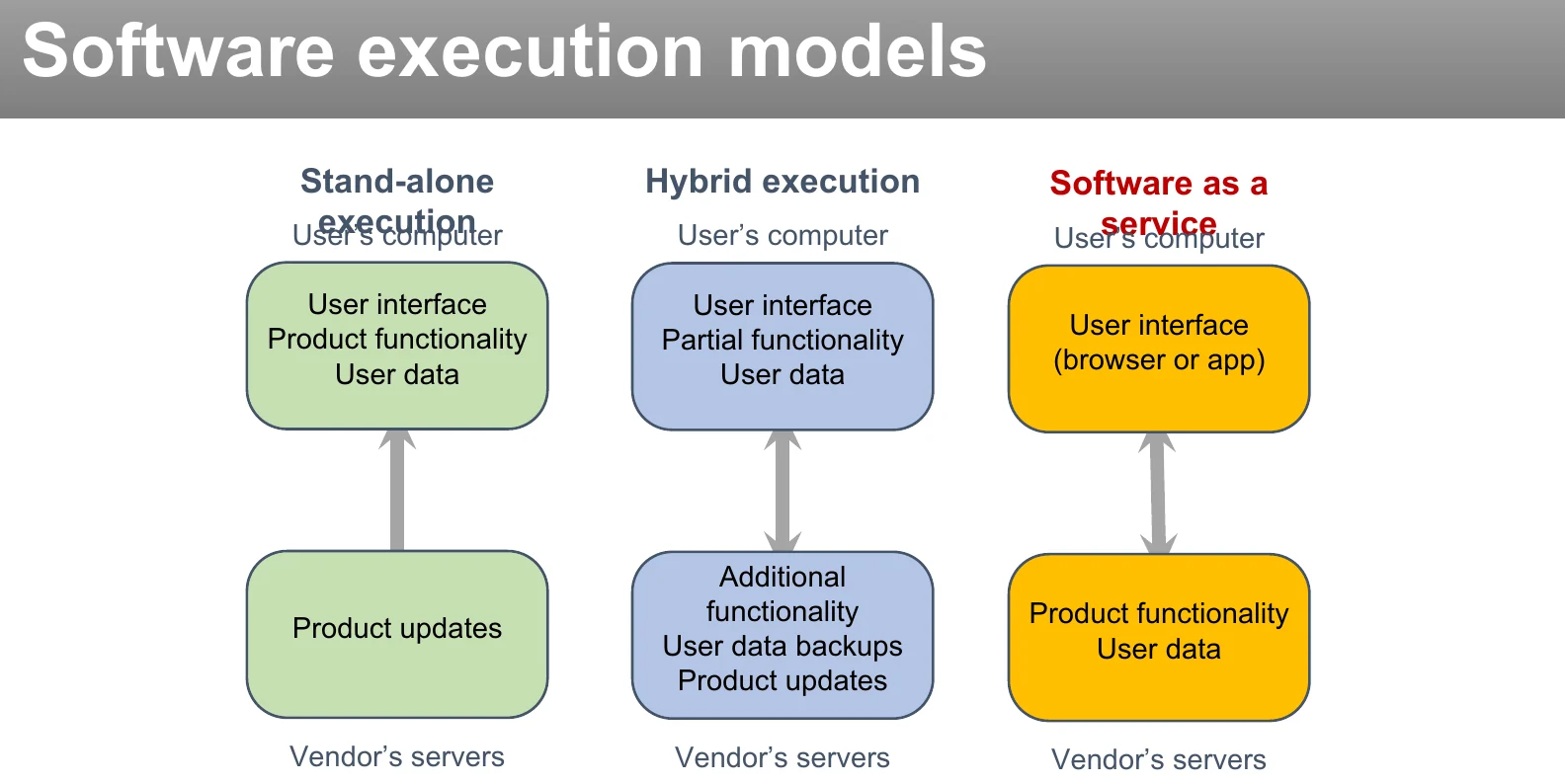

PDF page 15Software execution models: stand-alone, hybrid and service.

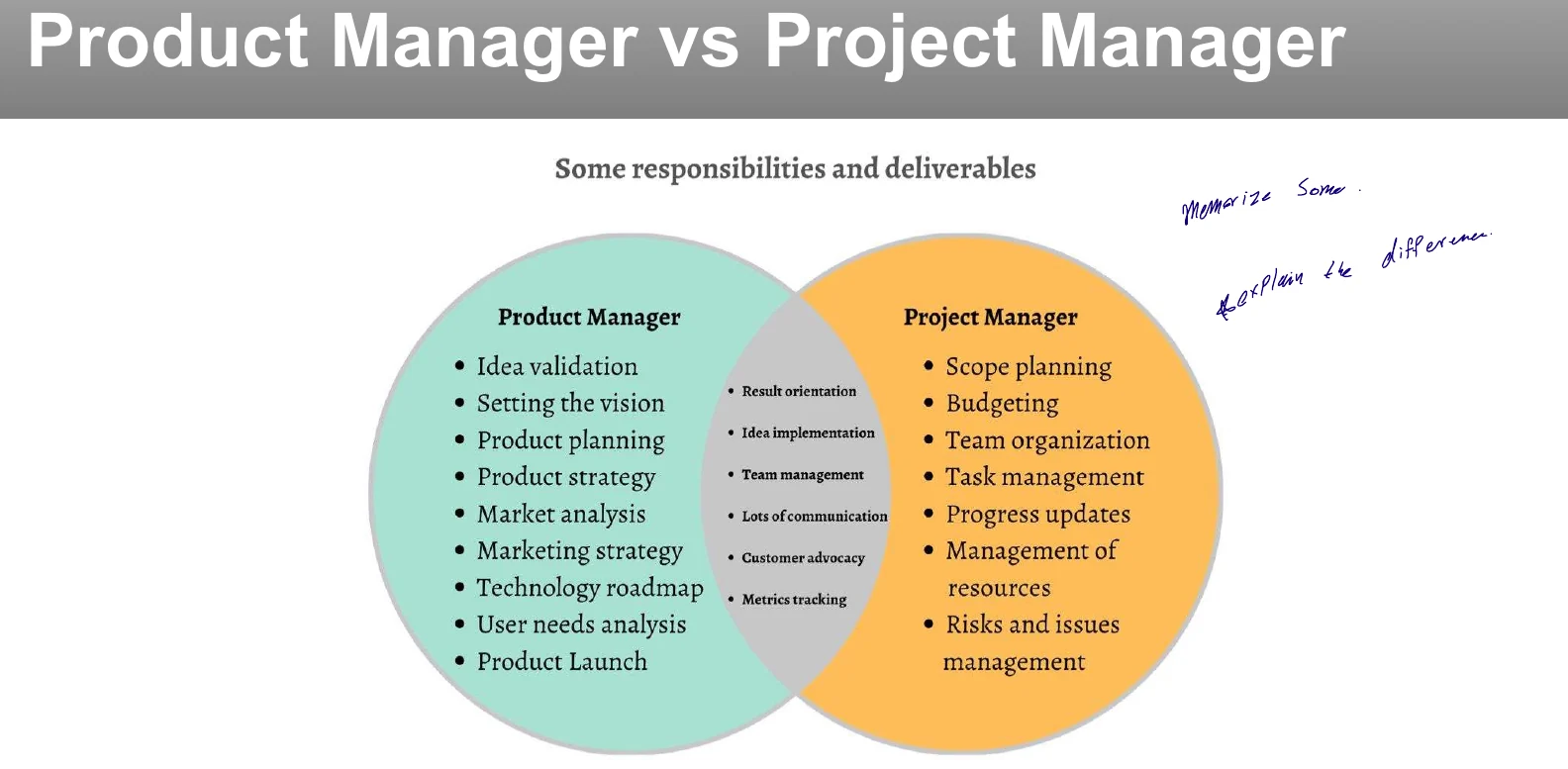

PDF page 17Product manager against project manager.

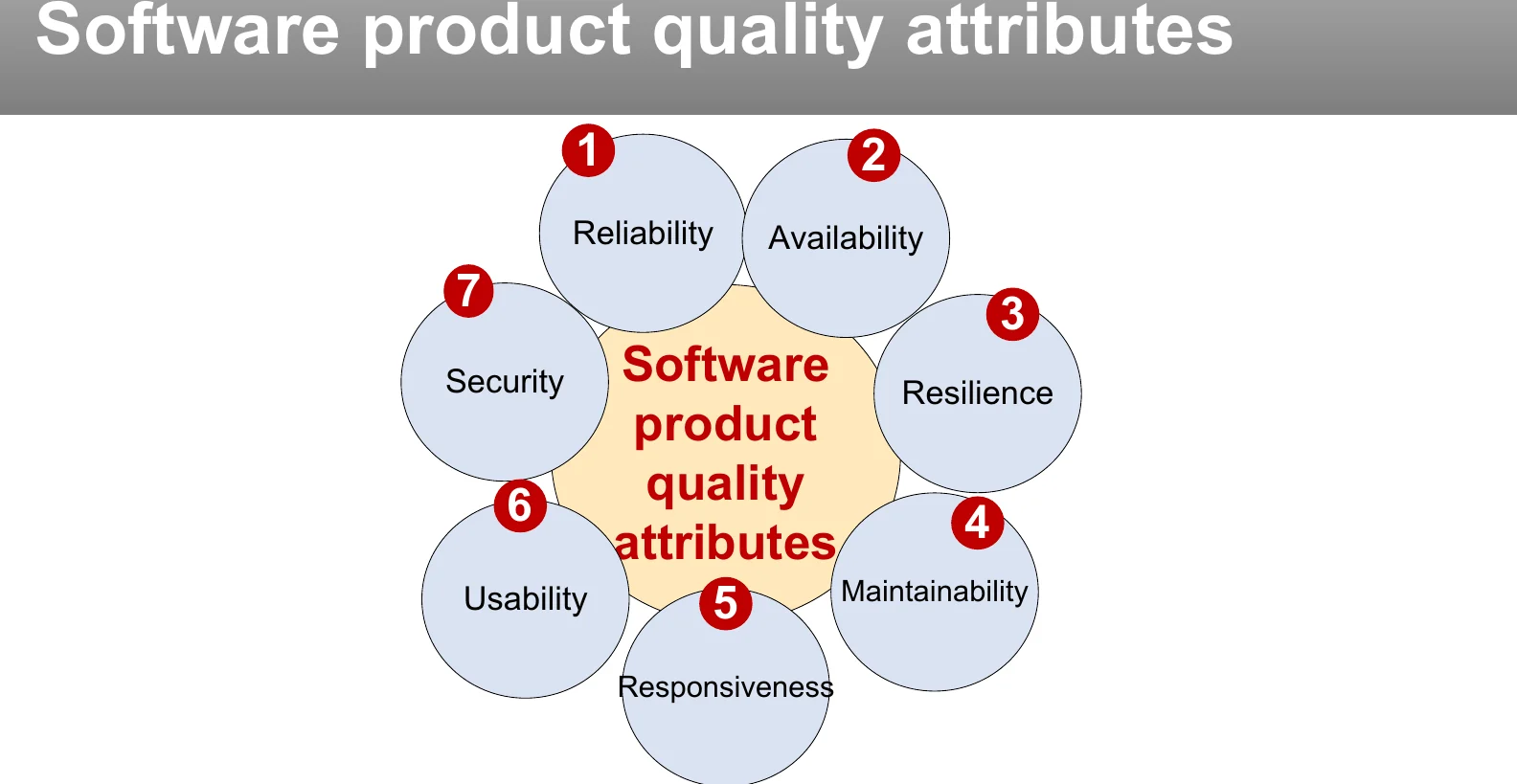

PDF page 38Software product quality attributes.

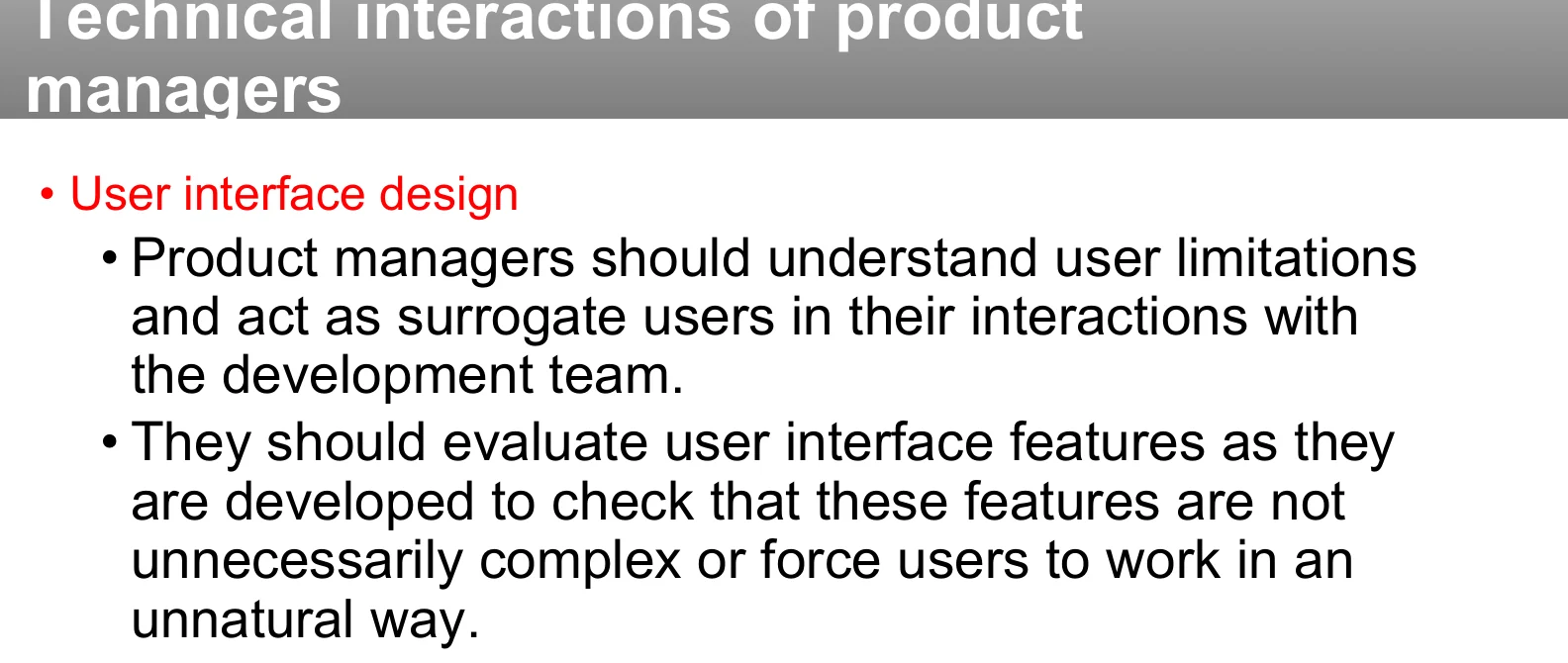

PDF page 62The concerns a product manager balances.
PDF page 63The technical interactions of product managers.
02 · Lifecycle choice

Predictive to adaptive

Approach Best fit Strength Main risk
Waterfall / predictive Stable requirements, regulated gates Up-front plan and traceability Late feedback, costly change
Incremental Value can ship in slices Earlier benefit and learning Architecture can erode
Iterative Solution needs refinement Repeated feedback improves fit Convergence is not automatic
Spiral Large, high-risk work Risk-driven cycles and prototypes Complex and management-heavy
Agile / adaptive High change, close customer access Frequent value and reprioritization Needs discipline and engagement
Selection rule: match the lifecycle to requirement uncertainty, technical risk, delivery cadence, compliance needs, team maturity, and stakeholder availability. “Hybrid” is deliberate tailoring—not random mixing.

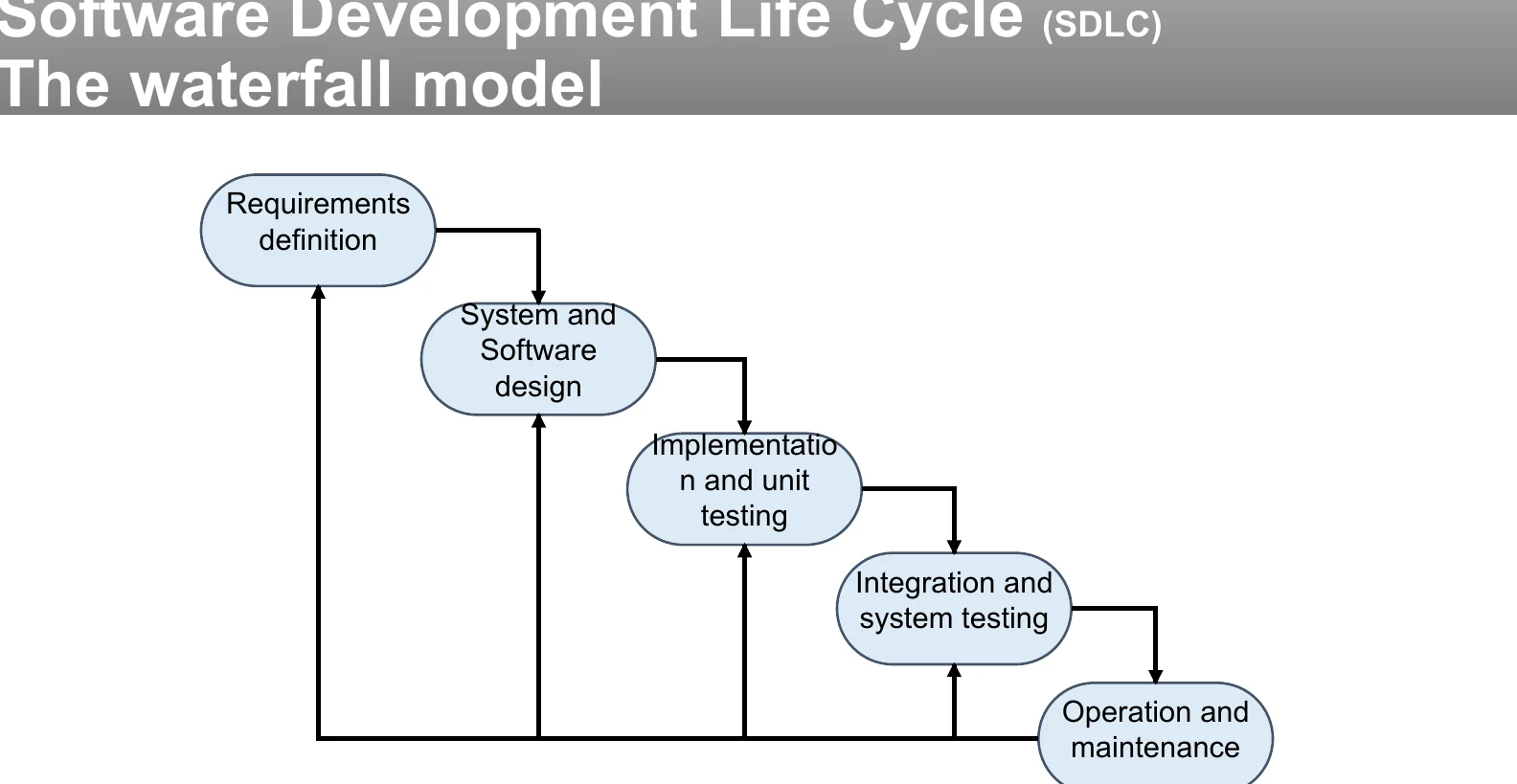

PDF page 20The waterfall model.

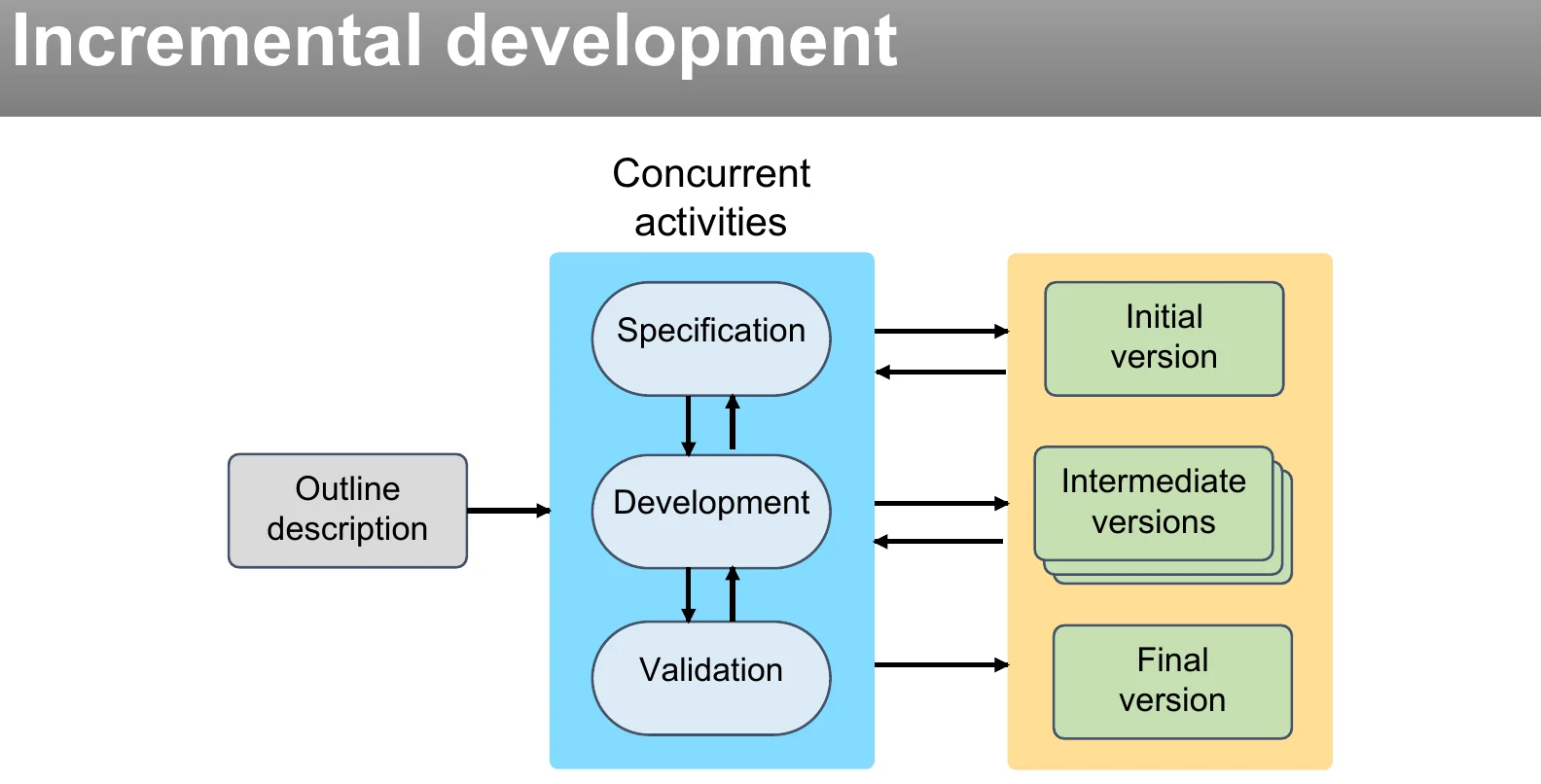

PDF page 21Incremental development.

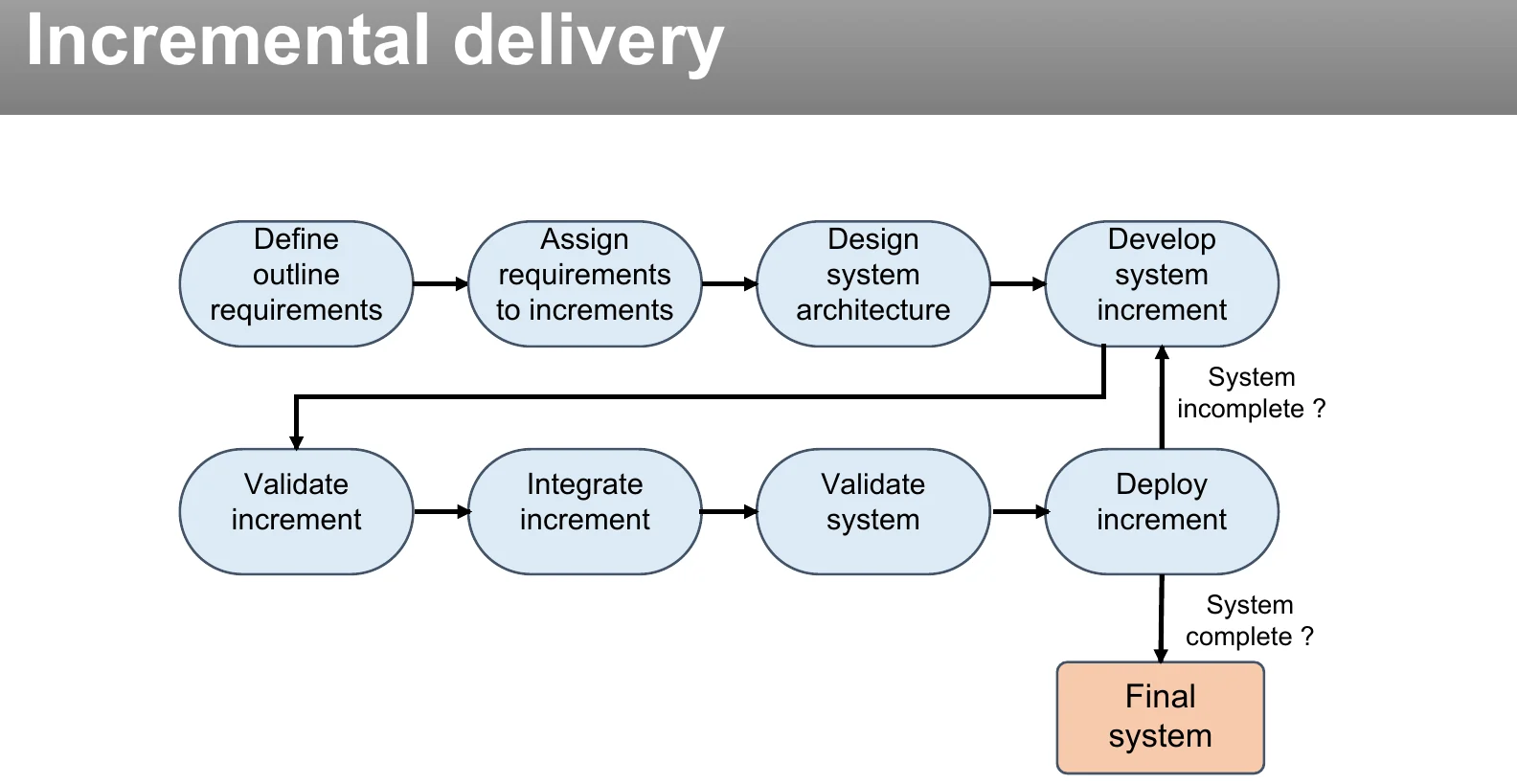

PDF page 22Incremental delivery.

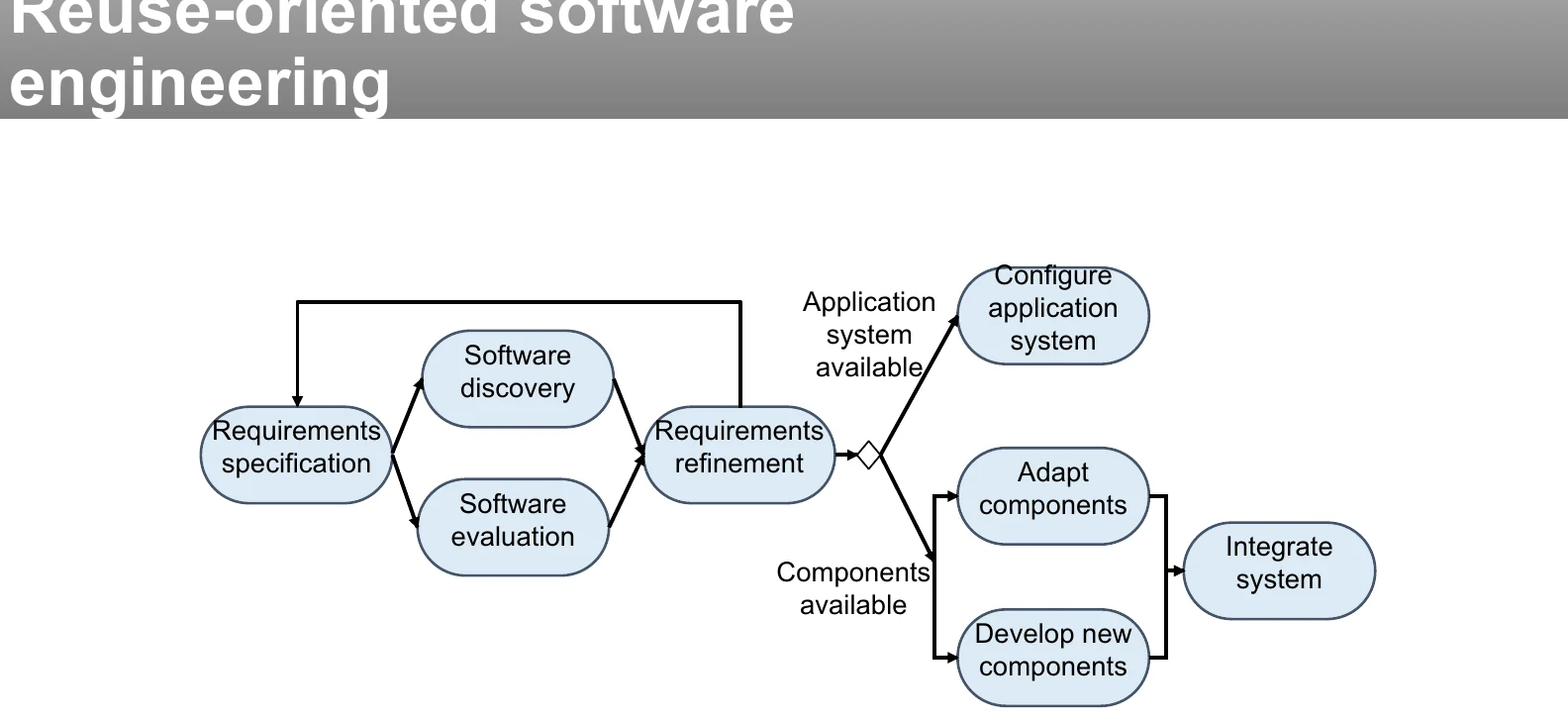

PDF page 23Reuse-oriented software engineering.

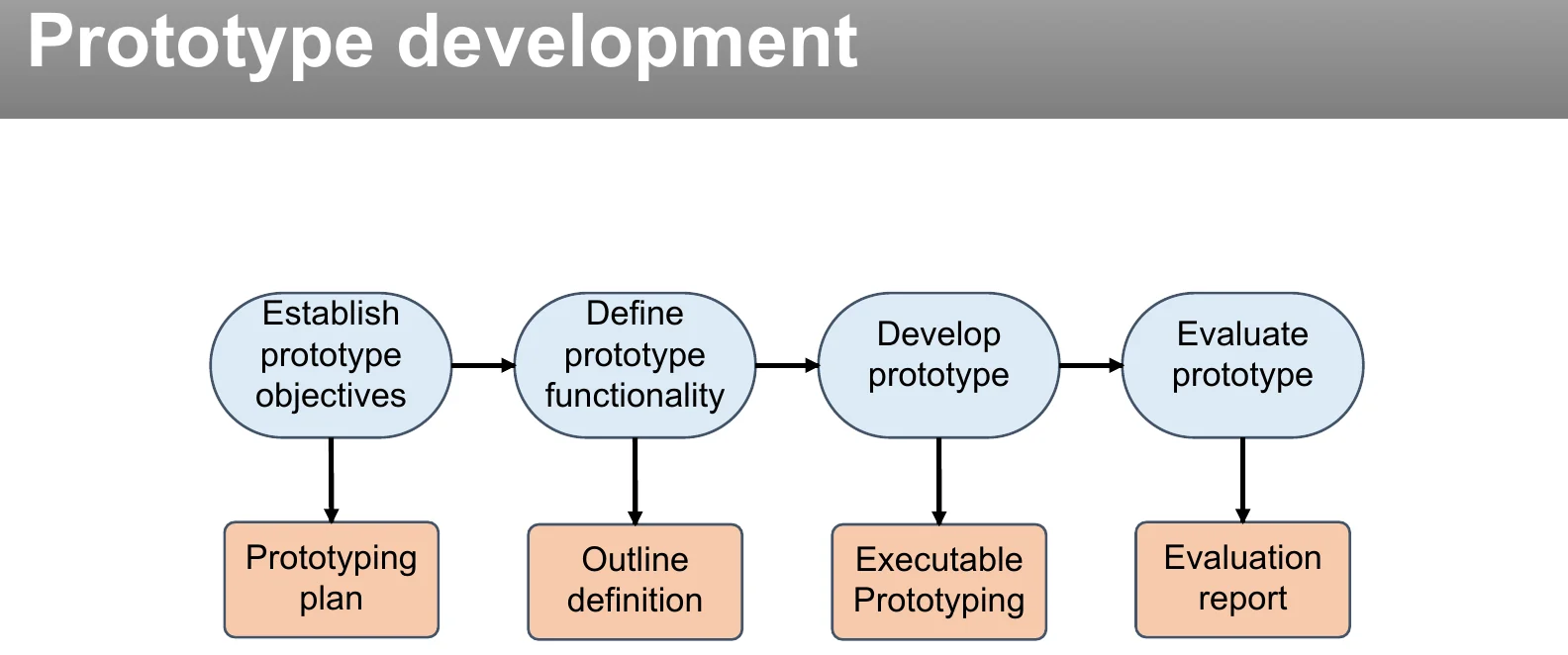

PDF page 24Prototype development.

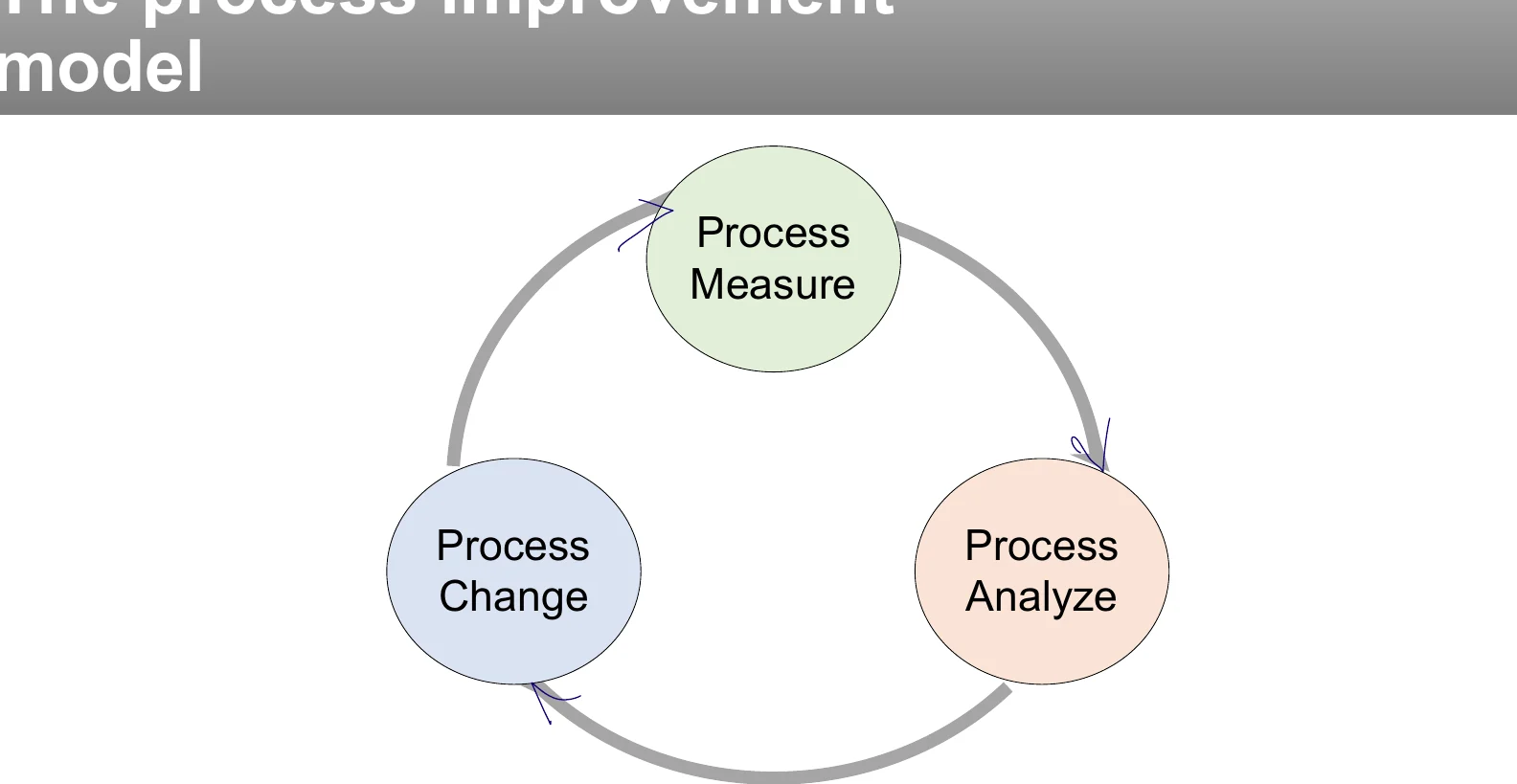

PDF page 25The process improvement model.

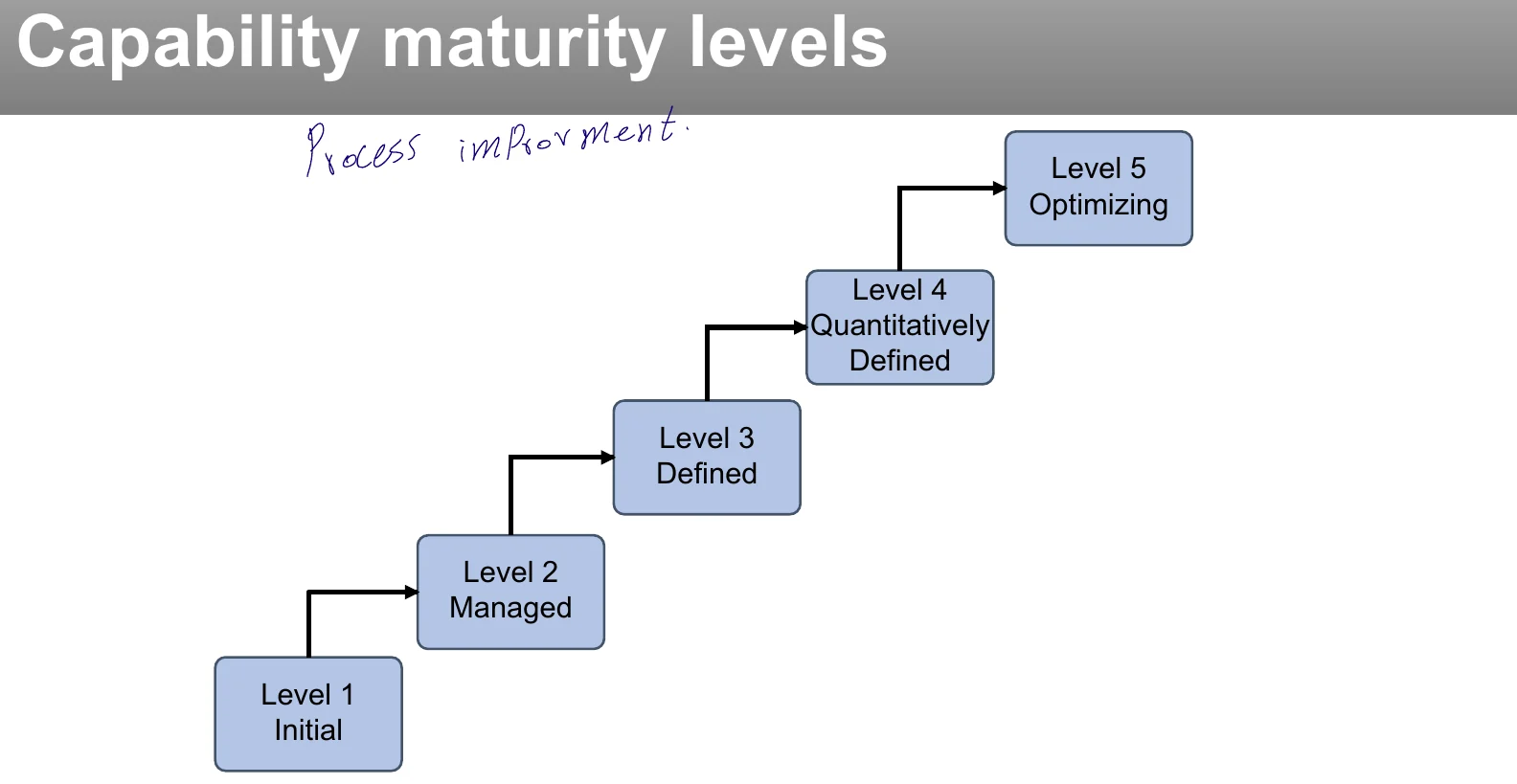

PDF page 26Capability maturity levels.

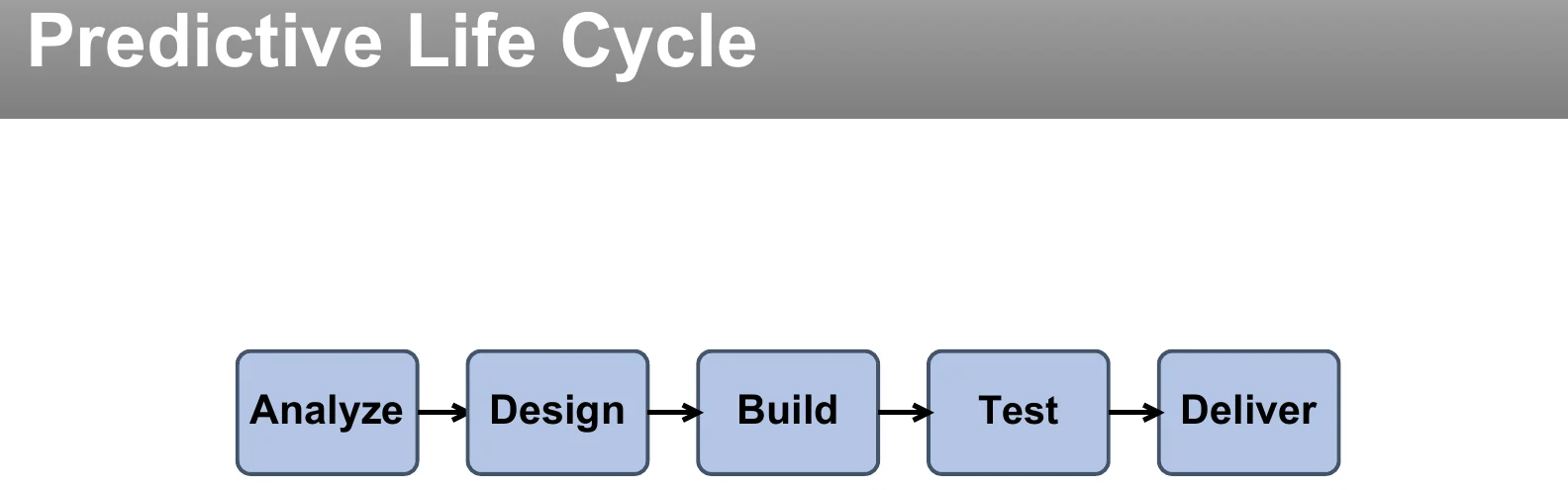

PDF page 28A predictive life cycle.

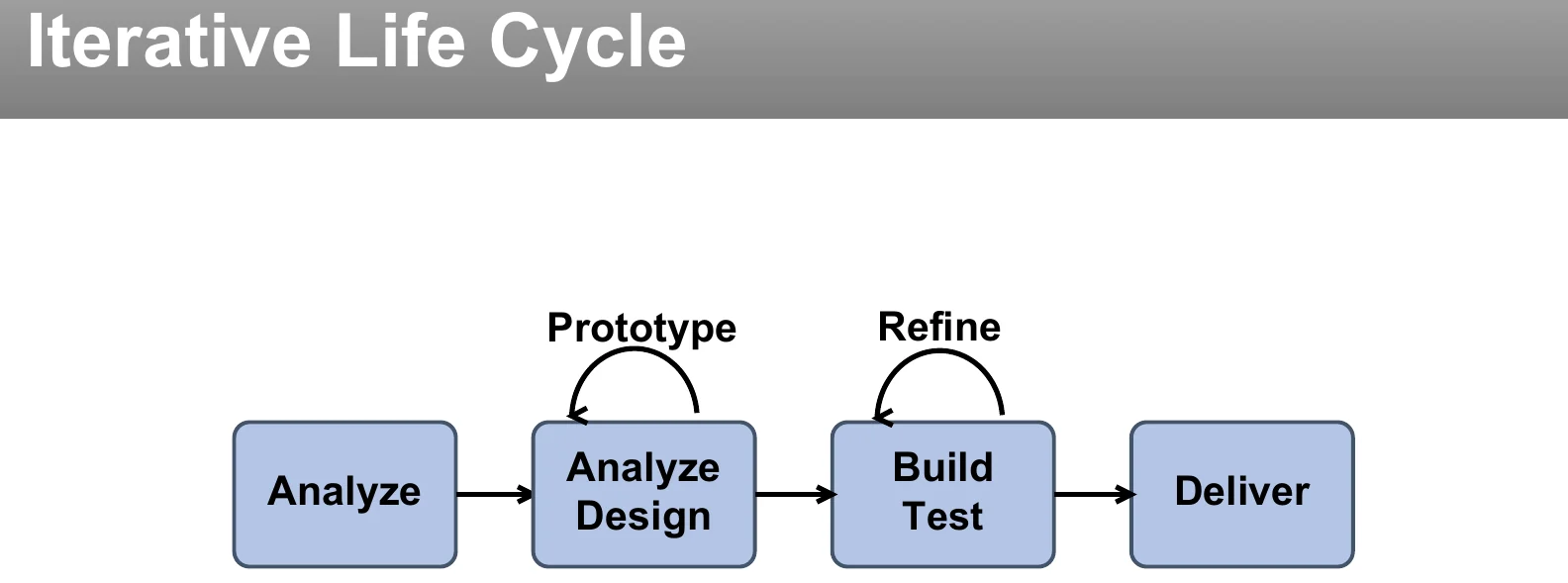

PDF page 29An iterative life cycle.

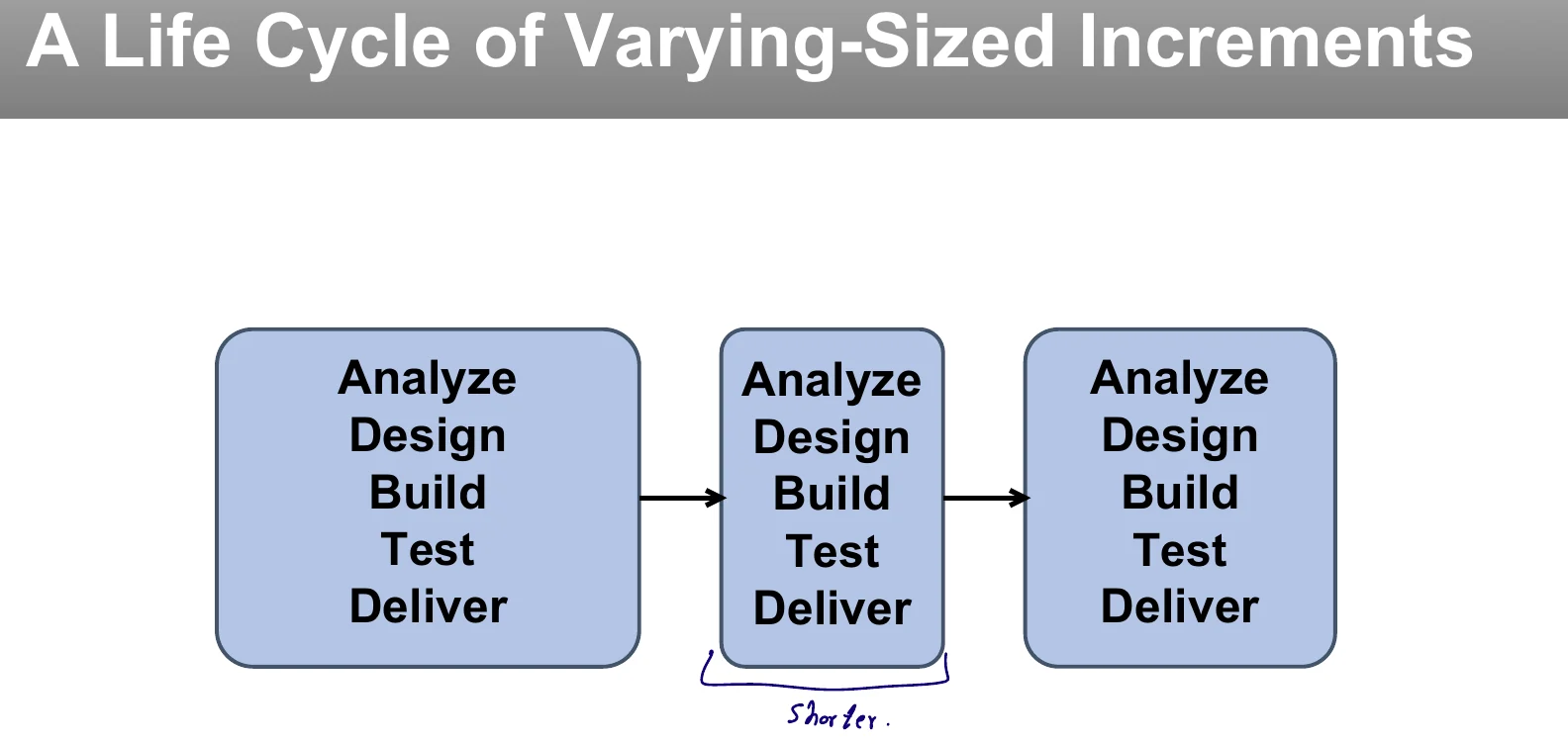

PDF page 30A life cycle of varying-sized increments.

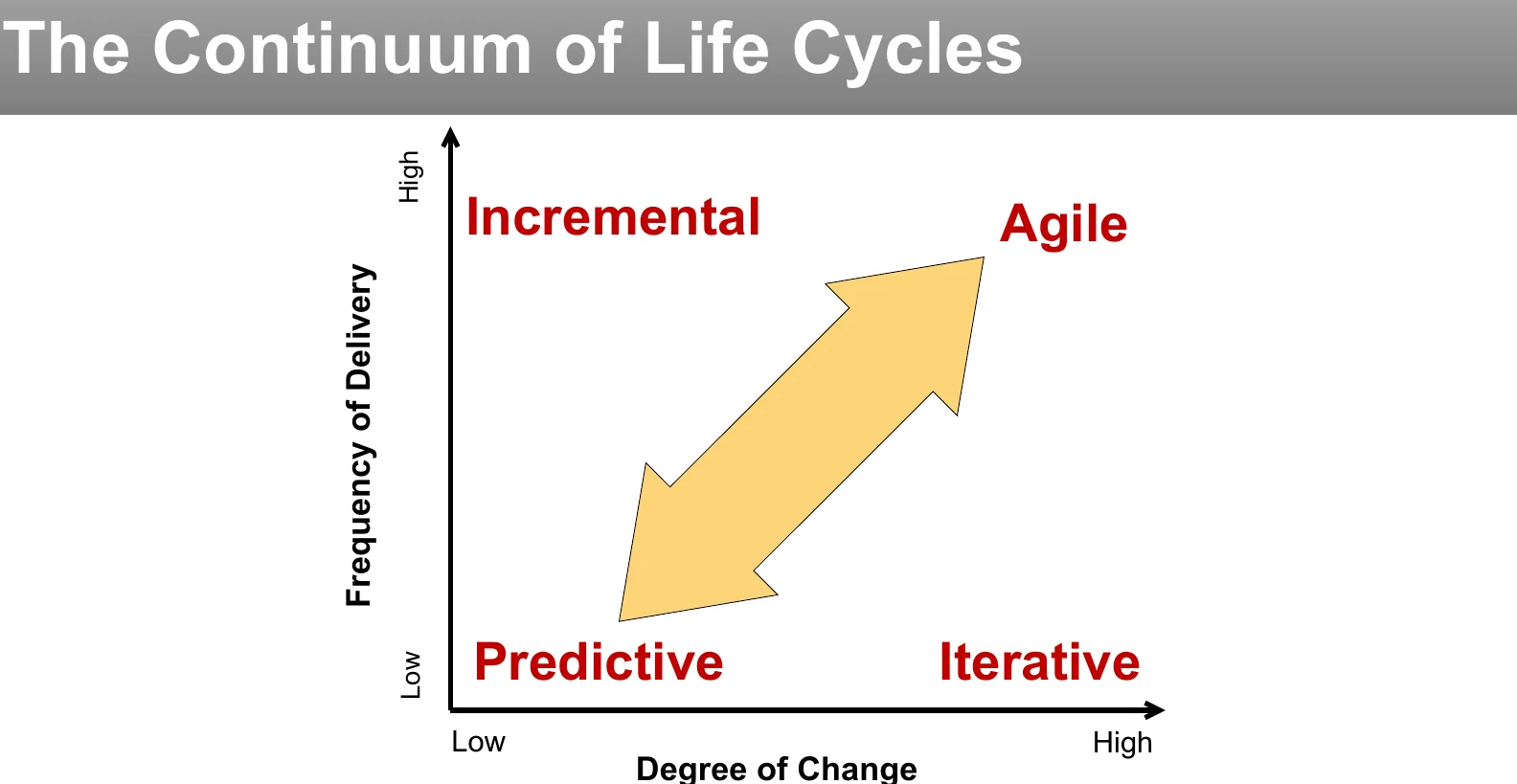

PDF page 34The continuum of life cycles.

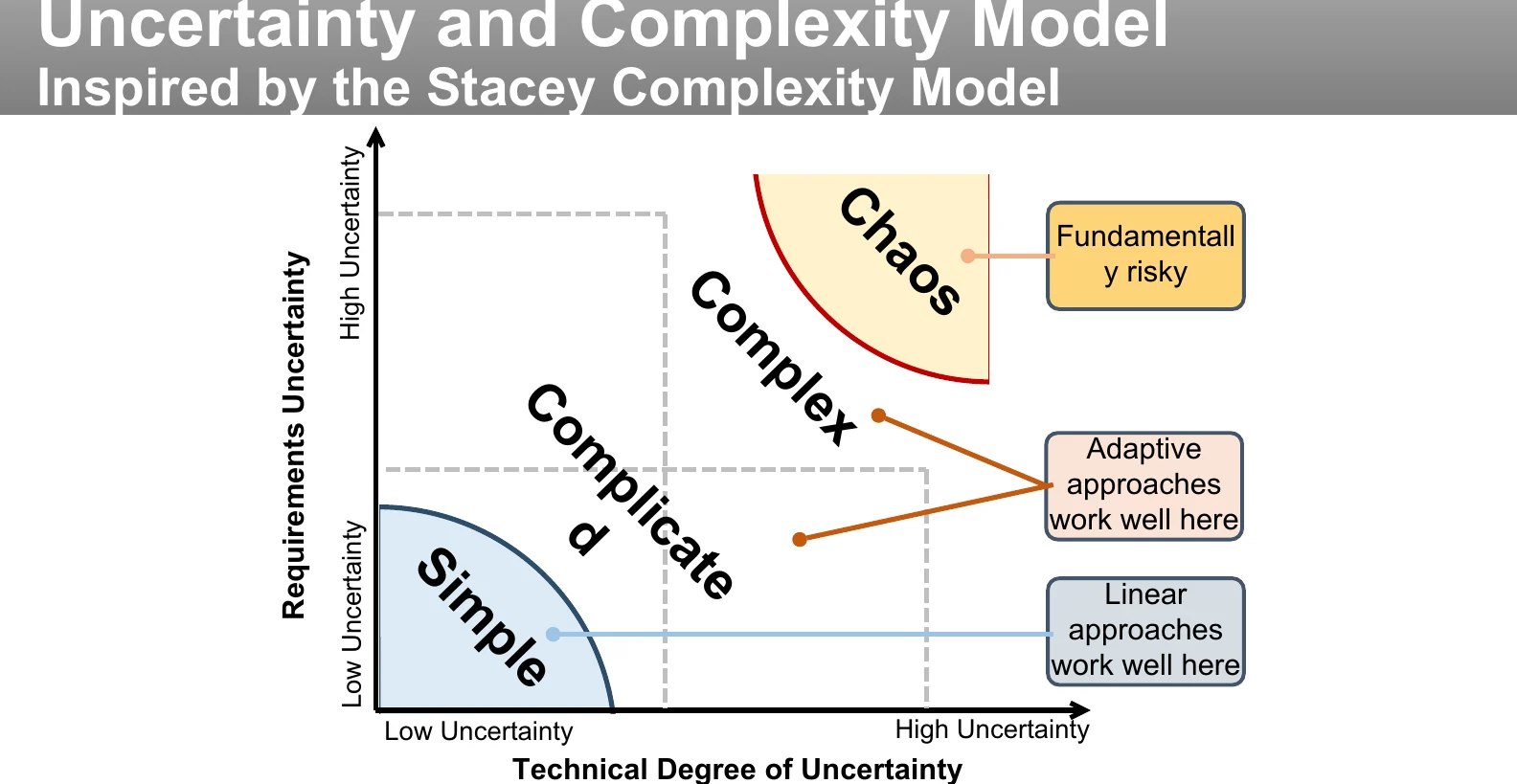

PDF page 35The Stacey complexity model.

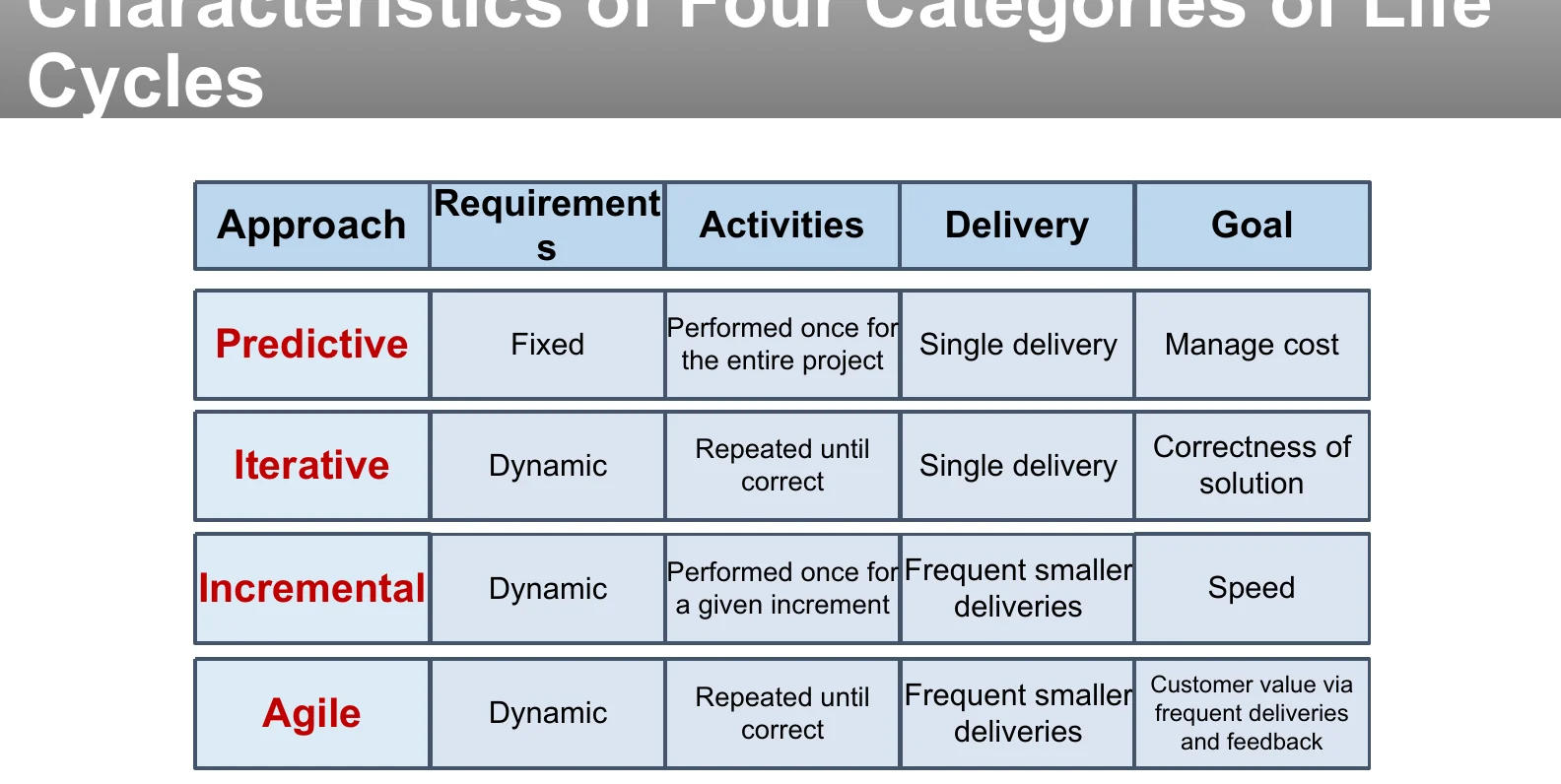

PDF page 36The four categories of life cycle compared.
03 · Agile delivery

Short loops, usable increments

Product backlog
Ordered outcomes, features, fixes
Sprint planning
Goal + selected work
Build & test
Daily coordination
Review
Inspect the increment
Retrospective
Improve the system

Roles

  • Product Owner: value and backlog order
  • Scrum Master: effectiveness and impediments
  • Developers: create a done increment

Artifacts

  • Product backlog → product goal
  • Sprint backlog → sprint goal
  • Increment → definition of done

Agile is not

No plan, no documentation, or no architecture. Planning is continuous; documentation is sufficient and valuable; design evolves with feedback.

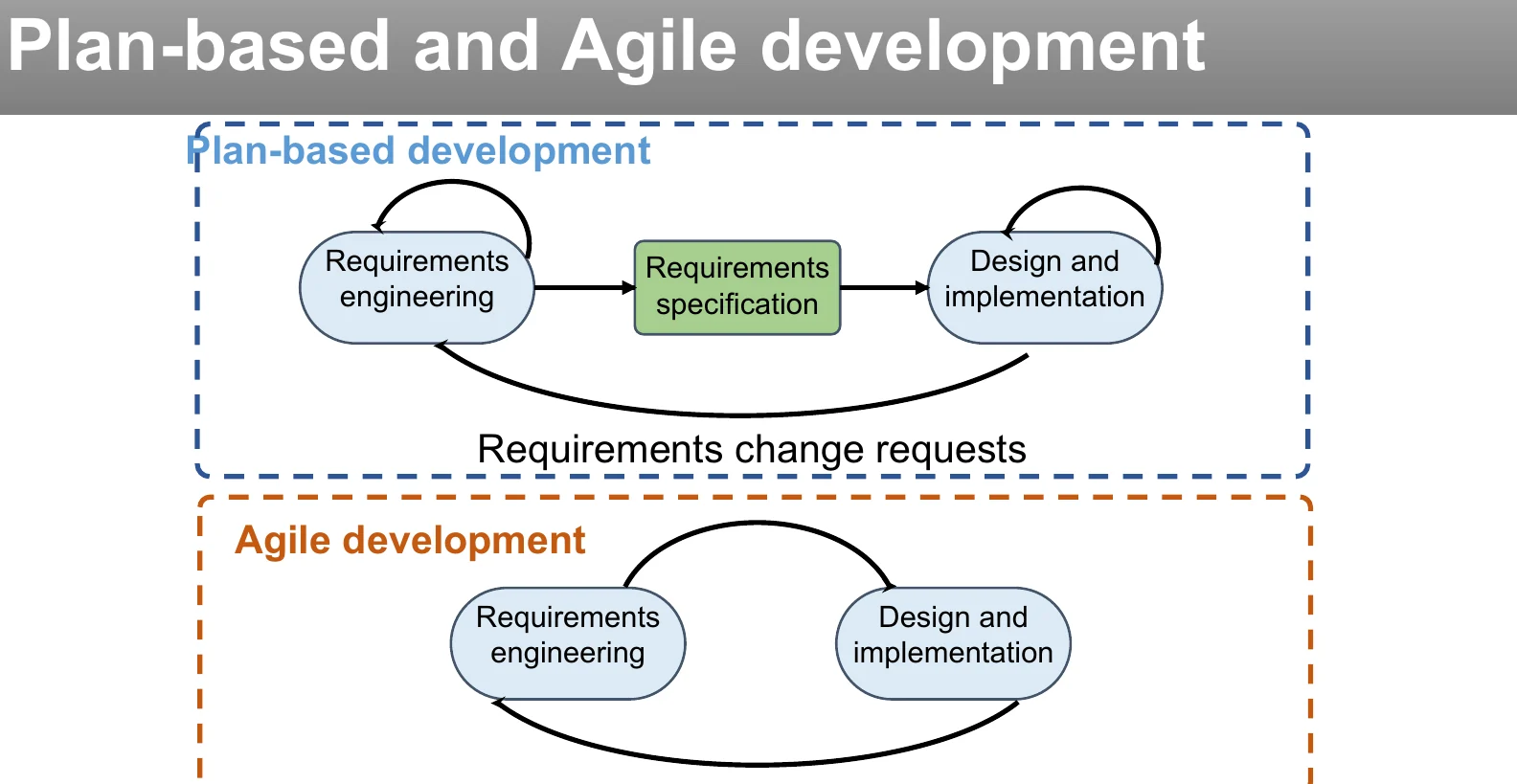

PDF page 27Plan-driven against agile development.

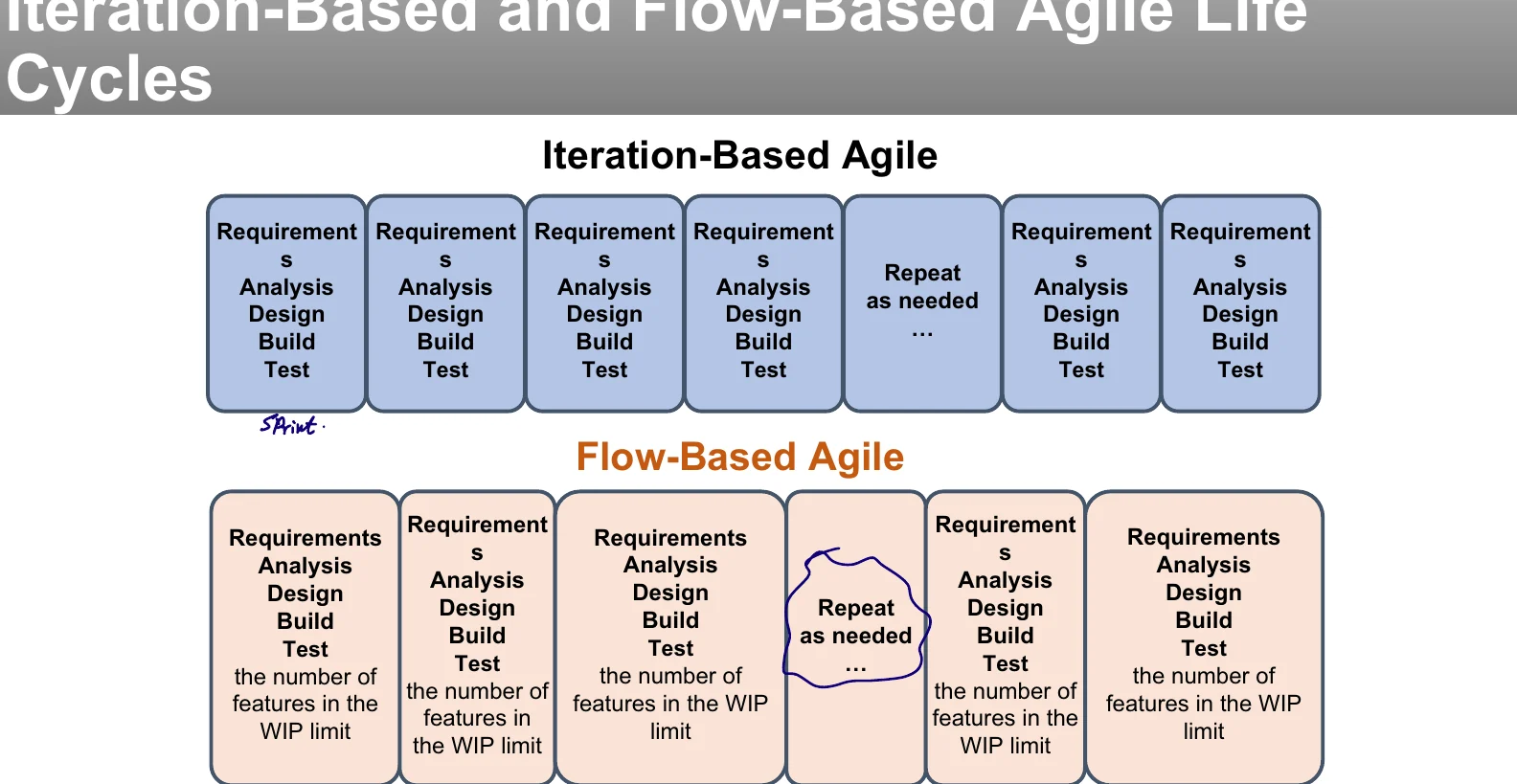

PDF page 31Iteration-based against flow-based agile life cycles.
04 · Flow to operations

DevOps and continuous delivery

DevOps joins development and operations through shared ownership, automation, measurement, and learning. The pipeline turns every change into evidence.

Commit
Build
Automated tests
Security checks
Deploy
Observe

CI

Integrate small changes frequently; each integration triggers an automated build and test suite.

Continuous delivery

Every passing change is deployable. Production release remains a business decision.

Continuous deployment

Passing changes move automatically to production; monitoring and rollback are essential.

Useful measures

Lead time, deployment frequency, change failure rate, and recovery time reveal delivery-system health.

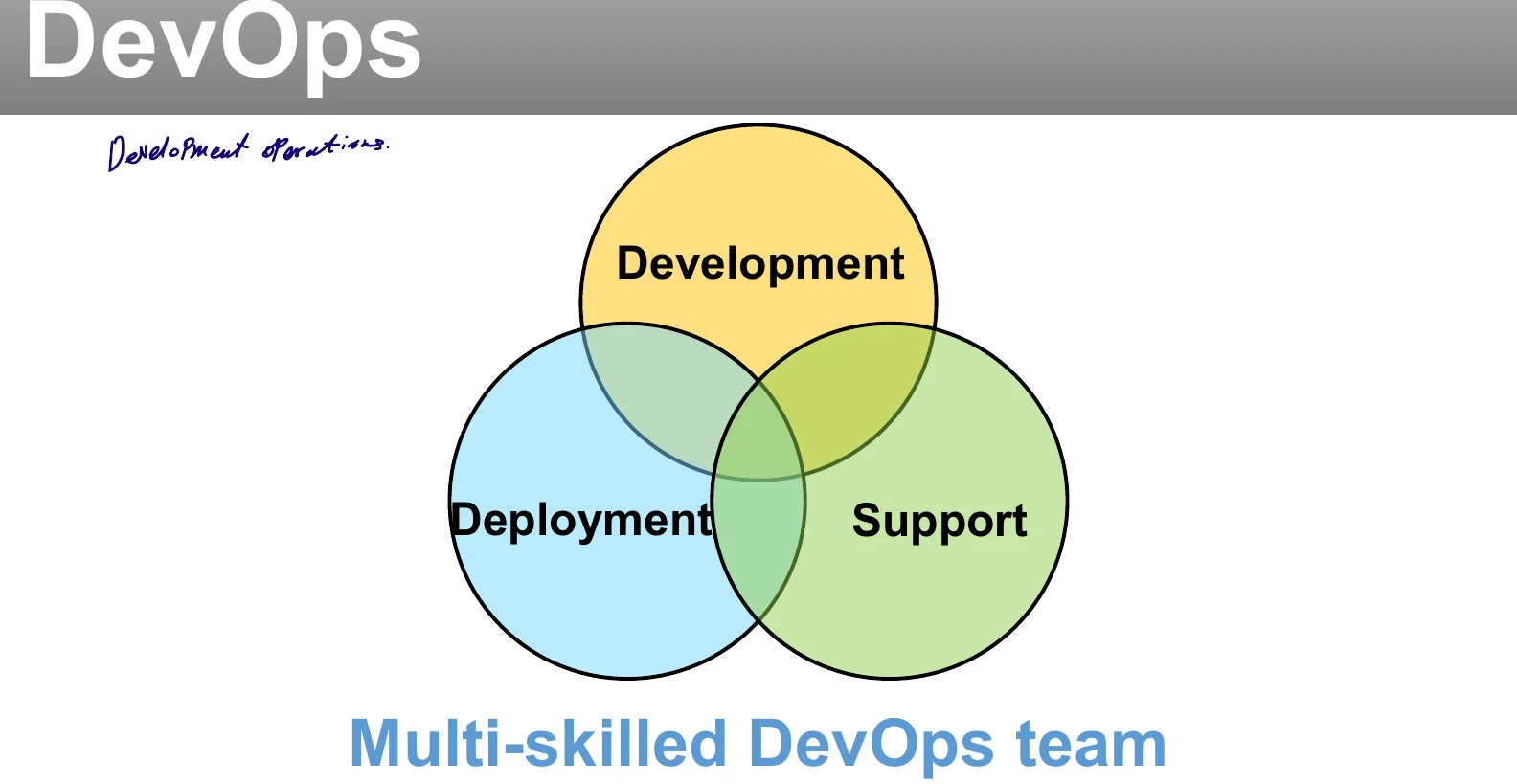

PDF page 32DevOps: development, deployment and support as one team.

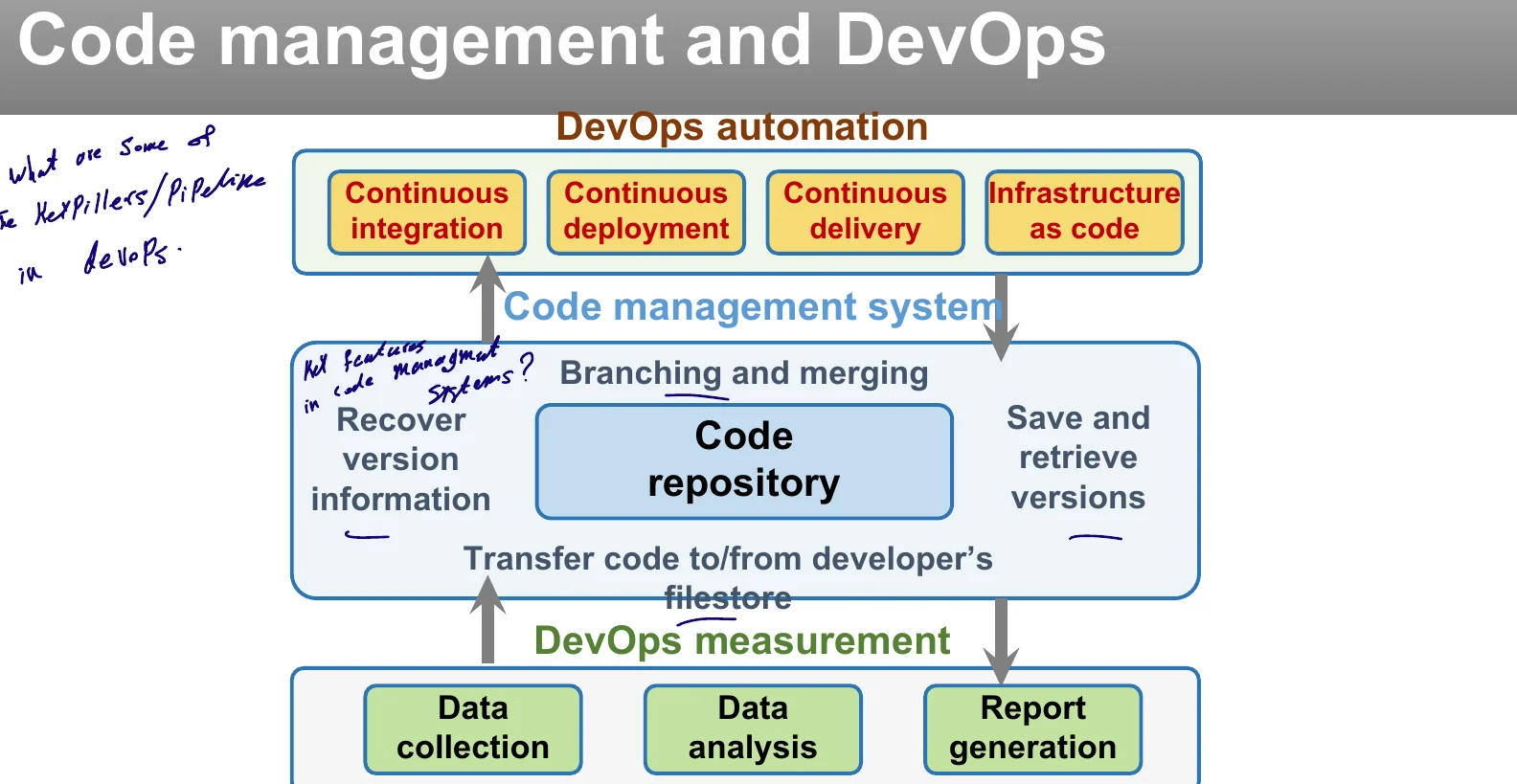

PDF page 33Code management and DevOps automation.
05 · Improvement

Improve the system

Plan

Identify a measurable problem and a small experiment.

Do

Run it with limited scope; capture evidence.

Check

Compare observed results with the hypothesis.

Act

Standardize, adapt, or abandon—and repeat.

Retrospectives, root-cause analysis, value-stream mapping, and process metrics support learning. Metrics should improve decisions, never become targets that invite gaming.

06 · Retrieval practice

Check your model

Why is iterative not the same as incremental?
Iterative work refines a solution through repetition; incremental work adds usable slices. A project can use either or both.
A team deploys to a staging environment automatically, but production needs approval. What practice is this?
Continuous delivery. The release is always ready, but deployment to production is a business decision.
Who orders the Scrum product backlog?
The Product Owner, while incorporating stakeholder and developer input.
When is a predictive approach reasonable?
When scope and technology are stable, change is relatively low, and governance or regulation benefits from planned phase gates.

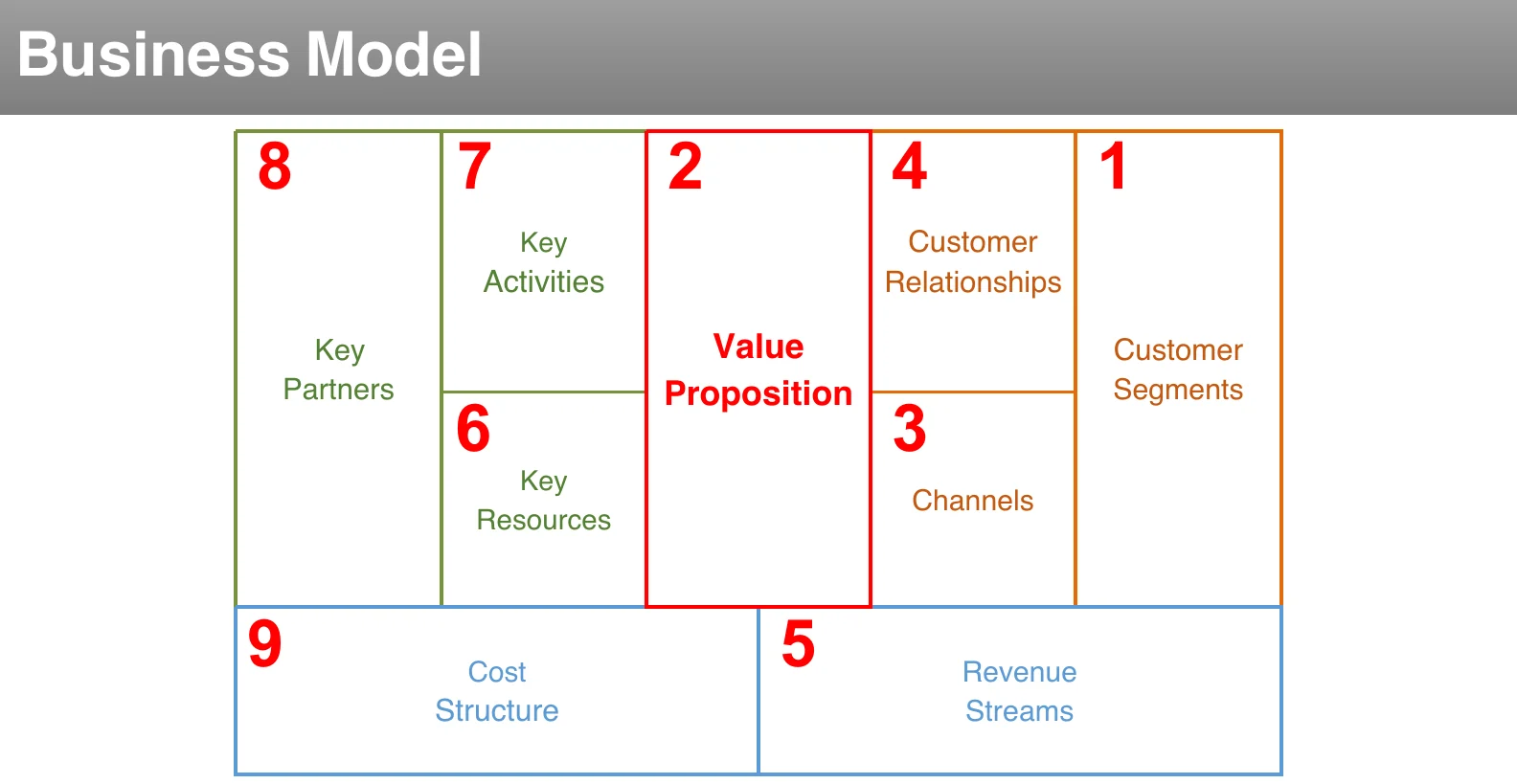

PDF page 73The business model canvas.
