● Chapter 06 · L03 — Software Design & Architecture

Blueprints for objects that build themselves — and objects there's only one of.

A rebuilt, memorable pass through Builder and Singleton — the two creational patterns after Abstract Factory and Factory Method. Every section carries a mnemonic so it sticks past the exam.

Patterns

Builder · Singleton

Quick recap of what came before

Chapter 06 already covered two creational patterns. Keep them straight with one line each — they're the setup for why Builder and Singleton exist.

🏭

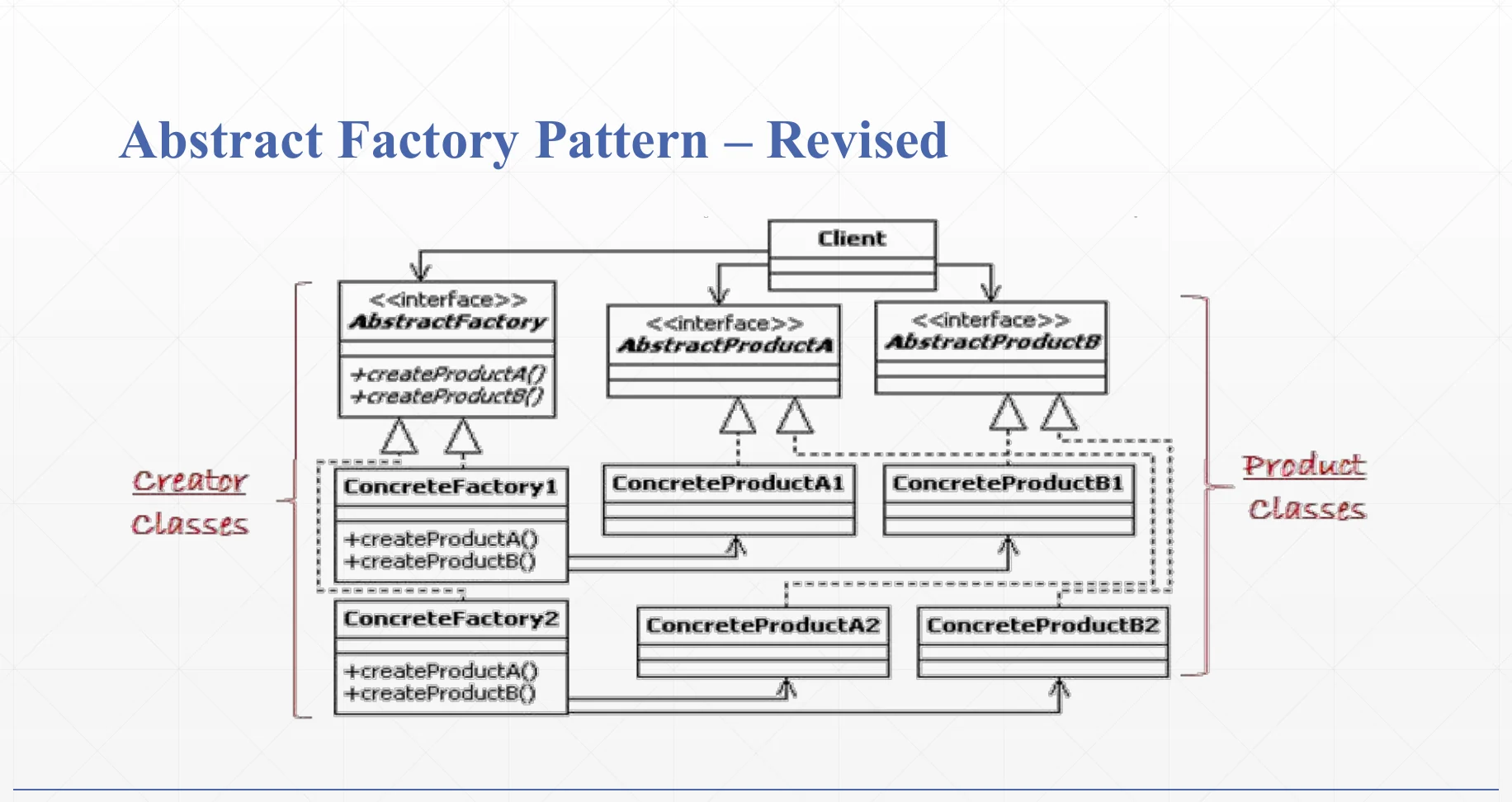

Abstract Factory

Mnemonic: "Whole family, one order." Creates several related objects at once (e.g. CPU + Monitor + Keyboard) so they're always a matching set.

🧩

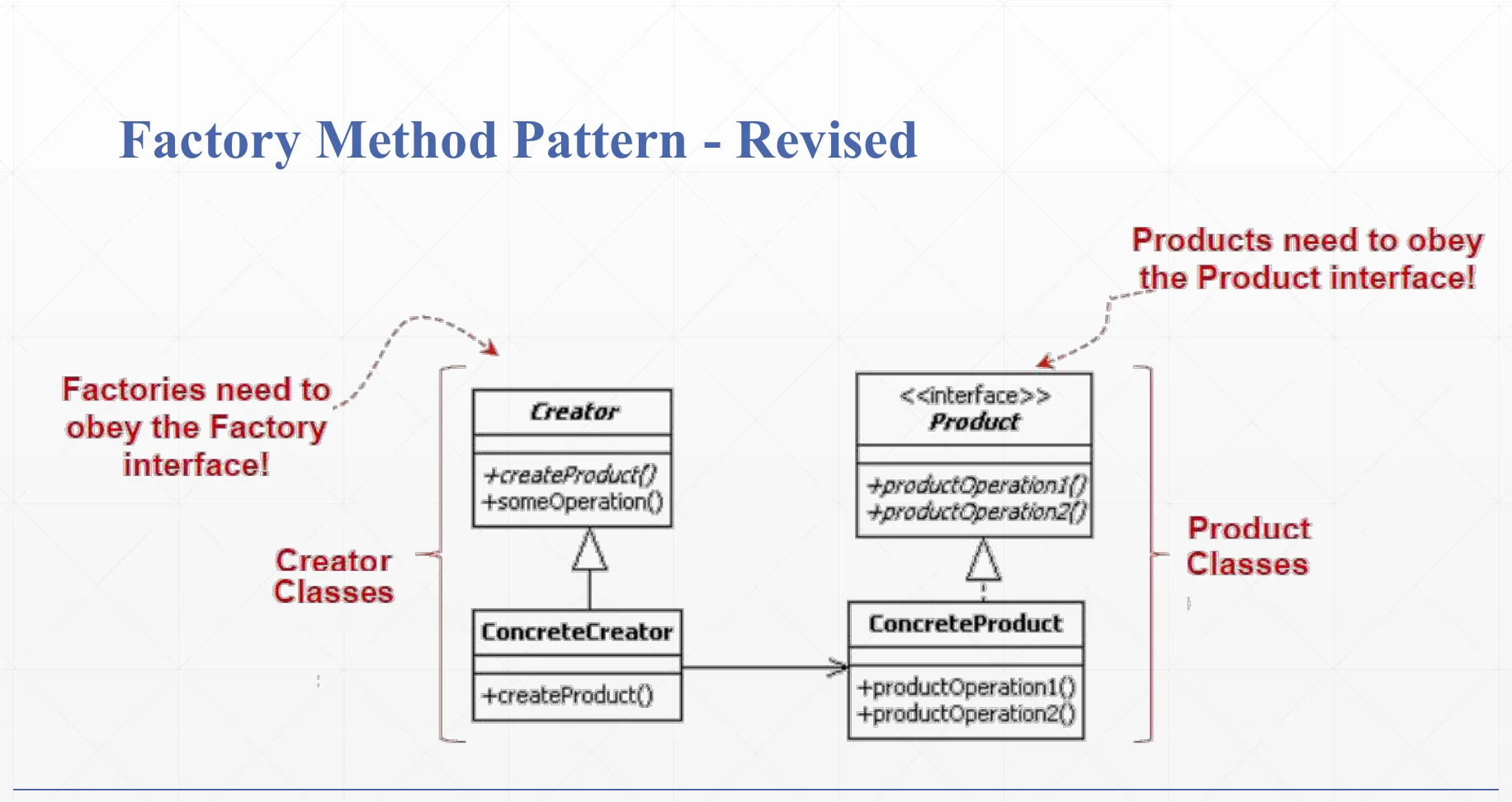

Factory Method

Mnemonic: "One product, many recipes." A single creation method, overridden by subclasses to decide which concrete class gets built.

➡️

What's new today

Builder asks "how do I build one complex thing, step by step?" Singleton asks "how do I make sure only one exists, ever?" Neither is about families of objects — that was Abstract Factory's job.

Creational Pattern

The Builder Pattern

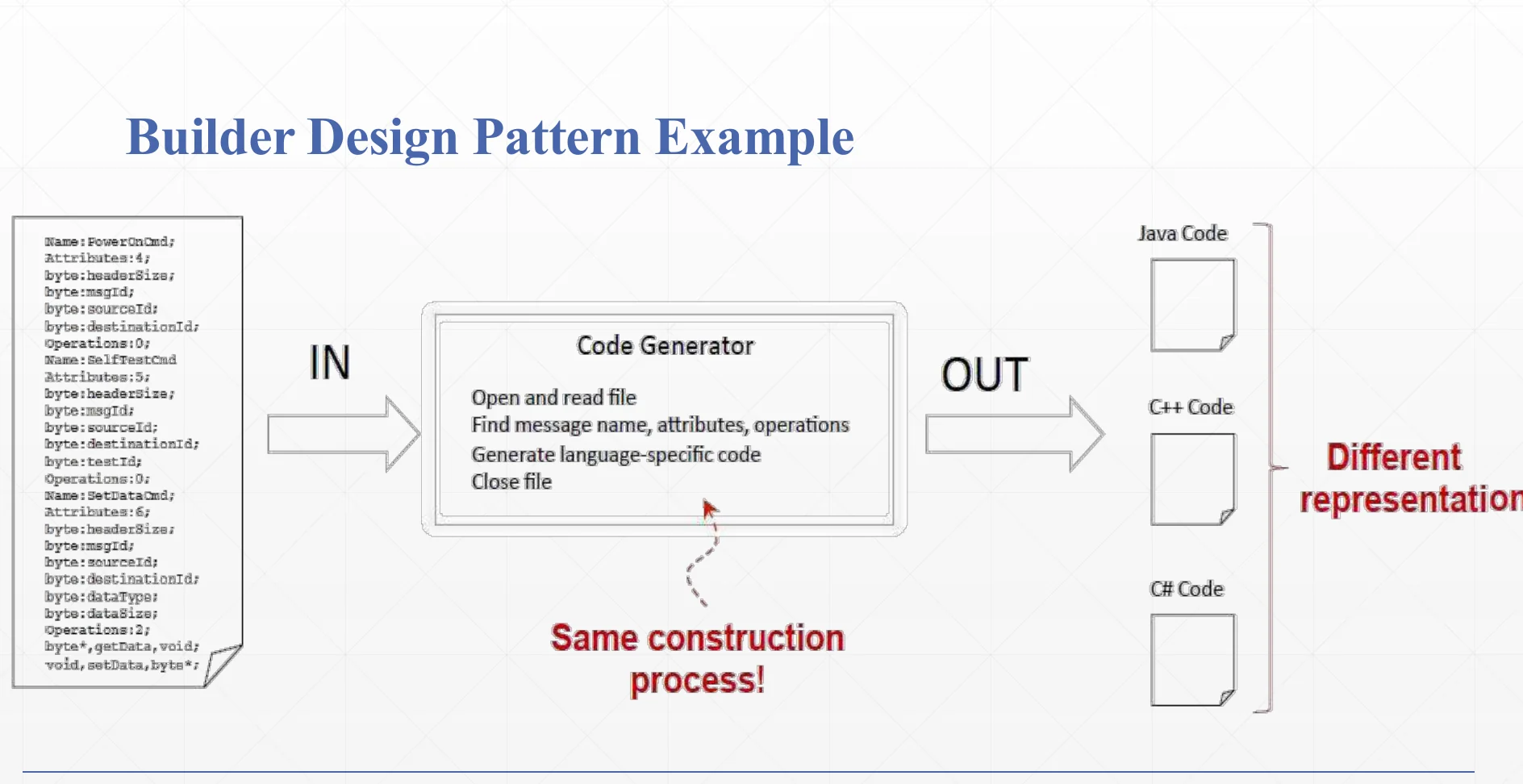

Intent: separate the construction of a complex object from its representation, so the same construction steps can produce different final results.

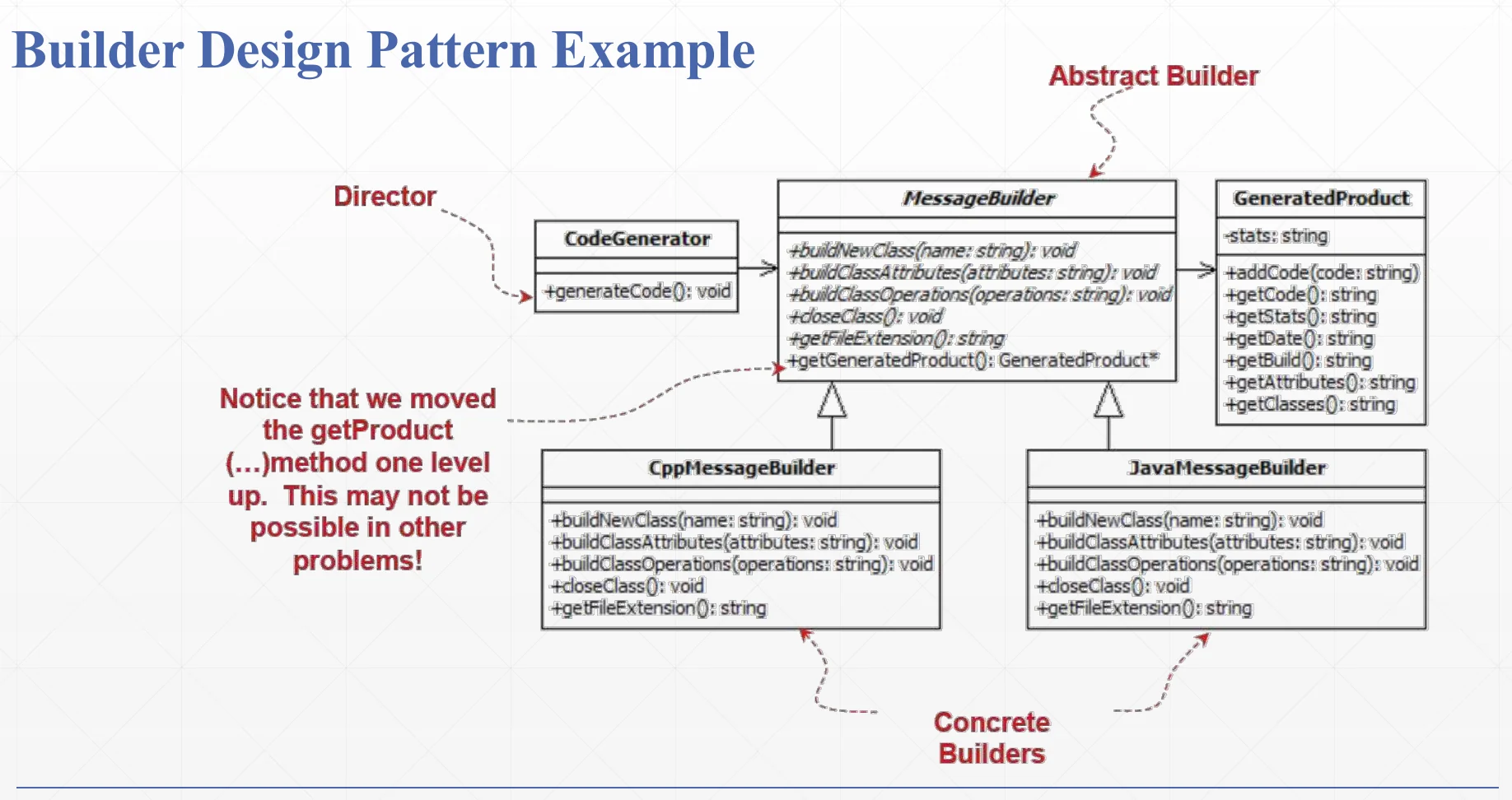

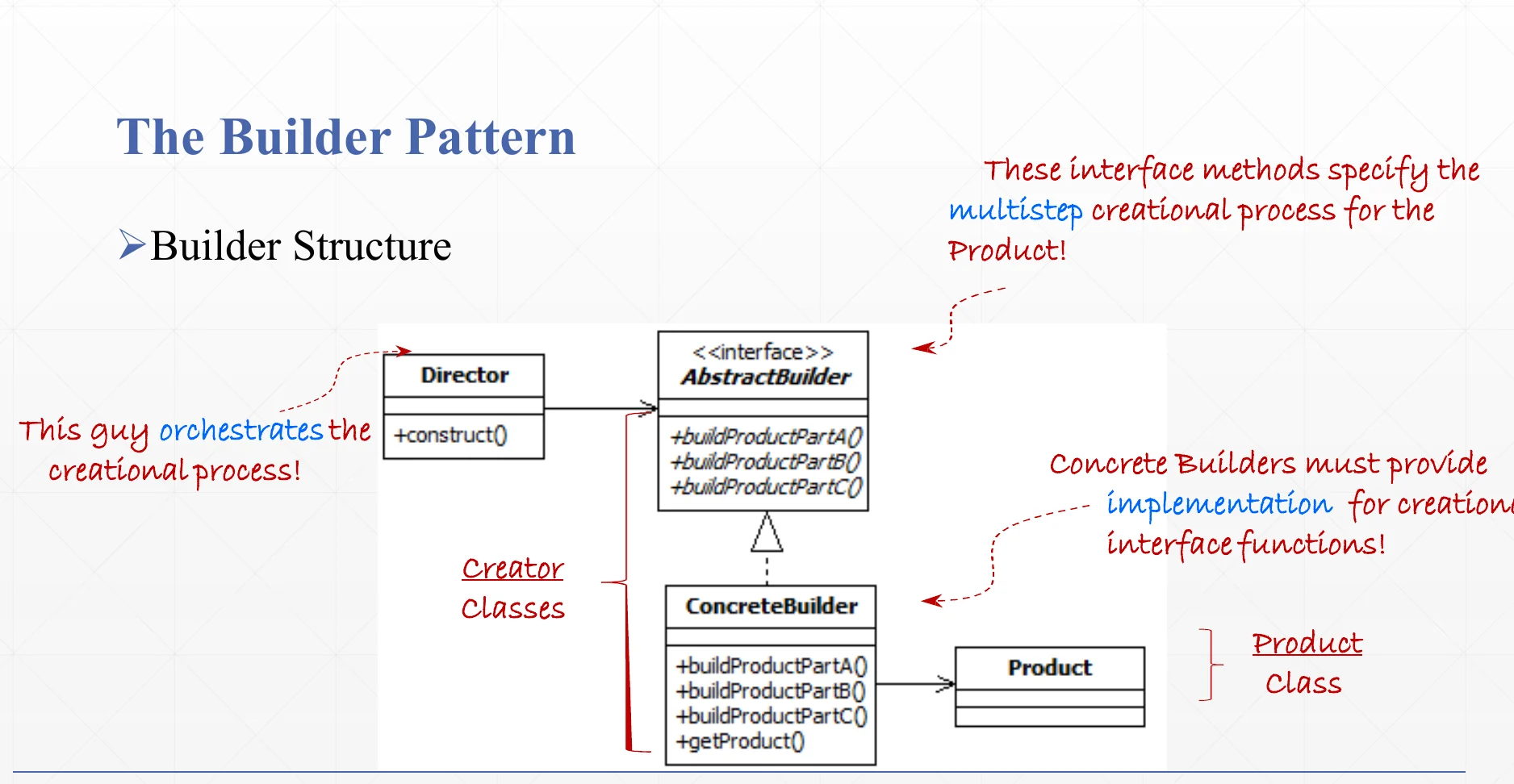

The 4 roles — remember them as "Dad Builds Cool Products"

🎬

Director

Orchestrates the steps in order. Doesn't know how each step works — just the sequence.

📋

Builder (interface)

Declares the multistep API: buildPartA(), buildPartB(), getResult().

🛠️

Concrete Builder

One class per variant — implements each step its own way, holds the in-progress object.

📦

Product

The final complex object that comes out the other end, fully assembled.

Flow: Client picks a Concrete Builder → hands it to the Director → Director calls the steps in sequence → Client asks the builder for the finished Product.

Client

chooses the variant

→

Director

runs construct()

→

Concrete Builder

executes each step

→

Product

getResult()

Worked example: the Burger Builder

Beef and Chicken burgers follow the exact same 3 steps (bun → patty → sauce) with different ingredients — a clean, minimal Builder implementation:

Builder.java — the shared interface

interface BurgerBuilder {
                        void addBun();
                        void addPatty();
                        void addSauce();
                        Burger getBurger();
                        }

                        // Concrete builder — one recipe
                        class BeefBurgerBuilder implements BurgerBuilder {
                        Burger burger = new Burger();
                        public void addBun() { burger.bun = "Sesame
                            Bun"; }
                        public void addPatty() { burger.patty = "Beef
                            Patty"; }
                        public void addSauce() { burger.sauce = "BBQ
                            Sauce"; }
                        public Burger getBurger() { return burger; }
                        }


Chef.java — the director

class Chef {
                        private BurgerBuilder builder;
                        Chef(BurgerBuilder b) { builder = b; }

                        // same 3 steps, every time
                        public Burger construct() {
                        builder.addBun();
                        builder.addPatty();
                        builder.addSauce();
                        return builder.getBurger();
                        }
                        }

                        // client
                        Chef chef = new Chef(new
                        BeefBurgerBuilder());
                        Burger beef = chef.construct();


✅

Why bother?

To add a Turkey Burger tomorrow, you write one new concrete builder. The Director, the Client, and the Product class don't change at all — that's the extensibility payoff.

⚖️

Builder vs. Abstract Factory

Builder builds one complex object, one step at a time, and gives you fine control over when each part is created. Abstract Factory builds a family of separate, related objects, all in one shot. Different problem, same "creational" family.

Creational Pattern

The Singleton Pattern

Intent: ensure a class has only one instance, and provide a global access point to it.

🔑 🔑 🔑 🔑 🔑

every call to getInstance() hands back the one glowing key — never a new one

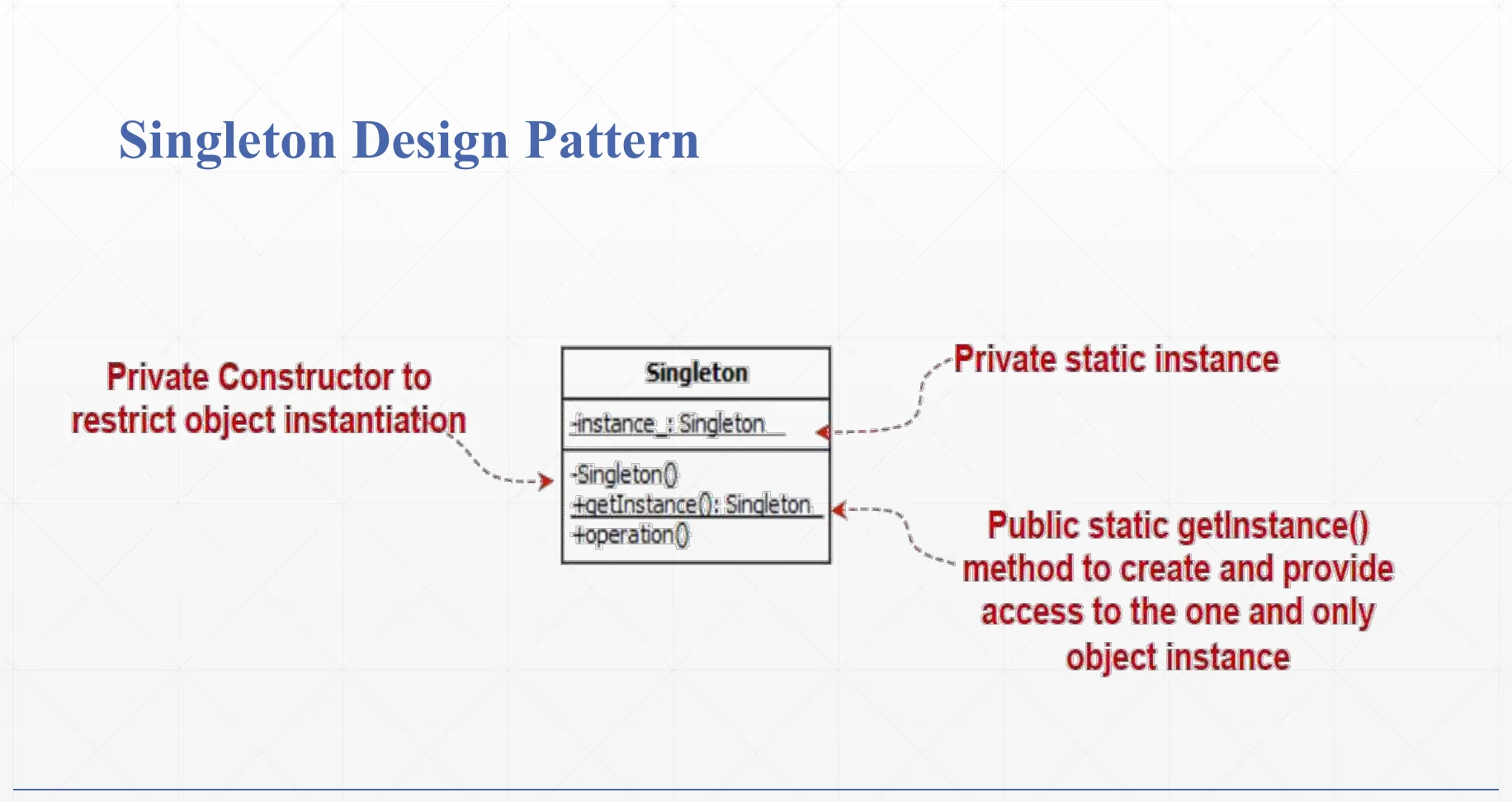

3 ingredients — remember "Locked, Instance, Door"

🔒

Private Constructor

Blocks anyone outside the class from typing new Singleton().

📌

Static Instance

One private field holds the single object, alive for the program's whole run.

🚪

getInstance() "Door"

The only public, static way in — creates the instance once, then always returns it.

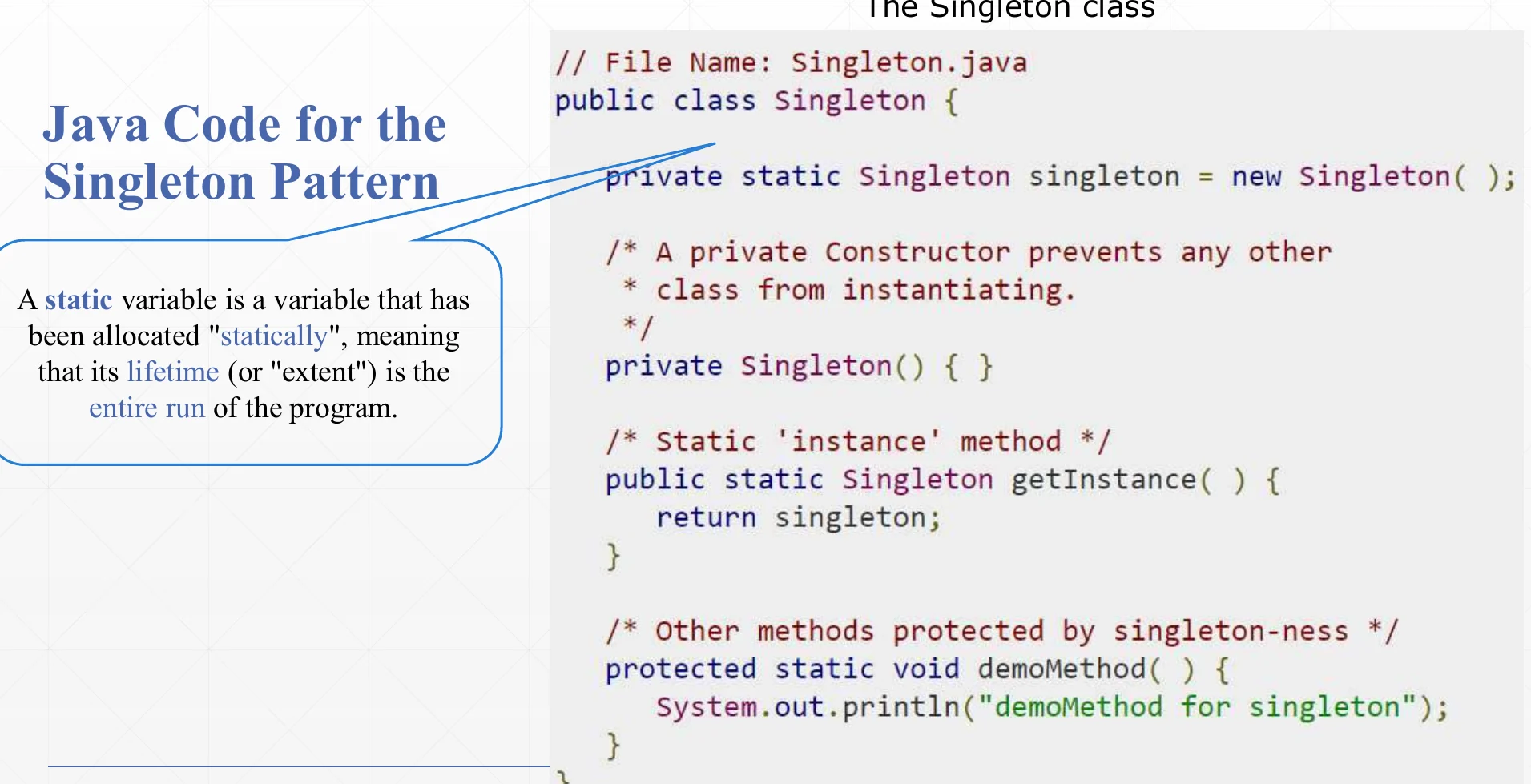

Designing one, in 3 steps

Make the constructor private

Nobody outside the class can instantiate it directly.

Add a private static reference to hold the one instance

This is the single "slot" the object will ever live in.

Expose a public static getInstance()

It creates the object the first time it's called, and simply returns it every time after.

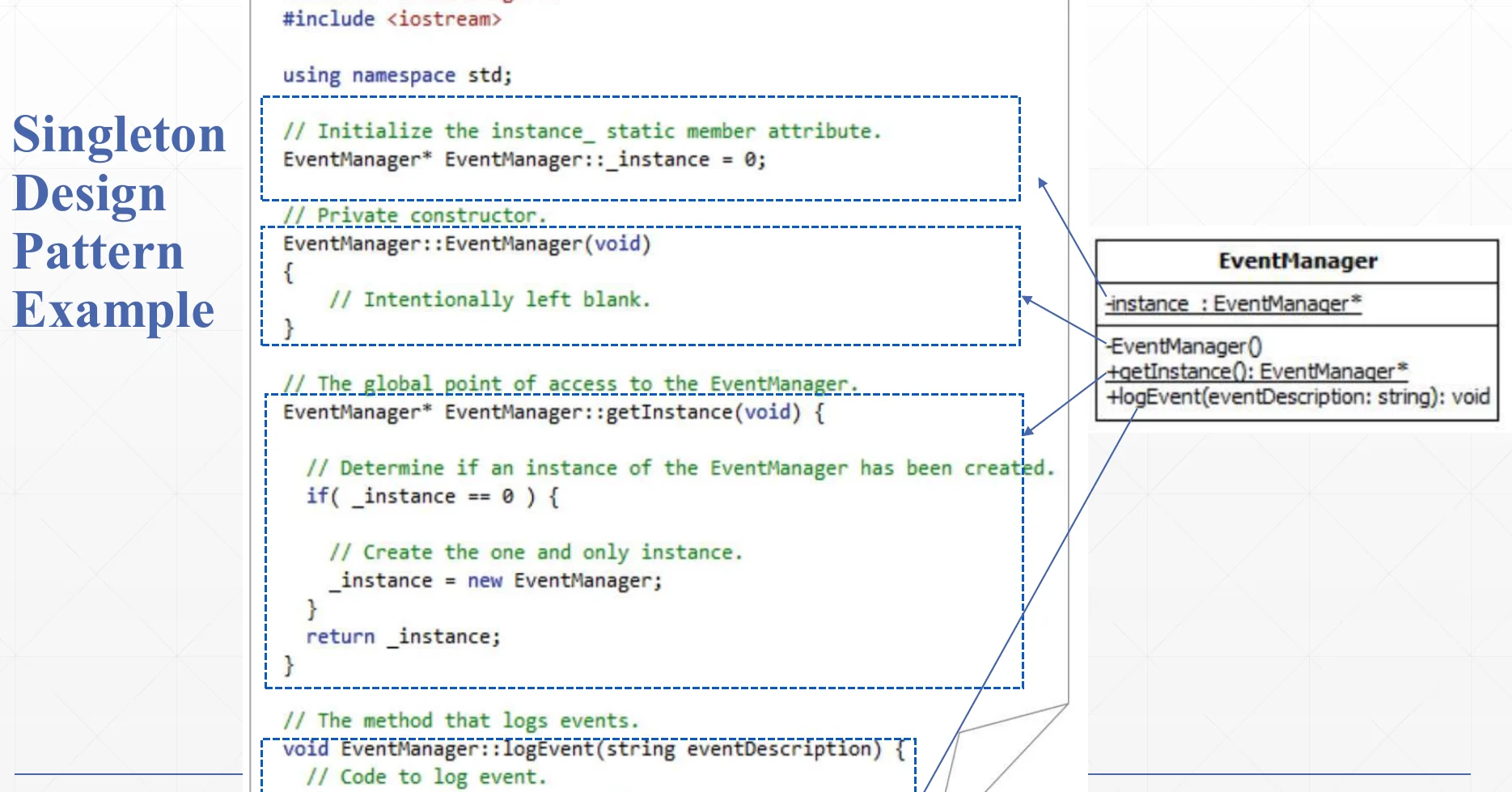

Real scenario: one logger for a banking app

Login, Transactions, and Notifications all need to log events. If each created its own logger, you'd get scattered, conflicting log files. A Singleton EventLogger gives every part of the app the exact same logger.

EventLogger.java

public class EventLogger {
                private static EventLogger instance;

                // L — locked: private constructor
                private EventLogger() {}

                // D — the one door in
                public static EventLogger getInstance() {
                if (instance == null) {
                instance = new EventLogger(); // I — created once
                }
                return instance;
                }

                public void log(String message) {
                System.out.println("Log: " + message);
                }
                }

                // used identically from anywhere in the app:
                EventLogger.getInstance().log("User Alice logged in.");
                EventLogger.getInstance().log("Transferred $250 from Alice to Bob.");


✅

Benefit

Controlled, centralized access to the one instance — no duplicate loggers, no conflicting writes.

⚠️

Watch out

The classic Singleton doesn't play well in multithreaded environments — two threads can race to create the instance at the same time unless it's synchronized.

From the practice question

Bonus: Prototype Pattern

Not a full topic this chapter, but it showed up in the practice exercise (Circle/Square shapes) — worth two lines of memory.

Prototype in one breath

interface Shape { Shape clone(); }

                class Circle implements Shape {
                int radius;
                Circle(int r) { radius = r; }
                public Shape clone() { return
                    new Circle(radius); } // copy, not construct
                }


📎

One table to rule the exam

Cheat sheet

Pattern	Solves	Key Method	Mnemonic
Abstract Factory	Creating a family of related objects together	createProductA(), createProductB()…	🏭 Whole family, one order
Factory Method	Letting subclasses decide which class to instantiate	createProduct()	🧩 One product, many recipes
Builder	Constructing one complex object step by step	buildPartX(), getResult()	🍔 Same recipe, different burger
Singleton	Guaranteeing exactly one instance exists	getInstance()	🔑 One key, one lock, one door
Prototype	Creating new objects by copying existing ones	clone()	🧬 Don't build — clone it

🧠

Active recall

Flip-card review

tap a card to flip it

Q1What does the Builder pattern separate from what?

Construction (the steps) from representation (the final look) — same steps, different outputs.

Q2Who orchestrates the build steps in order?

The Director — it calls the builder's steps in sequence but doesn't know how each step works internally.

Q3Builder vs. Abstract Factory — what's the real difference?

Builder = one object, step-by-step. Abstract Factory = a whole family of related objects, all at once.

Q4What 2 things guarantee a class has only one instance?

A private constructor (blocks "new" from outside) + a static getInstance() that creates it only once.

Q5What's the main drawback of the classic Singleton?

It's not safe in multithreaded environments — two threads can create two instances at once unless synchronized.

Q6Why use Builder over one giant constructor?

A giant constructor with many parameters is hard to read, hard to customize, and easy to get wrong — Builder assembles it step by step instead.

Q7To add a new burger flavor, what do you change?

Just add one new Concrete Builder class — the Director, Client, and Product stay untouched. That's the extensibility win.

Q8What does Prototype's clone() avoid?

Rebuilding an object from scratch — it copies an existing instance instead of calling "new" again.
