SE322 · Chapter 7 · Lecture 1 · Annotated SlidesStructural Design Patterns: Adapter, Composite and Facade
PDF
Overview

Structural Design Patterns: Adapter, Composite and Facade

Structural patterns deal with how existing classes and objects are put together. Adapter converts the interface of an existing class (the adaptee) into the interface a client expects (the target), either by wrapping it (object adapter) or by inheriting from it (class adapter). Composite arranges objects into part–whole trees so that a client can treat a single leaf and a whole group the same way. Facade puts one simple, higher-level interface in front of a complicated subsystem.

Adapter

Client → Target interface ← Adapter → Adaptee. The adapter translates calls; the adaptee is unchanged. Example: BirdAdapter makes a Sparrow act as a ToyDuck.

Object vs. class adapter

Object adapter holds an adaptee (composition, run time); class adapter inherits from it (compile time, needs multiple inheritance). Object adapter is preferred.

Composite

Component interface; Leaf implements it; Composite implements it and holds a list of Components, forwarding each call to its children.

Facade

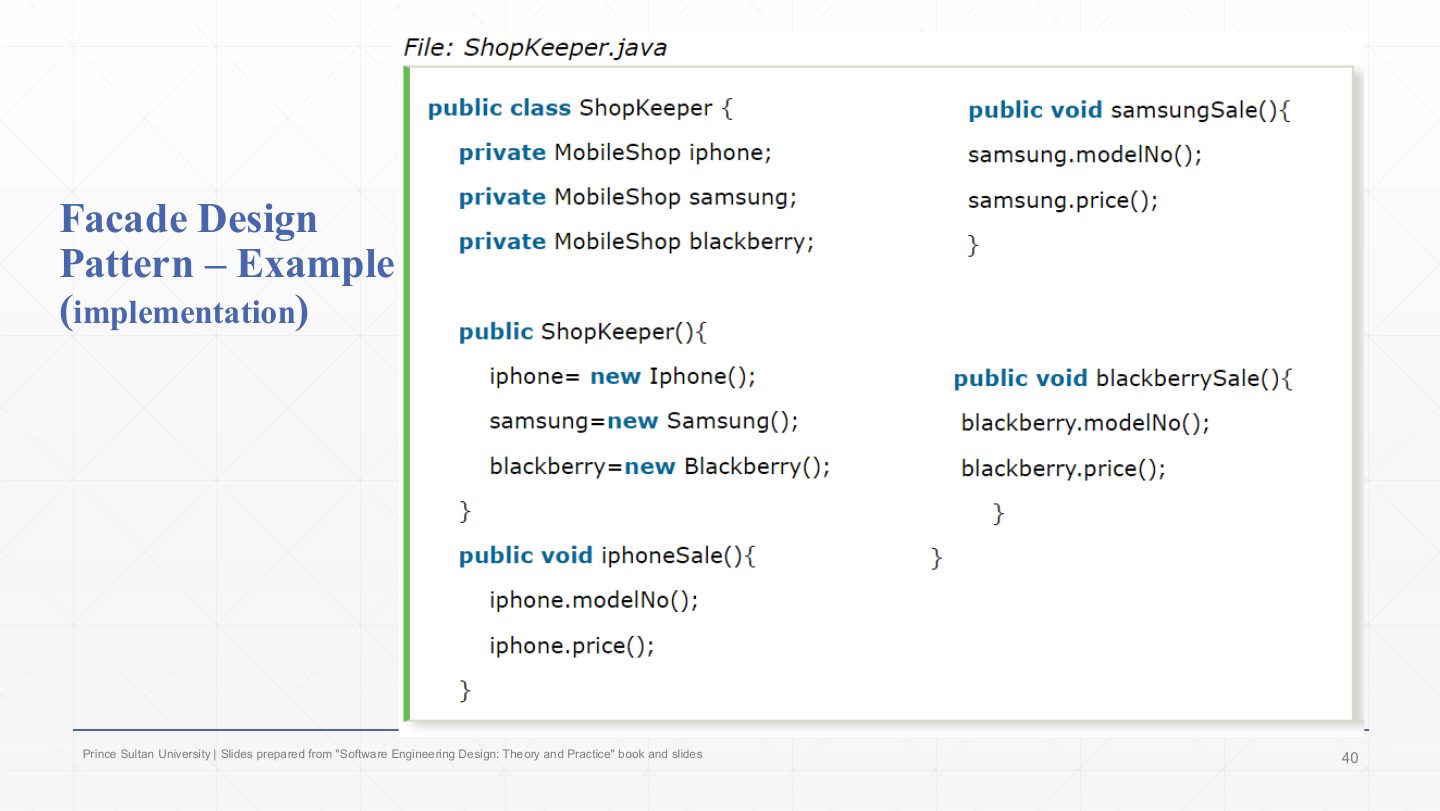

One class (ShopKeeper) offers simple task methods (iphoneSale()) and calls the subsystem classes for the client.

How the lecture is organized

  • Slides 1–3Structural patterns
  • Slides 4–16Adapter: intent, structure, ToyDuck and Bird example, object vs. class adapter, pros and cons
  • Slides 17–31Composite: intent, structure, Java example, steps, benefits, file-system example
  • Slides 32–42Facade: intent, structure, mobile-shop example, steps, benefits, summary

Exam focus

Final 252 Q7-1 (2.5 marks) asked you to recognise Composite in a file explorer (files and nested folders, total folder size) and draw its class diagram. Expect Adapter and Facade as “which pattern?” questions and as a comparison (Adapter converts an interface; Facade simplifies a subsystem).

How to read this page

Every original slide is shown unchanged. Yellow marks on a slide point to a numbered note: hover or tap a mark to jump to its note, and hover a note to see its marks. Questions tagged Past exam appeared on a real paper; Prediction questions are likely angles, not confirmed.

All 42 slides
  1. 1 Slide 1
  2. 2 Lecture Outlines
  3. 3 Structural Patterns in Detailed Design
  4. 4 Adapter Design Pattern
  5. 5 Adapter Design Pattern – a real-life example
  6. 6 Adapter: the problems it solves
  7. 7 Adapter: object and class adapters
  8. 8 Adapter Design Pattern - Structure
  9. 9 Adapter Design Pattern Example*
  10. 10 Adapter Example: ToyDuck and Bird code
  11. 11 Adapter Example: BirdAdapter
  12. 12 Adapter Example: the client
  13. 13 Adapter Design Pattern Example
  14. 14 Adapter Design Pattern Example
  15. 15 Adapter Example: client code and explanation
  16. 16 Adapter Design Pattern
  17. 17 The Composite Design Pattern
  18. 18 The Composite Design Pattern Structure
  19. 19 The Composite Design Pattern Example
  20. 20 Composite Example: Component.java
  21. 21 The Composite Design Pattern Example
  22. 22 Composite Example: Leaf.java
  23. 23 The Composite Design Pattern Example
  24. 24 Composite Example: Composite.java
  25. 25 The Composite Design Pattern Example
  26. 26 Composite Example: CompositeDemo.java
  27. 27 Composite Example: output
  28. 28 The Composite Design Pattern

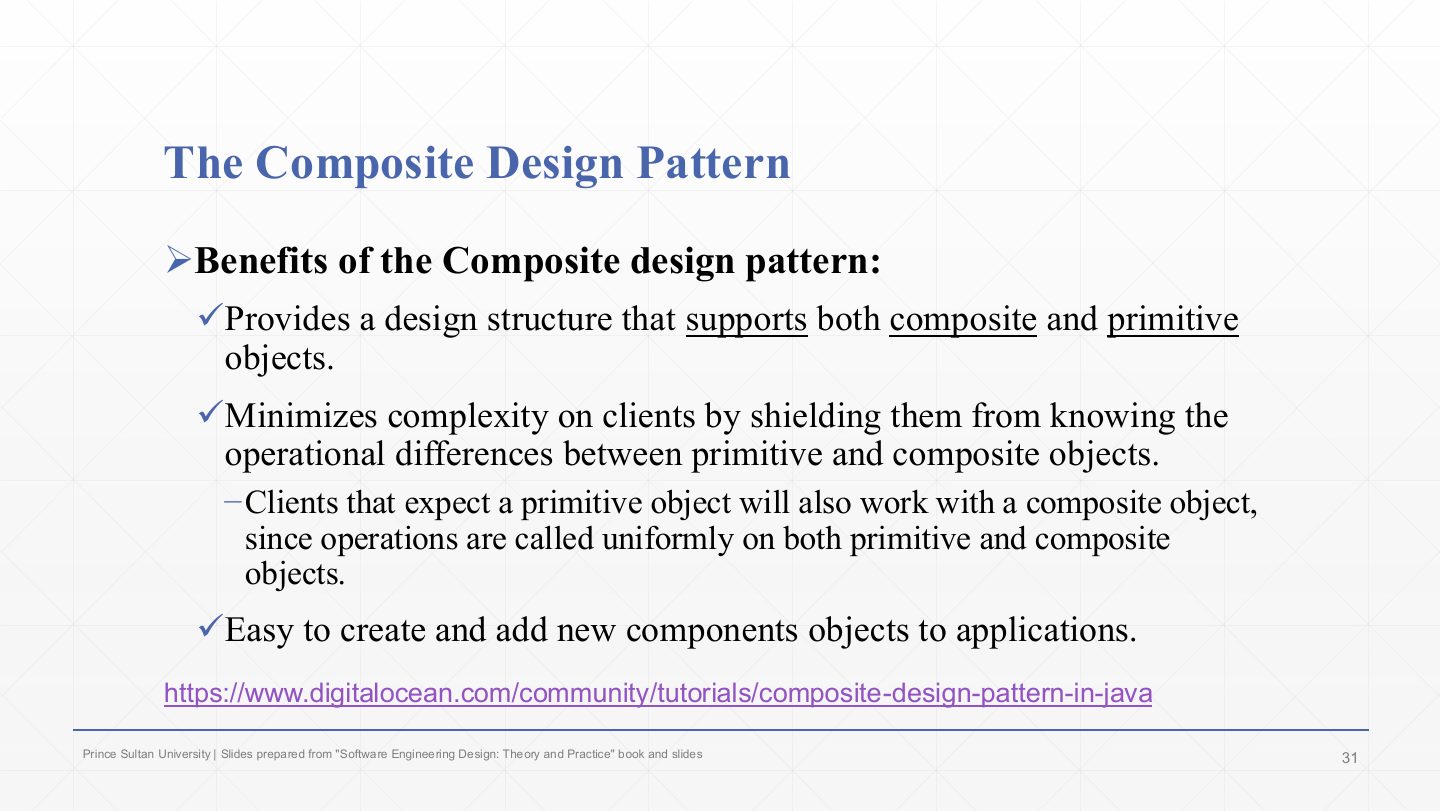

  29. 29 The Composite Design Pattern

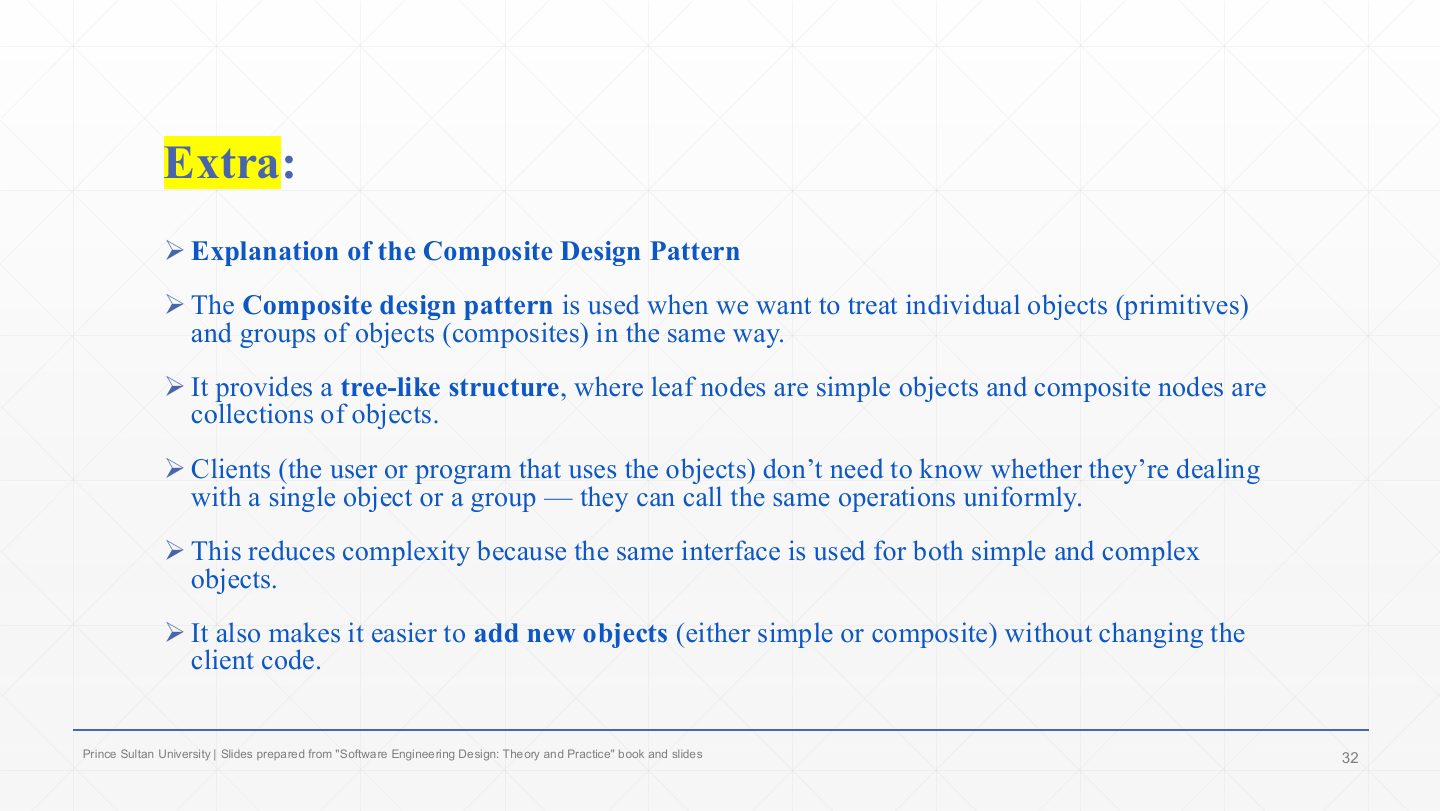

  30. 30 Extra: Explanation of the Composite pattern

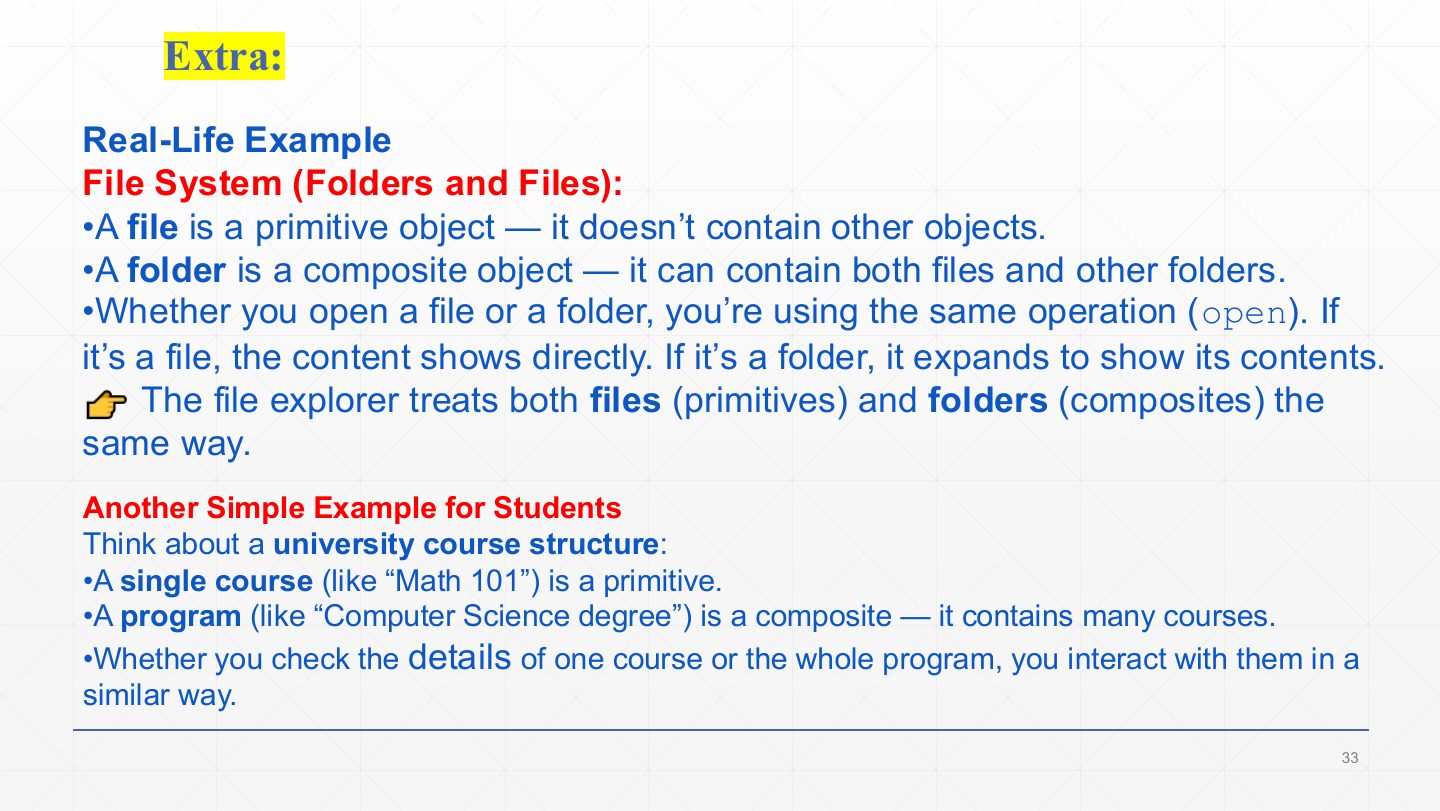

  31. 31 Extra: Composite in real life

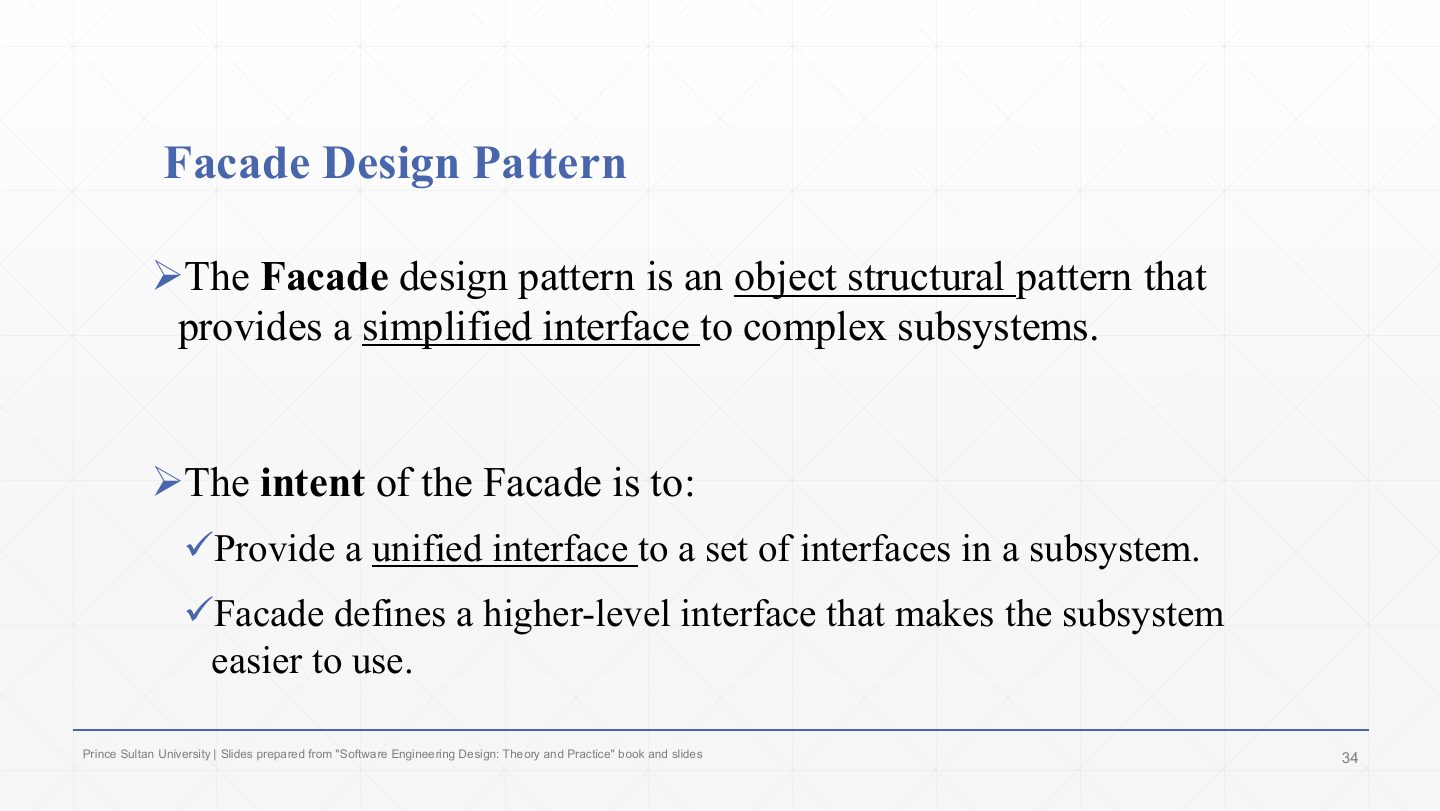

  32. 32 Facade Design Pattern

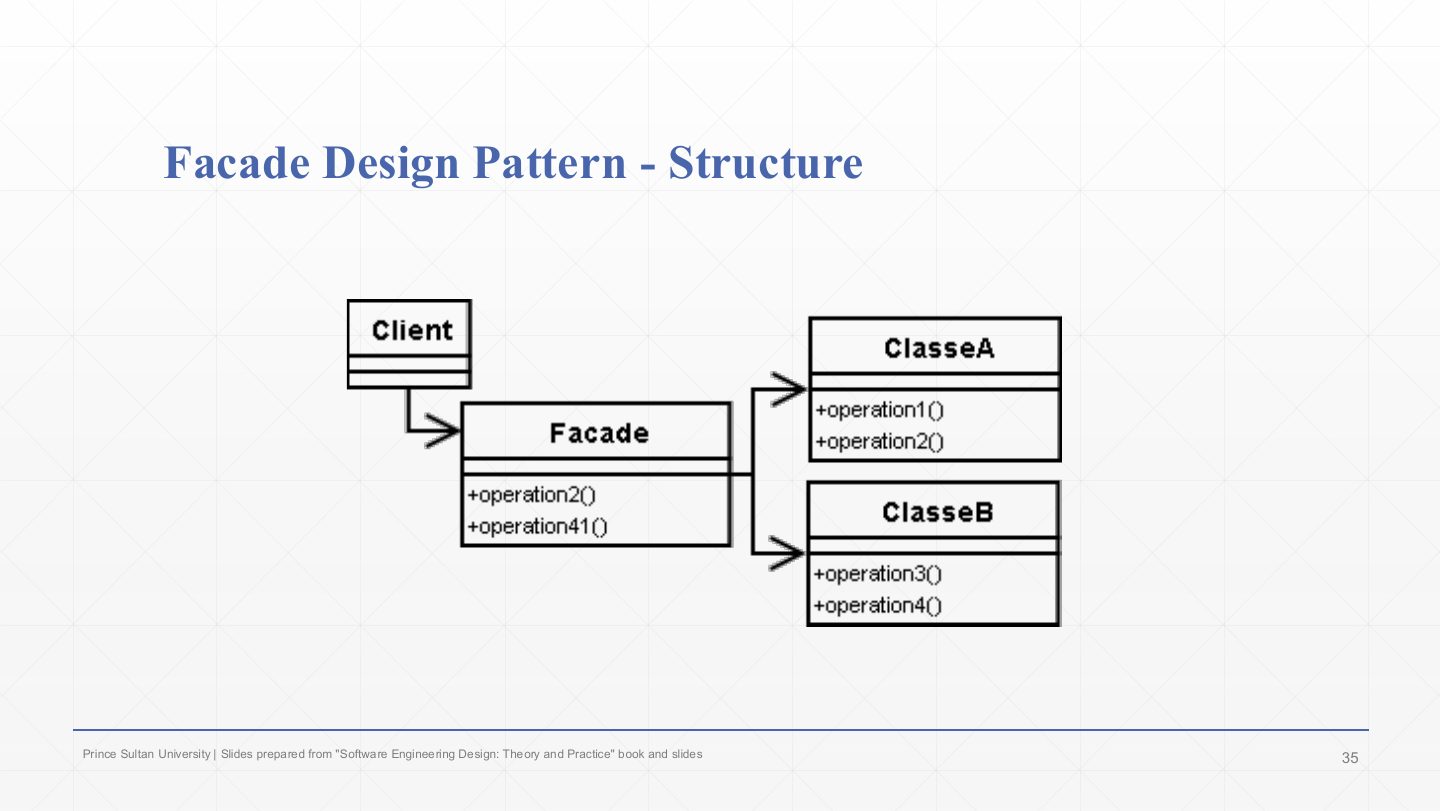

  33. 33 Facade Design Pattern - Structure

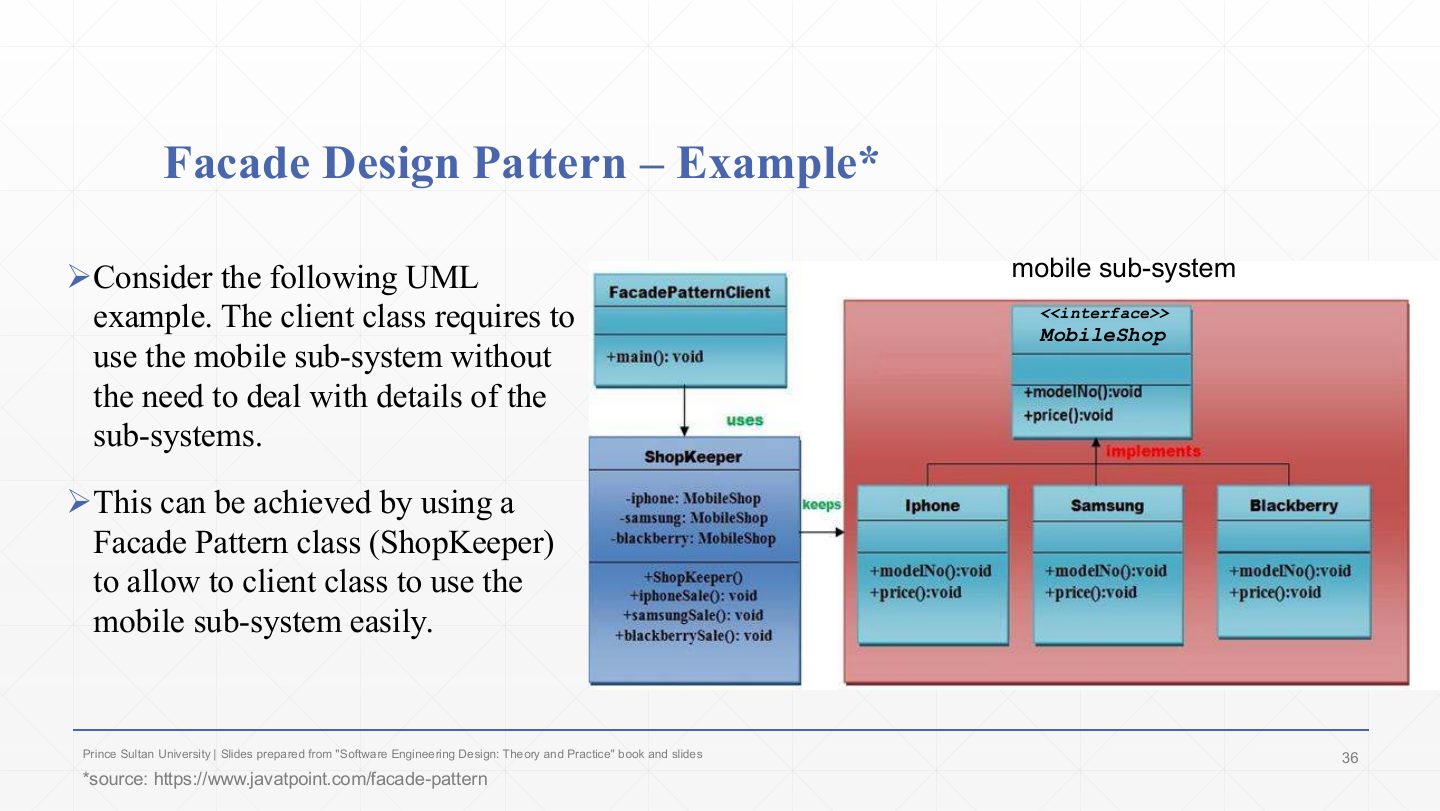

  34. 34 Facade Design Pattern Example*
  35. 35 Facade Example: MobileShop and Iphone
  36. 36 Facade Example: Samsung and Blackberry
  37. 37 Facade Example: ShopKeeper
  38. 38 Facade Example: client and output

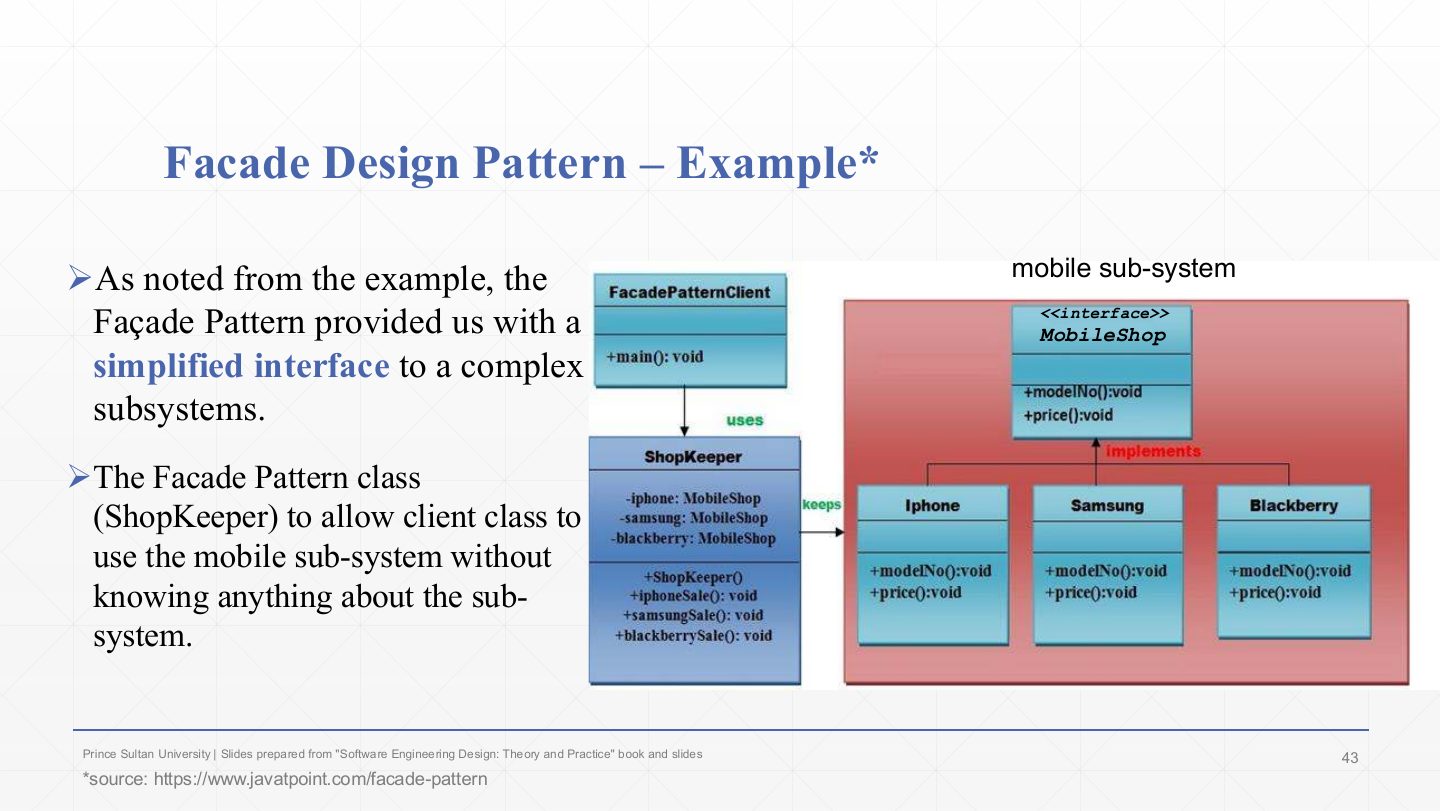

  39. 39 Facade Design Pattern Example*
  40. 40 Facade Design Pattern
  41. 41 Facade Design Pattern
  42. 42 Summary
Slide 1 / 42

Slide 1

Slide 1: Slide 1

Notes

  1. Chapter 7 moves from creating objects to structuring them. Lecture 1: three structural patterns. Lecture 2: behavioural patterns.

Slide 2 / 42

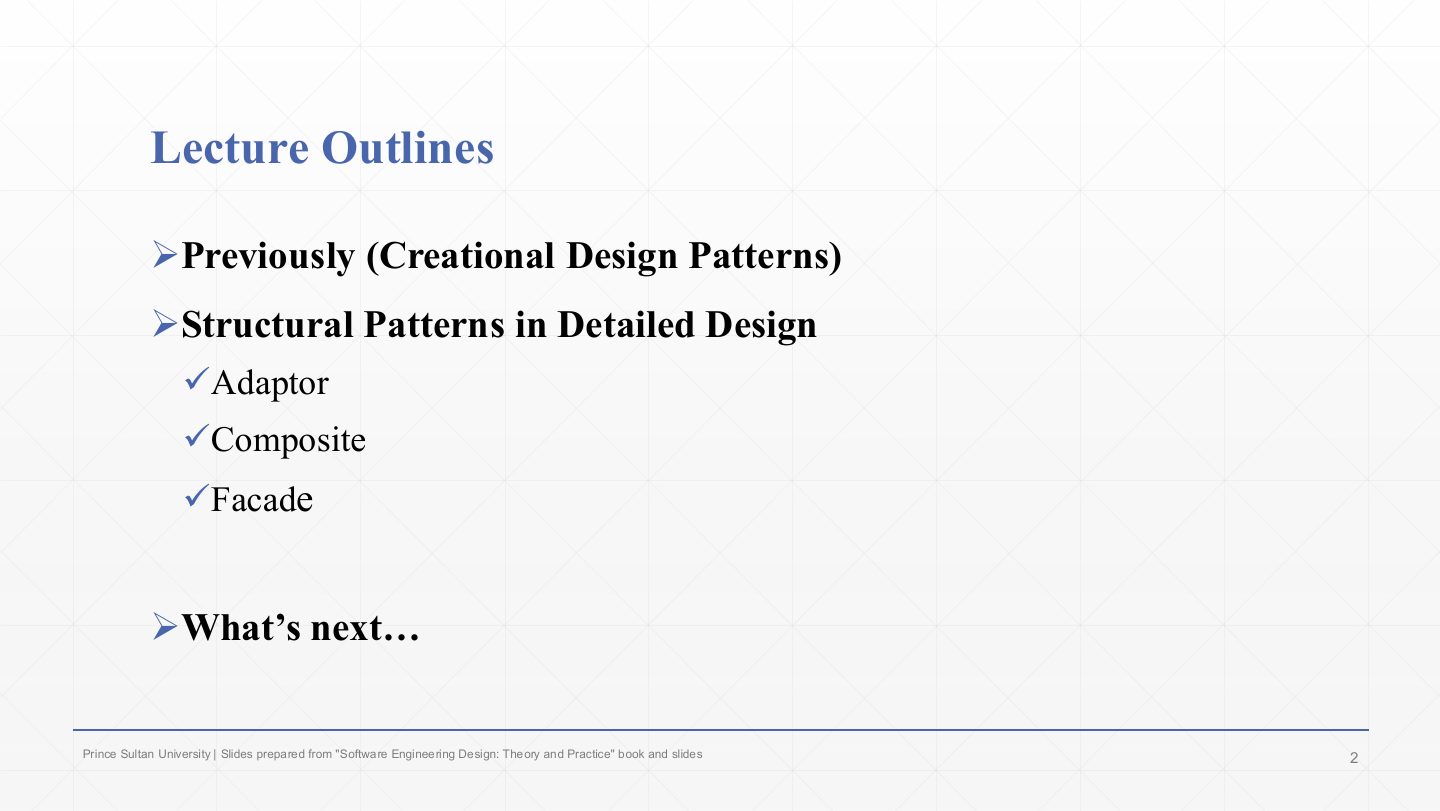

Lecture Outlines

Slide 2: Lecture Outlines

Notes

  1. Previously: the creational patterns (Abstract Factory, Factory Method, Builder, Singleton).

  2. Today: Adapter, Composite and Facade.

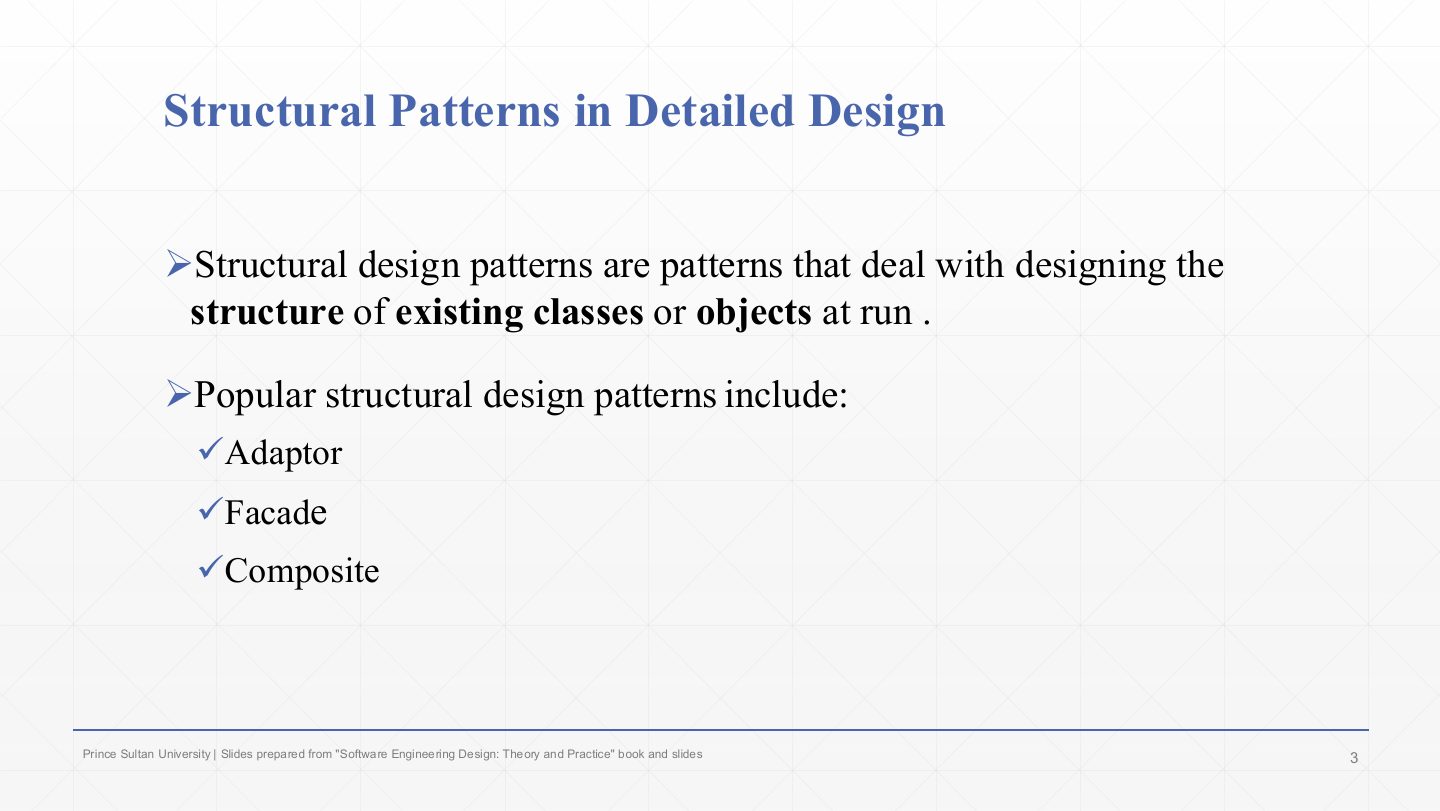

Slide 3 / 42

Structural Patterns in Detailed Design

Slide 3: Structural Patterns in Detailed Design

Notes

  1. Structural patterns deal with designing the structure of existing classes or objects: how they are connected and combined, so parts fit together or present a simpler boundary.

  2. The three here: Adapter (make incompatible interfaces fit), Facade (simplify a subsystem) and Composite (build part–whole trees).

Slide 4 / 42

Adapter Design Pattern

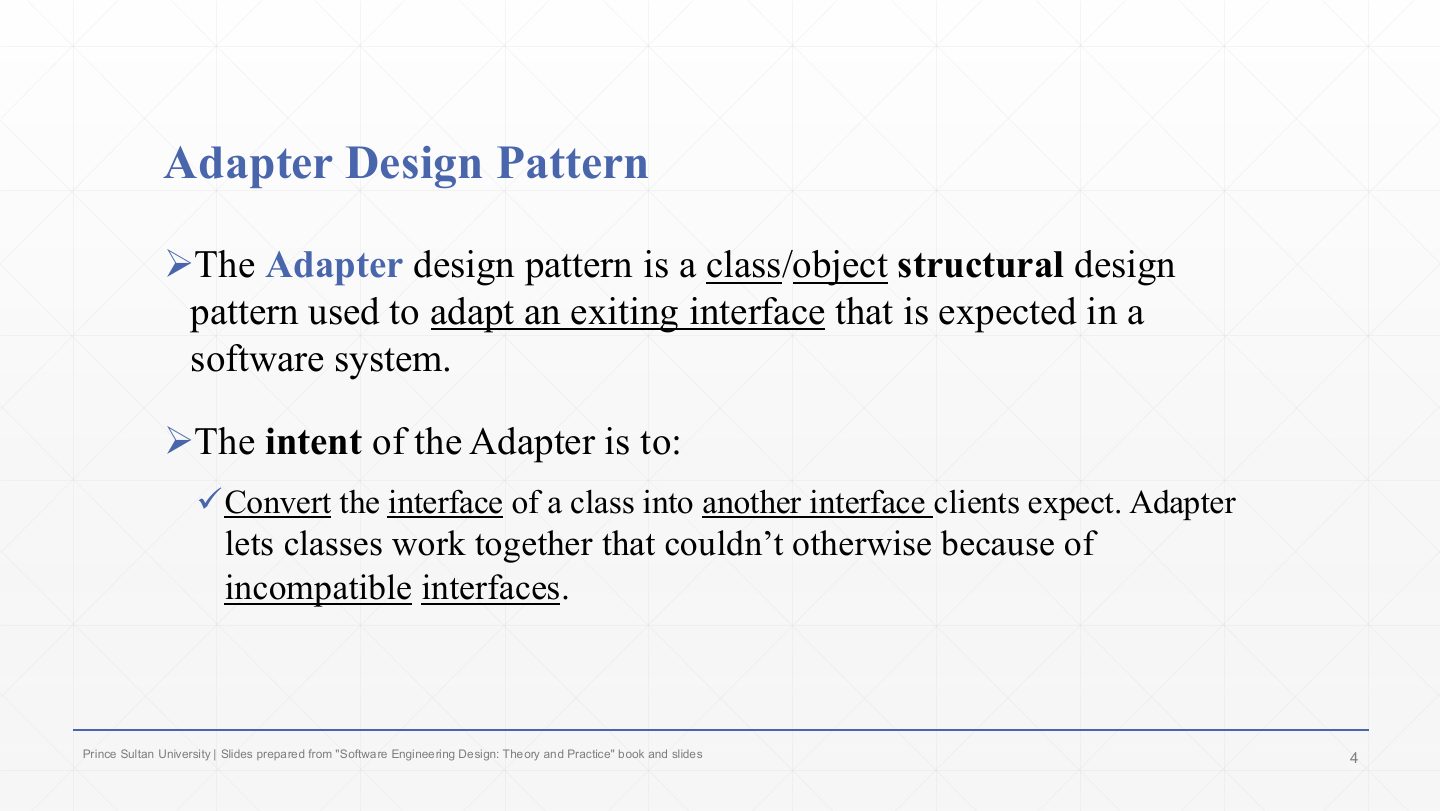

Slide 4: Adapter Design Pattern

Notes

  1. Adapter is a class or object structural pattern (it has both variants) used to adapt an existing interface to the one a system expects.

  2. Its intent: convert the interface of a class into another interface that clients expect. Adapter lets classes work together that otherwise couldn’t because their interfaces are incompatible. Think of a travel plug converter: the device and the socket don’t change; the converter between them does the fitting.

Exam angle

PredictionQ1

Making an existing class with an incompatible interface usable by a client, without changing either, is the:

  1. Adapter pattern
  2. Facade pattern
  3. Composite pattern
  4. Observer pattern
Show answer

A. Adapter pattern

Slide 5 / 42

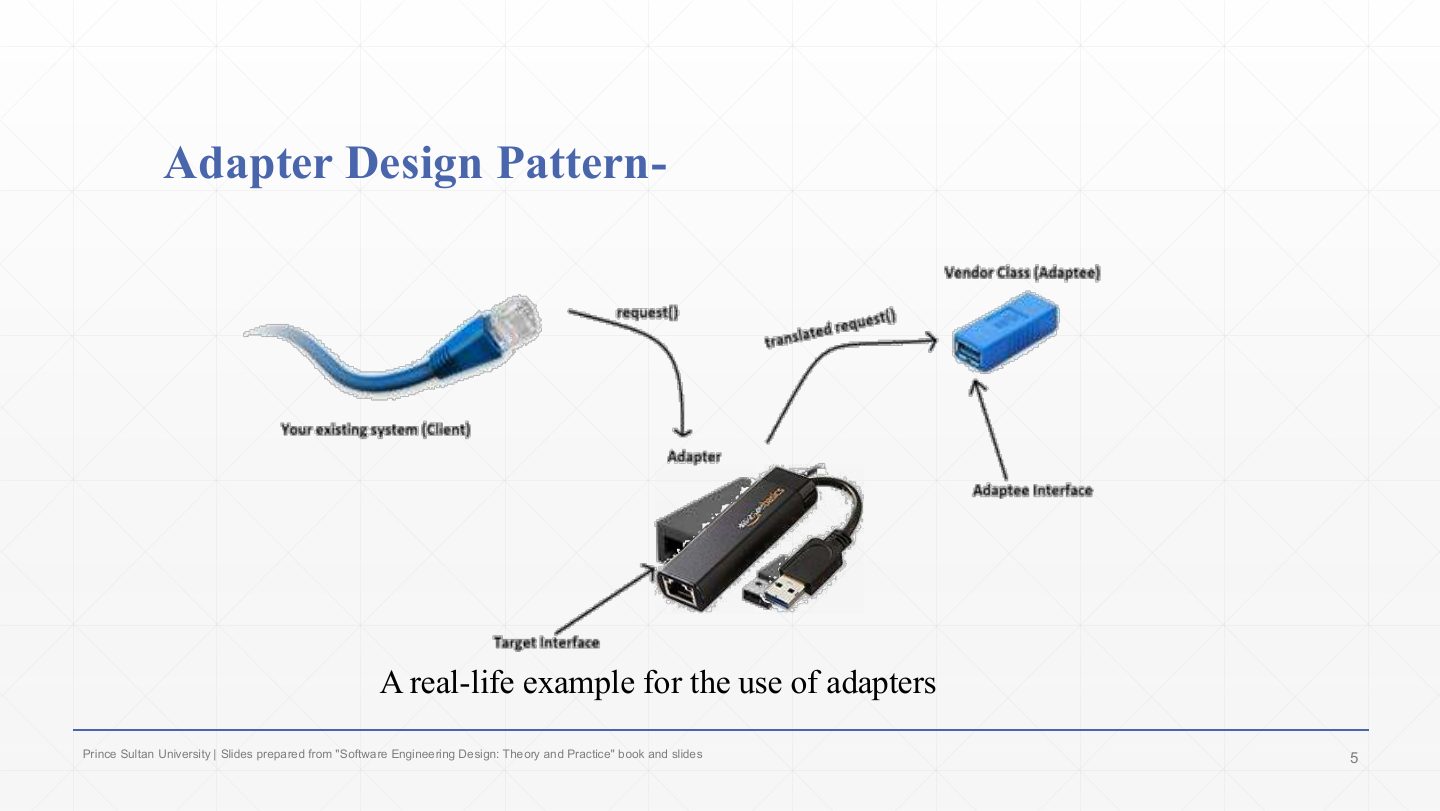

Adapter Design Pattern – a real-life example

Slide 5: Adapter Design Pattern – a real-life example

Notes

  1. The real-life version: your existing system (the client) has an Ethernet cable and sends its request().

  2. The adapter (an Ethernet-to-USB dongle) offers the target interface the cable expects, and passes on a translated request().

  3. The vendor class (adaptee) only understands its own adaptee interface (USB). Neither the cable nor the USB port changed; the adapter did the translation.

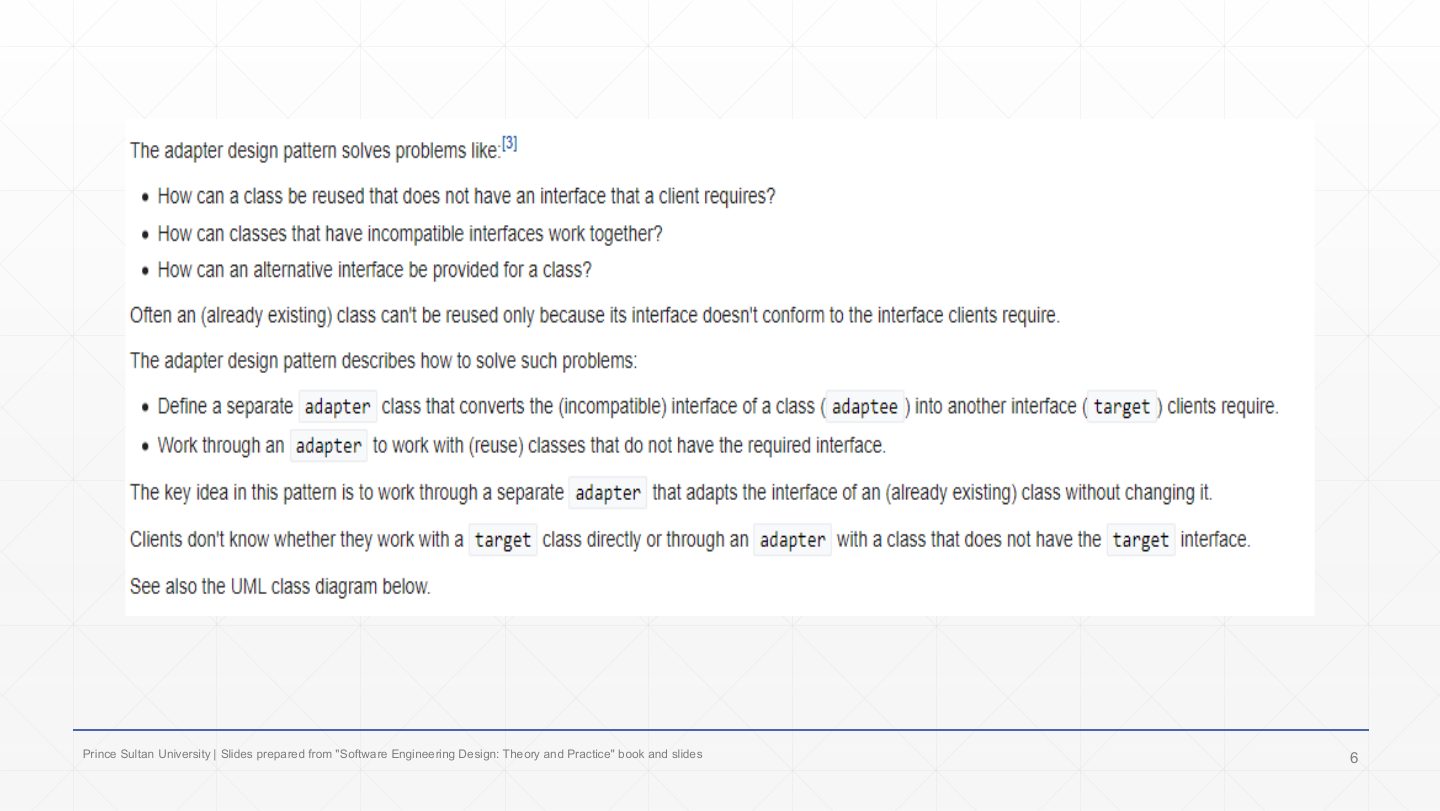

Slide 6 / 42

Adapter: the problems it solves

Slide 6: Adapter: the problems it solves

Notes

  1. The problems Adapter solves: how can a class be reused when it doesn’t have the interface a client requires? How can classes with incompatible interfaces work together? How can an alternative interface be provided?

  2. The solution: define a separate adapter class that converts the (incompatible) interface of a class (the adaptee) into the interface clients require (the target). Clients work through the adapter and don’t know whether they are talking to a target directly or through an adapter.

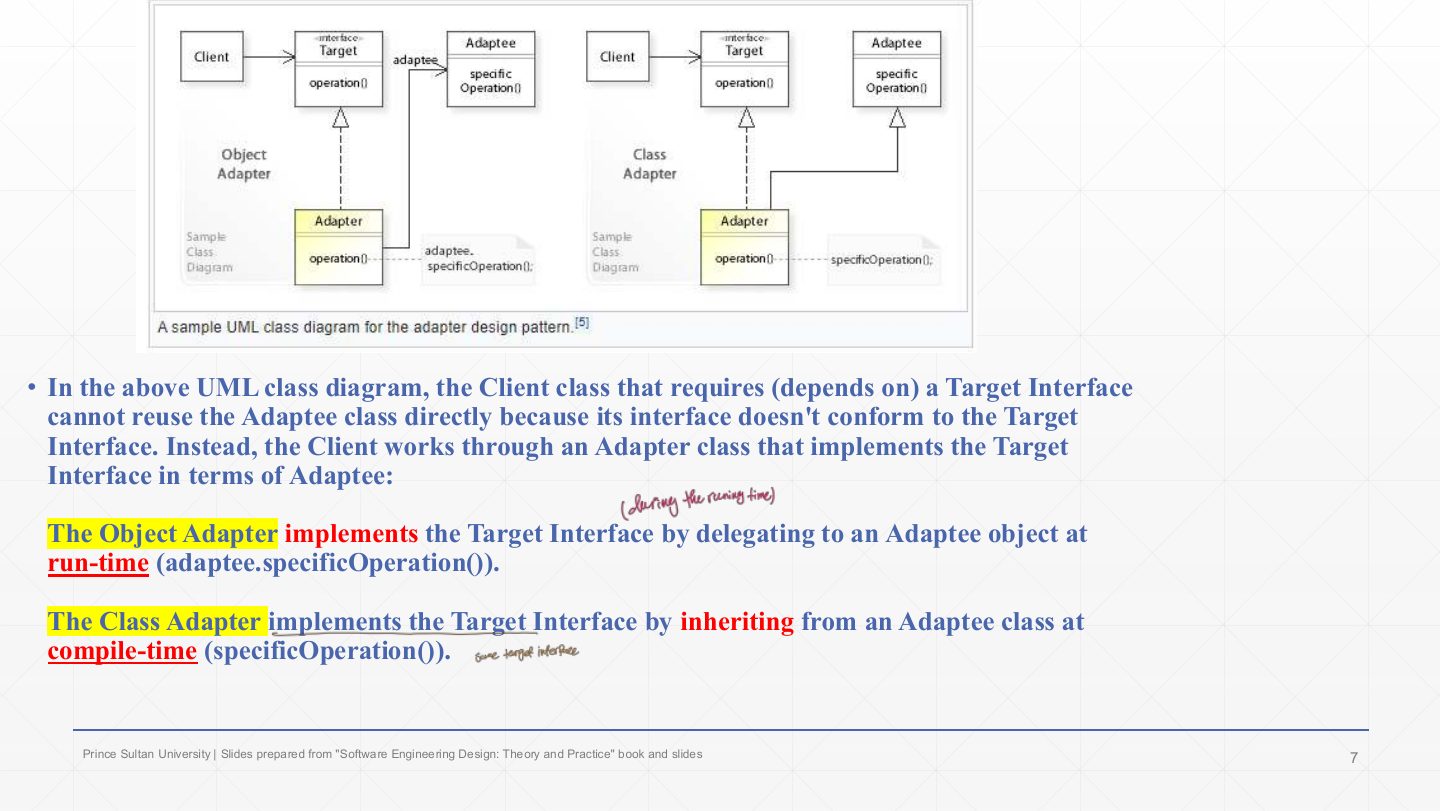

Slide 7 / 42

Adapter: object and class adapters

Slide 7: Adapter: object and class adapters

Notes

  1. The UML: the Client depends on a Target interface; it can’t use the Adaptee directly because the adaptee’s interface doesn’t conform. The Adapter implements Target in terms of Adaptee.

  2. Object adapter (left): implements Target by delegating to an Adaptee object held in a field, at run time (adaptee.specificOperation()).

  3. Class adapter (right): implements Target by inheriting from the Adaptee class, at compile time (specificOperation() is called on itself).

Exam angle

PredictionQ1

What is the difference between an object adapter and a class adapter?

Show answer

An object adapter holds a reference to an adaptee object and delegates to it (composition, decided at run time). A class adapter inherits from the adaptee class and implements the target (inheritance, fixed at compile time; needs multiple inheritance of classes, which Java lacks). Object adapters are preferred.

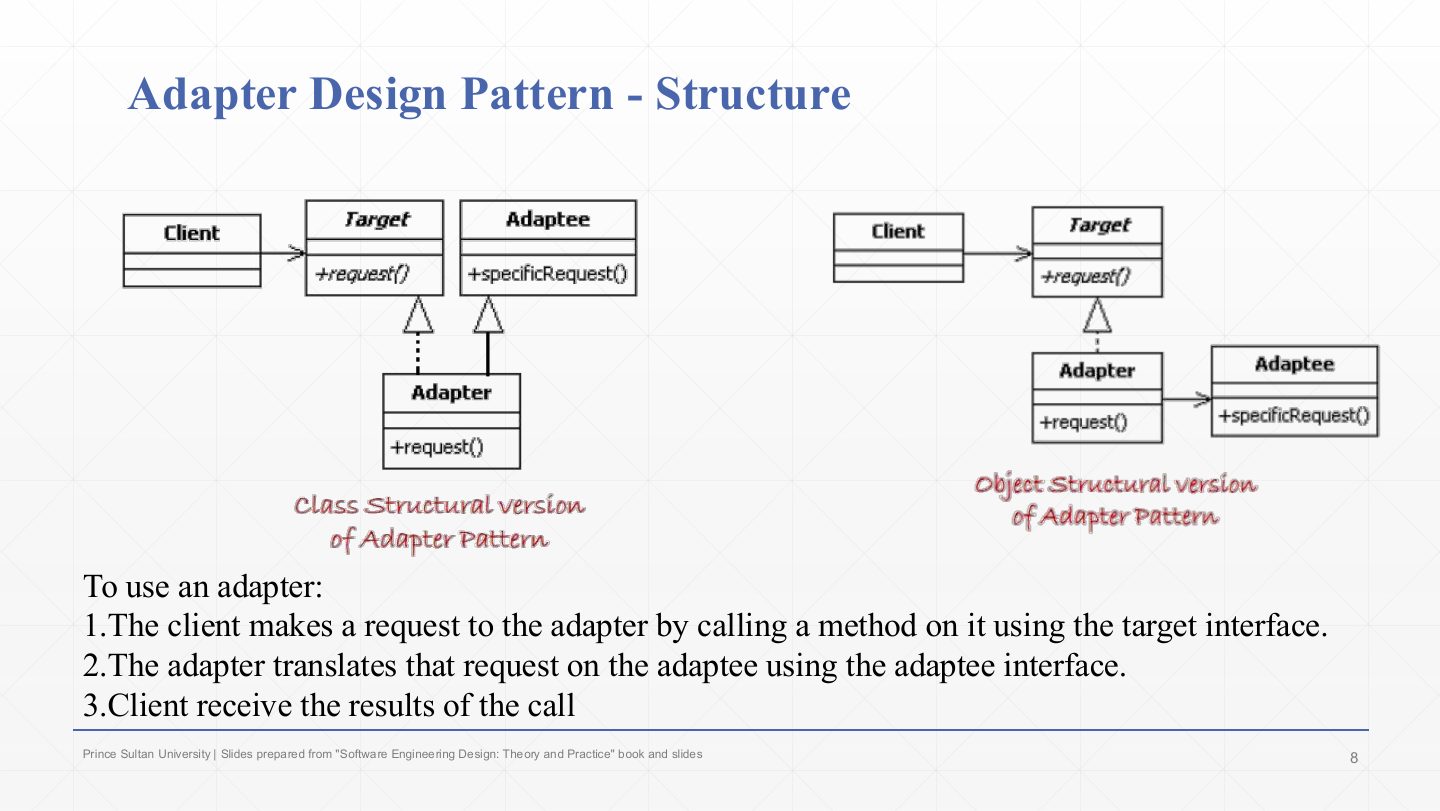

Slide 8 / 42

Adapter Design Pattern - Structure

Slide 8: Adapter Design Pattern - Structure

Notes

  1. Class version (left): Adapter inherits from both Target and Adaptee (two hollow triangles) and its request() calls the inherited specificRequest().

  2. Object version (right): Adapter realises Target and has an association arrow to an Adaptee object; its request() calls adaptee.specificRequest().

  3. To use an adapter: (1) the client calls a method on the adapter through the target interface; (2) the adapter translates it into calls on the adaptee interface; (3) the client gets the results, never knowing an adaptee was involved.

Exam angle

PredictionQ1

In the Adapter pattern, the existing class with the incompatible interface is called the:

  1. Adaptee
  2. Target
  3. Client
  4. Composite
Show answer

A. Adaptee

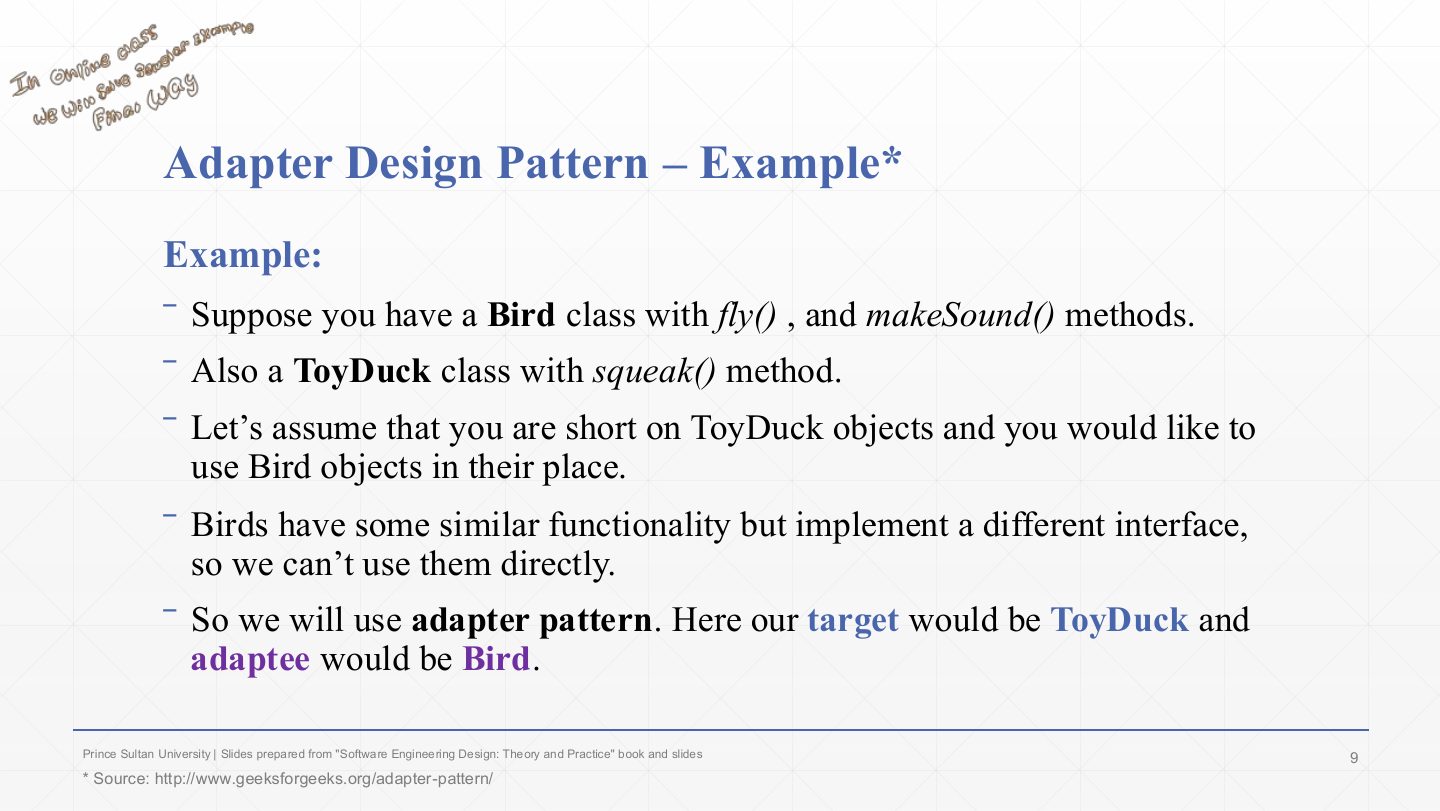

Slide 9 / 42

Adapter Design Pattern Example*

Slide 9: Adapter Design Pattern Example*

Notes

  1. The example (from GeeksforGeeks): a Bird class with fly() and makeSound().

  2. A ToyDuck with squeak().

  3. We are short on ToyDuck objects and want to use Birds in their place. Birds behave similarly but have a different interface, so they can’t be used directly.

  4. So: target = ToyDuck, adaptee = Bird, and a BirdAdapter in between.

Slide 10 / 42

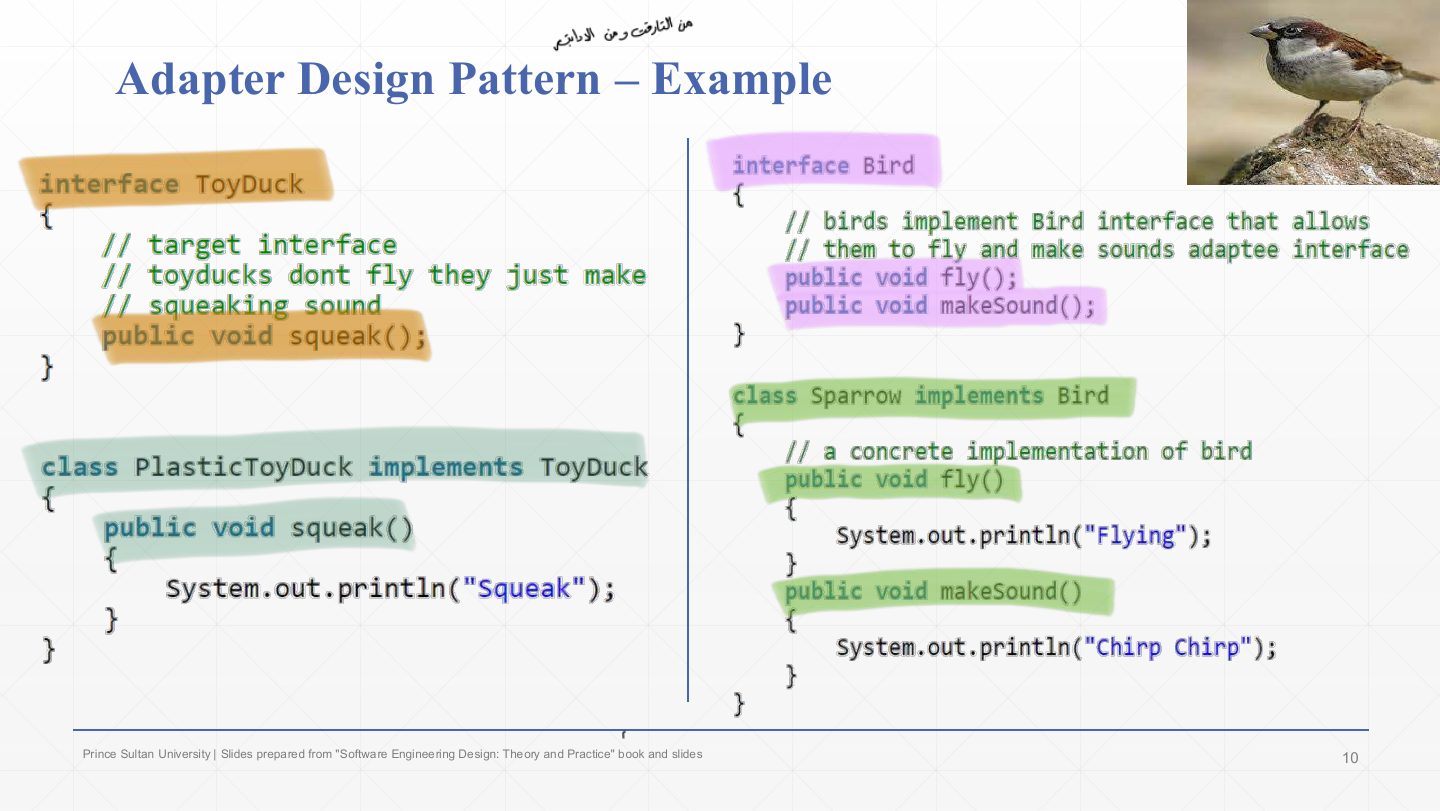

Adapter Example: ToyDuck and Bird code

Slide 10: Adapter Example: ToyDuck and Bird code

Notes

  1. The existing code:

    CodeWhat it does
    interface ToyDuck { public void squeak(); }The target interface: toy ducks don’t fly, they just squeak.
    class PlasticToyDuck implements ToyDuck { public void squeak() { System.out.println("Squeak"); } }A normal toy duck.
    interface Bird { public void fly(); public void makeSound(); }The adaptee interface: birds fly and make sounds.
    class Sparrow implements Bird { fly() { …"Flying"… } makeSound() { …"Chirp Chirp"… } }A concrete bird.
Slide 11 / 42

Adapter Example: BirdAdapter

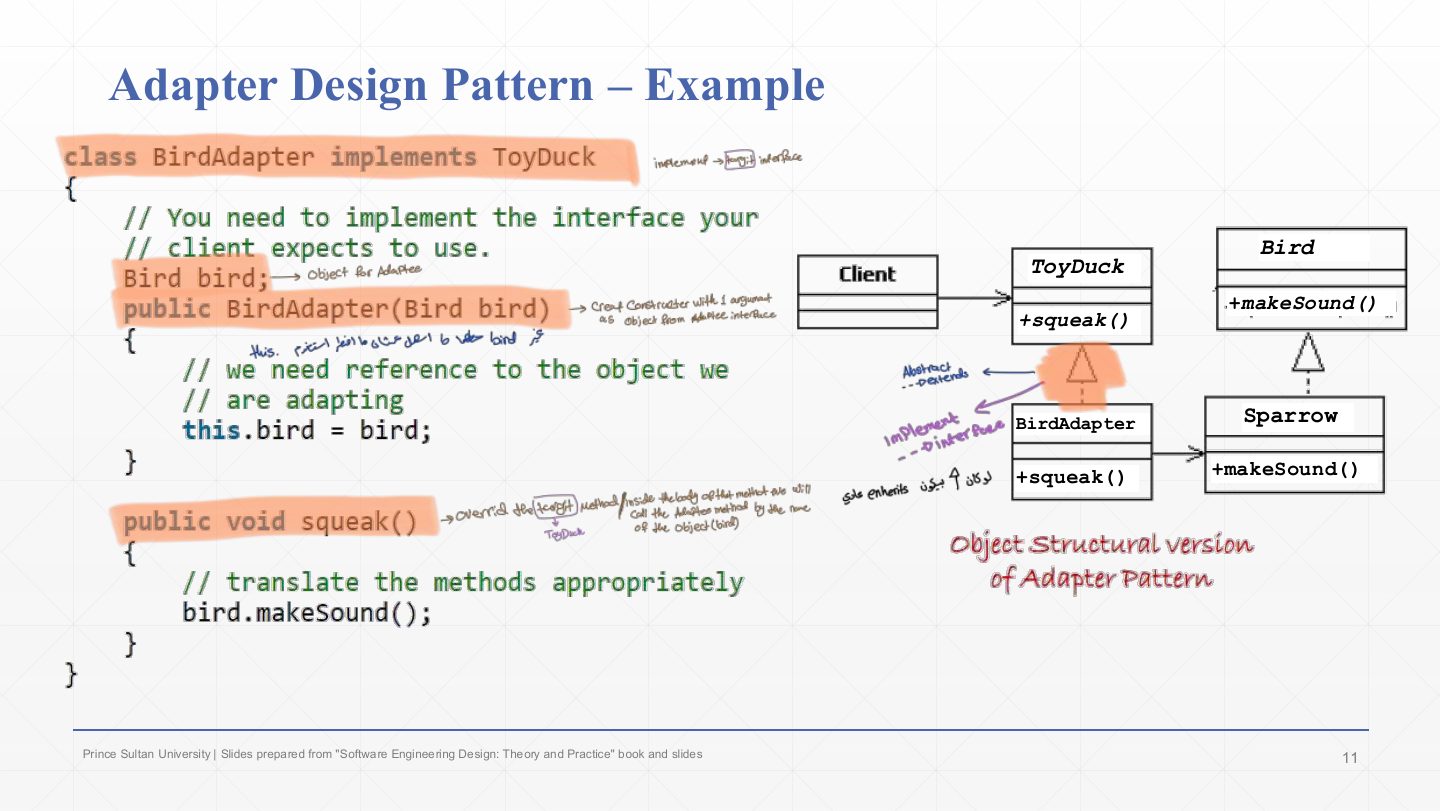

Slide 11: Adapter Example: BirdAdapter

Notes

  1. The adapter:

    CodeWhat it does
    class BirdAdapter implements ToyDuck {Implements the interface the client expects (ToyDuck).
    Bird bird;Holds a reference to the object being adapted (object adapter).
    public BirdAdapter(Bird bird) { this.bird = bird; }The bird to adapt is passed in.
    public void squeak() { bird.makeSound(); } }Translates the target call into the adaptee call.

  2. The UML on the right: Client → «ToyDuck» ← BirdAdapter (realization) → Bird ← Sparrow: the object structural version of the pattern.

Slide 12 / 42

Adapter Example: the client

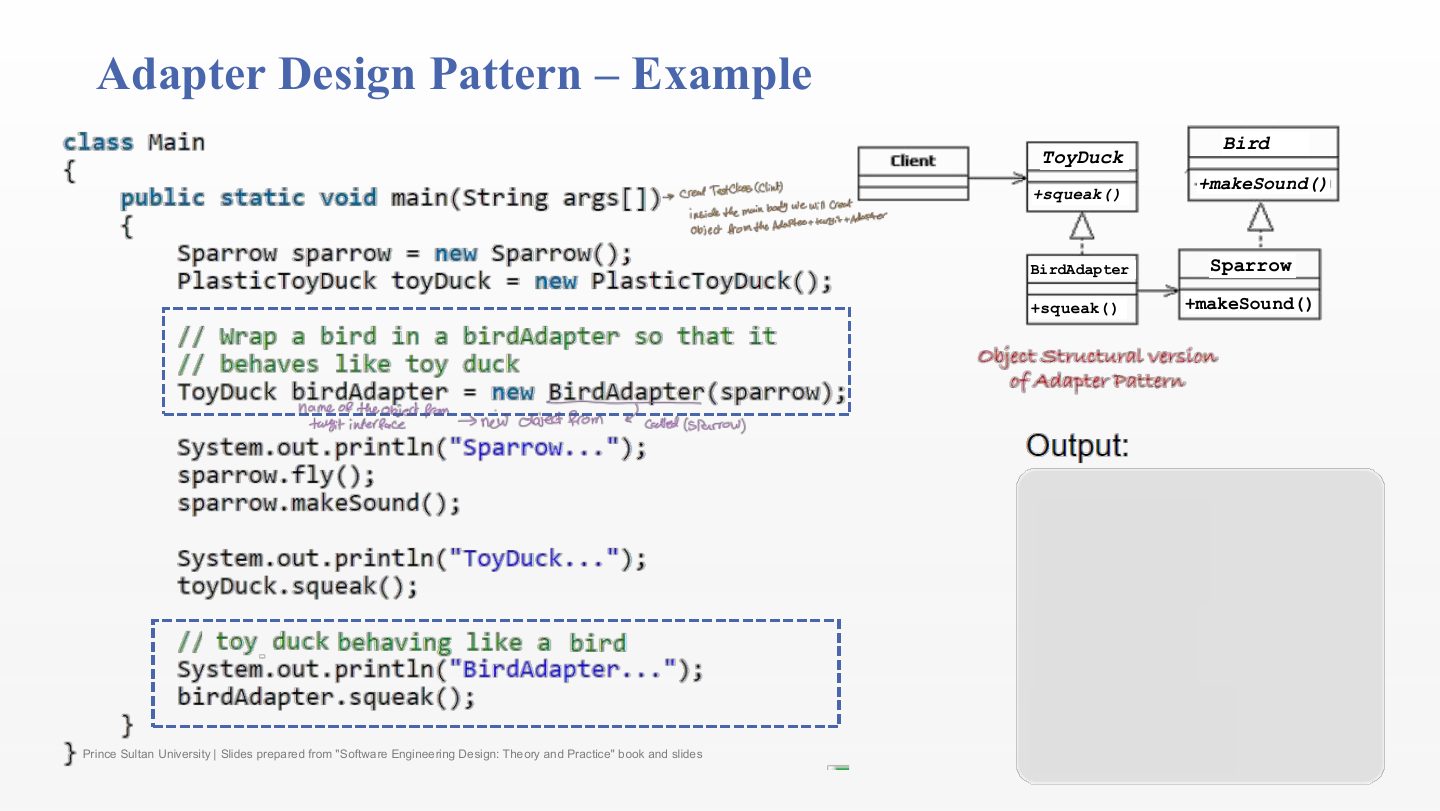

Slide 12: Adapter Example: the client

Notes

  1. The client:

    CodeWhat it does
    Sparrow sparrow = new Sparrow(); PlasticToyDuck toyDuck = new PlasticToyDuck();A real bird and a real toy duck.
    ToyDuck birdAdapter = new BirdAdapter(sparrow);Wrap the bird so it behaves like a toy duck.
    sparrow.fly(); sparrow.makeSound(); toyDuck.squeak();Prints “Flying”, “Chirp Chirp”, “Squeak”.
    birdAdapter.squeak();A ToyDuck call that prints “Chirp Chirp”: the toy duck is behaving like a bird.
Slide 13 / 42

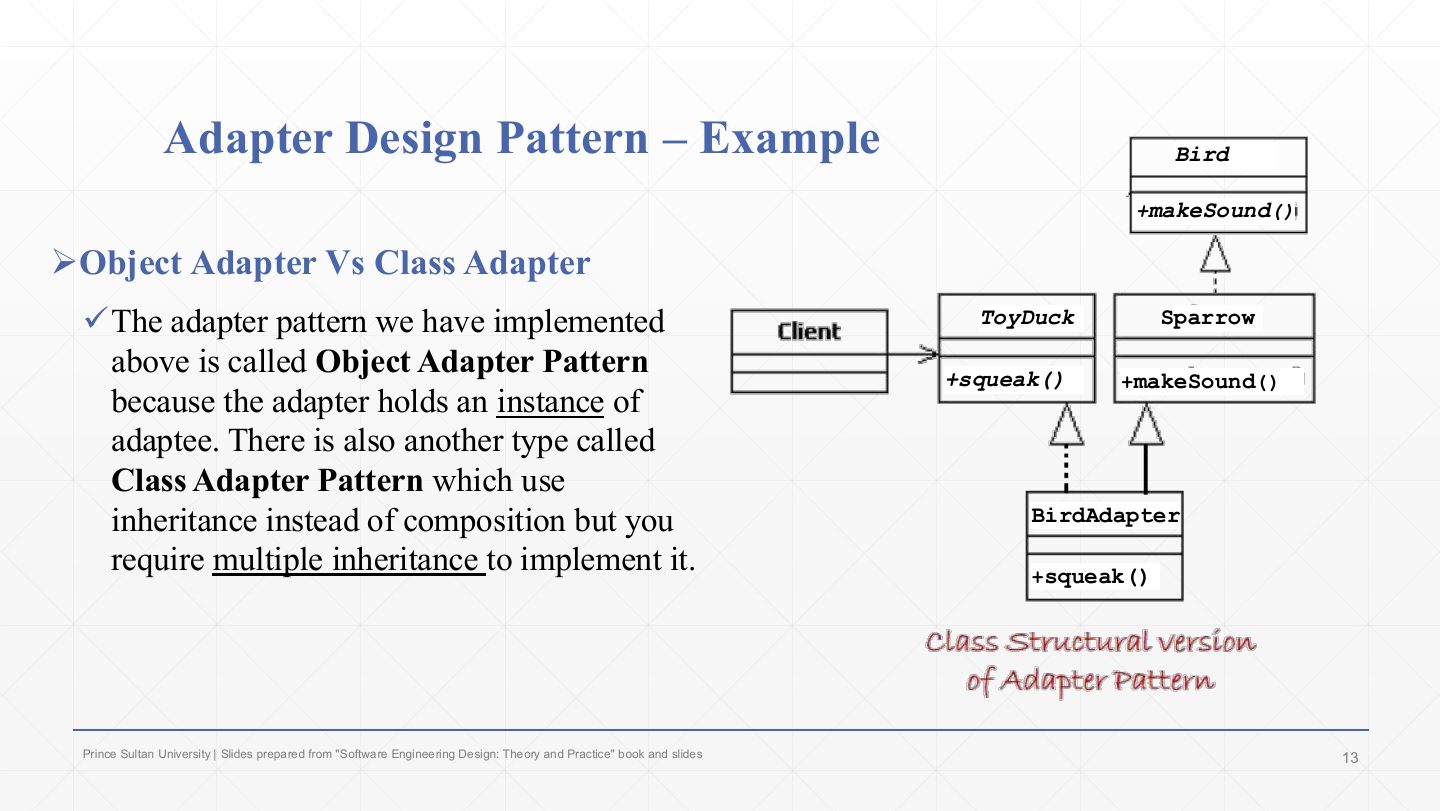

Adapter Design Pattern Example

Slide 13: Adapter Design Pattern Example

Notes

  1. The version just built is the object adapter, because the adapter holds an instance of the adaptee.

  2. The alternative, the class adapter, uses inheritance instead of composition, which requires multiple inheritance: BirdAdapter would extend Sparrow and implement ToyDuck (the diagram on the right).

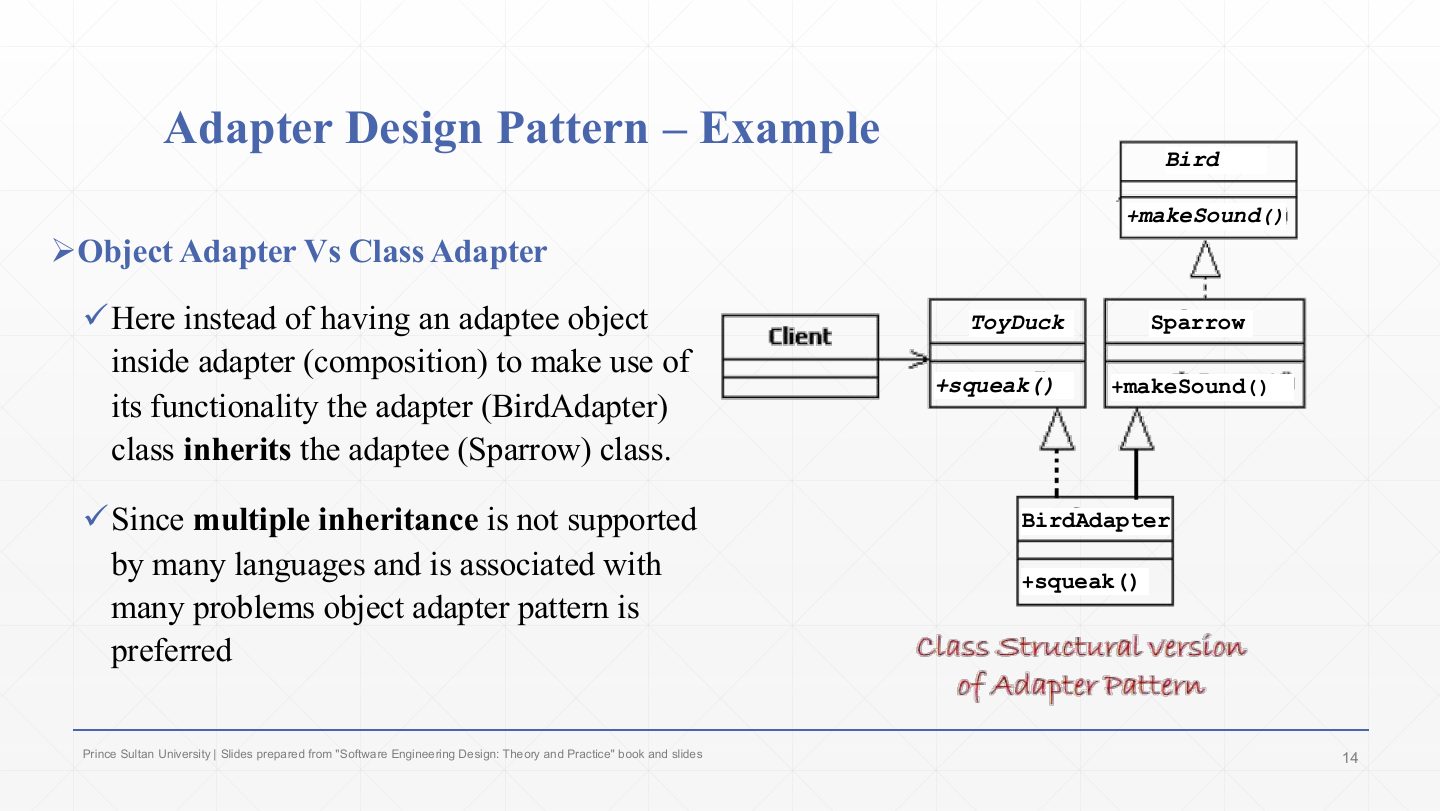

Slide 14 / 42

Adapter Design Pattern Example

Slide 14: Adapter Design Pattern Example

Notes

  1. In the class adapter, BirdAdapter inherits the adaptee (Sparrow) instead of containing it, and calls the inherited makeSound() inside squeak().

  2. Because many languages don’t support multiple inheritance of classes (and it causes problems where they do), the object adapter is preferred. In Java this one case works only because ToyDuck is an interface.

Slide 15 / 42

Adapter Example: client code and explanation

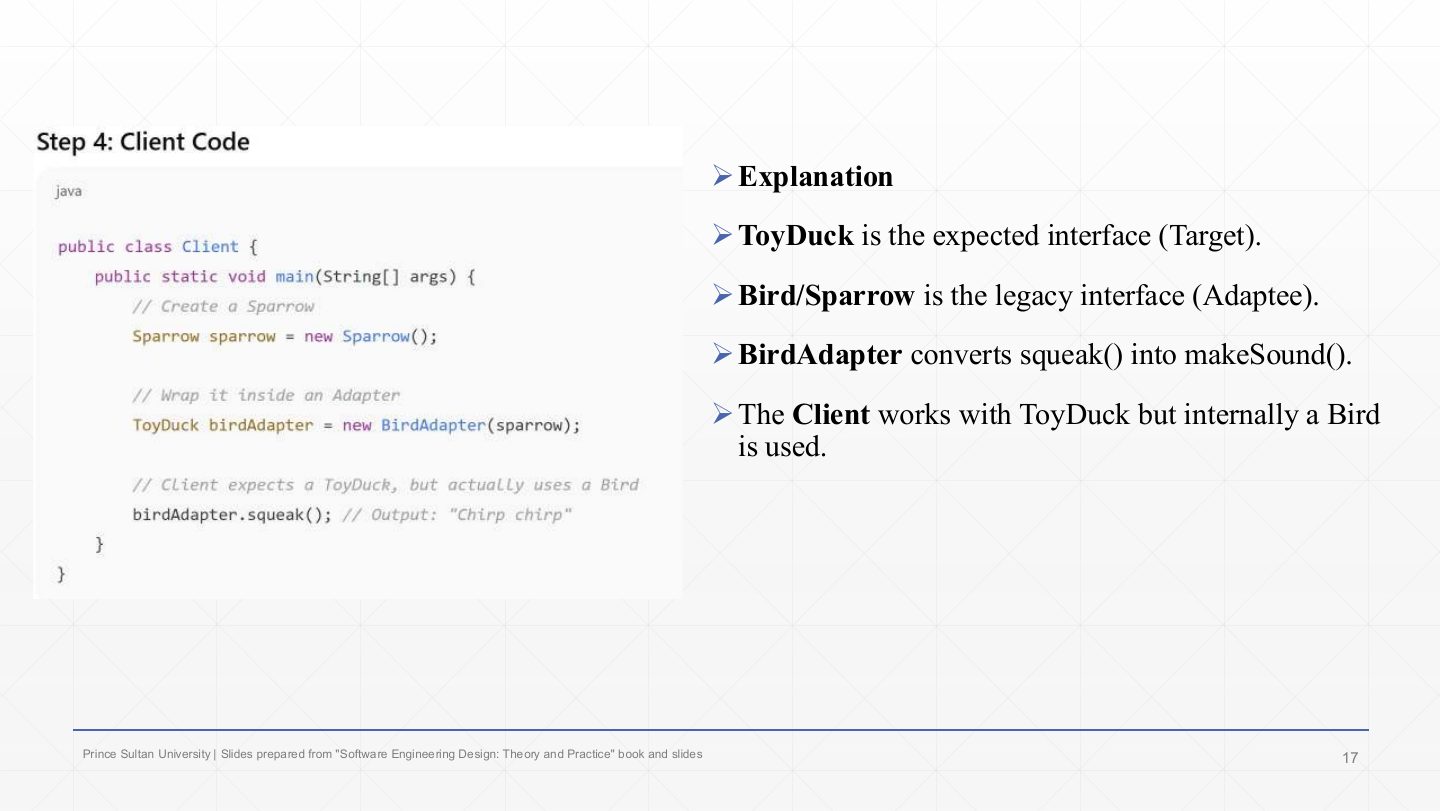

Slide 15: Adapter Example: client code and explanation

Notes

  1. The client again: create a Sparrow, wrap it in a BirdAdapter, and call birdAdapter.squeak(), which outputs “Chirp chirp”: the client expects a ToyDuck but actually uses a Bird.

  2. ToyDuck is the expected interface (target); Bird/Sparrow the legacy interface (adaptee).

  3. BirdAdapter converts squeak() into makeSound(); the client works with ToyDuck while a Bird is used internally.

Exam angle

PredictionQ1

In the ToyDuck/Bird example, name the target, adaptee and adapter, and say which method call is translated.

Show answer

Target: ToyDuck. Adaptee: Bird (Sparrow). Adapter: BirdAdapter, which implements ToyDuck and holds a Bird. Its squeak() calls bird.makeSound().

Slide 16 / 42

Adapter Design Pattern

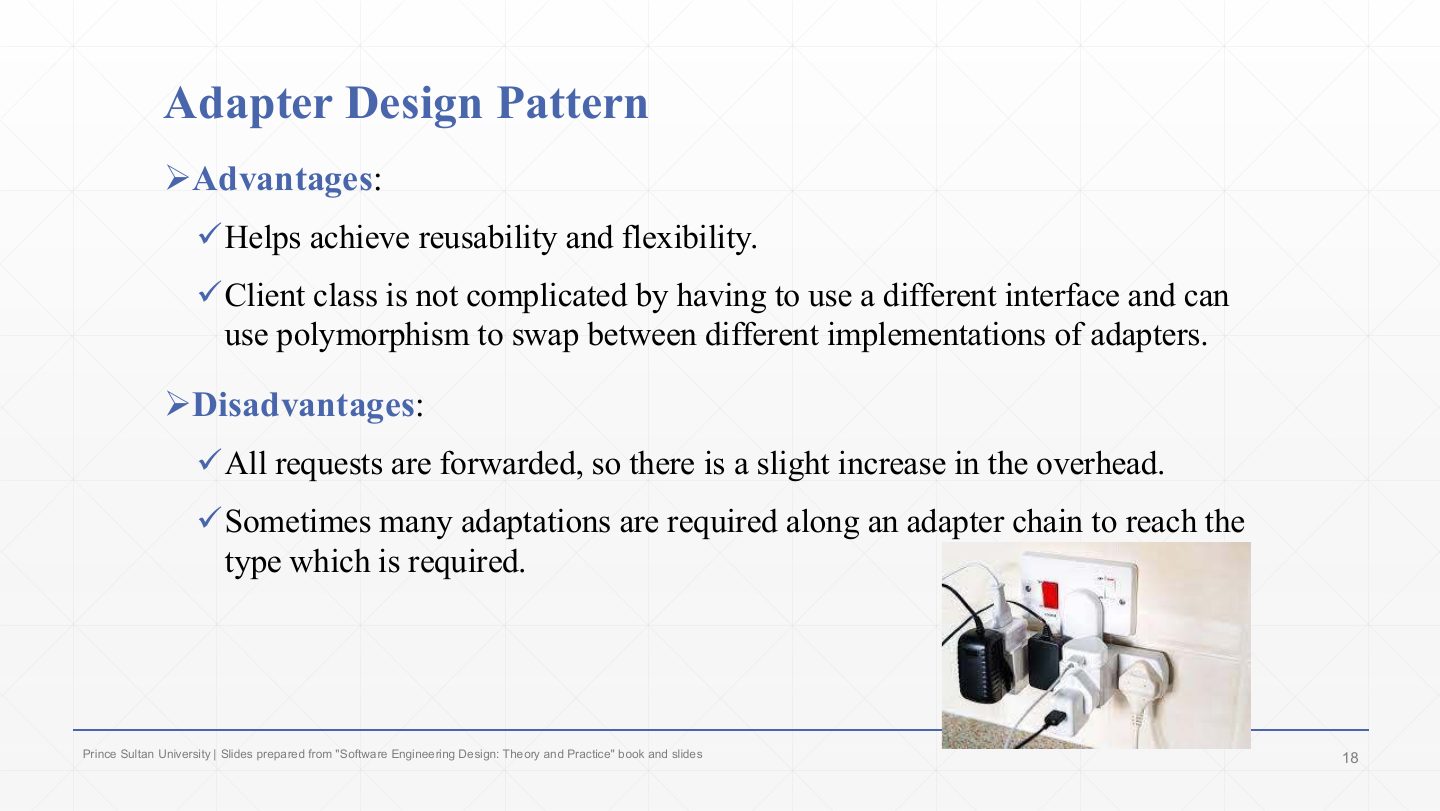

Slide 16: Adapter Design Pattern

Notes

  1. Advantage: reusability and flexibility: existing classes are reused without modification.

  2. Advantage: the client isn’t complicated by a different interface and can use polymorphism to switch between different adapters.

  3. Disadvantage: every request is forwarded, so there is a slight overhead.

  4. Disadvantage: sometimes a chain of adapters is needed to reach the required type (like the stacked plug adapters in the photo).

Slide 17 / 42

The Composite Design Pattern

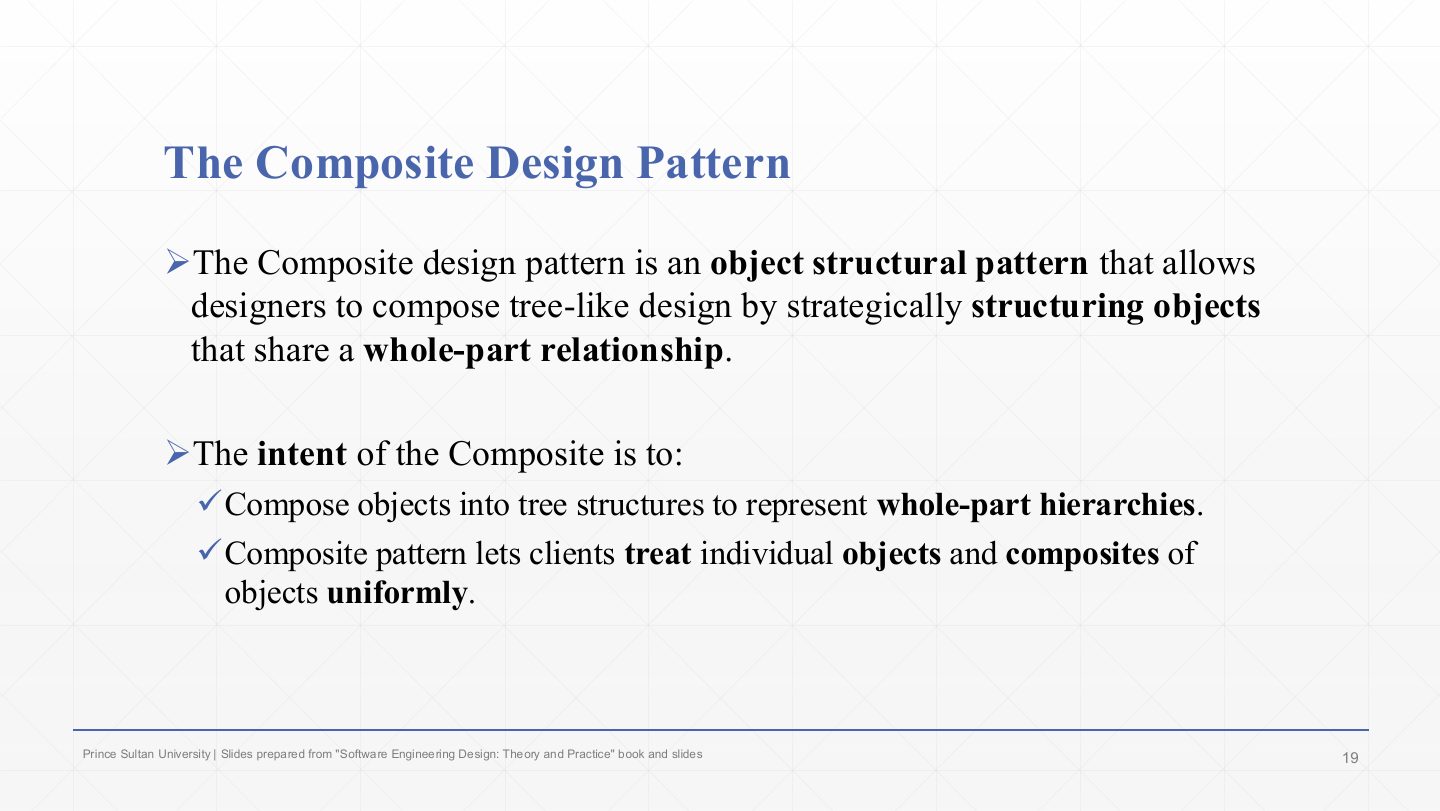

Slide 17: The Composite Design Pattern

Notes

  1. Composite is an object structural pattern for tree-like designs of objects that share a whole–part relationship.

  2. Intent (1): compose objects into tree structures to represent whole–part hierarchies.

  3. Intent (2): let clients treat individual objects and compositions of objects uniformly: the same call works on one item or a whole group.

Exam angle

Past exam · Final 252 · Q7-1 · 2.5 marksQ1

File explorer: Files (leaf, with a size) and Directories (contain files and other folders, nested to any depth). Calculate a folder’s total size. Which pattern? Draw its class diagram.

Show answer

Pattern: Composite. Treat single files and whole folders the same way through one interface. FileSystemItem (component, abstract or interface): getSize(). File (leaf): returns its own size. Directory (composite): holds a list of FileSystemItems with add()/remove(); its getSize() sums child.getSize() for every child, which recurses into sub-folders to any depth. Diagram: File and Directory both inherit from FileSystemItem; Directory has a composition/aggregation to FileSystemItem (0..* children).

Slide 18 / 42

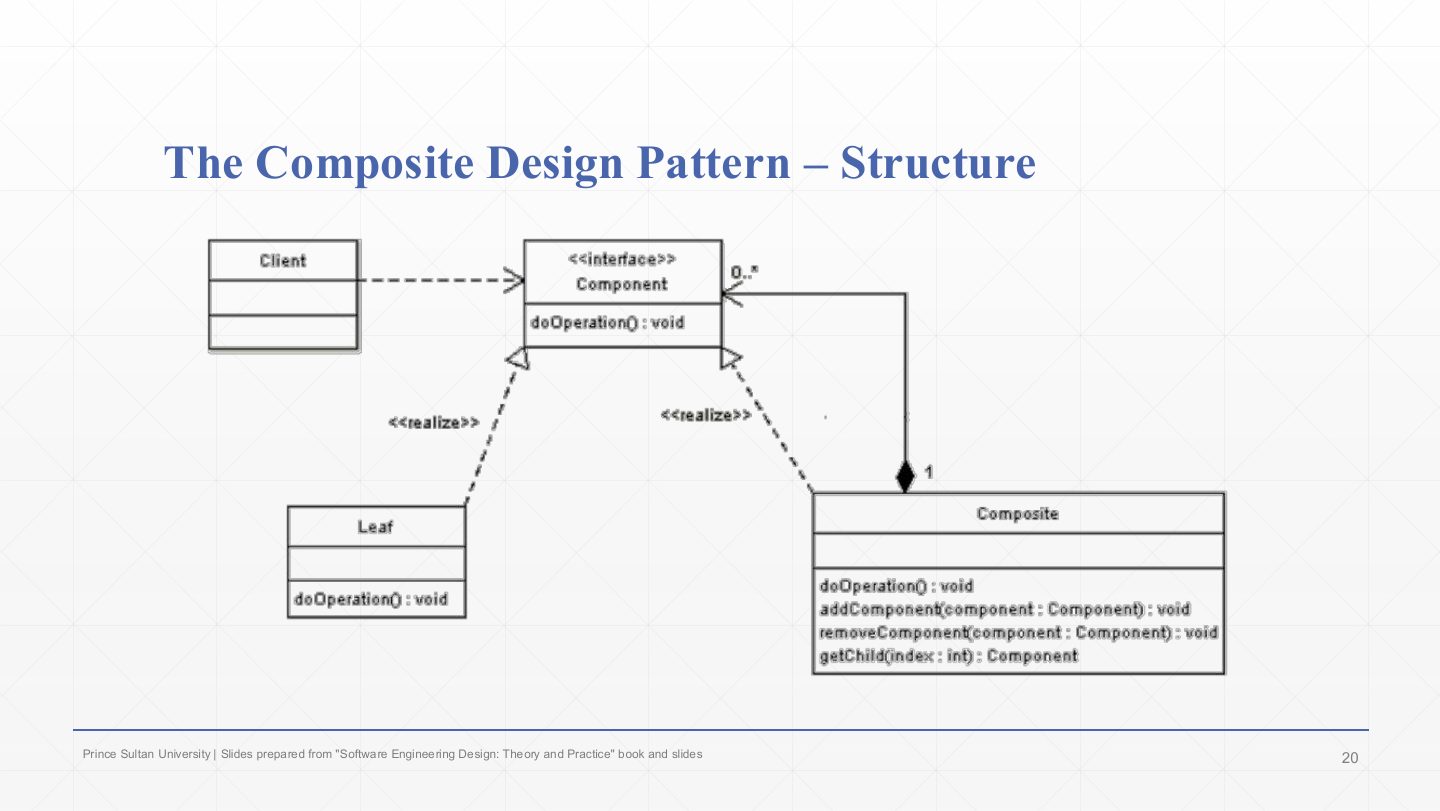

The Composite Design Pattern Structure

Slide 18: The Composite Design Pattern Structure

Notes

  1. «interface» Component declares the common operation (doOperation()). The Client depends only on Component.

  2. Leaf realises Component and does the operation itself; it has no children.

  3. Composite realises Component too, and holds 0..\* child Components (the filled diamond with multiplicity 1 to 0..\* is composition). It adds addComponent(), removeComponent() and getChild(index), and its doOperation() calls doOperation() on each child.

Exam angle

PredictionQ1

In the Composite pattern, what does the Composite class do when its operation is called?

Show answer

It forwards the call to each of its child Components (which may be leaves or other composites) and combines the results if needed, so the operation recurses down the whole tree.

Slide 19 / 42

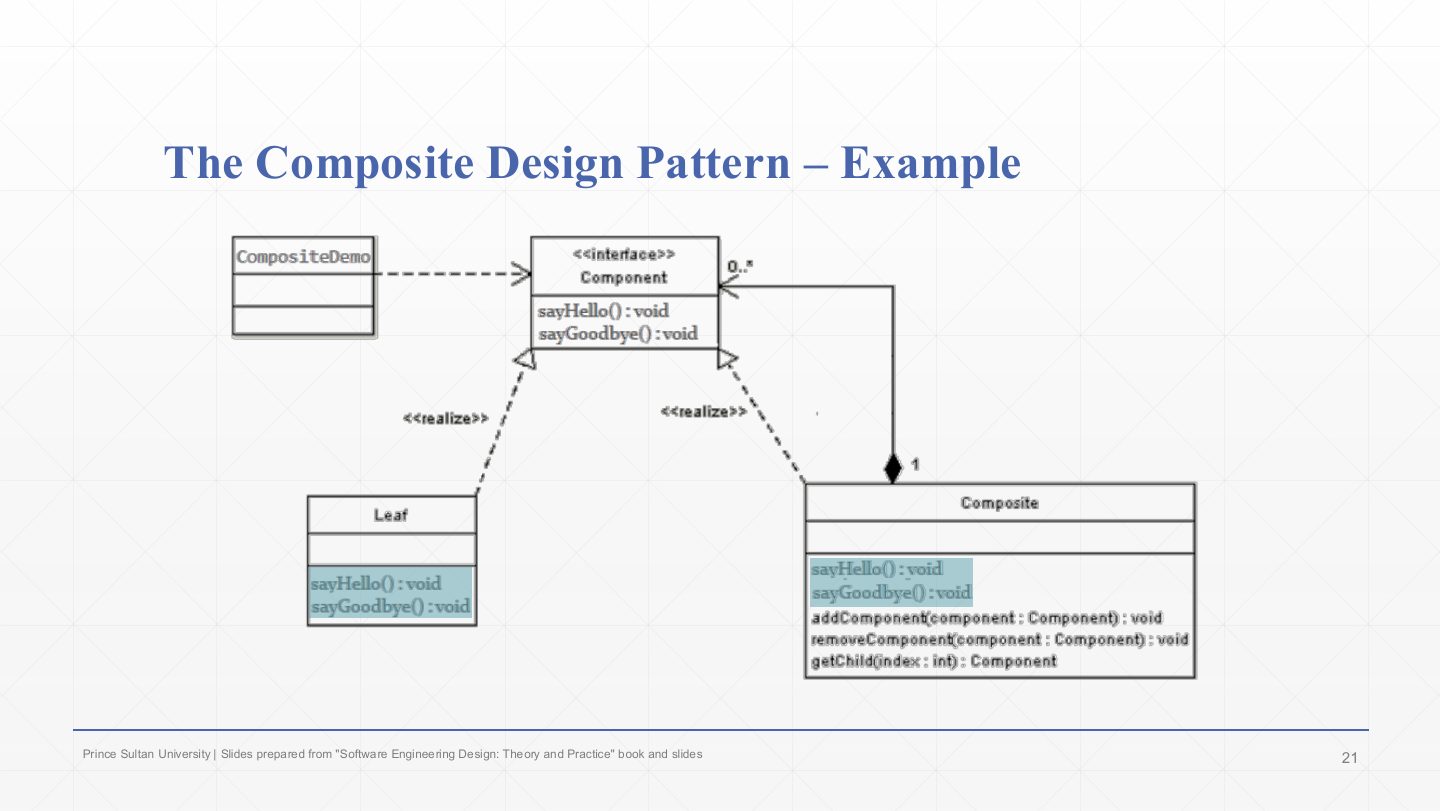

The Composite Design Pattern Example

Slide 19: The Composite Design Pattern Example

Notes

  1. The example: «interface» Component with sayHello() and sayGoodbye(); Leaf and Composite both realise it; Composite holds 0..\* Components; CompositeDemo is the client. The highlighted methods are the ones each class implements.

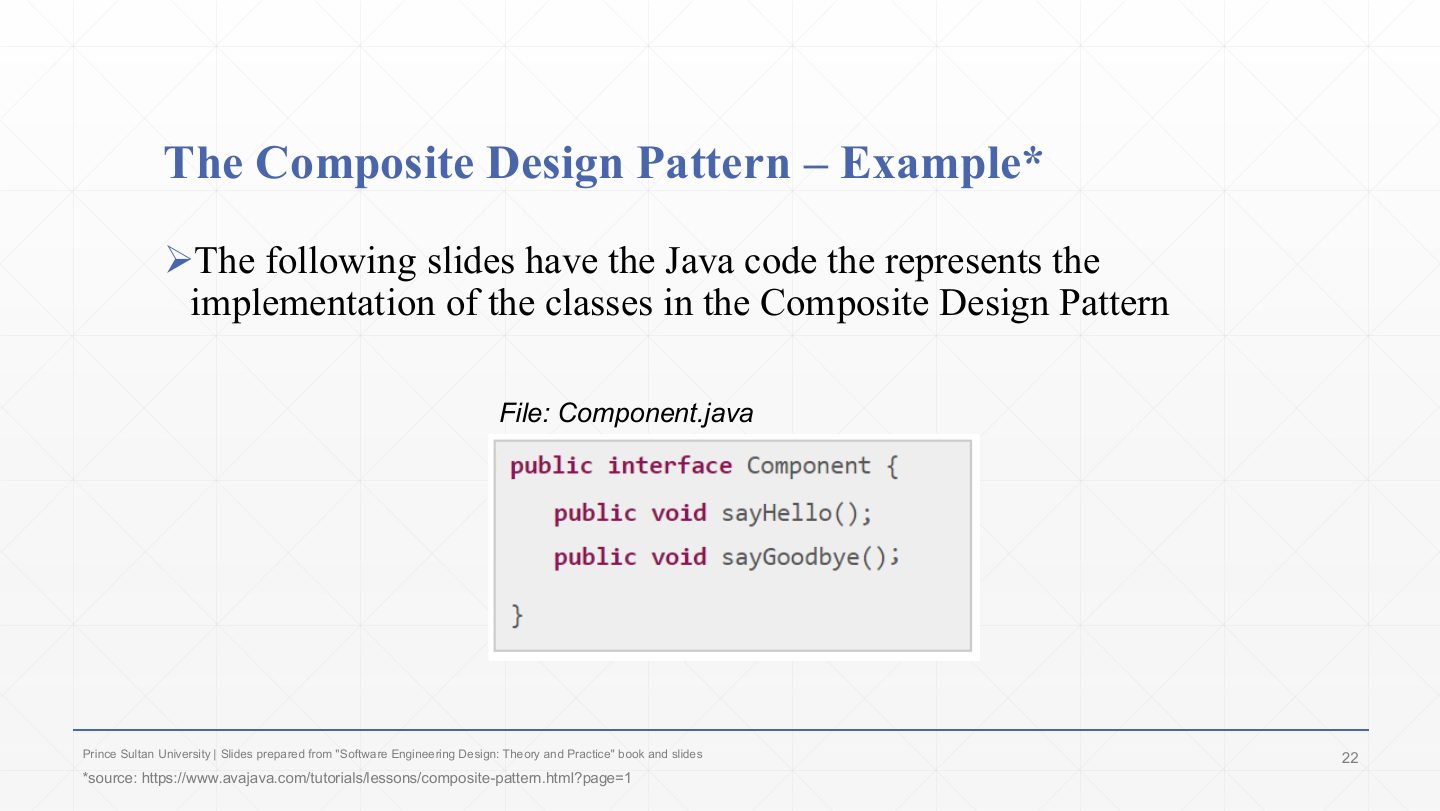

Slide 20 / 42

Composite Example: Component.java

Slide 20: Composite Example: Component.java

Notes

  1. Component.java:

    CodeWhat it does
    public interface Component { public void sayHello(); public void sayGoodbye(); }The operations every node, leaf or composite, supports.
Slide 21 / 42

The Composite Design Pattern Example

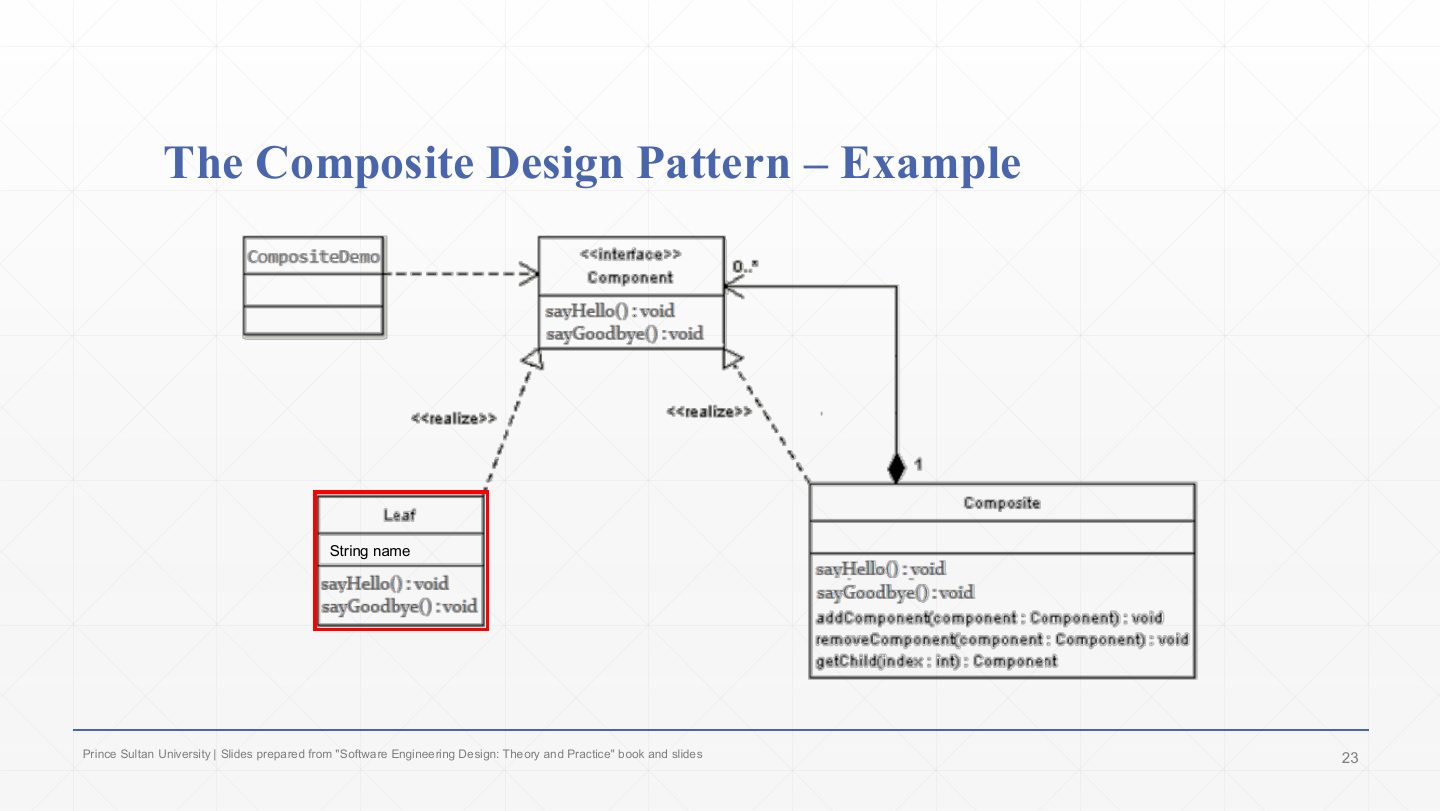

Slide 21: The Composite Design Pattern Example

Notes

  1. The diagram with Leaf outlined: it has a String name and implements sayHello() and sayGoodbye().

Slide 22 / 42

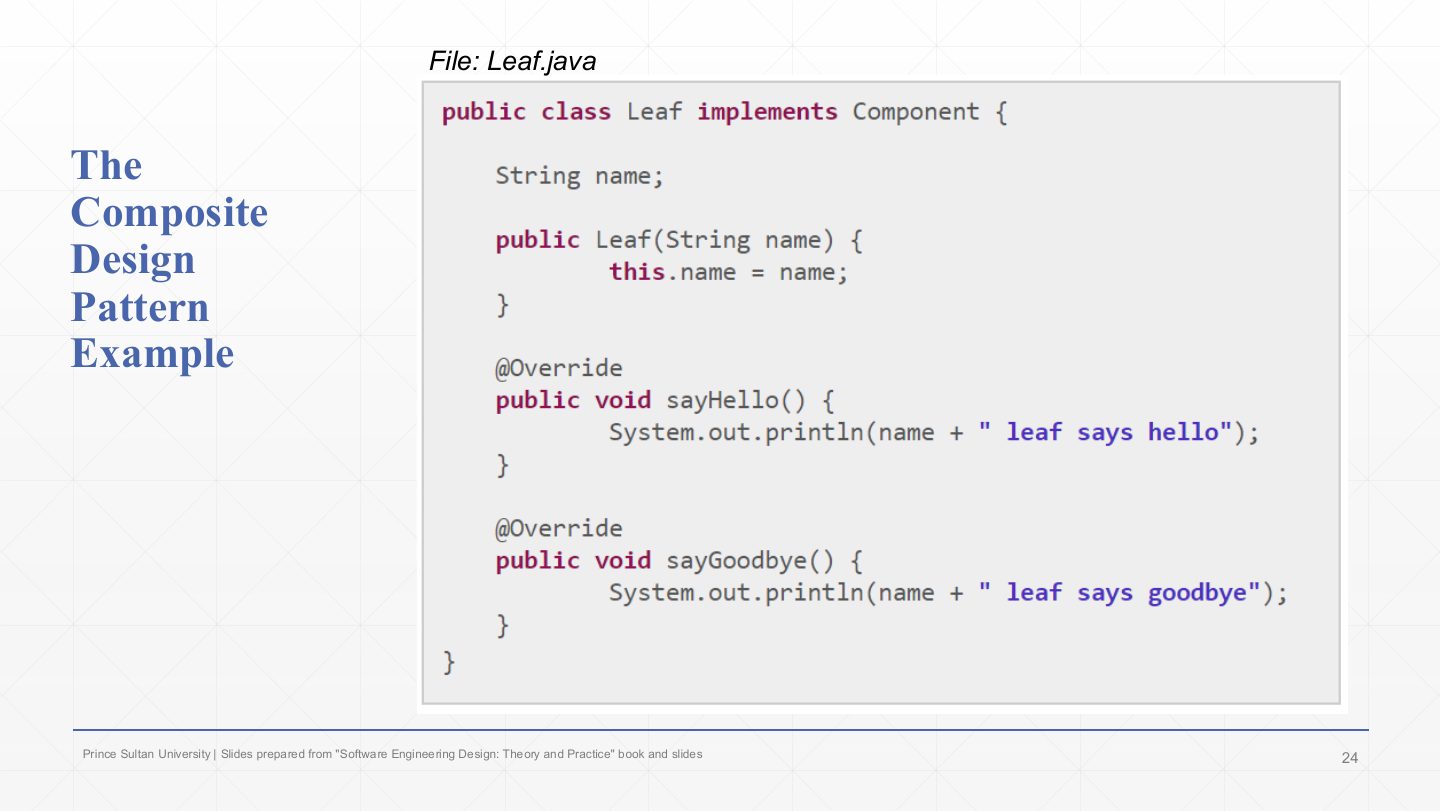

Composite Example: Leaf.java

Slide 22: Composite Example: Leaf.java

Notes

  1. Leaf.java:

    CodeWhat it does
    public class Leaf implements Component { String name;A leaf has its own data and no children.
    public Leaf(String name) { this.name = name; }
    @Override public void sayHello() { System.out.println(name + " leaf says hello"); }Does the work itself.
    @Override public void sayGoodbye() { System.out.println(name + " leaf says goodbye"); } }
Slide 23 / 42

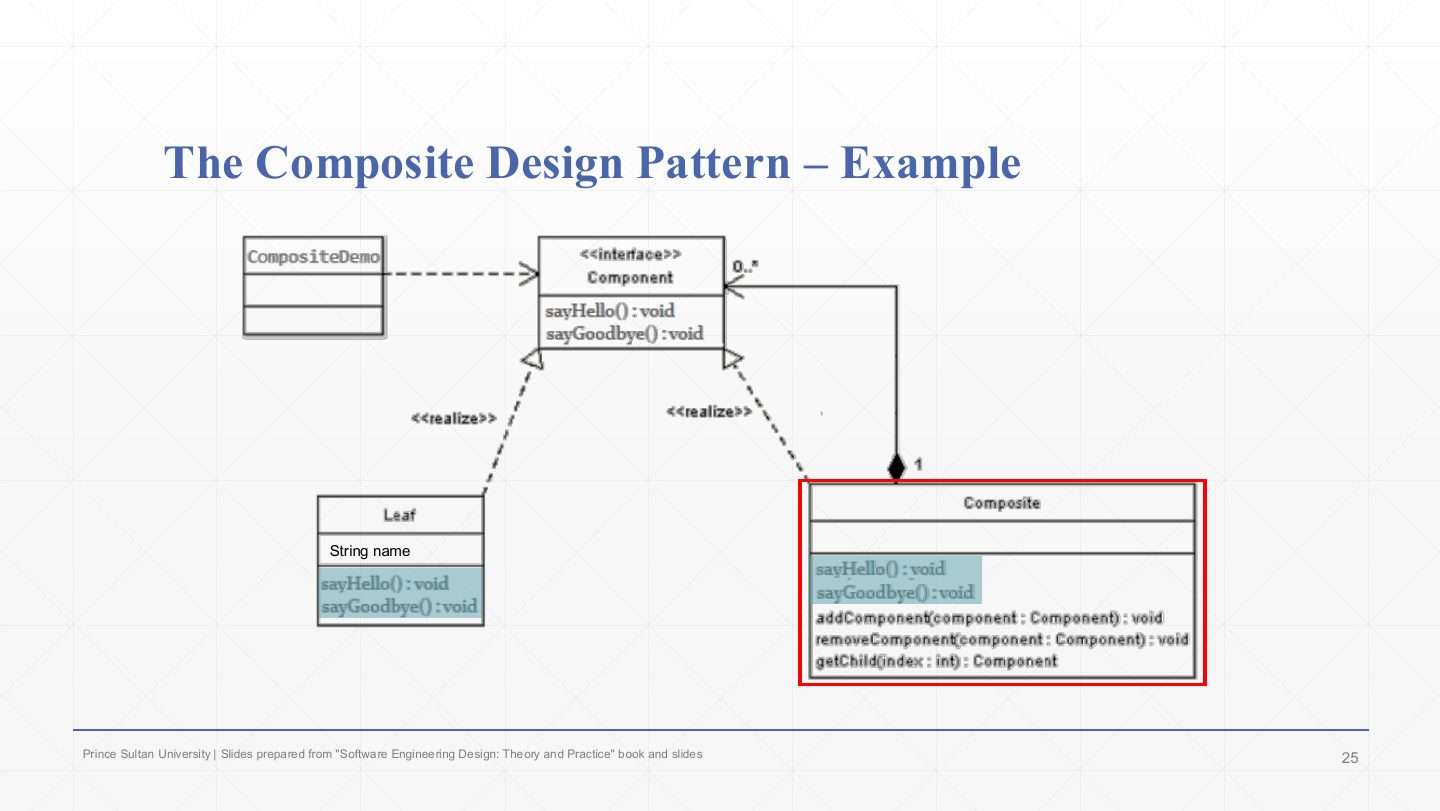

The Composite Design Pattern Example

Slide 23: The Composite Design Pattern Example

Notes

  1. The diagram with Composite outlined: it implements sayHello() and sayGoodbye() plus the child-management methods addComponent(), removeComponent() and getChild().

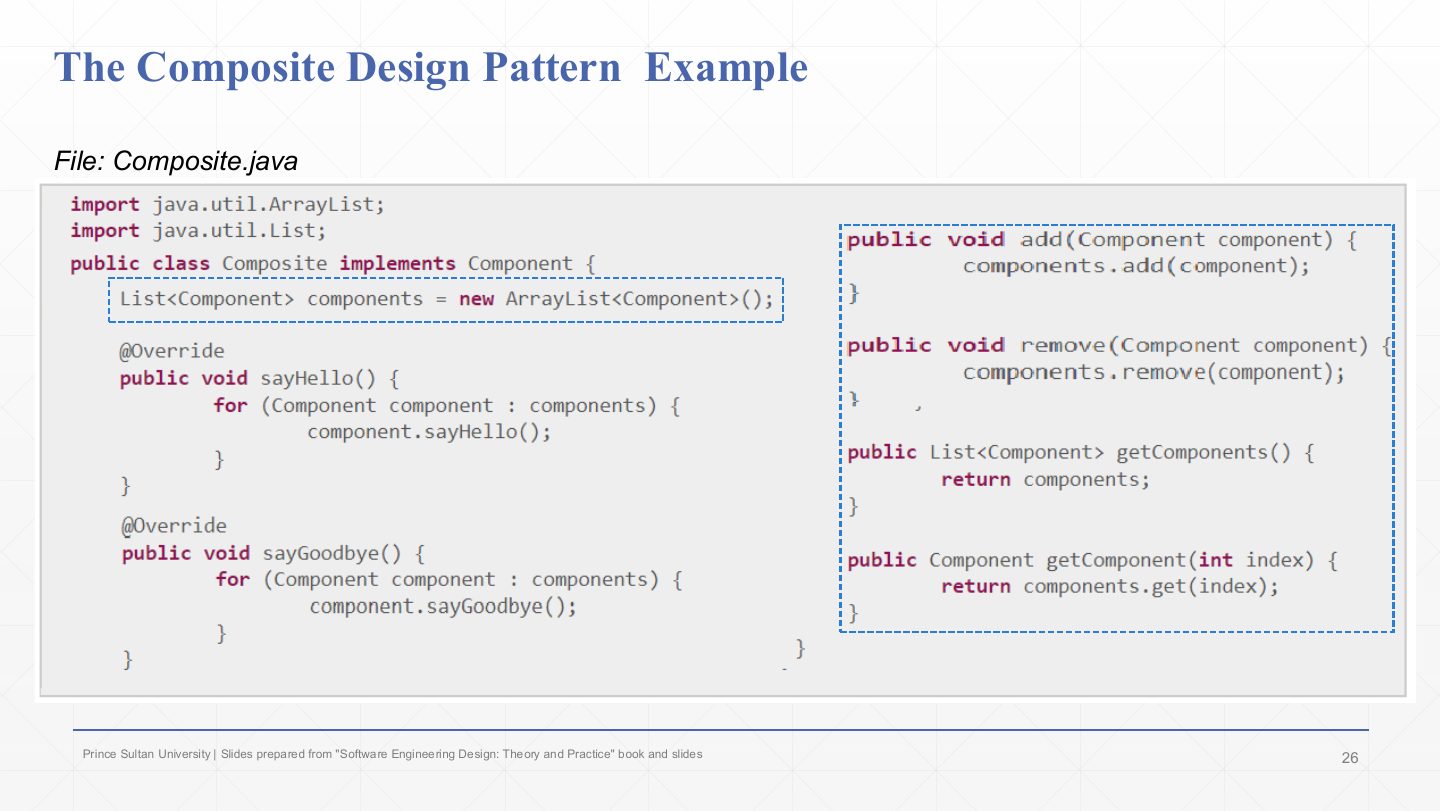

Slide 24 / 42

Composite Example: Composite.java

Slide 24: Composite Example: Composite.java

Notes

  1. Composite.java:

    CodeWhat it does
    public class Composite implements Component {A composite is also a Component, so it can be nested.
    List<Component> components = new ArrayList<Component>();Its children: leaves or other composites.
    @Override public void sayHello() { for (Component component : components) { component.sayHello(); } }Forward the call to every child: this loop is the recursion.
    @Override public void sayGoodbye() { for (…) { component.sayGoodbye(); } }
    public void add(Component component) { components.add(component); }Child management.
    public void remove(Component component) { … } getComponents() { … } getComponent(int index) { … } }
Slide 25 / 42

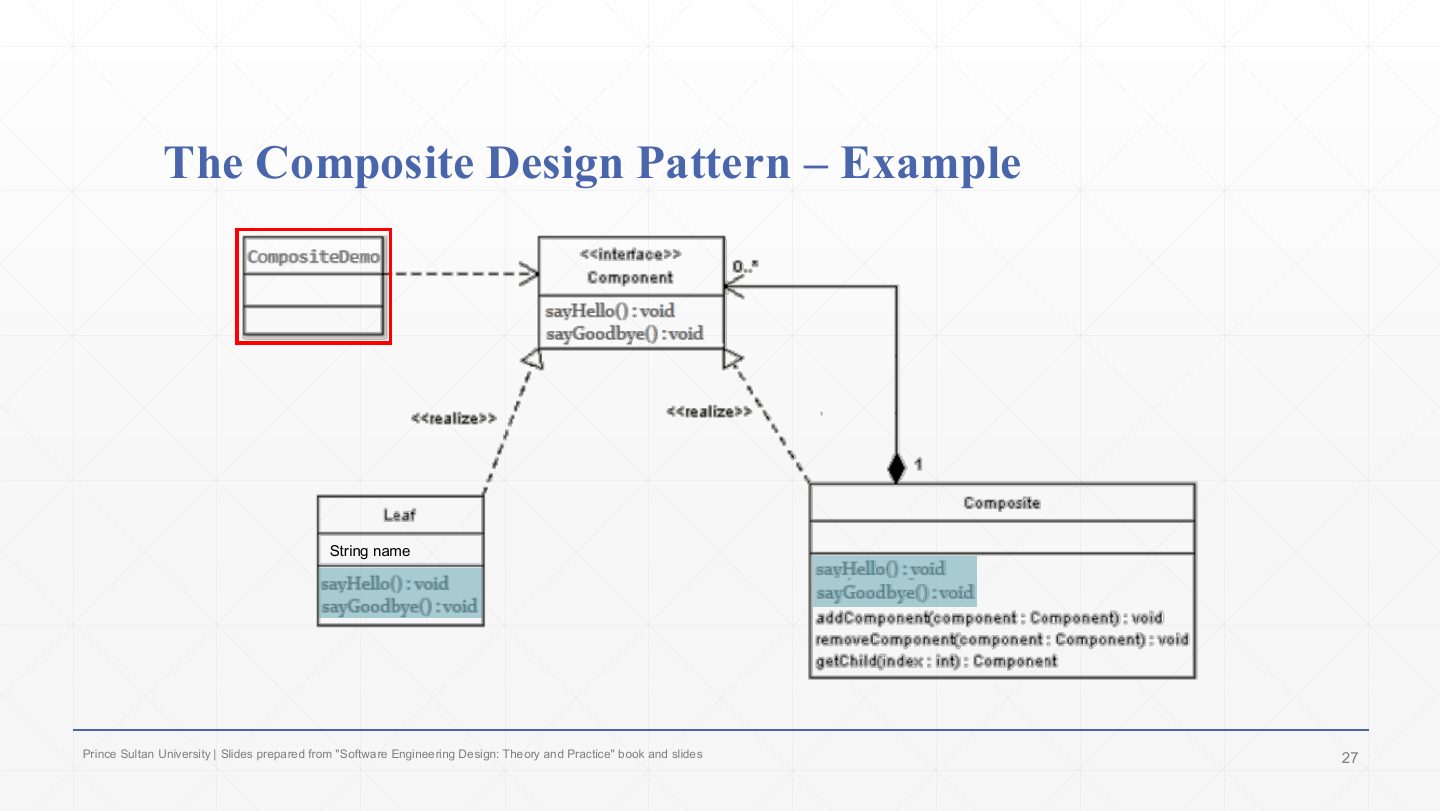

The Composite Design Pattern Example

Slide 25: The Composite Design Pattern Example

Notes

  1. The diagram with the client CompositeDemo outlined: it depends only on Component, though it builds the tree from Leaf and Composite objects.

Slide 26 / 42

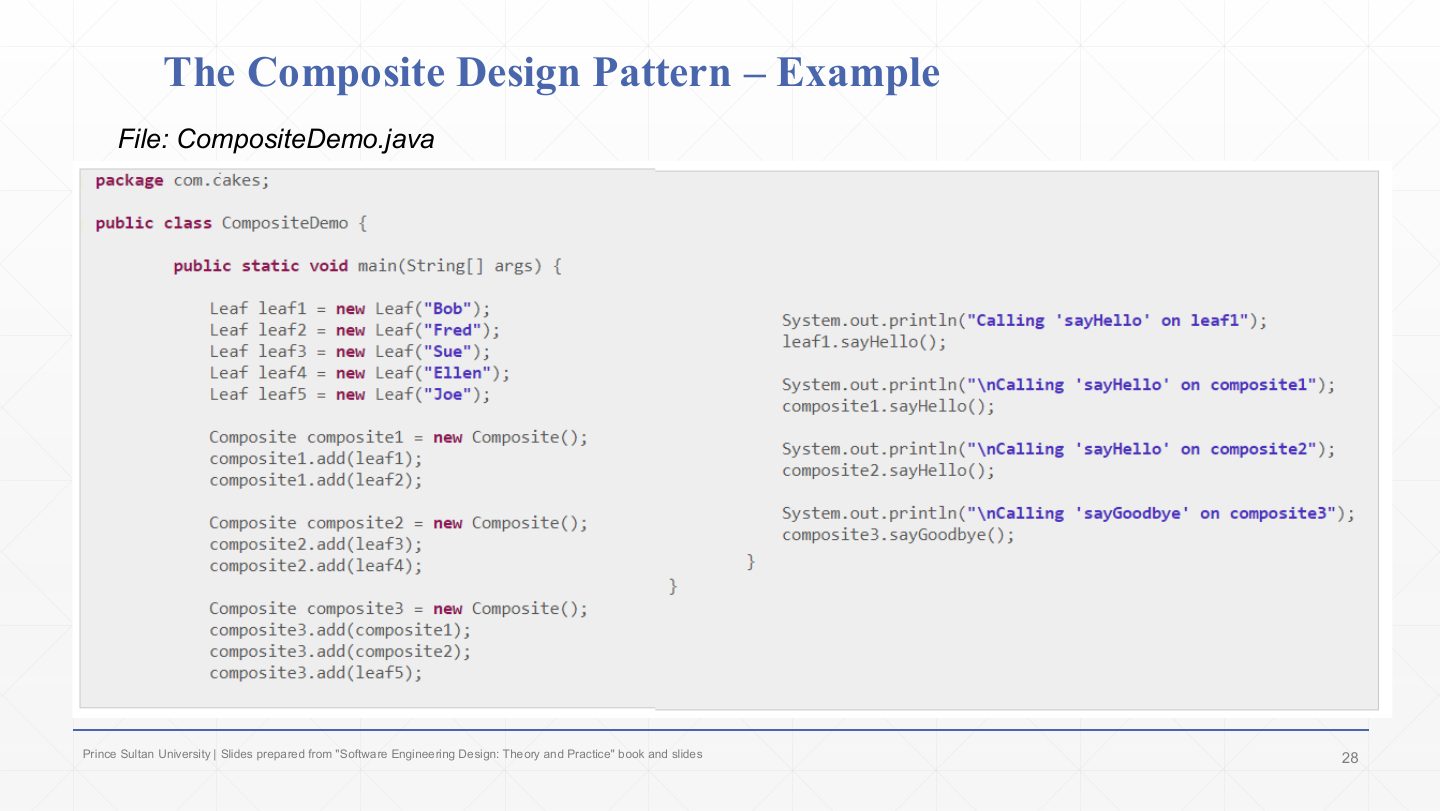

Composite Example: CompositeDemo.java

Slide 26: Composite Example: CompositeDemo.java

Notes

  1. CompositeDemo.java:

    CodeWhat it does
    Leaf leaf1 = new Leaf("Bob"); … leaf5 = new Leaf("Joe");Five leaves: Bob, Fred, Sue, Ellen, Joe.
    Composite composite1 = new Composite(); composite1.add(leaf1); composite1.add(leaf2);composite1 = {Bob, Fred}.
    Composite composite2 = new Composite(); composite2.add(leaf3); composite2.add(leaf4);composite2 = {Sue, Ellen}.
    Composite composite3 = new Composite(); composite3.add(composite1); composite3.add(composite2); composite3.add(leaf5);composite3 = {composite1, composite2, Joe}: a tree two levels deep.
    leaf1.sayHello(); composite1.sayHello(); composite2.sayHello(); composite3.sayGoodbye();The same calls on a leaf and on composites.
Slide 27 / 42

Composite Example: output

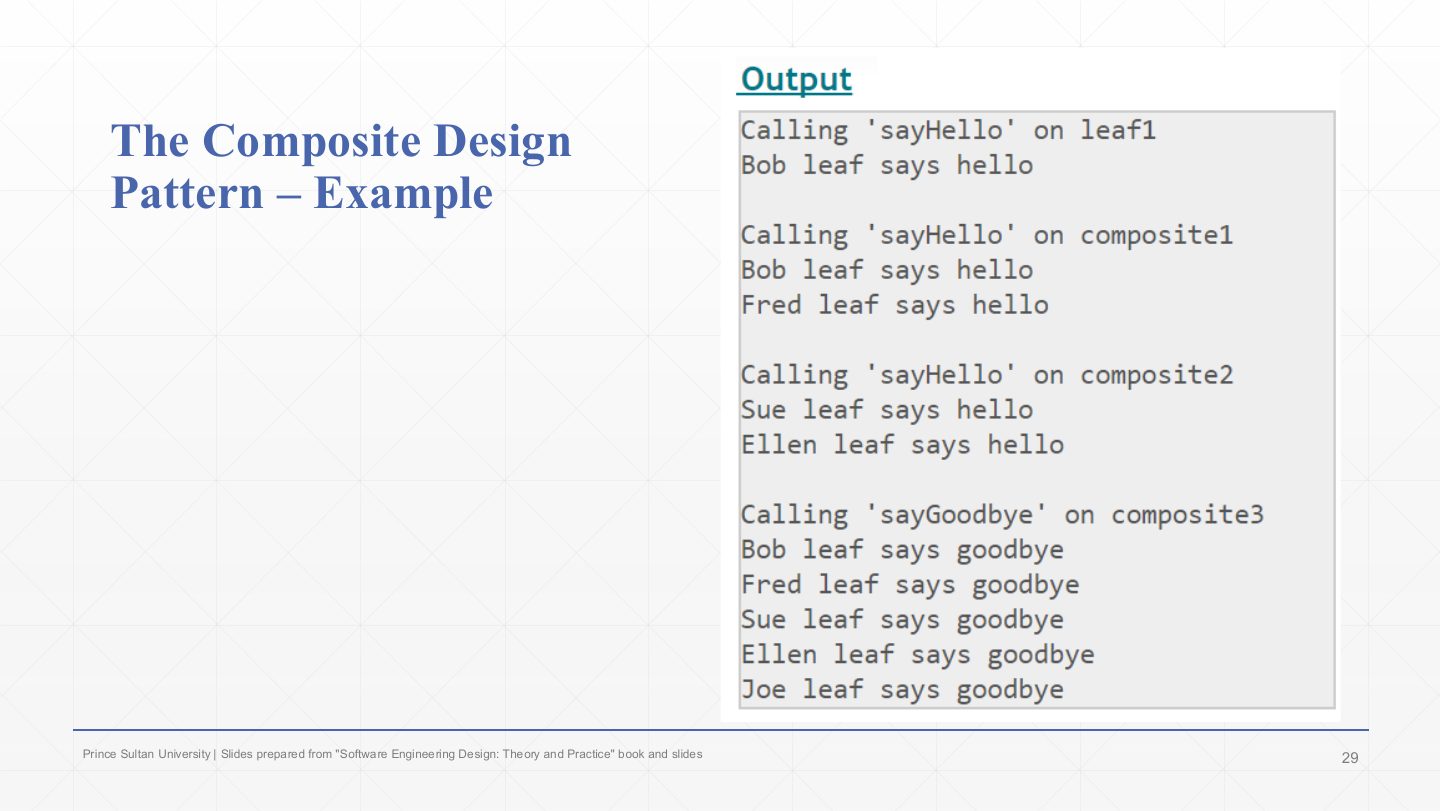

Slide 27: Composite Example: output

Notes

  1. The output: sayHello on leaf1 prints “Bob leaf says hello”; on composite1 prints Bob and Fred; on composite2 prints Sue and Ellen.

  2. sayGoodbye on composite3 prints goodbye from all five leaves (Bob, Fred, Sue, Ellen, Joe): one call at the root reached every nested leaf, because each composite forwarded it to its children.

Slide 28 / 42

The Composite Design Pattern

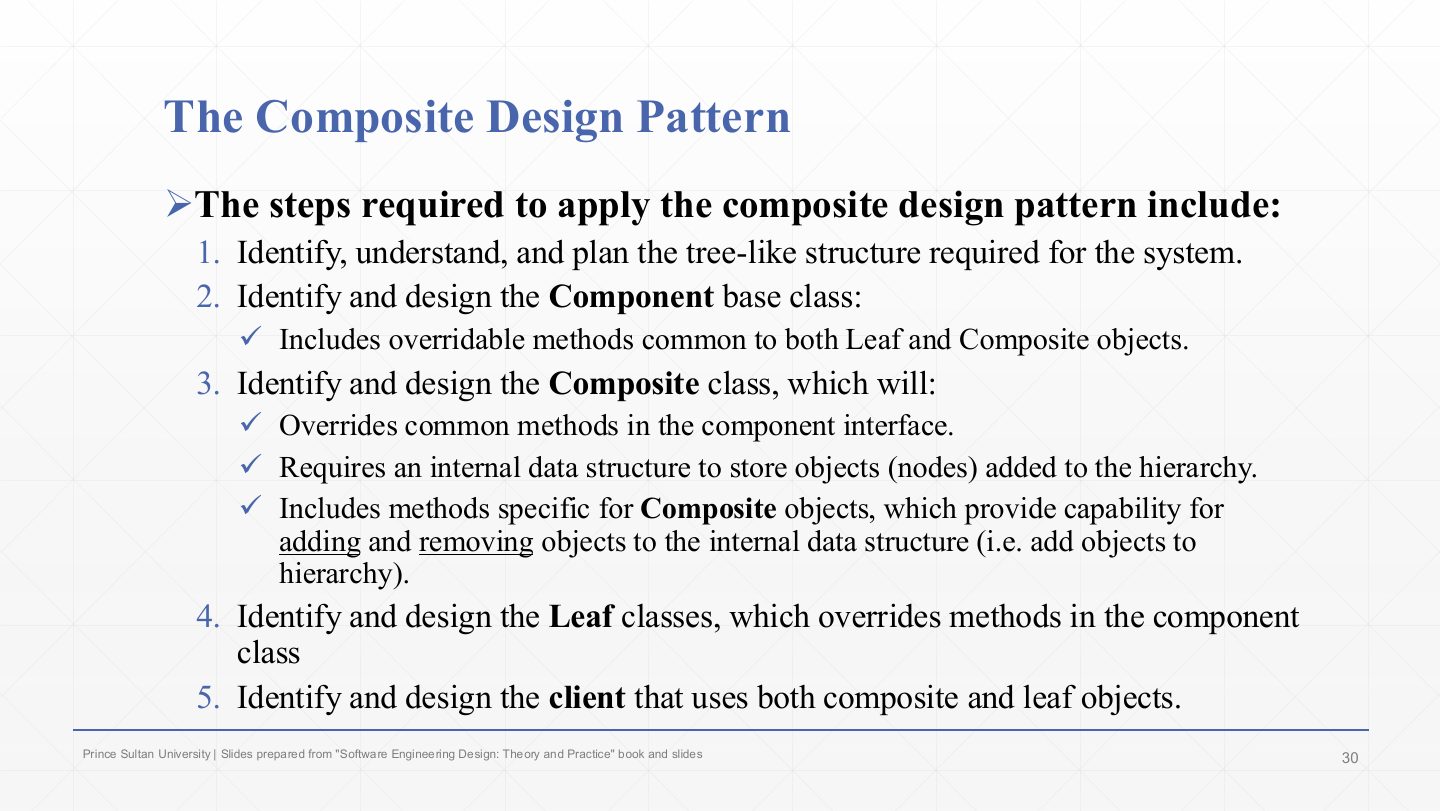

Slide 28: The Composite Design Pattern

Notes

  1. 1. Identify and plan the tree-like structure the system needs.

  2. 2. Design the Component base class with the overridable methods common to leaves and composites.

  3. 3. Design the Composite class: it overrides the common methods, keeps an internal data structure for its child nodes, and adds methods to add and remove children.

  4. 4. Design the Leaf classes, which override the component’s methods.

  5. 5. Design the client, which uses both composite and leaf objects.

Slide 29 / 42

The Composite Design Pattern

Slide 29: The Composite Design Pattern

Notes

  1. It gives one structure that supports both composite and primitive (leaf) objects.

  2. It minimises complexity for clients: they don’t need to know whether they hold a primitive or a composite, because operations are called the same way on both. A client written for a single object also works with a whole group.

  3. New component types are easy to add without changing client code. (The trade-off: a general Component interface can make it hard to restrict which children a composite may hold.)

Exam angle

PredictionQ1

Give two benefits of the Composite pattern.

Show answer

Clients treat single objects and groups uniformly (simpler client code); it supports both primitive and composite objects in one tree structure; new component types can be added easily.

Slide 30 / 42

Extra: Explanation of the Composite pattern

Slide 30: Extra: Explanation of the Composite pattern

Notes

  1. Composite is used to treat individual objects (primitives) and groups (composites) the same way.

  2. It gives a tree: leaves are simple objects, composite nodes are collections.

  3. Clients call the same operations uniformly, which reduces complexity and makes it easy to add new simple or composite objects without changing client code.

Slide 31 / 42

Extra: Composite in real life

Slide 31: Extra: Composite in real life

Notes

  1. File system: a file is primitive (contains nothing), a folder is composite (contains files and other folders). The same “open” operation shows a file’s content or expands a folder: the file explorer treats both the same way. This is exactly the Final 252 question.

  2. University: a single course (Math 101) is primitive; a programme (a CS degree) is composite, containing many courses. Checking the details of one course or a whole programme works the same way.

Slide 32 / 42

Facade Design Pattern

Slide 32: Facade Design Pattern

Notes

  1. Facade is an object structural pattern that provides a simplified interface to complex subsystems.

  2. Intent: provide a unified interface to a set of interfaces in a subsystem; the facade defines a higher-level interface that makes the subsystem easier to use. Like a hotel reception desk: one place to ask, many departments behind it.

Exam angle

PredictionQ1

Providing one simple interface to a set of complex subsystem classes is the:

  1. Facade pattern
  2. Adapter pattern
  3. Composite pattern
  4. Singleton pattern
Show answer

A. Facade pattern

Slide 33 / 42

Facade Design Pattern - Structure

Slide 33: Facade Design Pattern - Structure

Notes

  1. The structure: the Client depends only on the Facade, whose methods (operation2(), operation41()) are implemented by calling ClassA and ClassB in the subsystem (operation1()…operation4()). The client never touches ClassA or ClassB directly.

Slide 34 / 42

Facade Design Pattern Example*

Slide 34: Facade Design Pattern Example*

Notes

  1. The example (from javatpoint): a mobile subsystem with «interface» MobileShop (modelNo(), price()) implemented by Iphone, Samsung and Blackberry.

  2. The client (FacadePatternClient) shouldn’t deal with those details, so a facade class, ShopKeeper, keeps one of each phone and offers simple methods: iphoneSale(), samsungSale(), blackberrySale().

Slide 35 / 42

Facade Example: MobileShop and Iphone

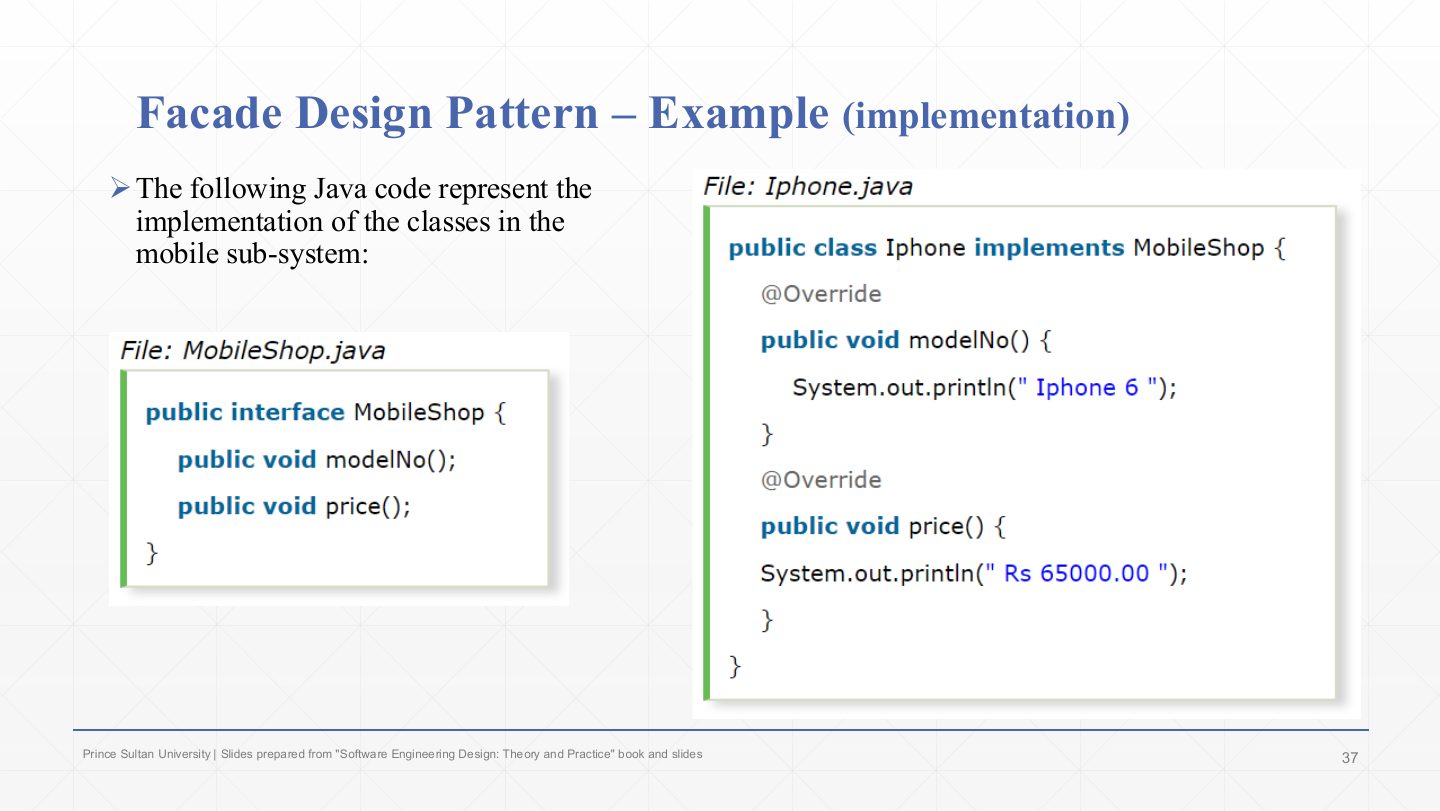

Slide 35: Facade Example: MobileShop and Iphone

Notes

  1. The subsystem:

    CodeWhat it does
    public interface MobileShop { public void modelNo(); public void price(); }The subsystem interface.
    public class Iphone implements MobileShop { modelNo() { …" Iphone 6 "… } price() { …" Rs 65000.00 "… } }One subsystem class.
Slide 36 / 42

Facade Example: Samsung and Blackberry

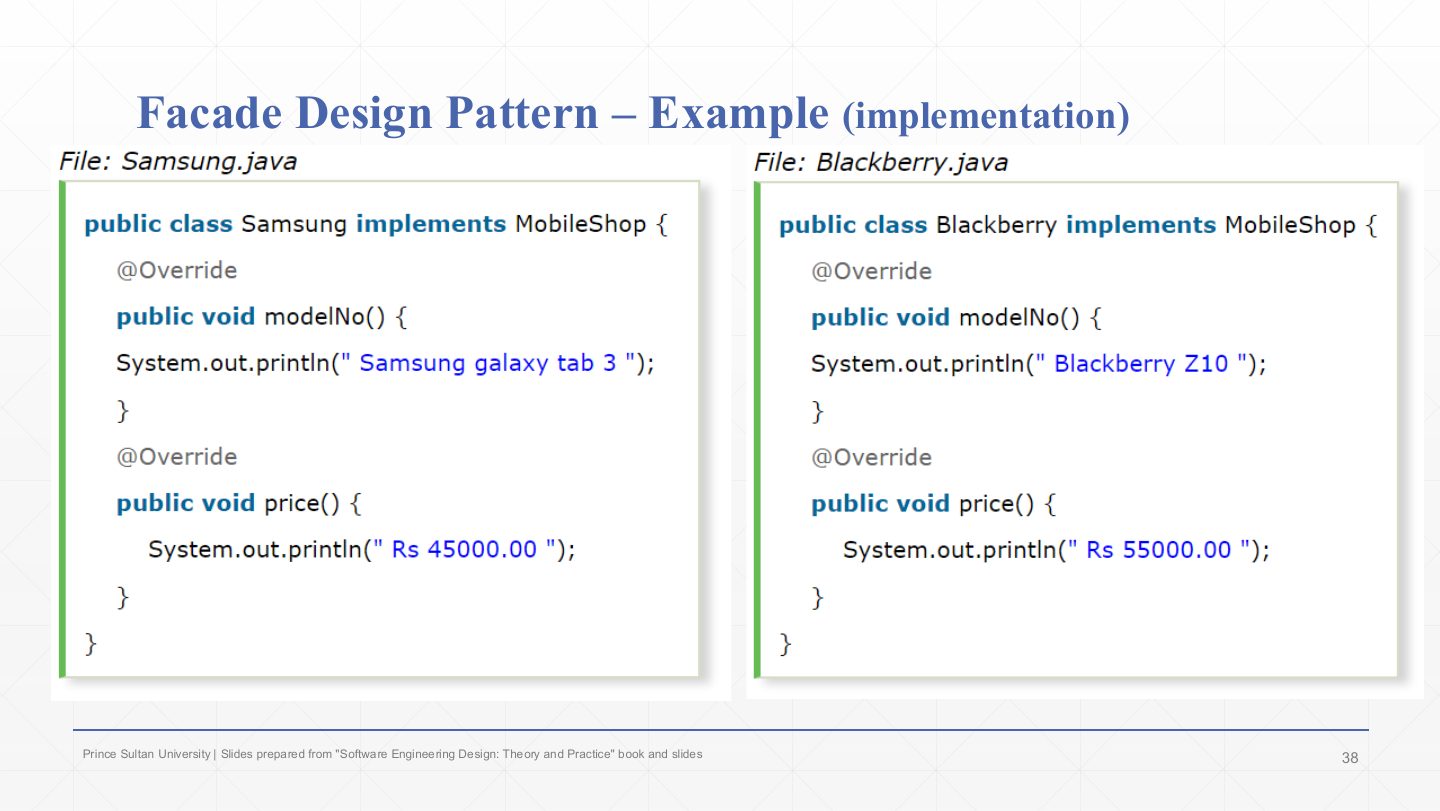

Slide 36: Facade Example: Samsung and Blackberry

Notes

  1. Samsung prints “Samsung galaxy tab 3” and “Rs 45000.00”; Blackberry prints “Blackberry Z10” and “Rs 55000.00”. Same interface, three classes the client would otherwise have to know.

Slide 37 / 42

Facade Example: ShopKeeper

Slide 37: Facade Example: ShopKeeper

Notes

  1. The facade:

    CodeWhat it does
    public class ShopKeeper { private MobileShop iphone; private MobileShop samsung; private MobileShop blackberry;It holds the subsystem objects.
    public ShopKeeper() { iphone = new Iphone(); samsung = new Samsung(); blackberry = new Blackberry(); }And creates them, so the client doesn’t have to.
    public void iphoneSale() { iphone.modelNo(); iphone.price(); }One task-level method = the right sequence of subsystem calls.
    public void samsungSale() { … } public void blackberrySale() { … } }
Slide 38 / 42

Facade Example: client and output

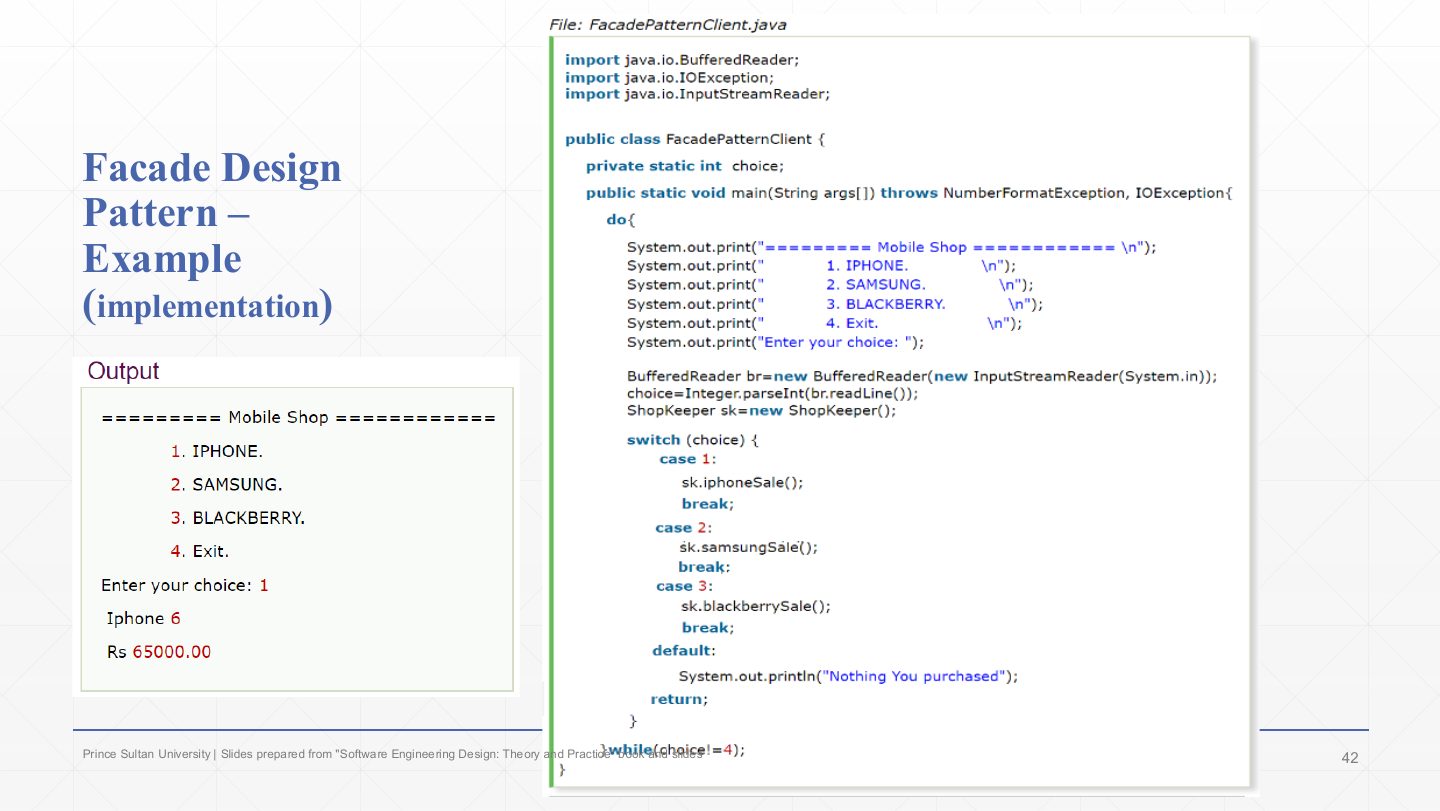

Slide 38: Facade Example: client and output

Notes

  1. The client:

    CodeWhat it does
    ShopKeeper sk = new ShopKeeper();The only subsystem-related class it knows.
    switch (choice) { case 1: sk.iphoneSale(); break; case 2: sk.samsungSale(); break; case 3: sk.blackberrySale(); break; … }A menu: 1 iPhone, 2 Samsung, 3 Blackberry, 4 Exit.

  2. Output for choice 1: “Iphone 6” and “Rs 65000.00”.

Slide 39 / 42

Facade Design Pattern Example*

Slide 39: Facade Design Pattern Example*

Notes

  1. As the example shows, the facade gave the client a simplified interface to a complex subsystem.

  2. ShopKeeper lets the client use the mobile subsystem without knowing anything about it: which classes exist, how they are created, or which methods to call in which order.

Slide 40 / 42

Facade Design Pattern

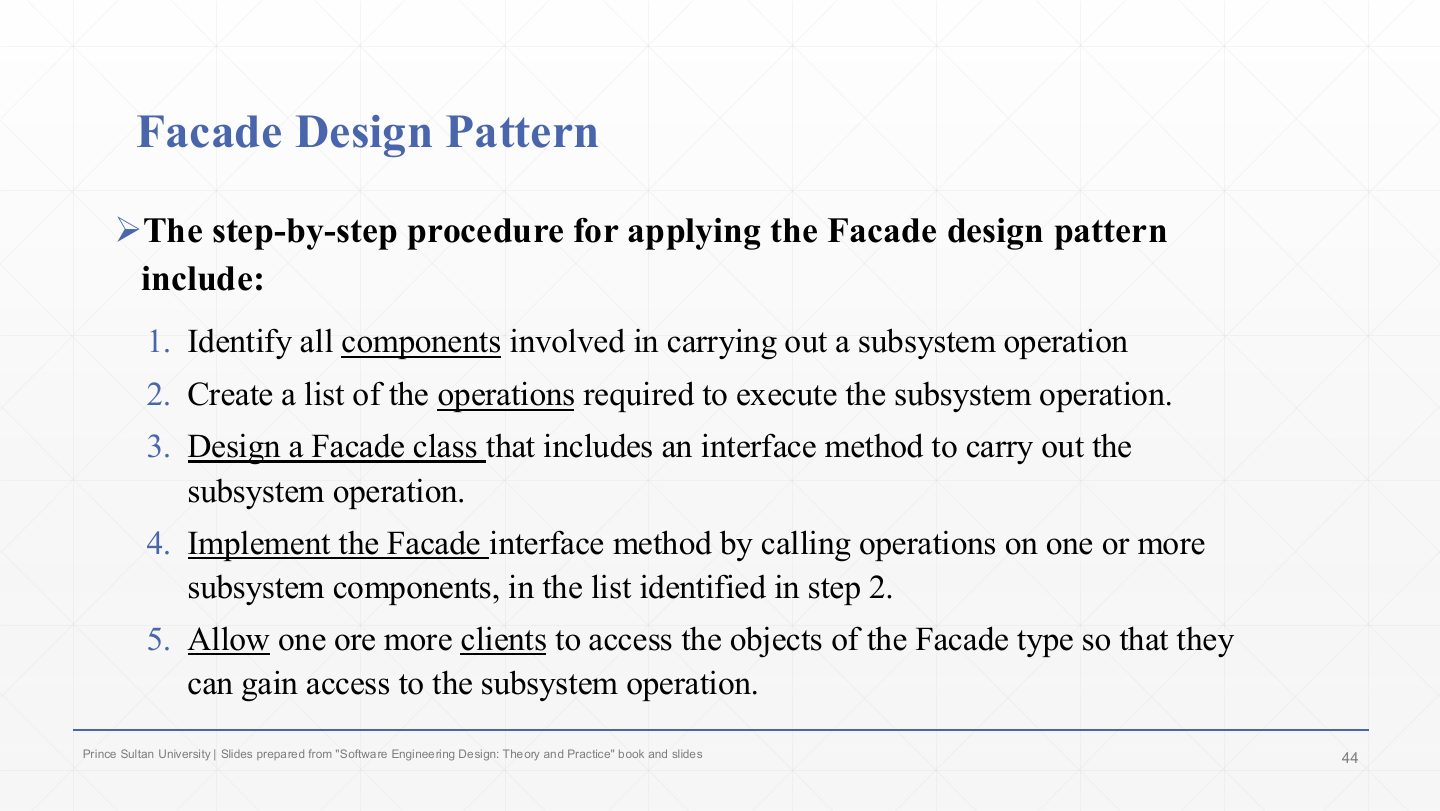

Slide 40: Facade Design Pattern

Notes

  1. 1. Identify all components involved in carrying out a subsystem operation.

  2. 2. List the operations required to execute it.

  3. 3. Design a facade class with an interface method for that subsystem operation.

  4. 4. Implement that method by calling the operations from step 2 on the subsystem components.

  5. 5. Let clients use the facade object to reach the subsystem operation.

Exam angle

PredictionQ1

True or false: Adapter changes an interface to match what a client expects, while Facade simplifies access to a whole subsystem.

Show answer

True

PredictionQ2

How do Adapter and Facade differ?

Show answer

Adapter converts one existing interface into a different interface that a client already expects (making incompatible classes work together). Facade defines a new, simpler, higher-level interface over many subsystem classes so clients don’t need to know them. Adapter wraps one class to fit; Facade wraps a subsystem to simplify.

Slide 41 / 42

Facade Design Pattern

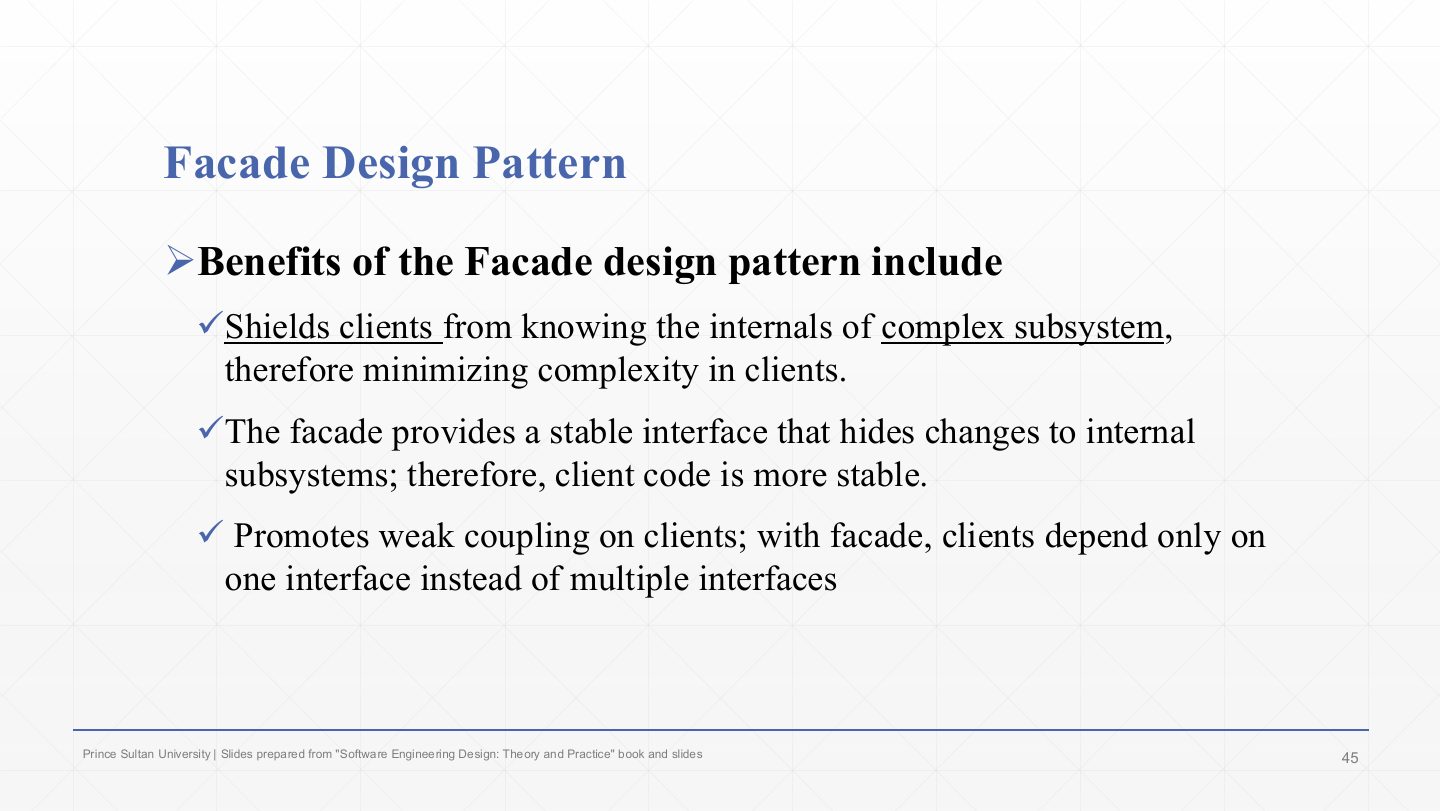

Slide 41: Facade Design Pattern

Notes

  1. It shields clients from the internals of a complex subsystem, reducing client complexity.

  2. It provides a stable interface that hides internal changes, so client code is more stable.

  3. It promotes weak coupling: clients depend on one interface instead of many. (Keep facades focused on related tasks so they don’t become “god objects”.)

Slide 42 / 42

Summary

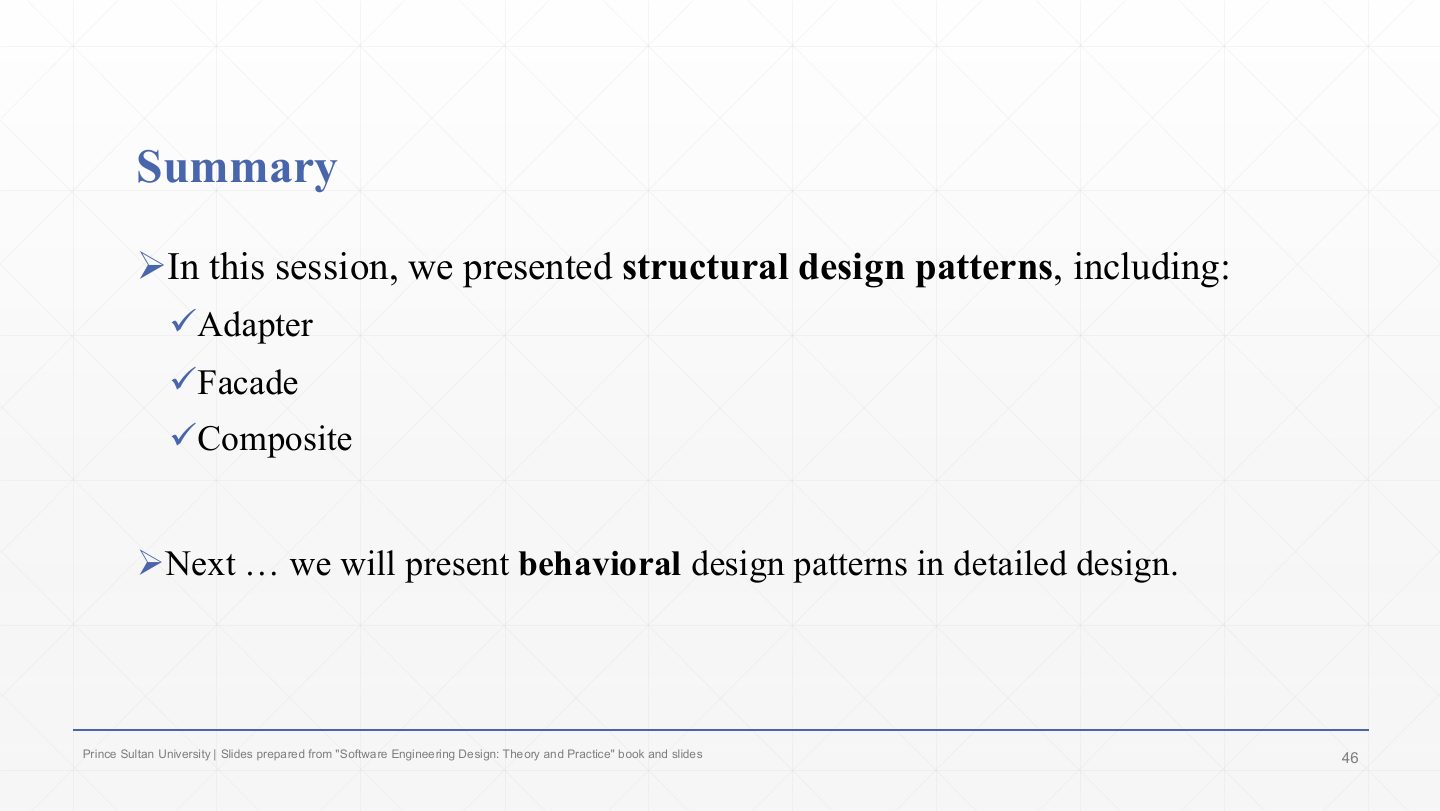

Slide 42: Summary

Notes

  1. Structural patterns covered: Adapter (translate an interface), Facade (simplify a subsystem), Composite (treat trees uniformly).

  2. Next: behavioural design patterns.
