CS223 · Annotated SlidesChapter 6 — Applications to Linear Models
Chapter 6 · Annotated slides

Applications to Linear Models

Regression as least squares: the design matrix X, parameter vector β and observation vector y, the least-squares line y = β₀ + β₁x, residuals, and fitting other curves.

Slide text Study notes Highlight: key words Tips, tricks & traps Seen again elsewhere How it can come up

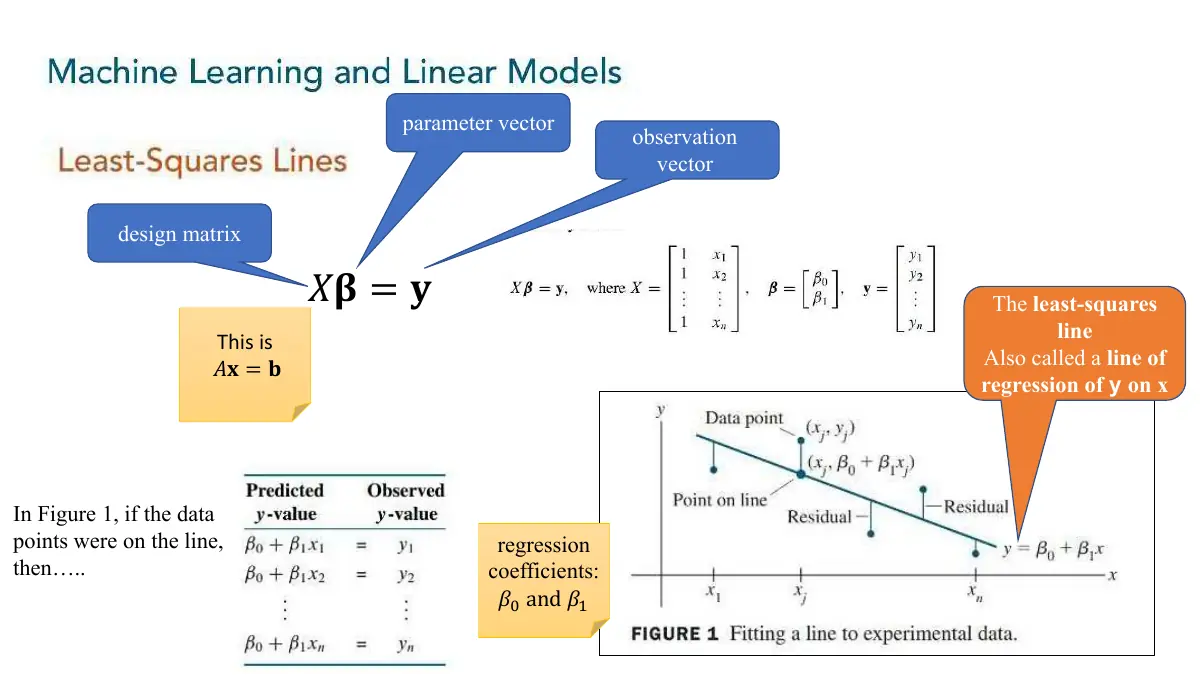

Slide 1: parameter vector observation vector
Exam weight High
  1. Linear model y = Xβ + ε. Least-squares line: X has a column of 1s and a column of x values; solve XᵀXβ = Xᵀy.
🎯 How this can come up · 1 question
Written

Set up the design matrix for fitting y = β₀ + β₁x to points (2, 1), (5, 2), (7, 3).

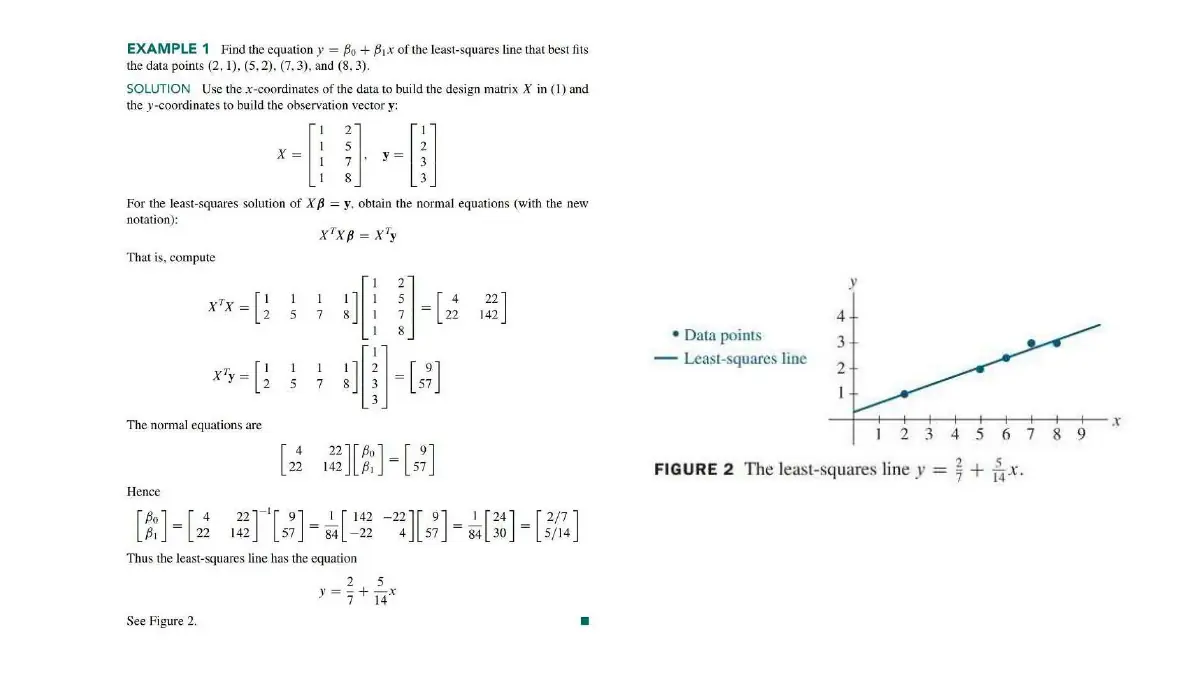

Slide 2: Slide 2
Exam weight Low

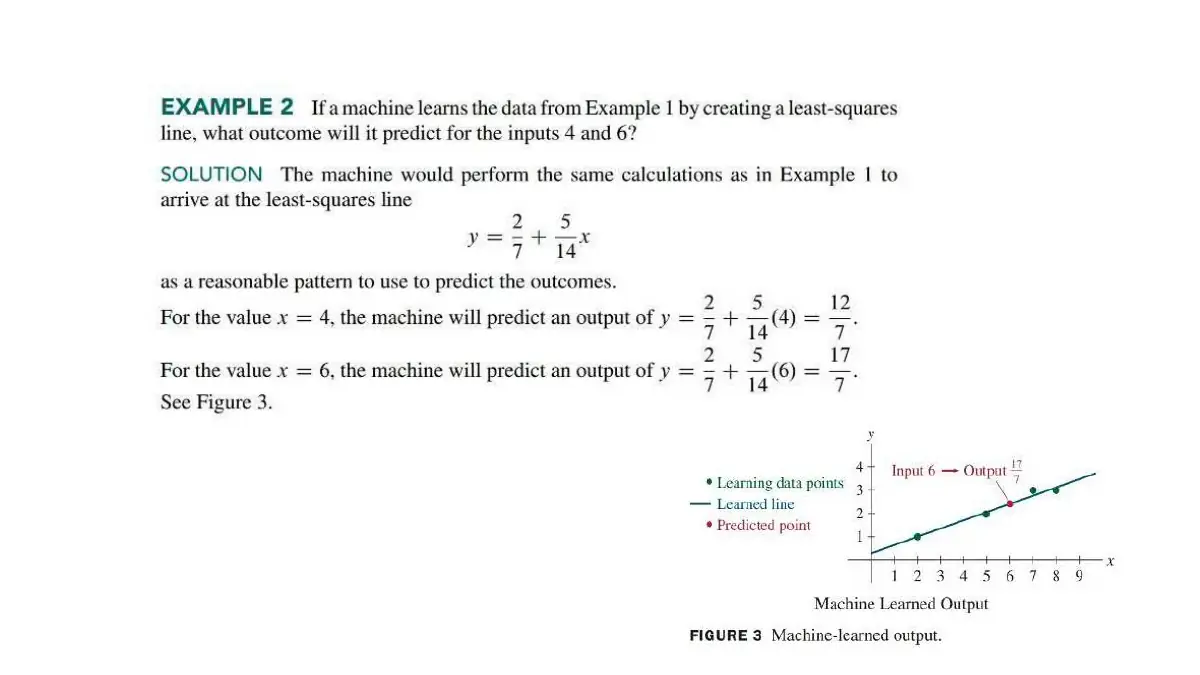

    Slide 3: Slide 3
    Exam weight Low

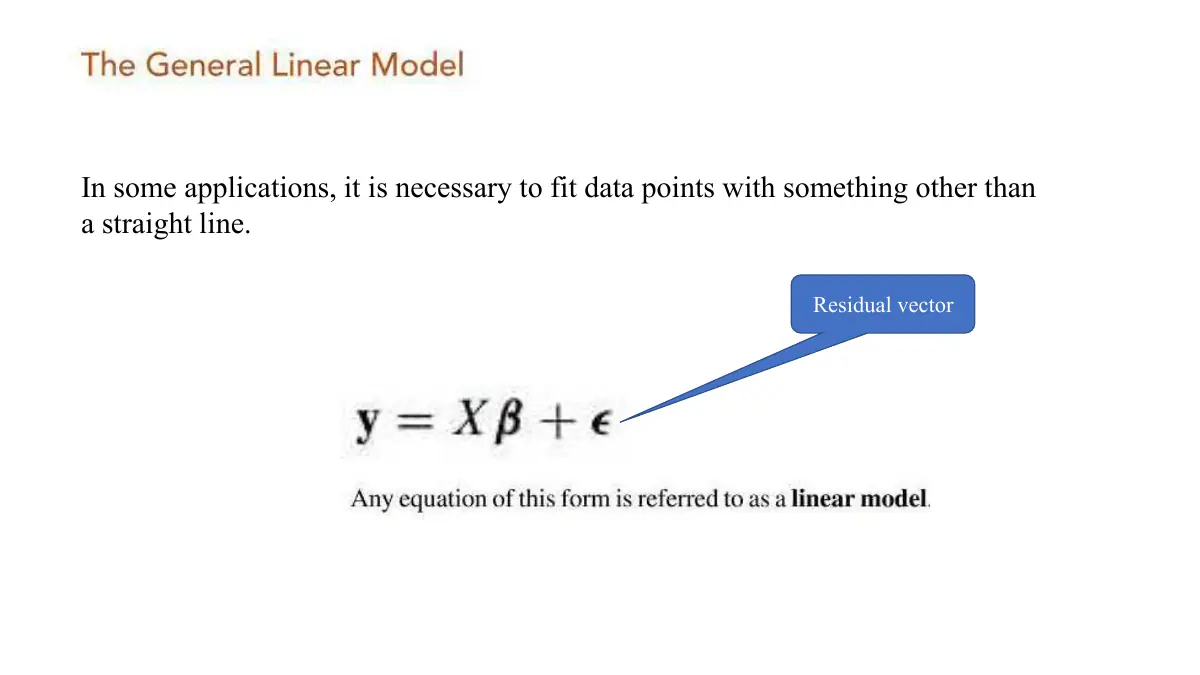

      Slide 4: Slide 4
      Exam weight Low

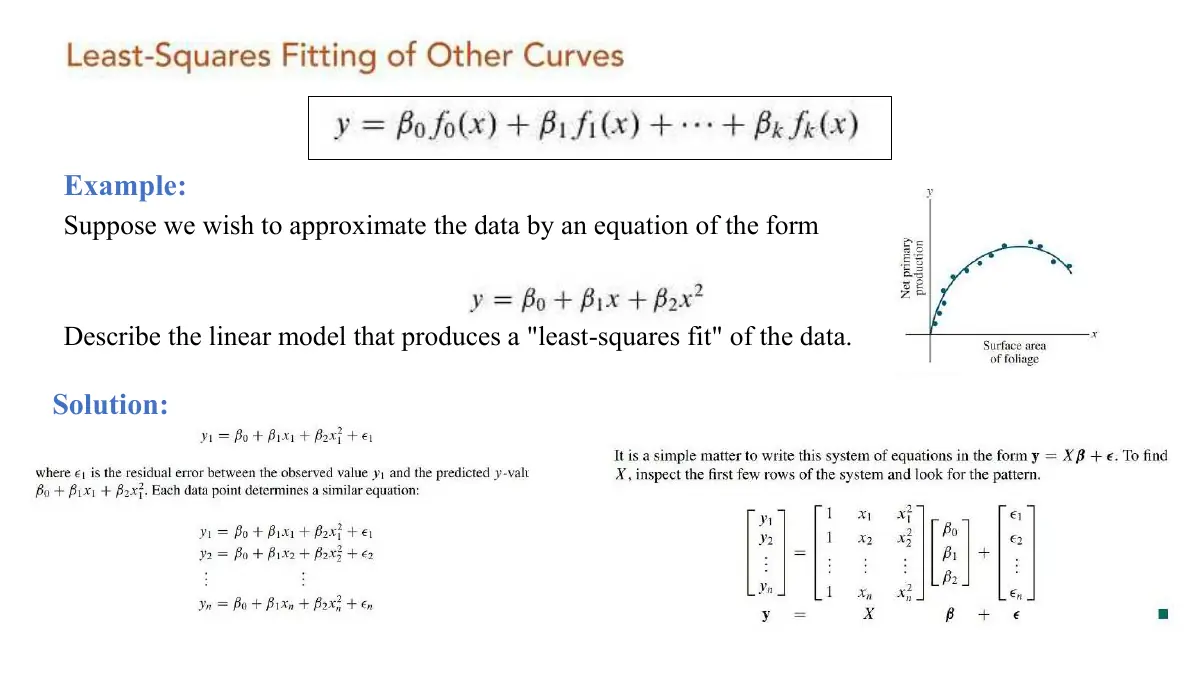

      1. Other curves (e.g. y = β₀ + β₁x + β₂x²) are still LINEAR in the parameters: add a column for x².
      Slide 5: Slide 5
      Exam weight Low

        6
        Exam weight Low

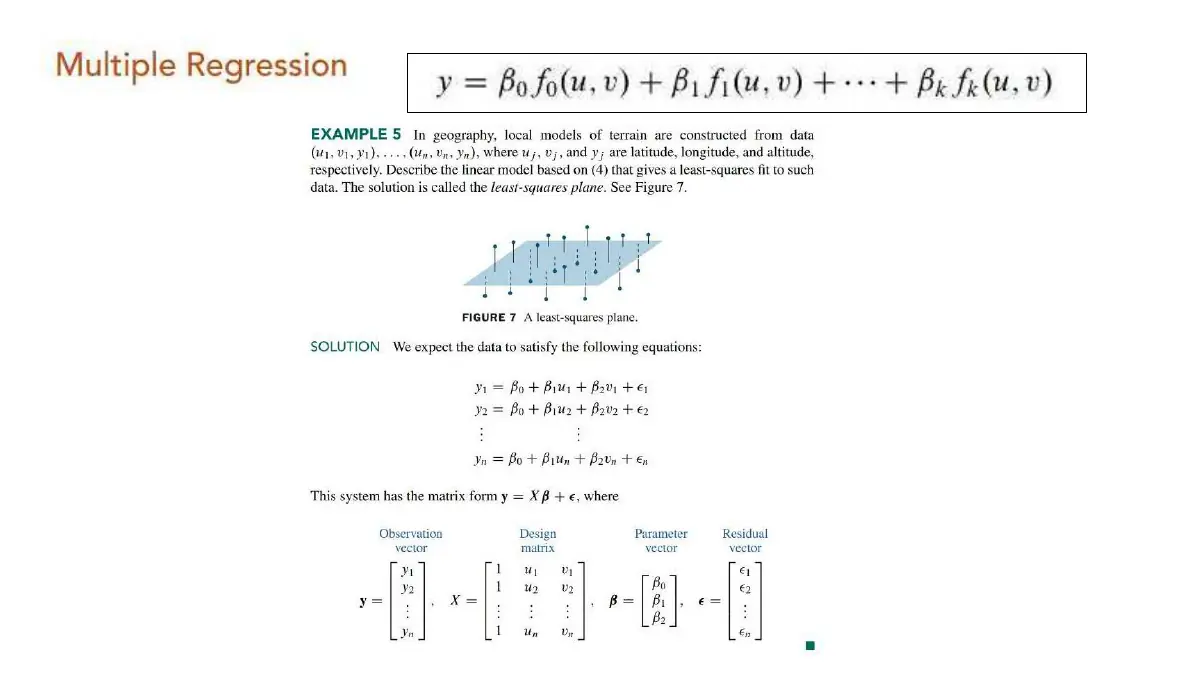

          Slide 7: Slide 7
          Exam weight Low
