CS223 · Annotated SlidesChapter 5 — Eigenvectors and Linear Transformations
Chapter 5 · Annotated slides

Eigenvectors and Linear Transformations

The matrix of a linear transformation relative to bases, the B-matrix [T]_B = P⁻¹AP, and diagonal matrix representations.

Slide text Study notes Highlight: key words Tips, tricks & traps Seen again elsewhere How it can come up

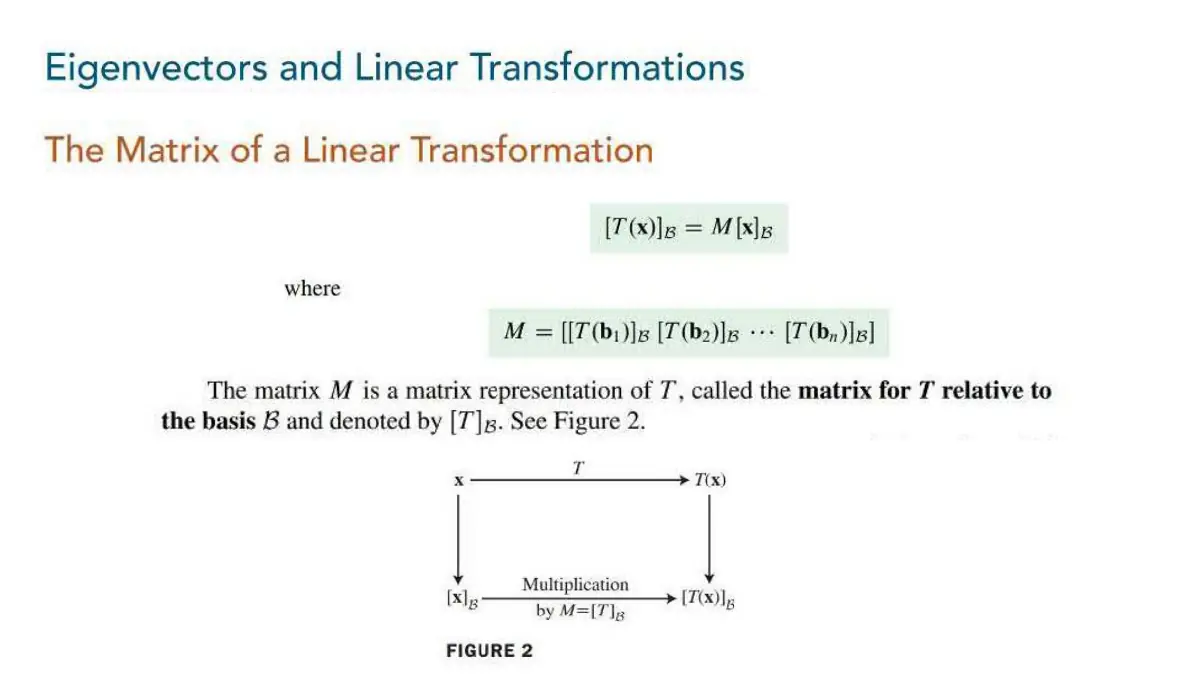

Slide 1: Slide 1
Exam weight Low

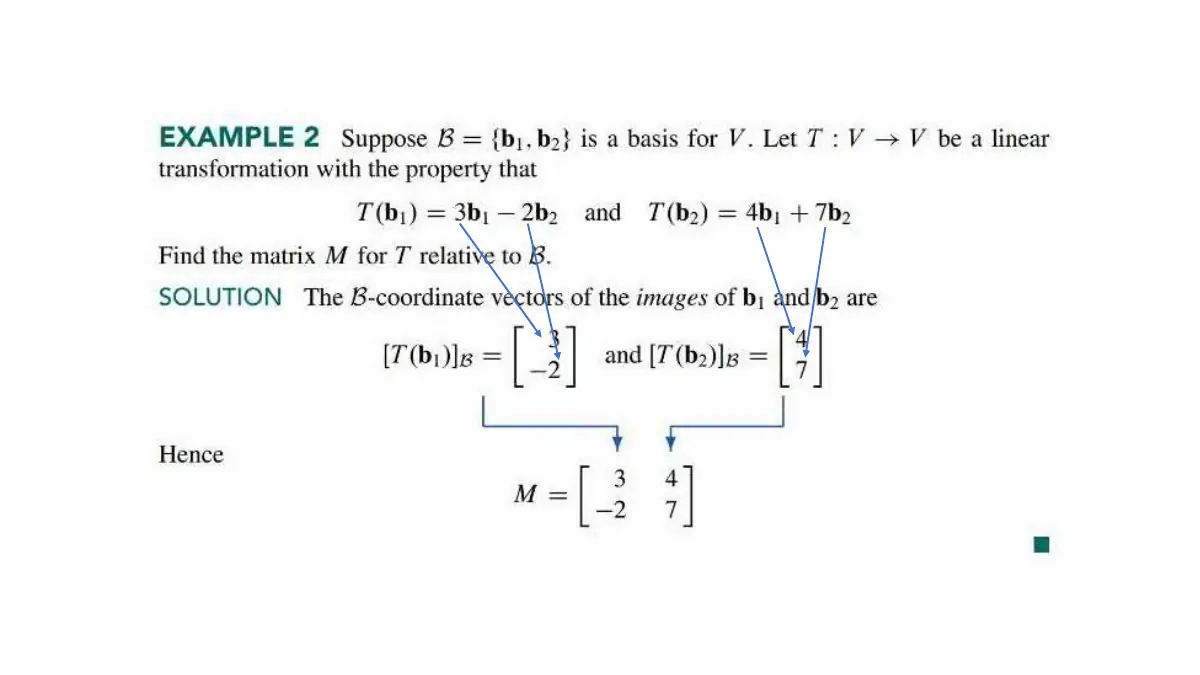

    Slide 2: Slide 2
    Exam weight Low

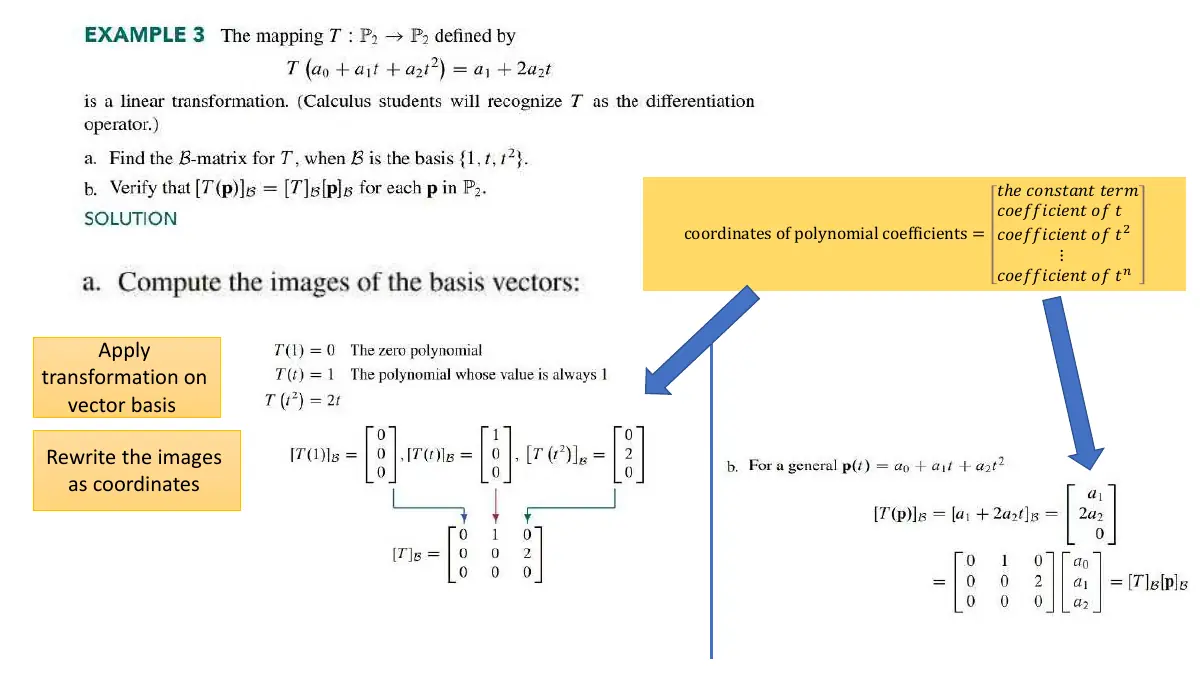

      Slide 3: Slide 3
      Exam weight Low

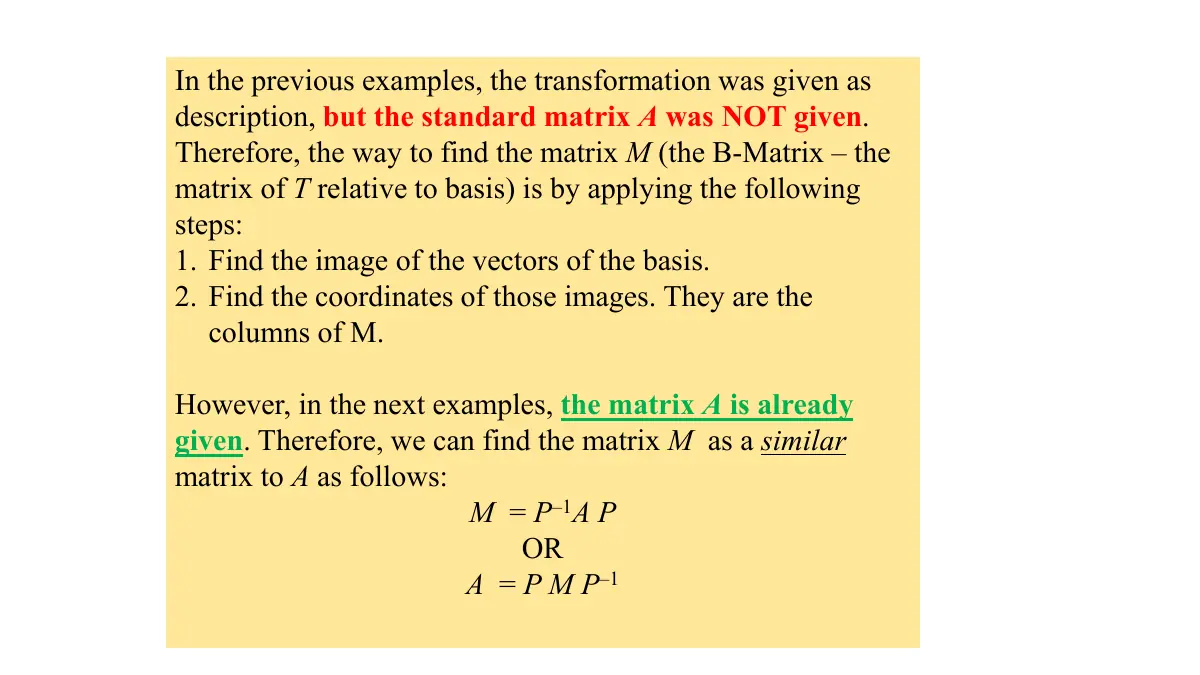

        Slide 4: In the previous examples, the transformation was given as A description, but the standard matrix was NOT given . M Therefore, the way to find the matrix (the B-Matrix – the T matrix of relative to basis) is by applying the following
        Exam weight Low
        1. The B-matrix of x ↦ Ax is [T]_B = P⁻¹AP where P has the basis vectors as columns. If B is an eigenvector basis, [T]_B is diagonal.

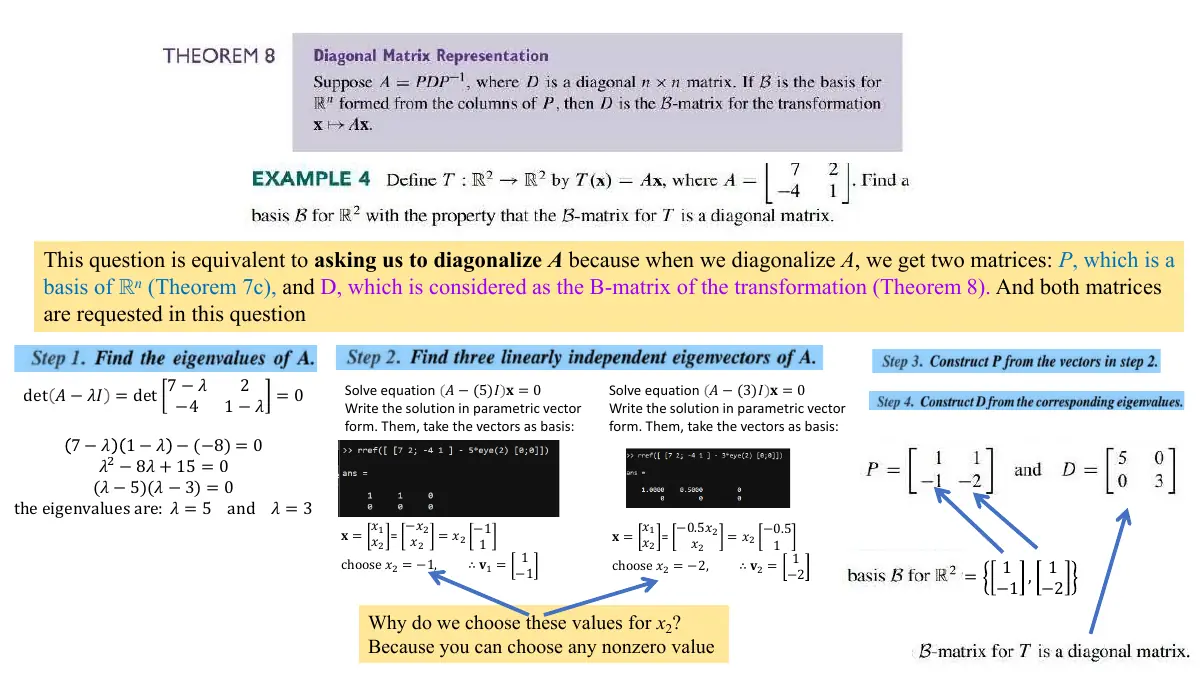

        Slide 5: Slide 5
        Exam weight Low

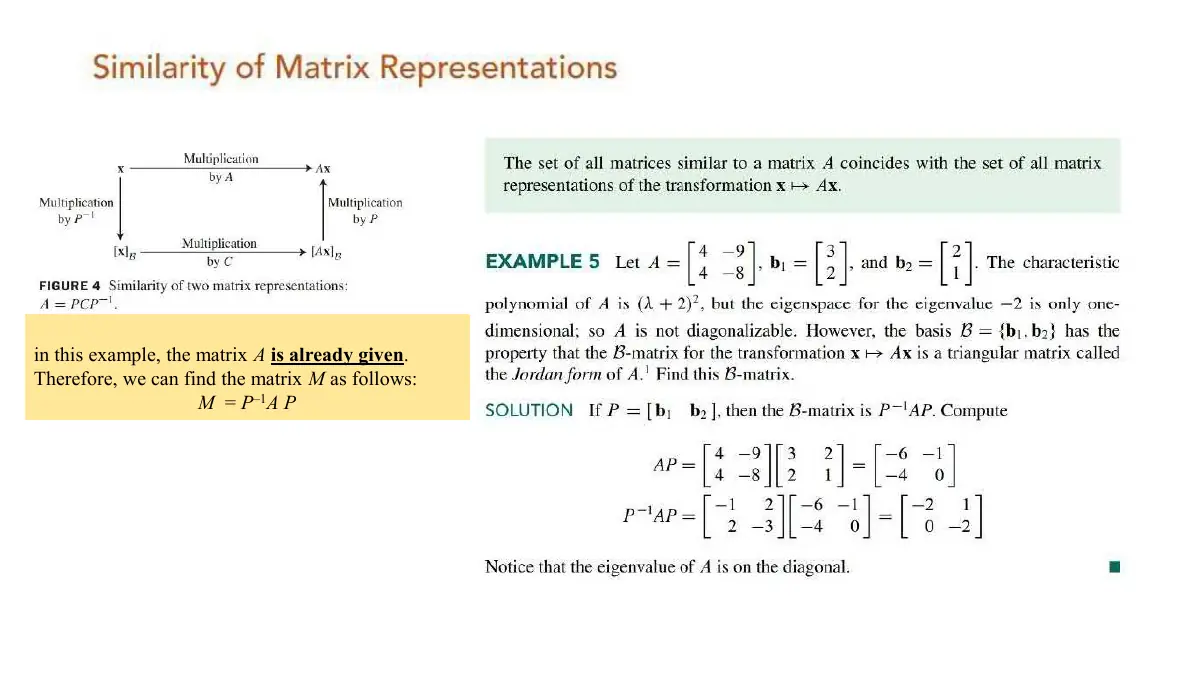

          Slide 6: Slide 6
          Exam weight Low
