CS223 · Annotated SlidesChapter 5 — Eigenvectors and Eigenvalues
Chapter 5 · Annotated slides

Eigenvectors and Eigenvalues

Eigenvectors Ax = λx, checking eigenvalues by solving (A − λI)x = 0, eigenspaces, eigenvalues of triangular matrices, and independence of eigenvectors for distinct eigenvalues.

Slide text Study notes Highlight: key words Tips, tricks & traps Seen again elsewhere How it can come up

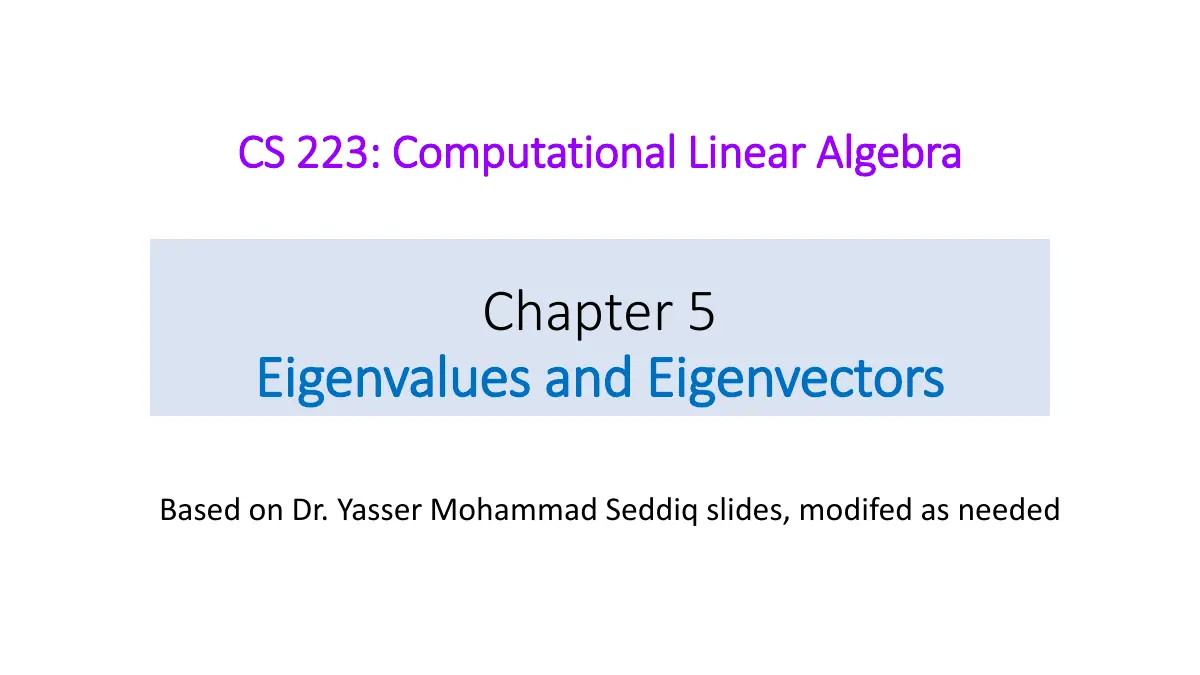

Slide 1: CS 223: Computational Linear Algebra
Exam weight Low

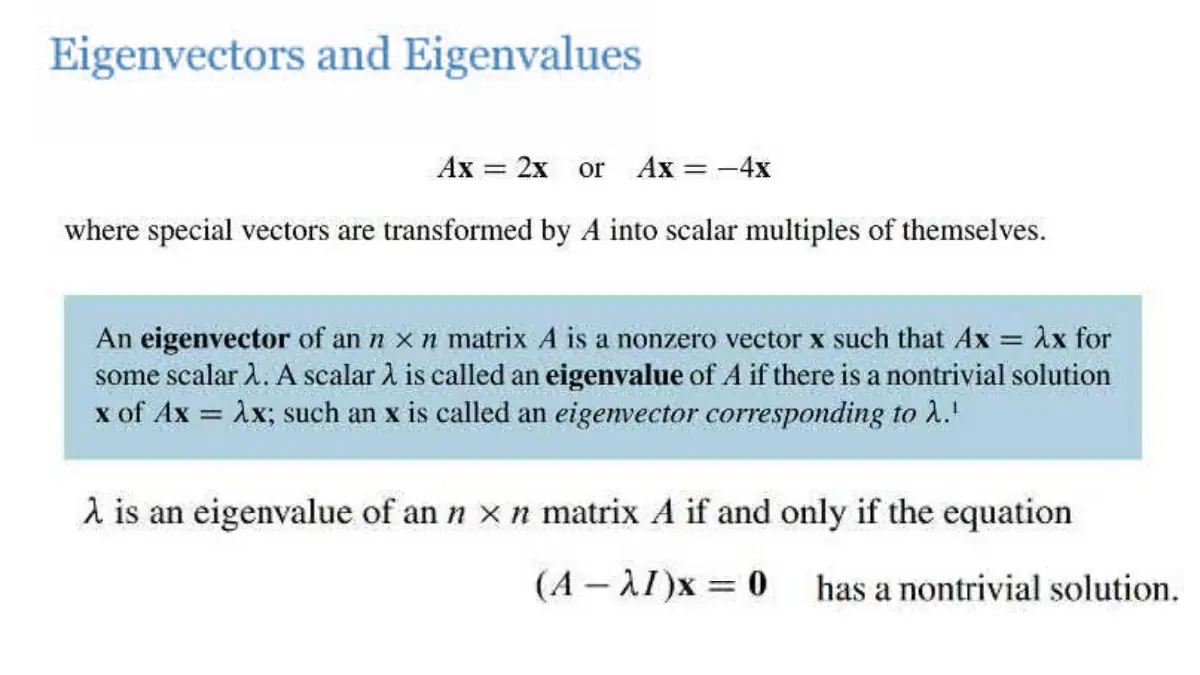

    Slide 2: Slide 2
    Exam weight High
    1. x ≠ 0 is an eigenvector of A with eigenvalue λ if Ax = λx. λ is an eigenvalue ⇔ (A − λI)x = 0 has a nontrivial solution.

    Related real-exam questions

    Final (231) · this topic is examinedFinal (232) · this topic is examinedSample final (223) · this topic is examinedFinal review bank · this topic is examined
    🎯 How this can come up · 1 question
    True / False

    The zero vector can be an eigenvector.

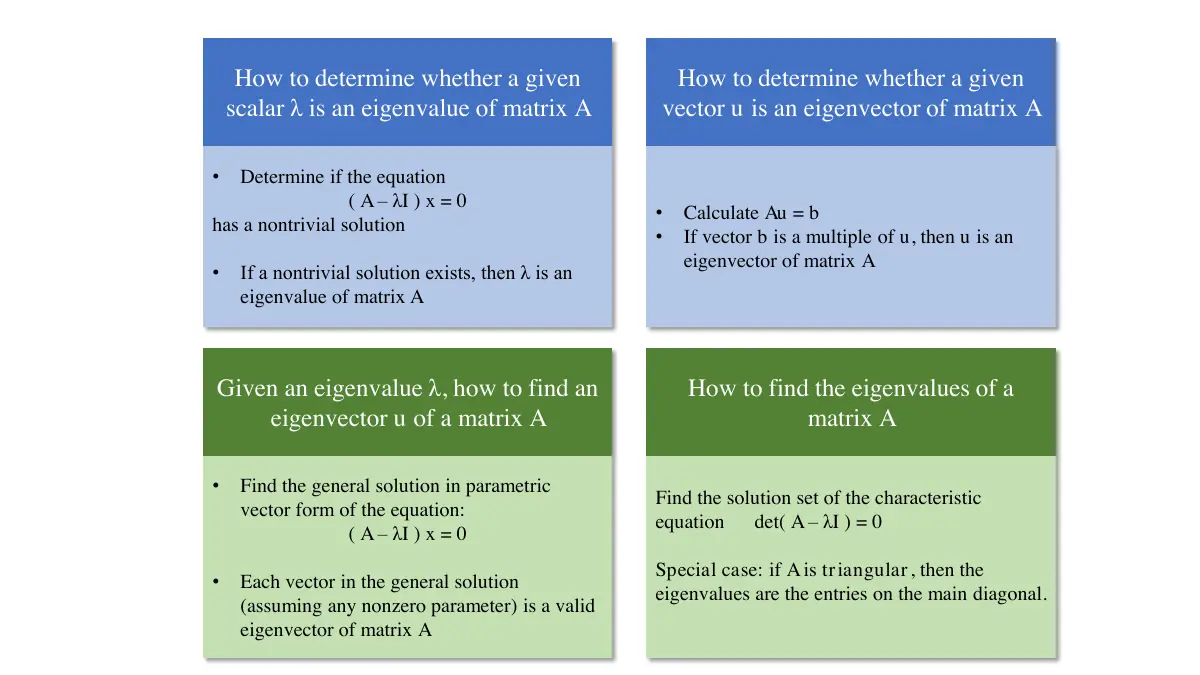

    Slide 3: Slide 3
    Exam weight Low

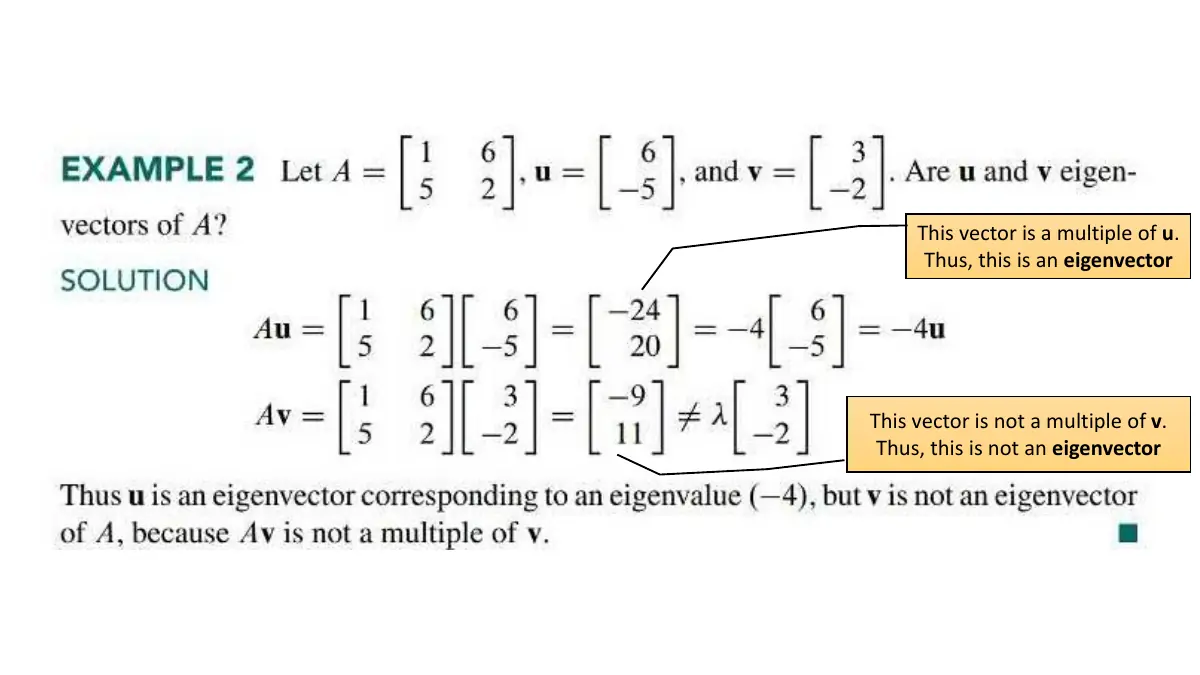

      Slide 4: Slide 4
      Exam weight Low

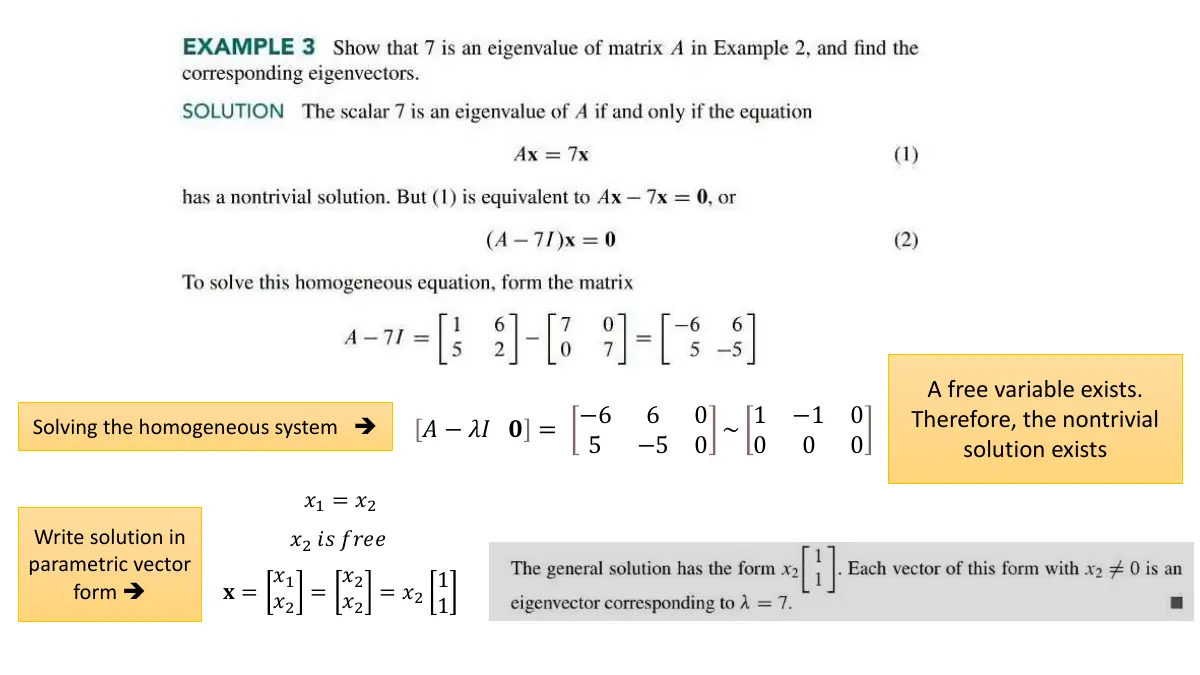

        Slide 5: Slide 5
        Exam weight Low
        1. Eigenspace of λ = Nul(A − λI); its dimension = number of free variables.

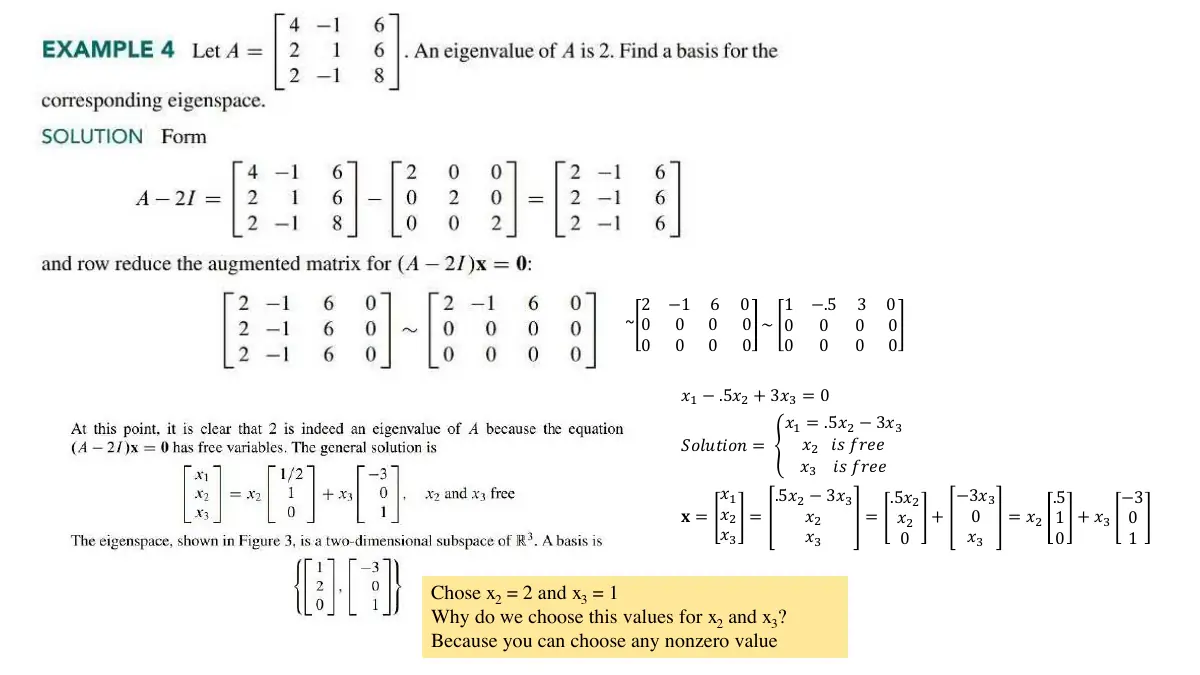

        Slide 6: Slide 6
        Exam weight Low

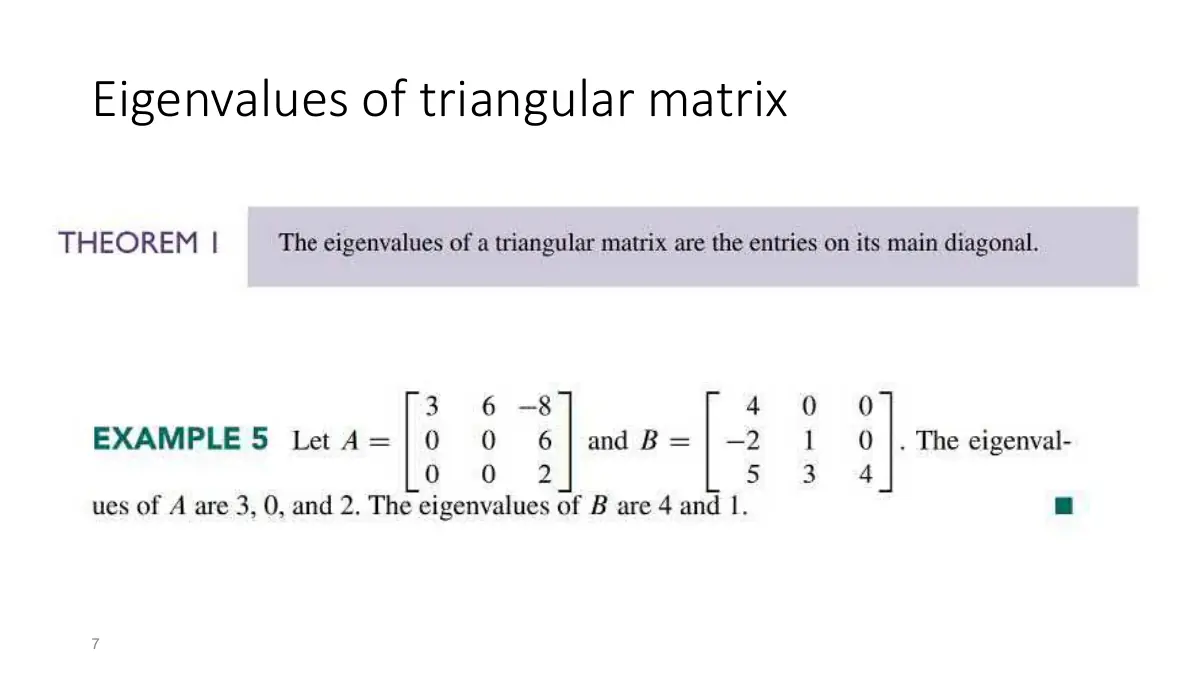

          Slide 7: Eigenvalues of triangular matrix
          Exam weight High
          1. Eigenvalues of a triangular matrix are its diagonal entries. 0 is an eigenvalue ⇔ A is not invertible. Eigenvectors for distinct eigenvalues are linearly independent.
          🎯 How this can come up · 1 question
          MCQ

          The eigenvalues of [[3, 6, −8], [0, 0, 6], [0, 0, 2]] are:

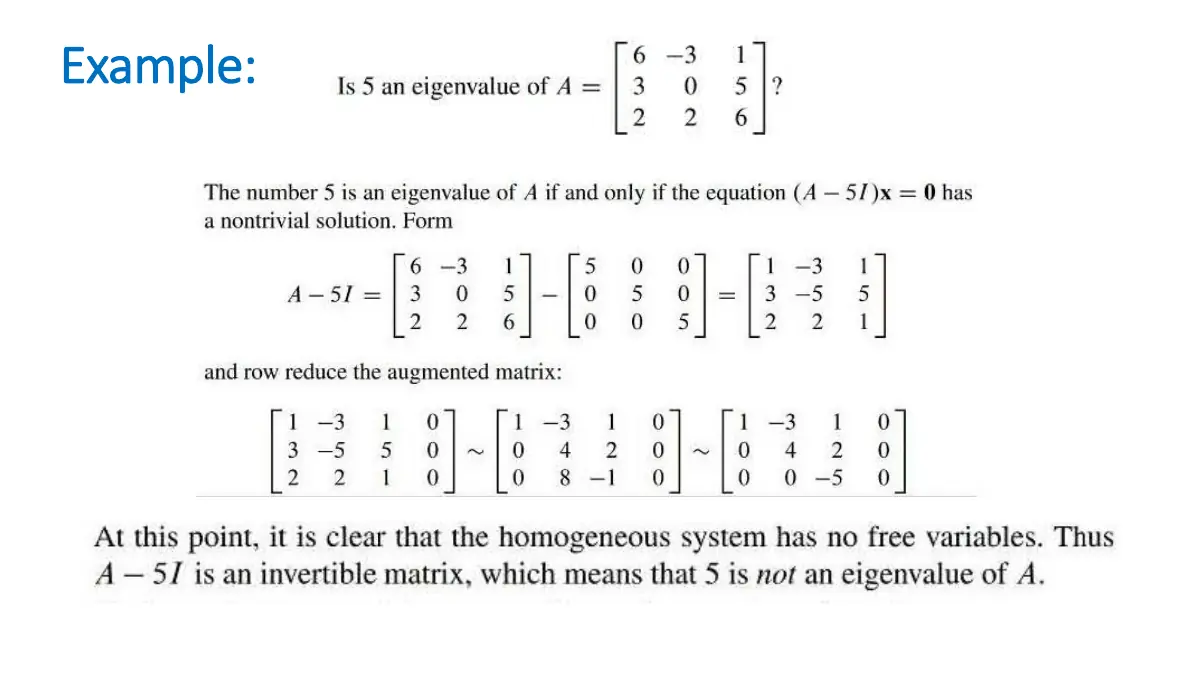

          Slide 8: Example:
          Exam weight Low
