CS223 · Annotated SlidesChapter 4 — Applications to Difference Equations and Signals
Chapter 4 · Annotated slides

Applications to Difference Equations and Signals

Discrete-time signals, periodic signals, linear difference equations, and the solution space of a homogeneous linear difference equation.

Slide text Study notes Highlight: key words Tips, tricks & traps Seen again elsewhere How it can come up
Slide 1: Slide 1
Exam weight Low

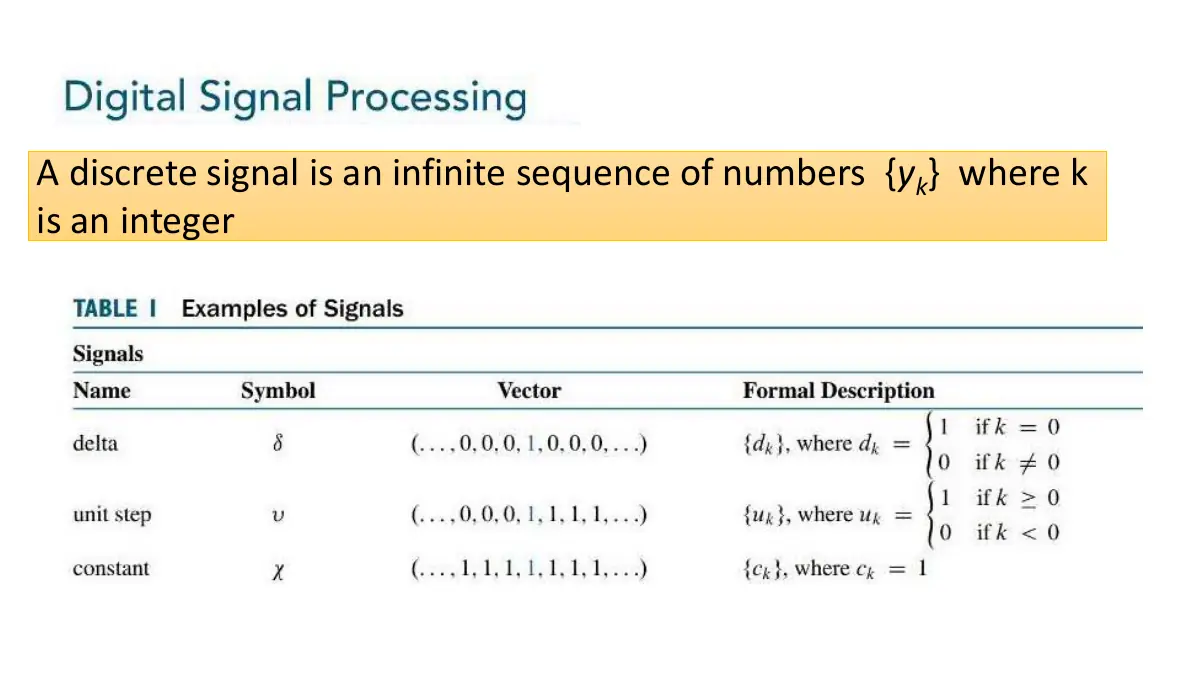

  1. A discrete signal is a sequence {yₖ}. A linear difference equation: a₀yₖ₊ₙ + … + aₙyₖ = zₖ.

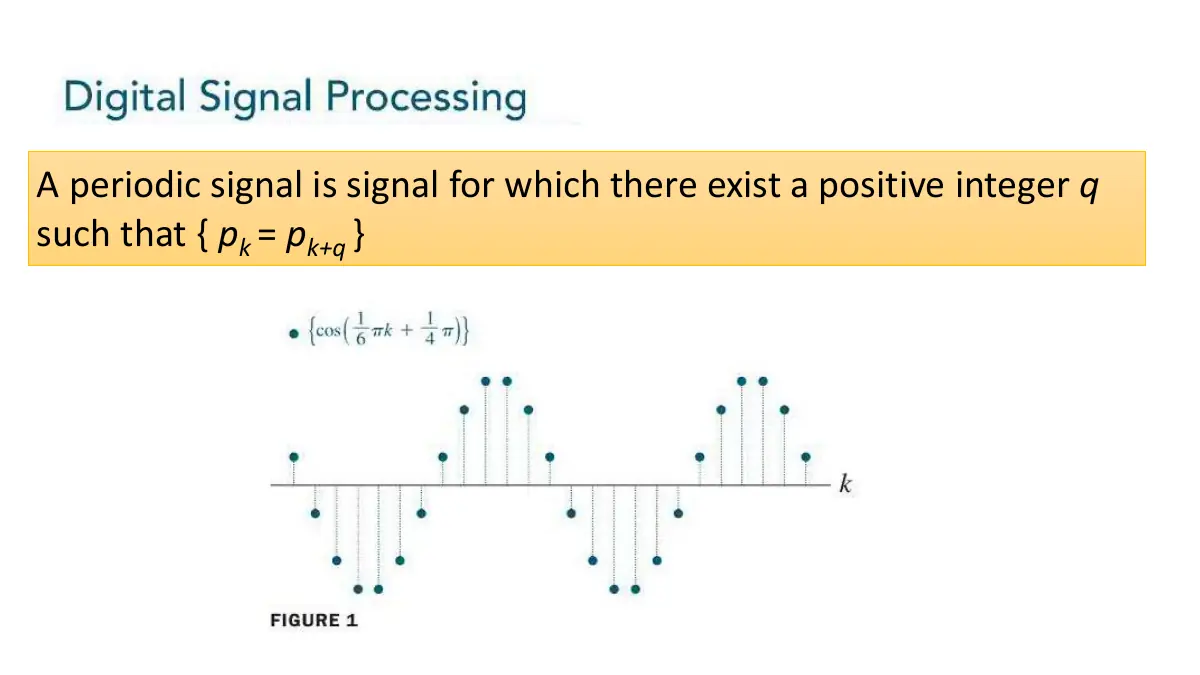

Slide 2: Slide 2
Exam weight Low

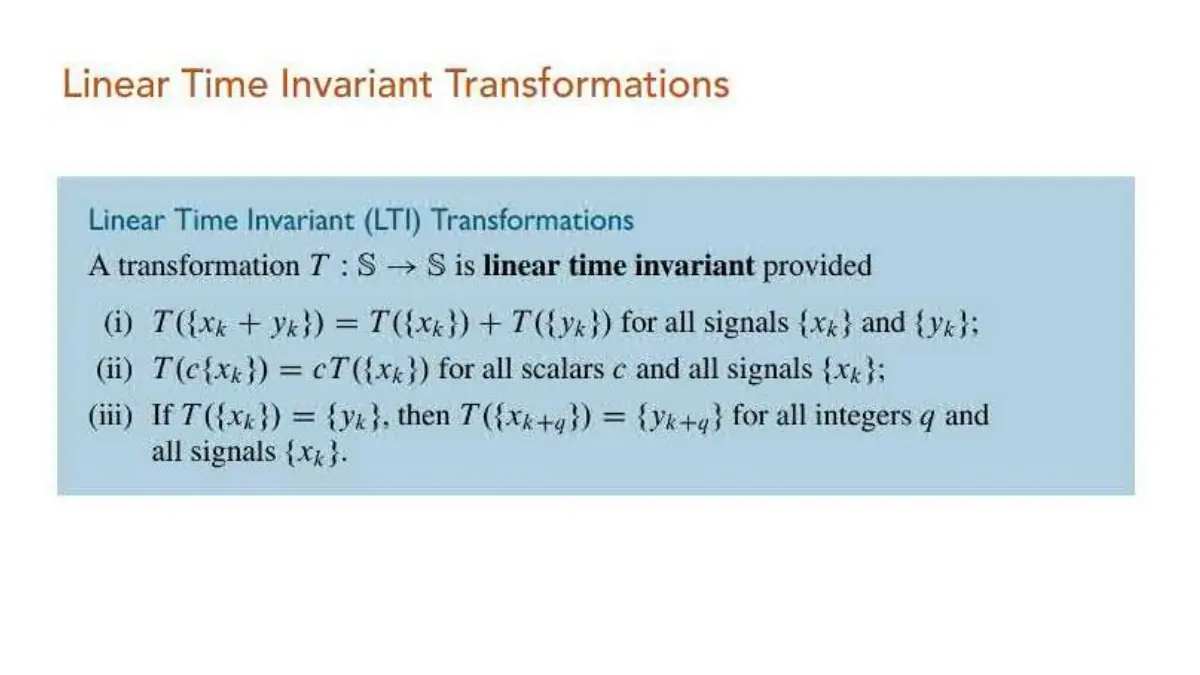

    Slide 3: Slide 3
    Exam weight Low

      4
      Exam weight Low

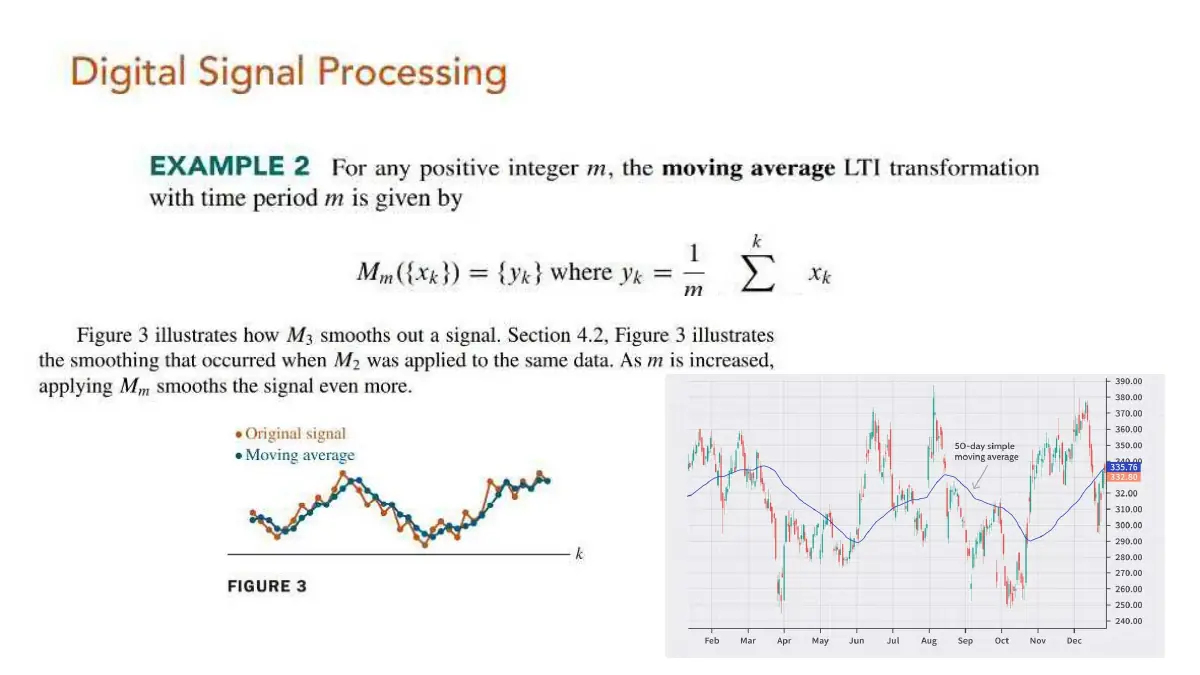

        Slide 5: Slide 5
        Exam weight Low
        1. Solutions of a homogeneous n-th order linear difference equation form an n-dimensional space; try yₖ = rᵏ to get the auxiliary equation.

        6
        Exam weight Low

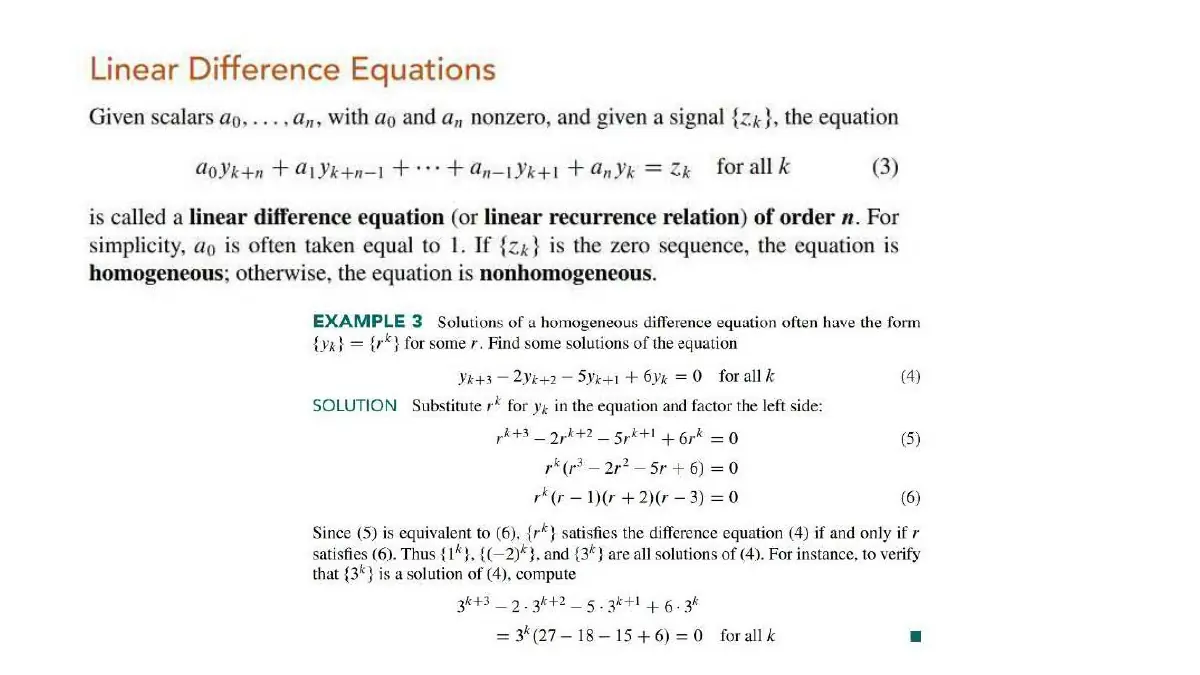

          Slide 7: Slide 7
          Exam weight Low

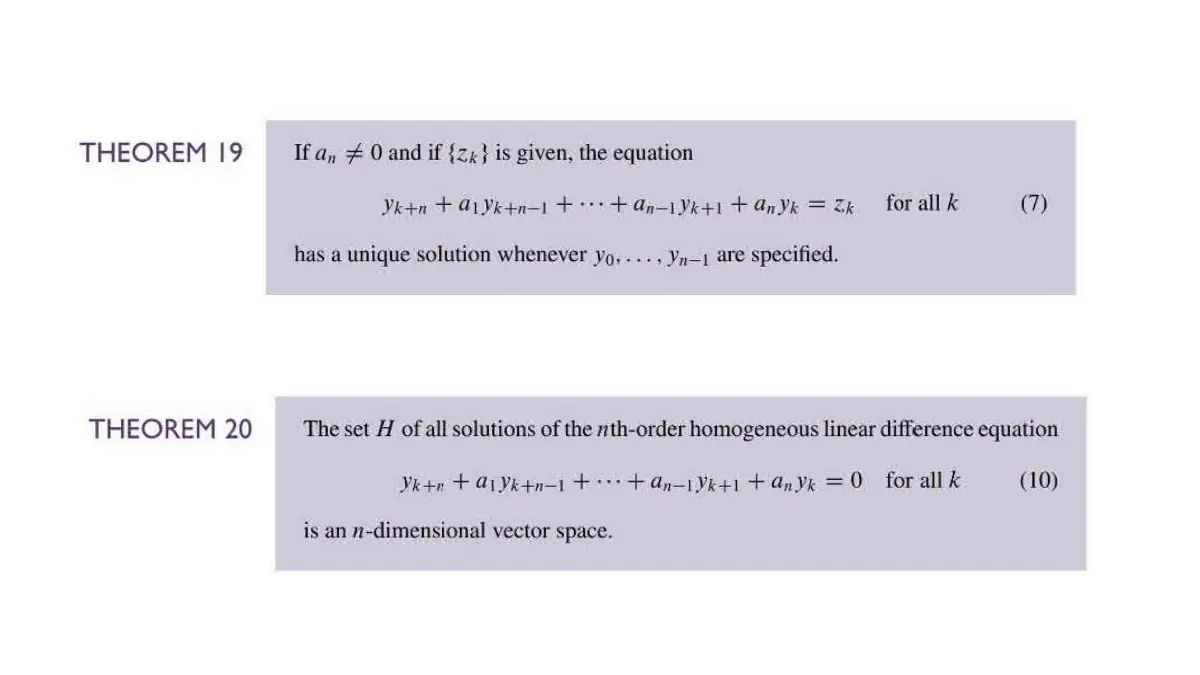

            Slide 8: Slide 8
            Exam weight Low

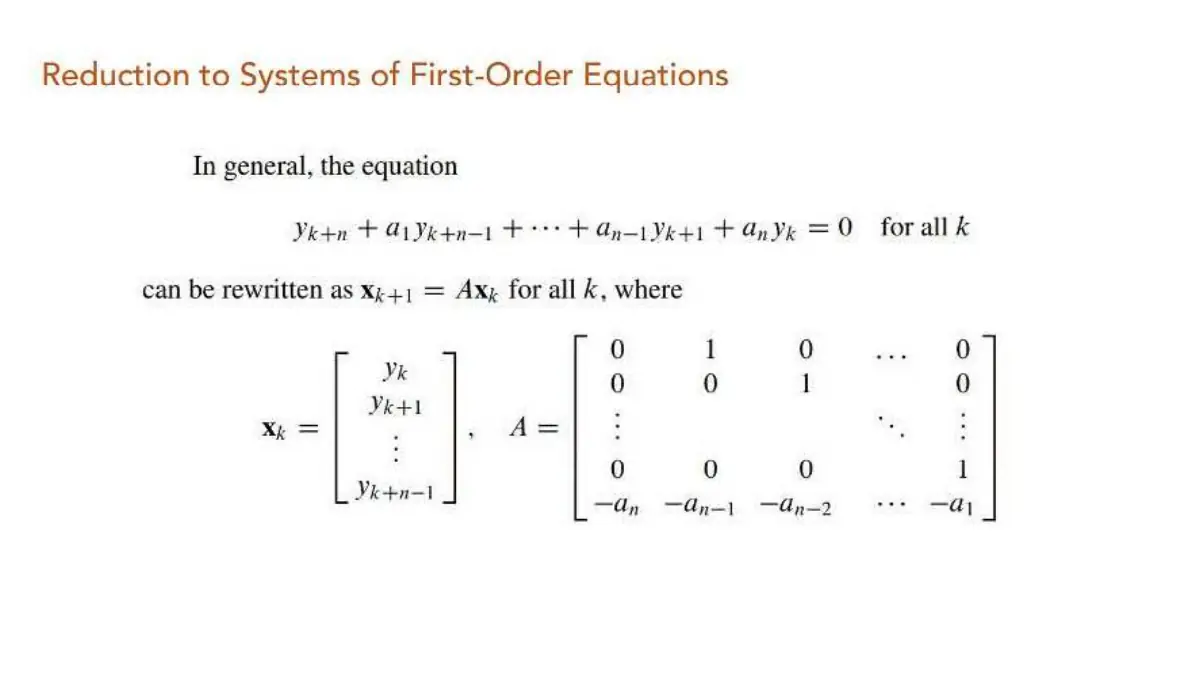

              Slide 9: Slide 9
              Exam weight Low

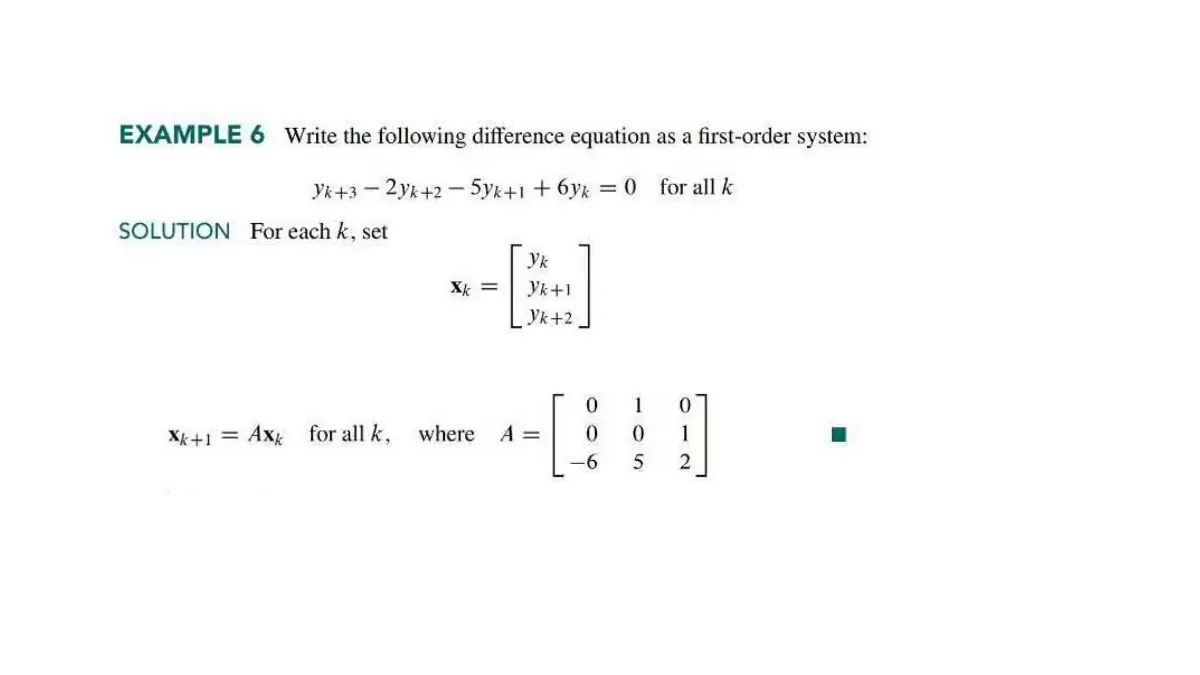

                Slide 10: Slide 10
                Exam weight Low
