CS223 · Annotated SlidesChapter 4 — Dimension and Rank
Chapter 4 · Annotated slides

Dimension and Rank

Dimension of a vector space, dimensions of Nul A, Col A and Row A, rank, the Rank Theorem, and rank in the Invertible Matrix Theorem.

Slide text Study notes Highlight: key words Tips, tricks & traps Seen again elsewhere How it can come up

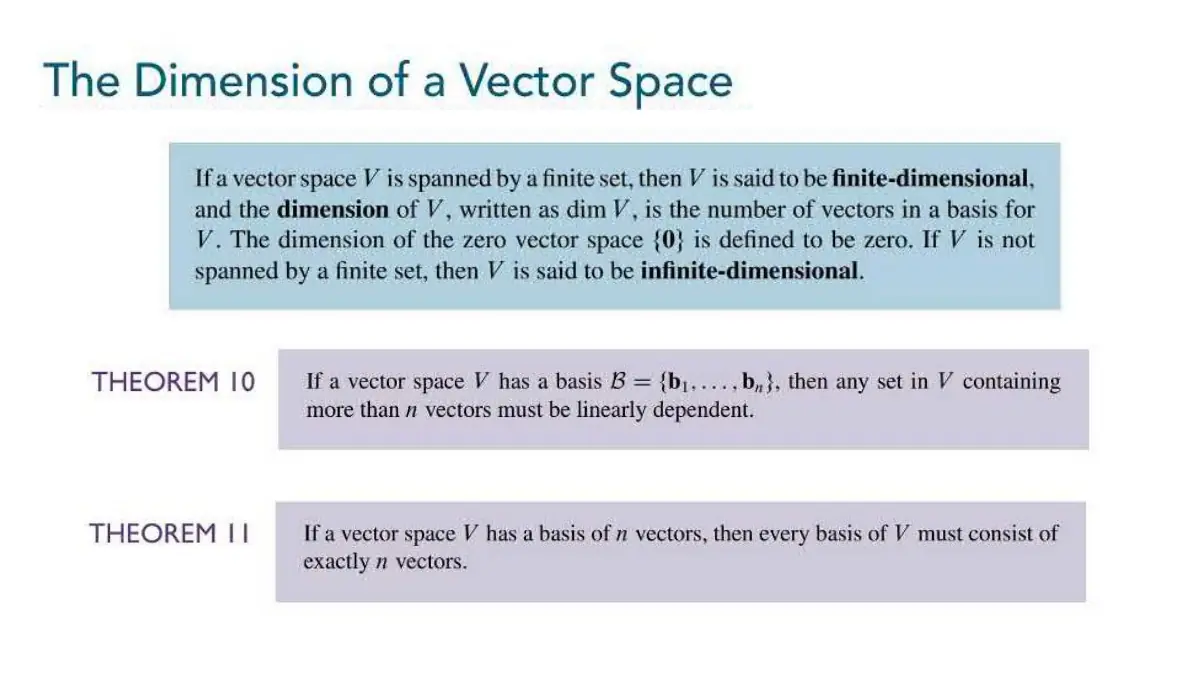

Slide 1: Slide 1
Exam weight Low

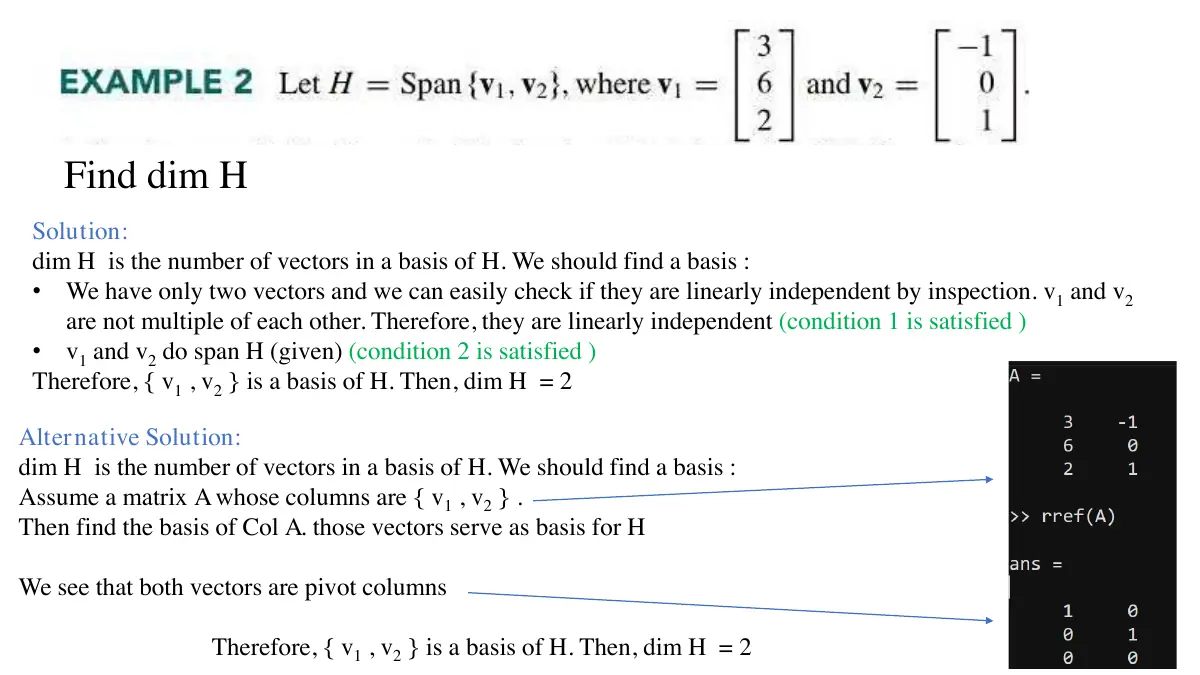

    Slide 2: Slide 2
    Exam weight Low
    1. dim H = number of vectors in any basis of H.

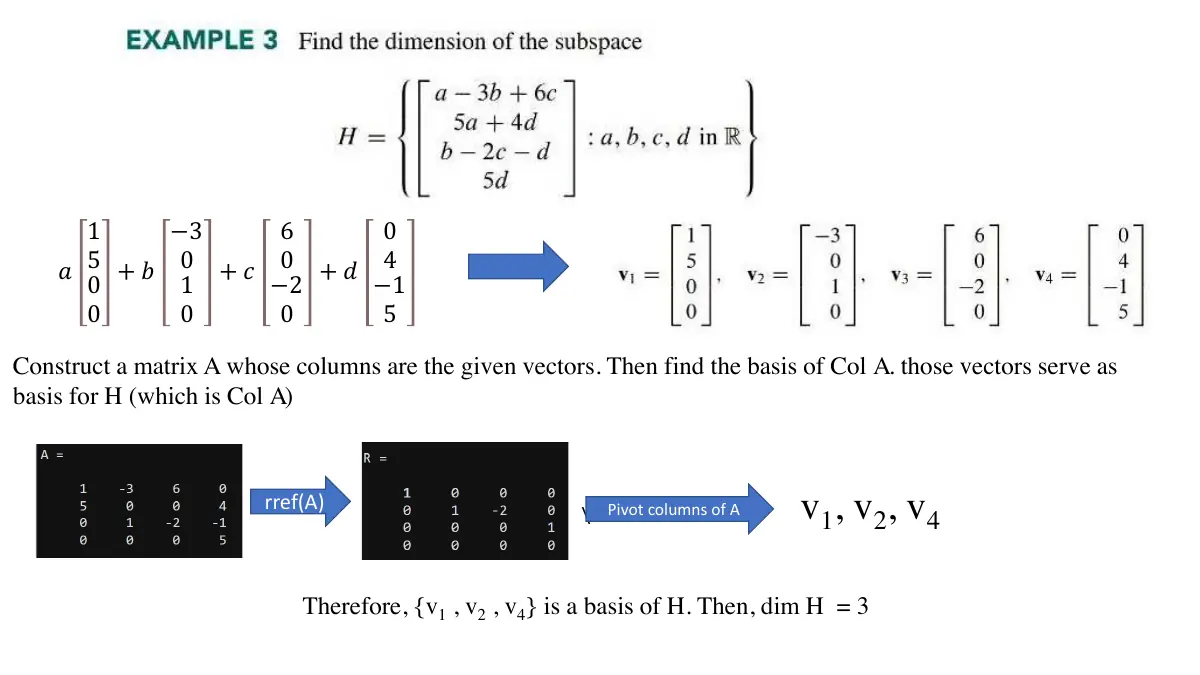

    Slide 3: Slide 3
    Exam weight Low

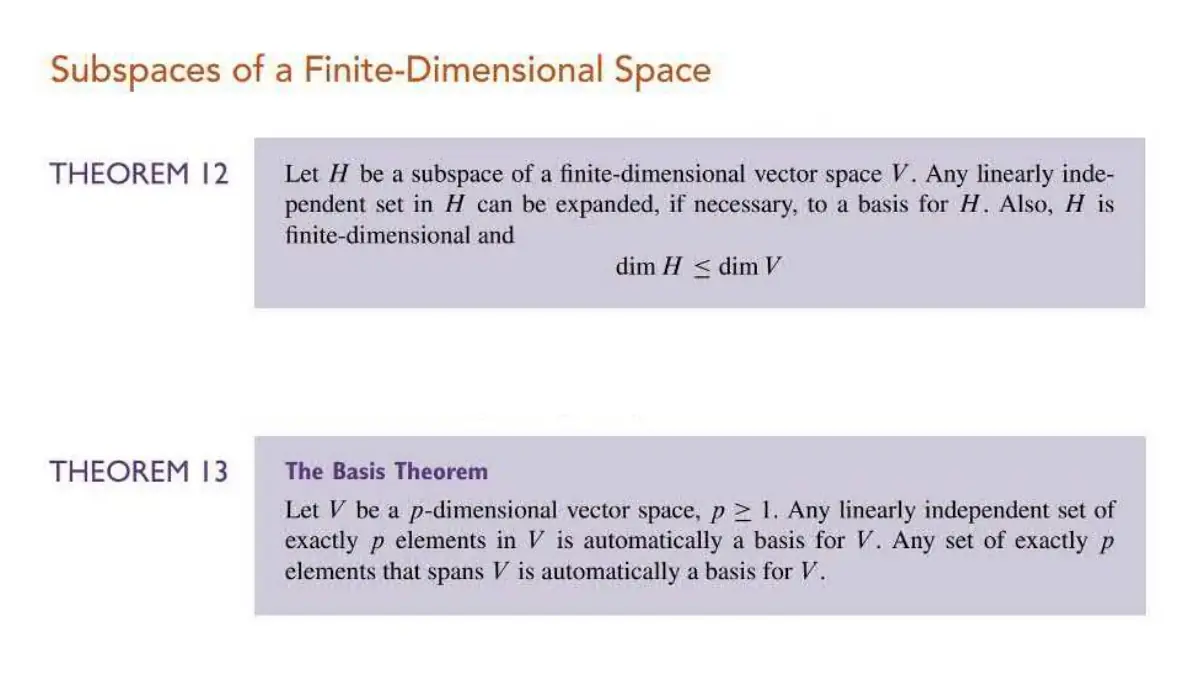

      Slide 4: Slide 4
      Exam weight Low

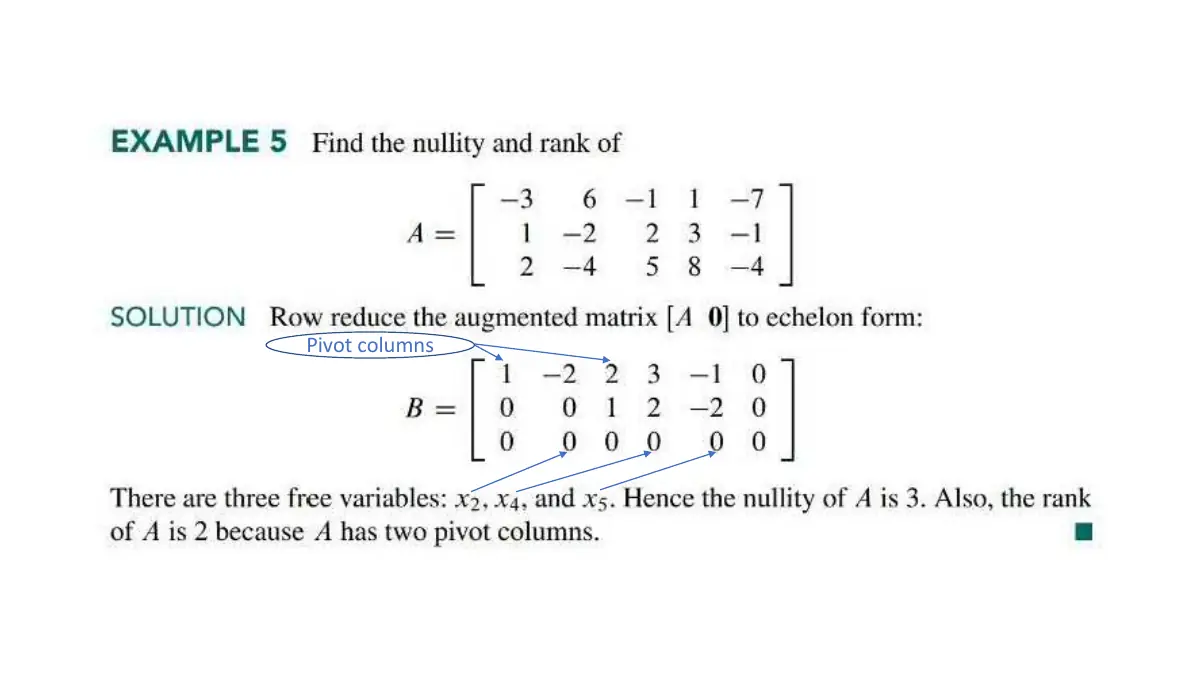

        Slide 6: Slide 6
        Exam weight Low

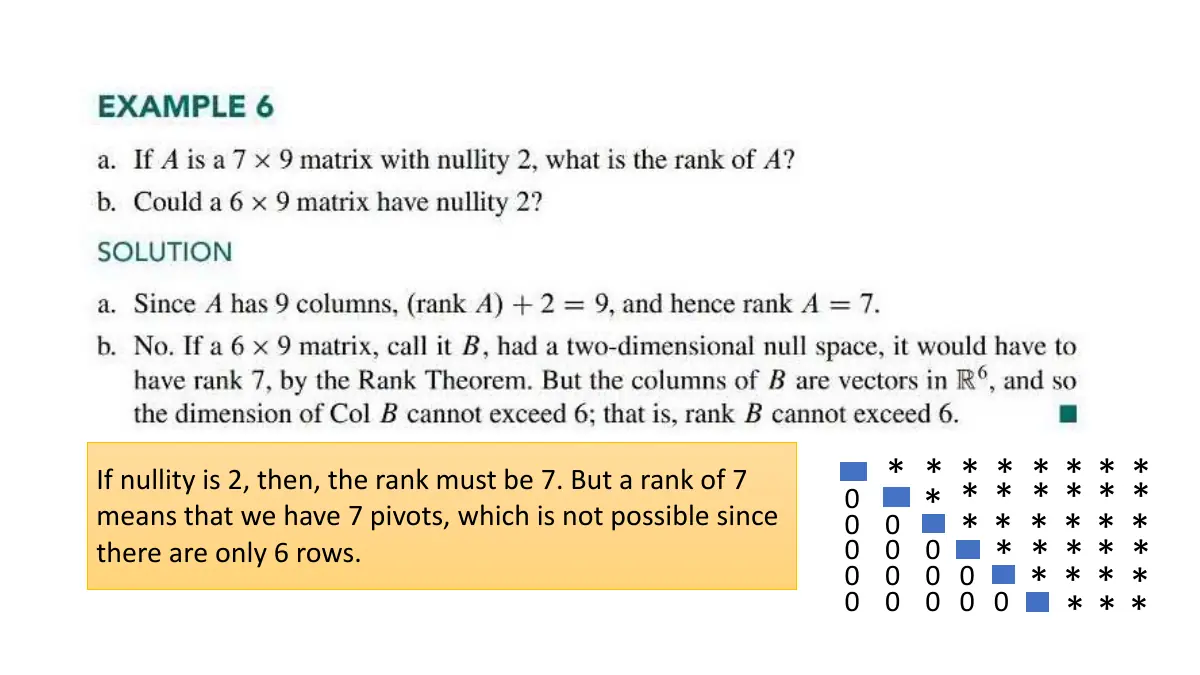

          Slide 7: Slide 7
          Exam weight Low

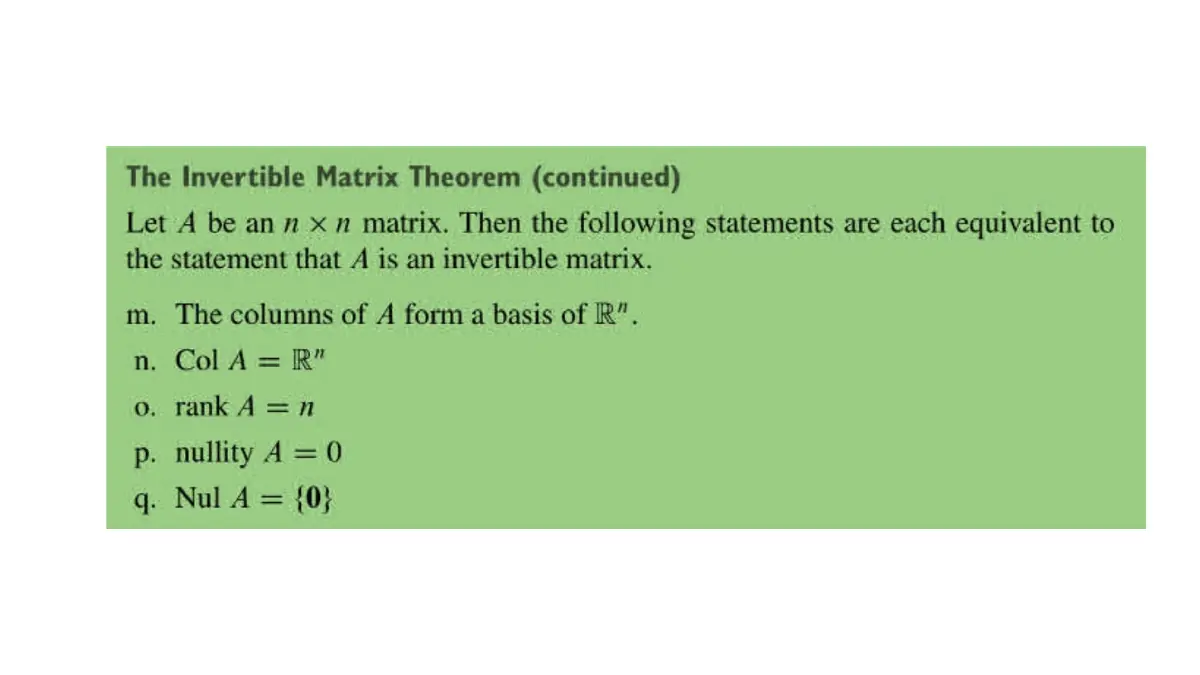

            Slide 8: Slide 8
            Exam weight Low

              Recall that a coordinate vector is a vector of the weights of a linear combination of the basis to give a certain vector We can generate the same vector using different basis.

              Therefore, the weights of the linear combination will be different for the different basis

              Slide 9
              9
              Exam weight Low

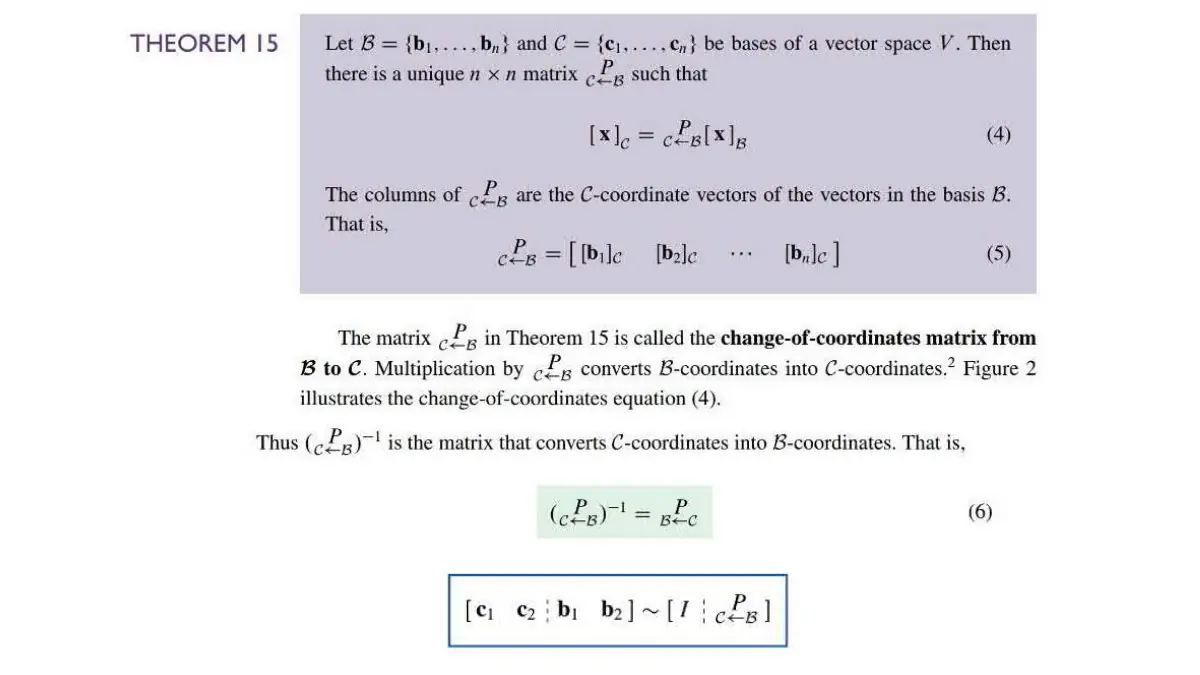

                Slide 10: Slide 10
                Exam weight Low

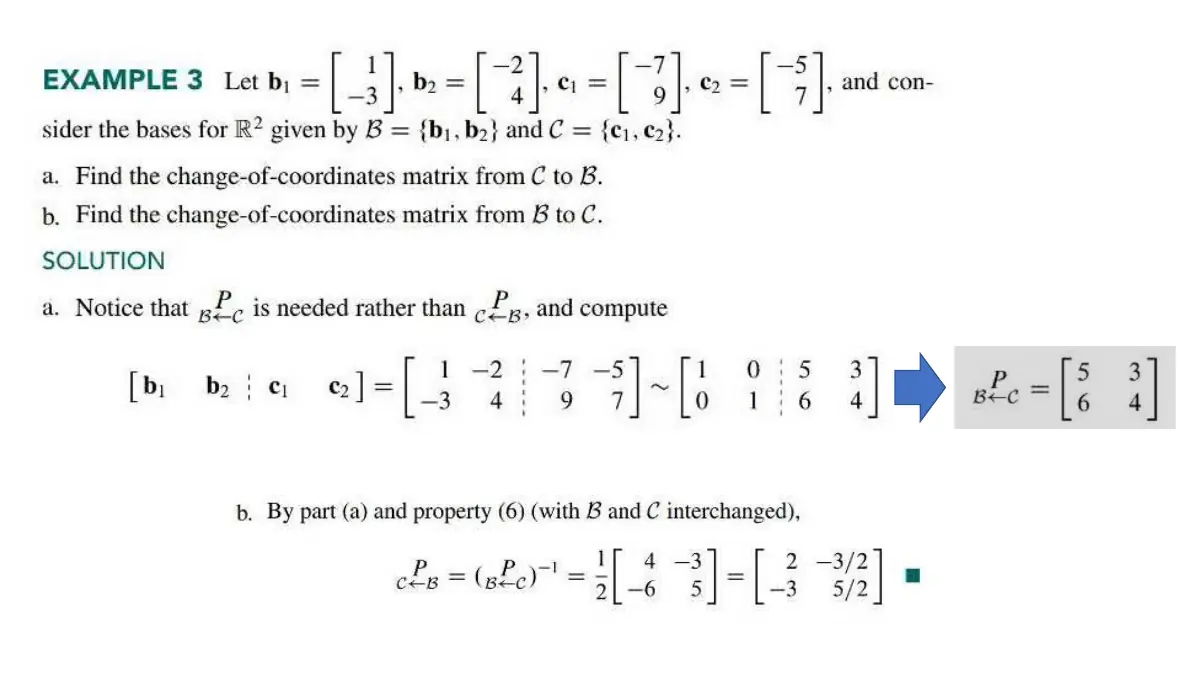

                  Slide 11: Slide 11
                  Exam weight Low
