CS223 · Annotated SlidesChapter 4 — Vector Spaces, Subspaces, Bases and Coordinates

Chapter 4 · Annotated slides

Vector Spaces, Subspaces, Bases and Coordinates

Vector space axioms and subspaces, spans as subspaces, null space, column space and row space, kernel and range of a linear transformation, spanning sets and bases, and coordinate vectors.

29 slides
0 asked in real exams
1 related to real exam questions
0 practice questions

Slide text Study notes Highlight: key words Tips, tricks & traps Seen again elsewhere How it can come up

Slide 1: CS 223: Computational Linear Algebra

Exam weight Low

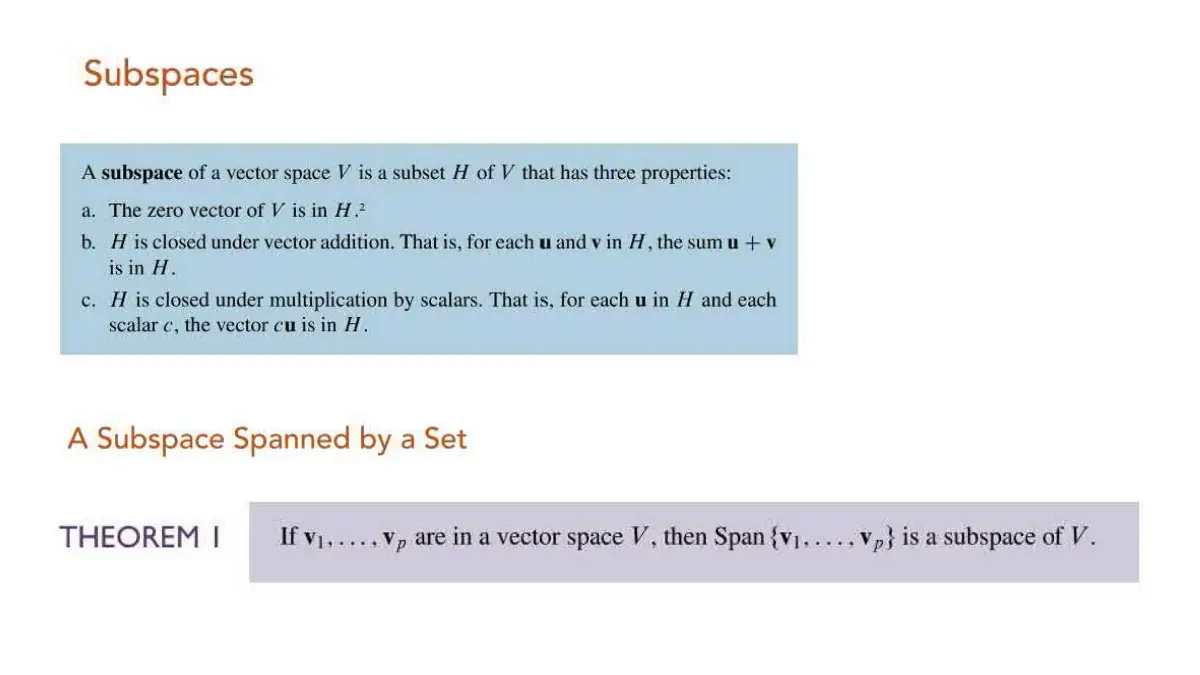

Slide 2: Slide 2

Exam weight Low

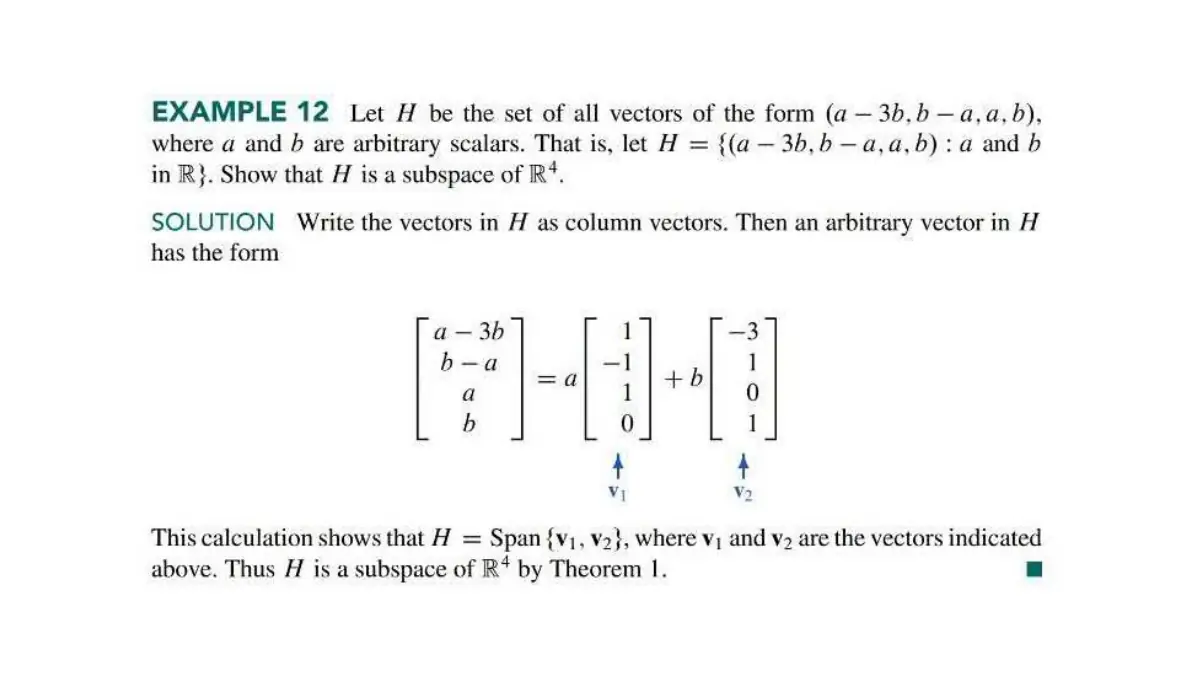

Slide 3: Slide 3

Exam weight Low

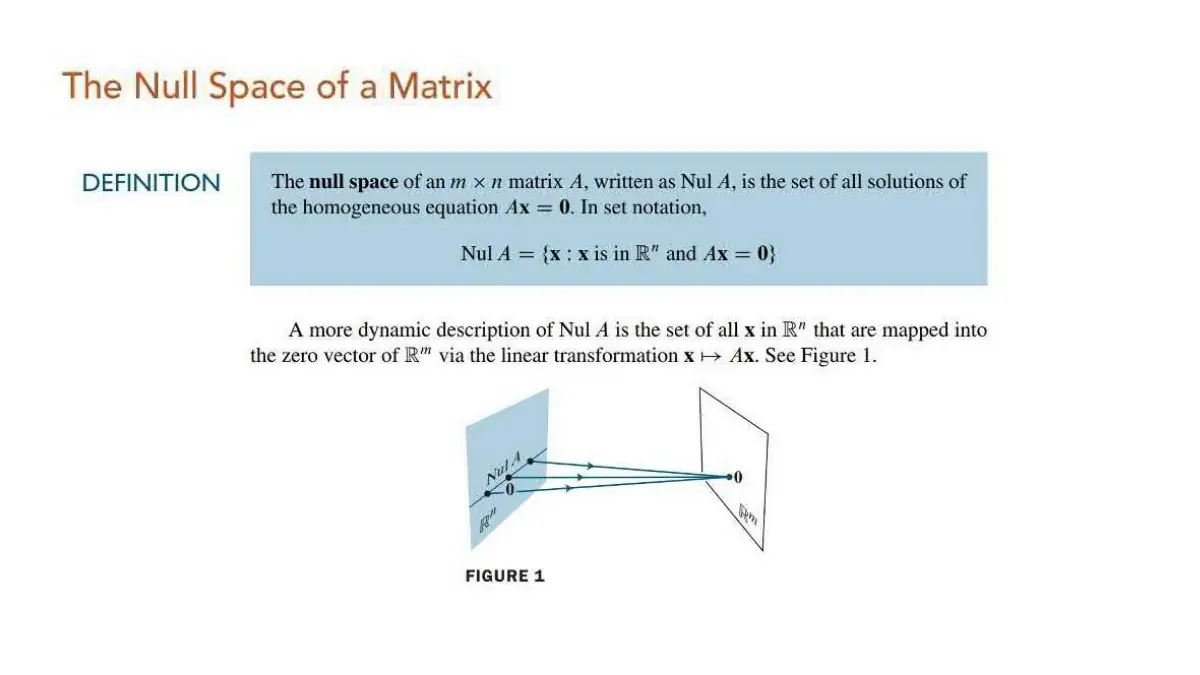

Slide 4: Slide 4

Exam weight Low

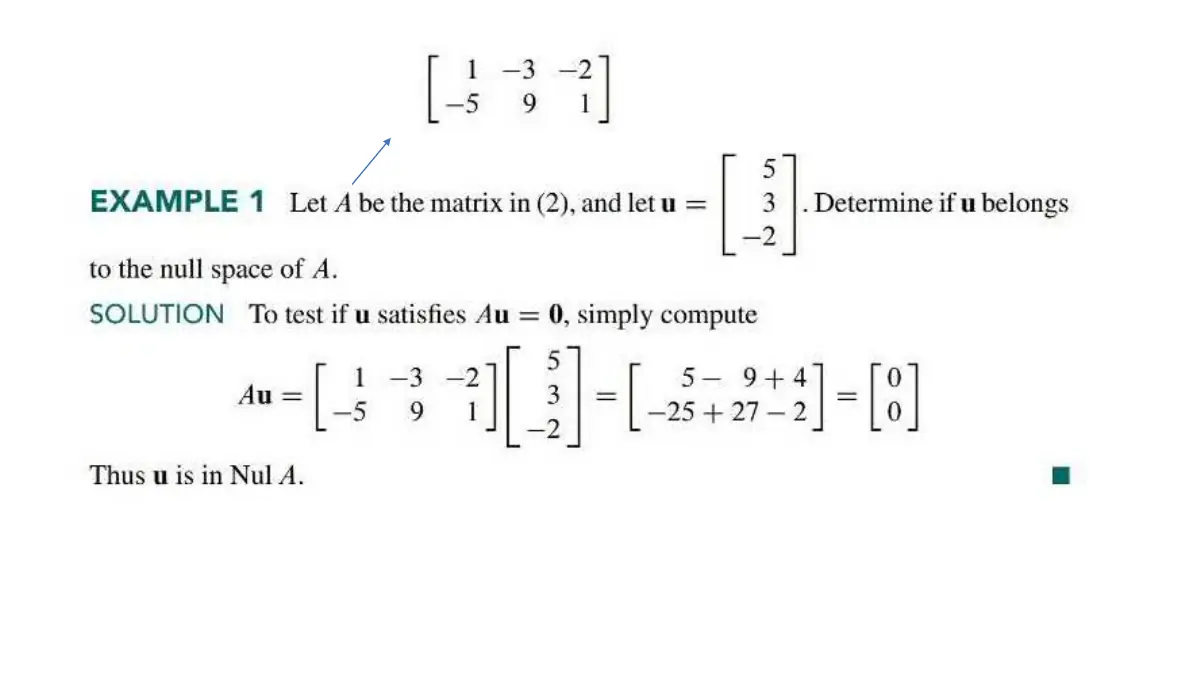

Slide 5: Slide 5

Exam weight Low

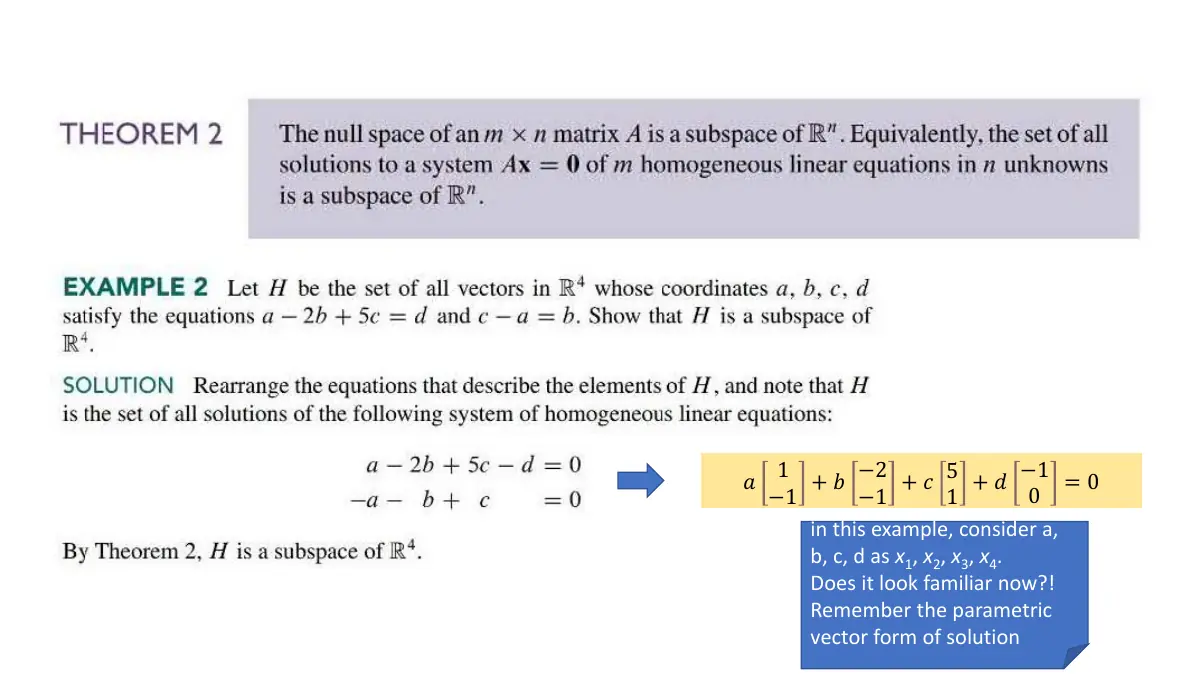

Slide 6: Slide 6

Exam weight Low

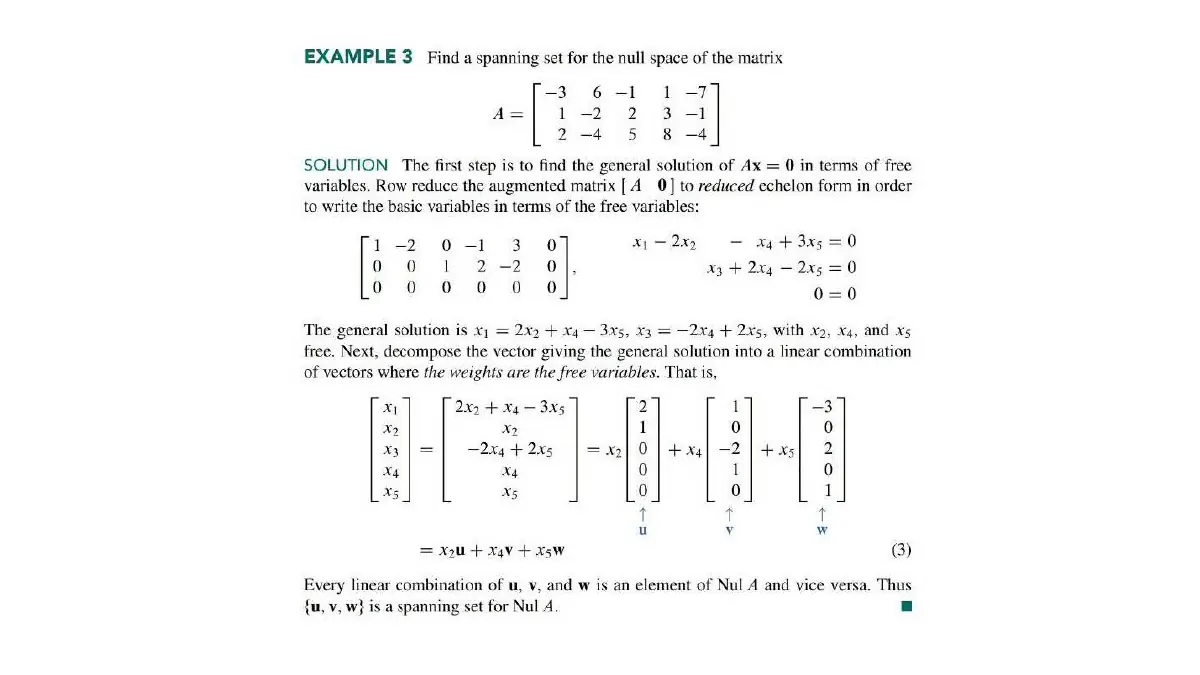

Slide 7: Slide 7

Exam weight Low

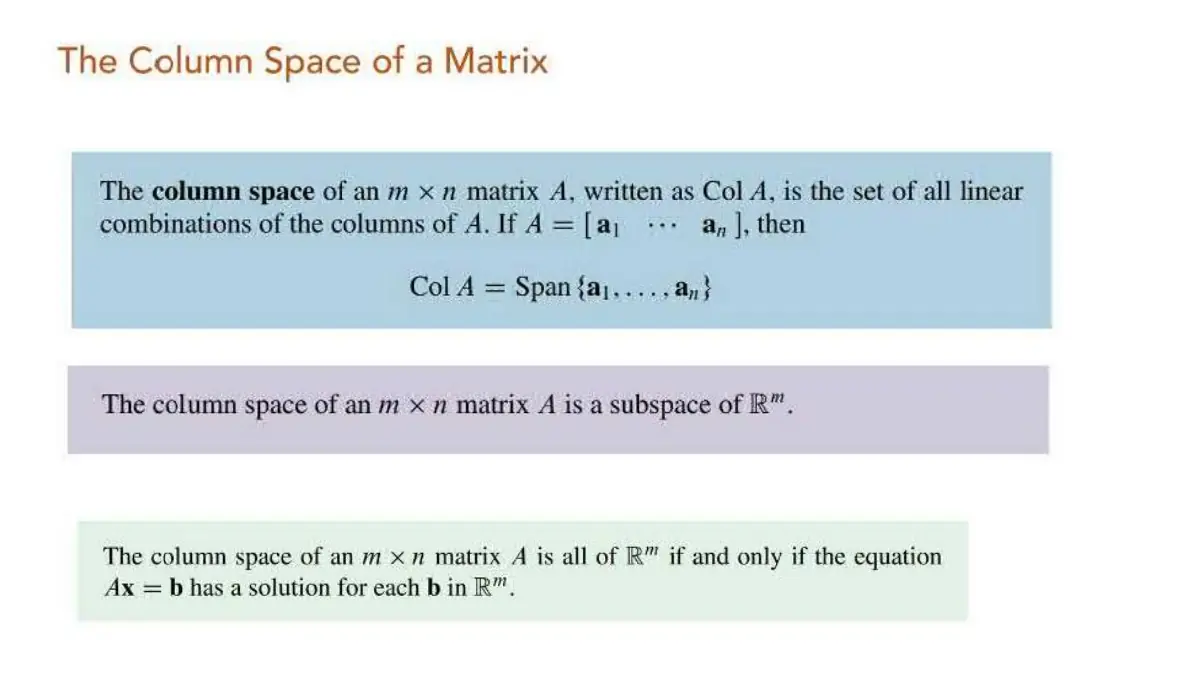

Slide 8: Slide 8

Exam weight Low

9

Exam weight Low

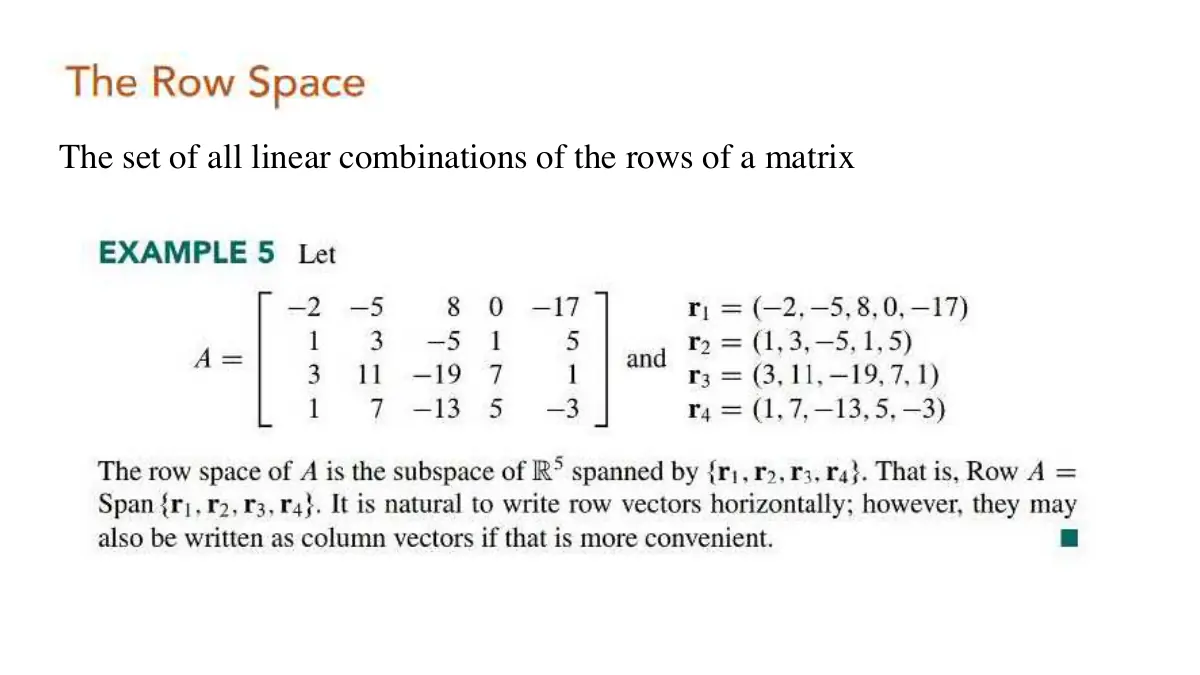

Slide 10: Slide 10

Exam weight Low

Span{v₁, …, vₚ} is always a subspace.

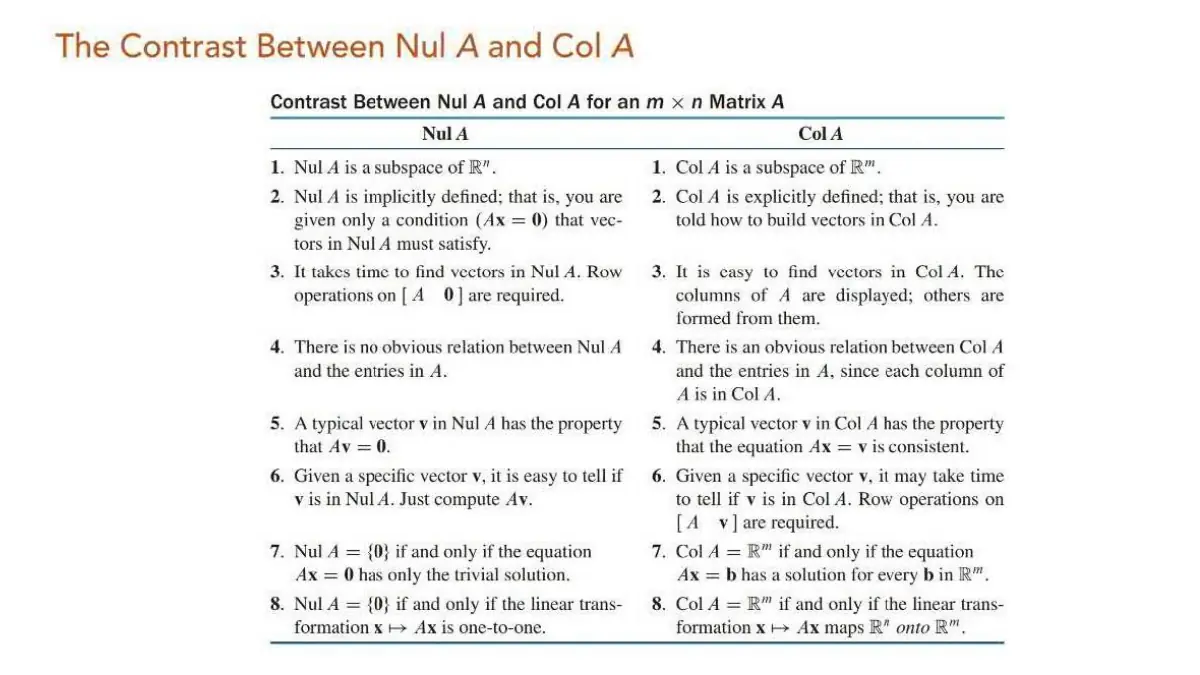

Slide 11: Slide 11

Exam weight Low

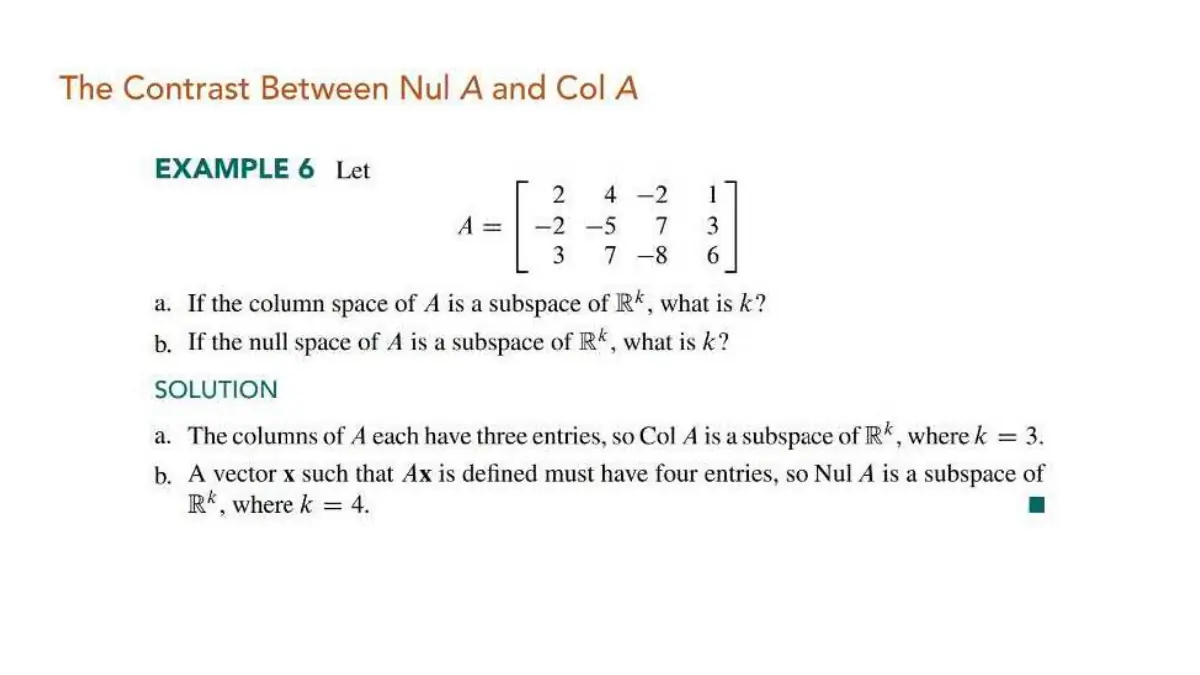

Slide 12: Slide 12

Exam weight Low

13

Exam weight Low

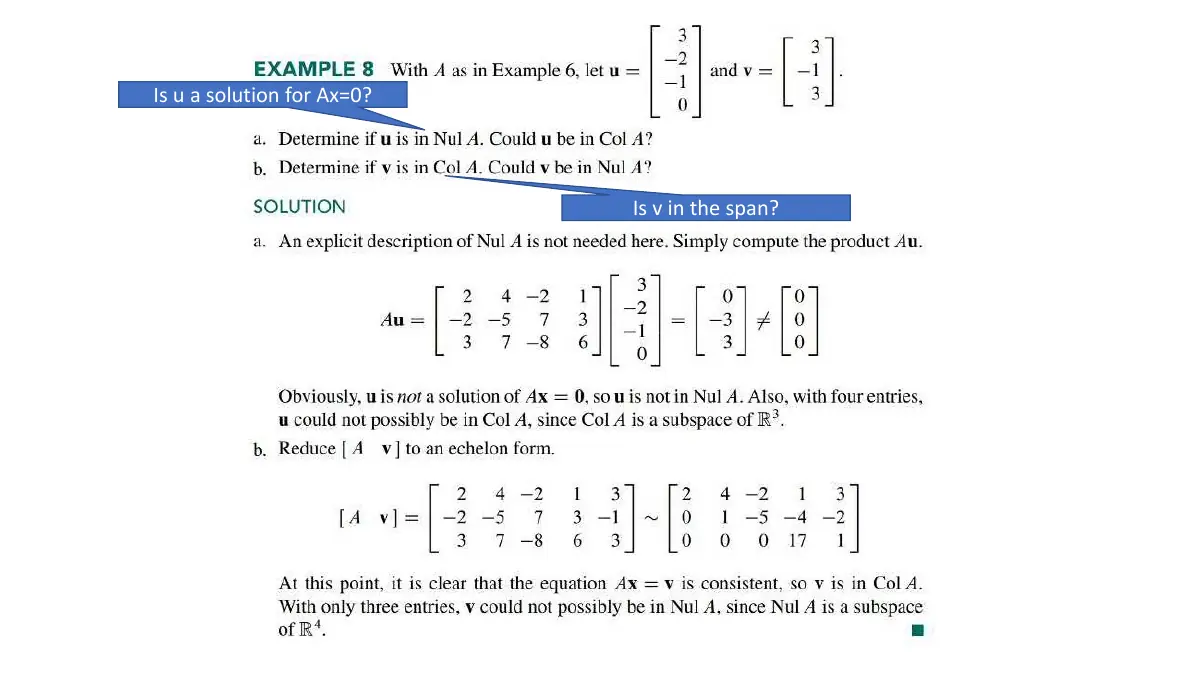

Slide 14: Slide 14

Exam weight Low

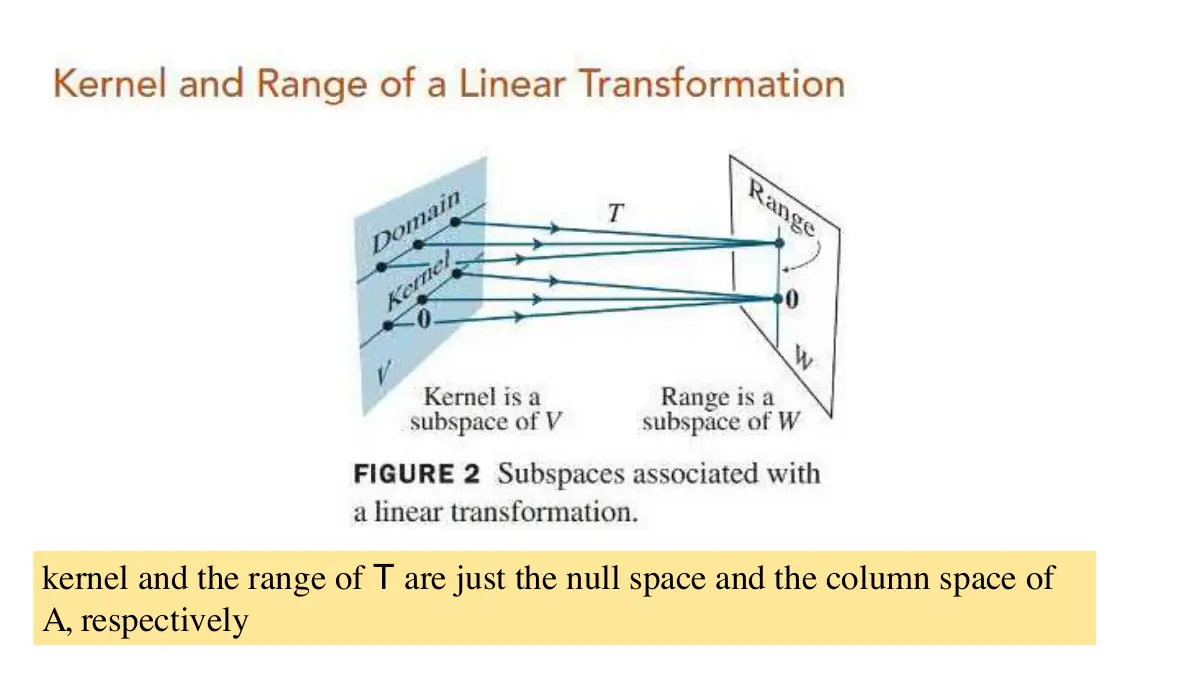

Slide 15: Slide 15

Exam weight Low

Kernel of T = Nul A; range of T = Col A.

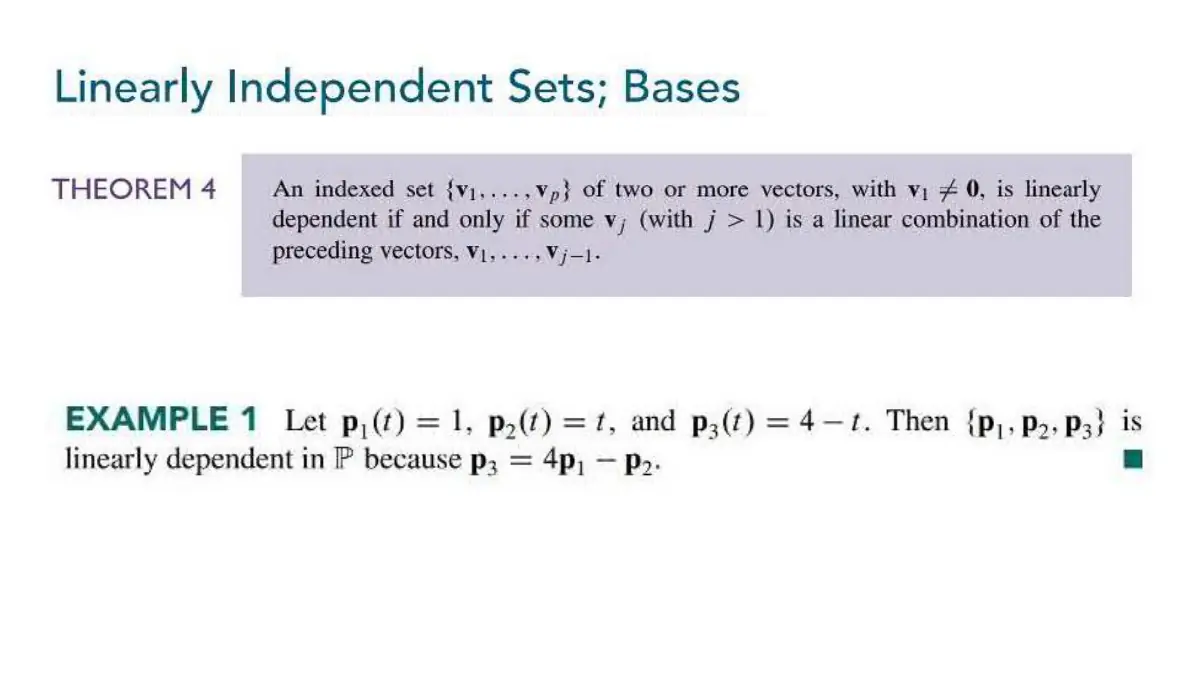

Slide 16: Slide 16

Exam weight Low

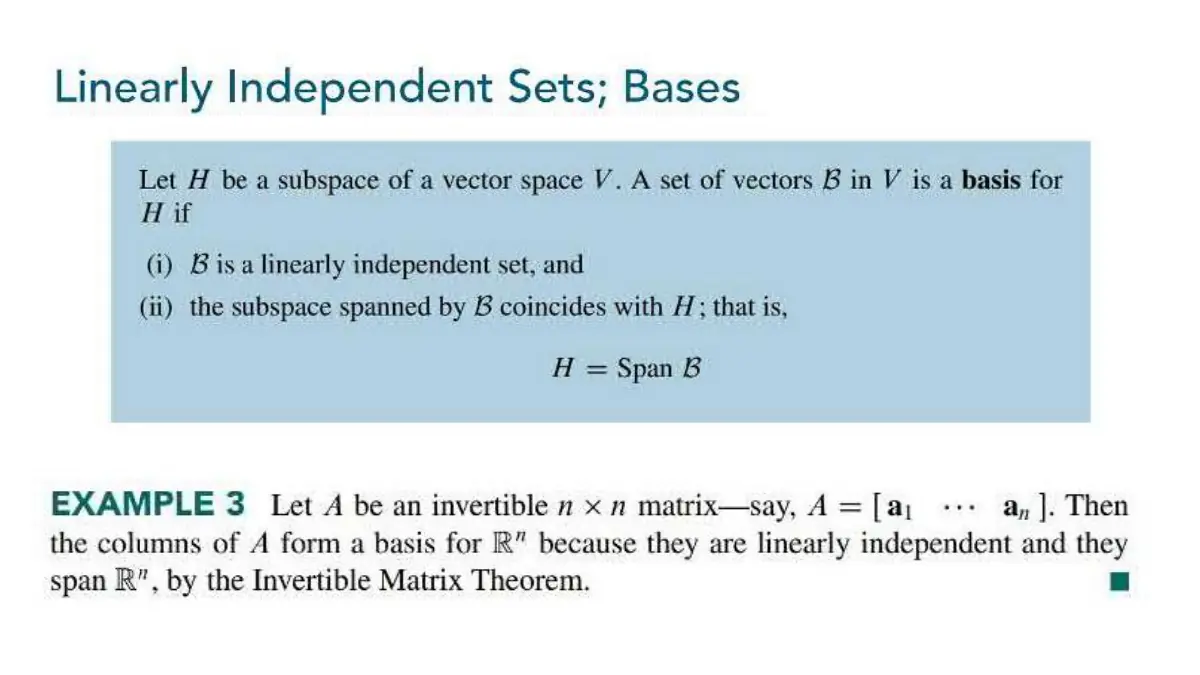

Slide 17: Slide 17

Exam weight Low

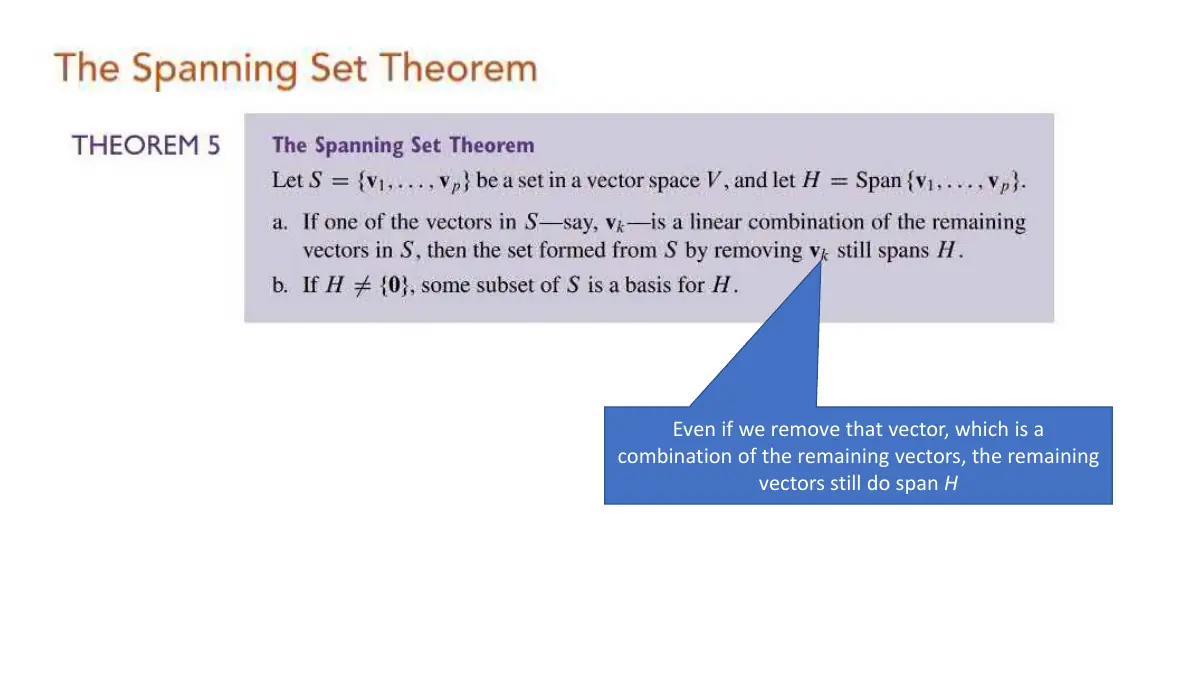

Slide 18: Slide 18

Exam weight Low

Spanning Set Theorem: removing a vector that is a combination of the others doesn’t change the span; some subset is a basis.

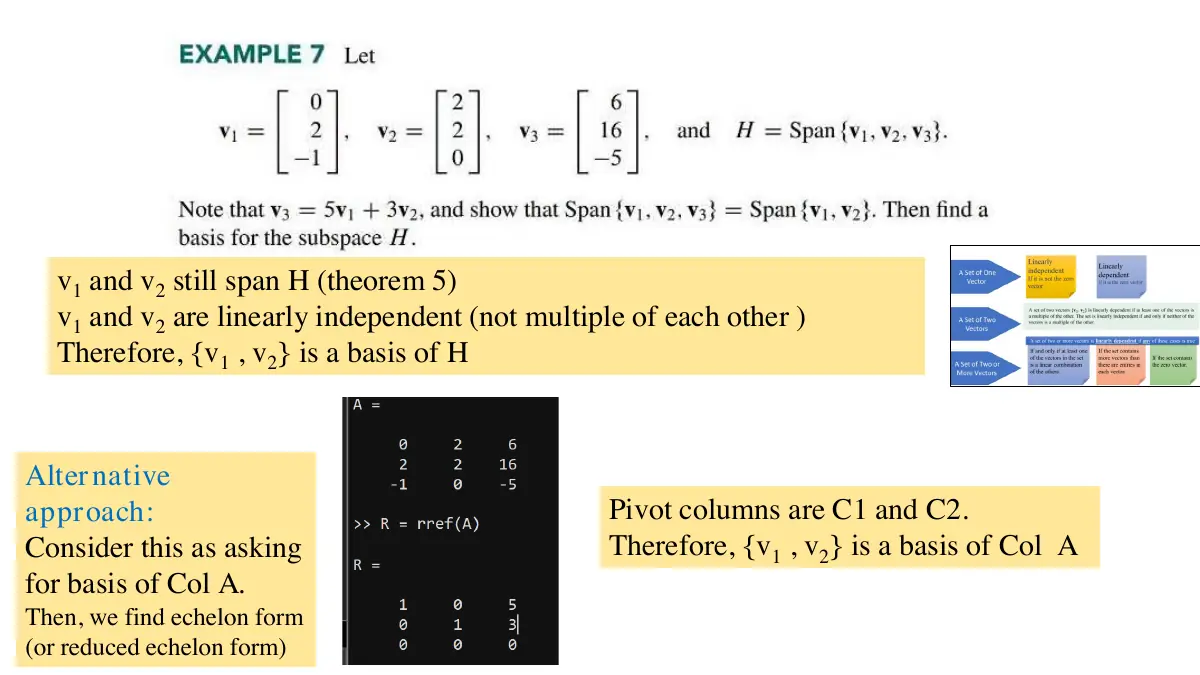

Slide 19: Slide 19

Exam weight Low

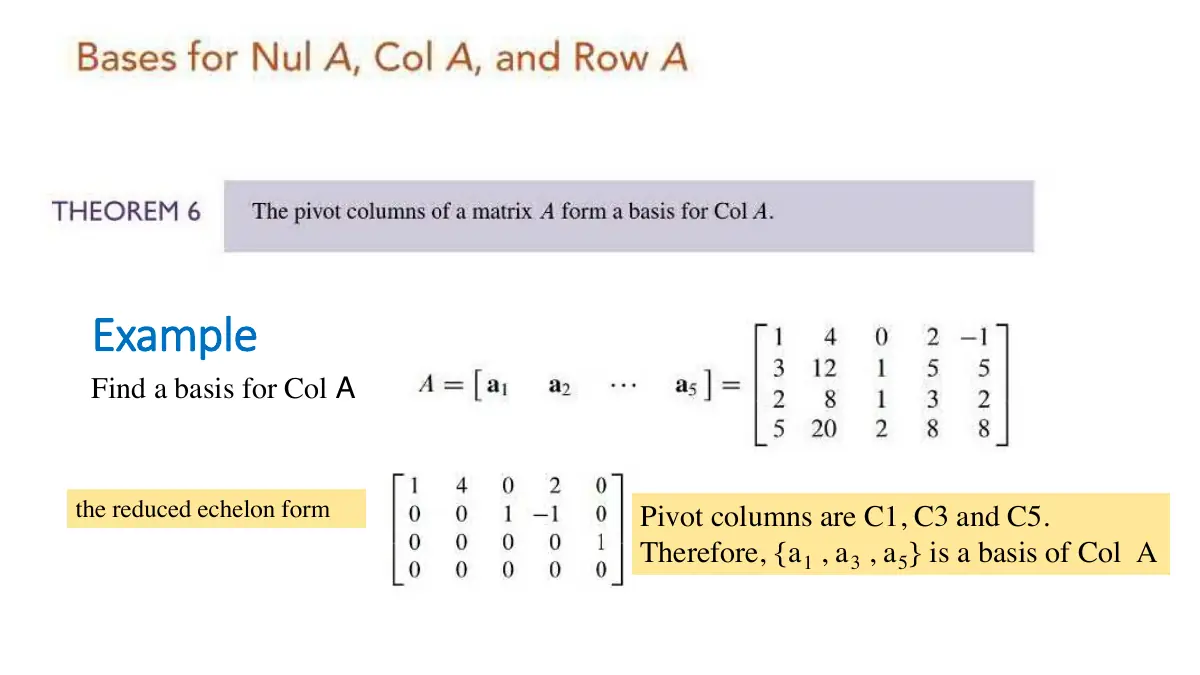

Slide 20: Slide 20

Exam weight High

Basis: a linearly independent spanning set. Col A: pivot columns of A. Row A: nonzero rows of an echelon form.

Exam trapRow space basis comes from the ECHELON form; column space basis from the ORIGINAL A.

Related real-exam questions

Major 2 (251) · this topic is examined Final (231) · this topic is examined Sample final (223) · this topic is examined

Basis of Row Space

Steps:

Find the echelon form
Indicate the nonzero rows
Take the corresponding rows from the echelon form

21

Exam weight Low

22

Exam weight Low

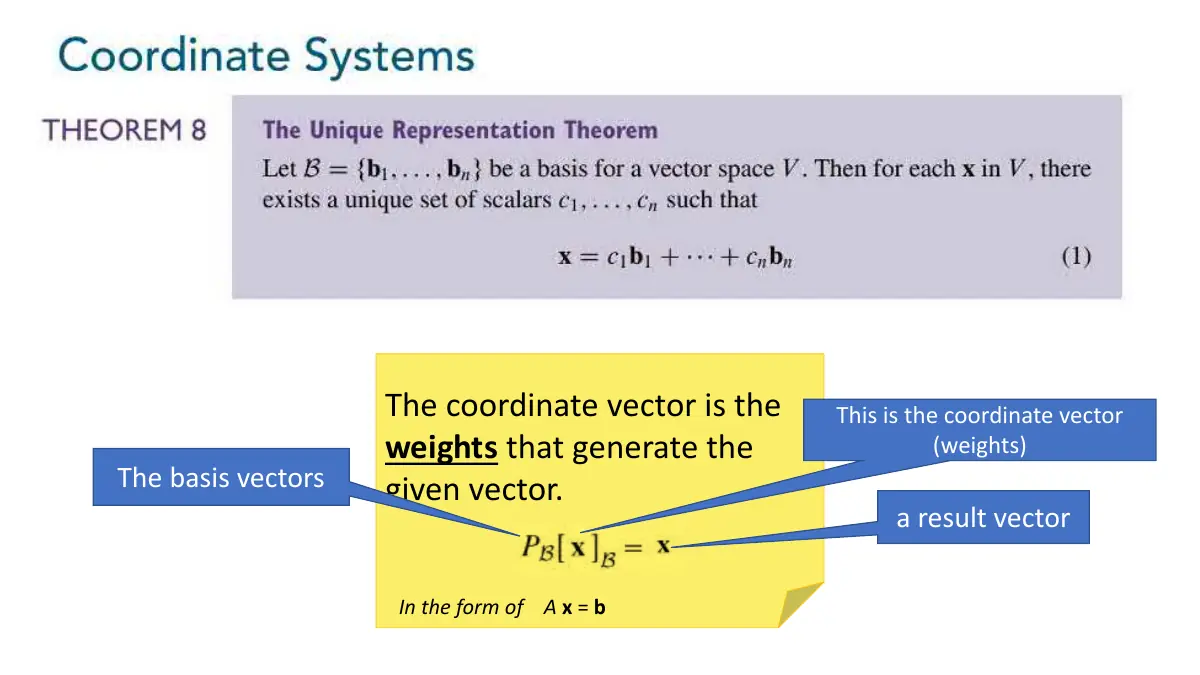

Slide 23: Slide 23

Exam weight Low

Coordinates: x = c₁b₁ + … + cₙbₙ ⇒ [x]_B = (c₁, …, cₙ); find them by solving P_B·c = x.

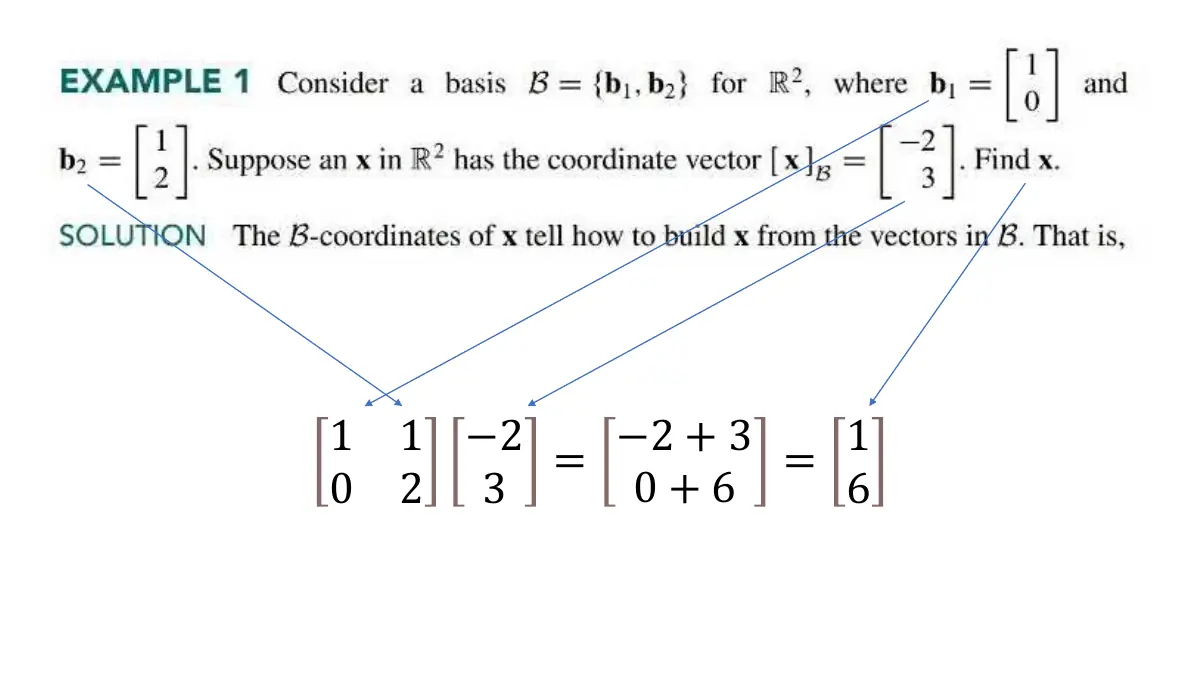

Slide 24: Slide 24

Exam weight Low

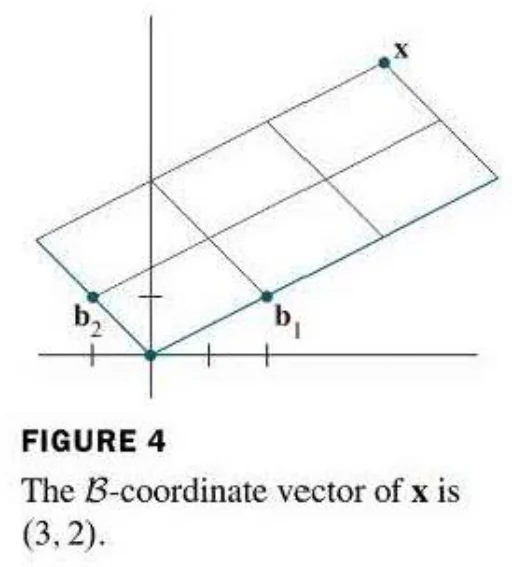

25

Exam weight Low

26

Exam weight Low

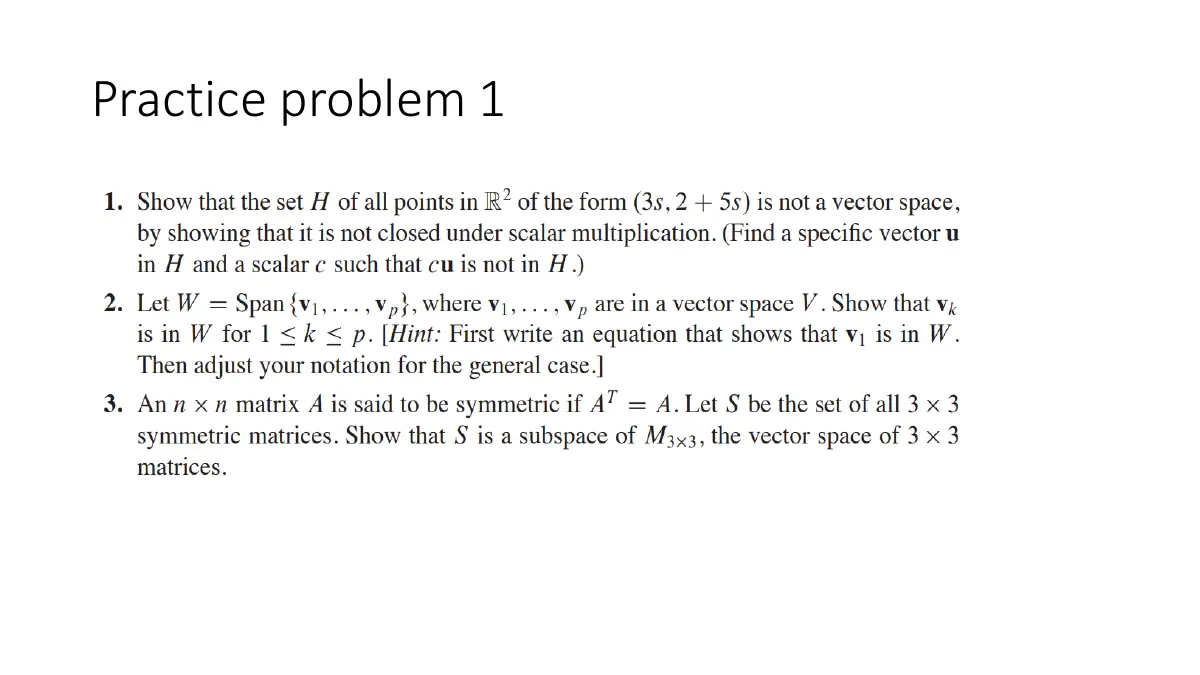

Slide 27: Practice problem 1

Exam weight Low

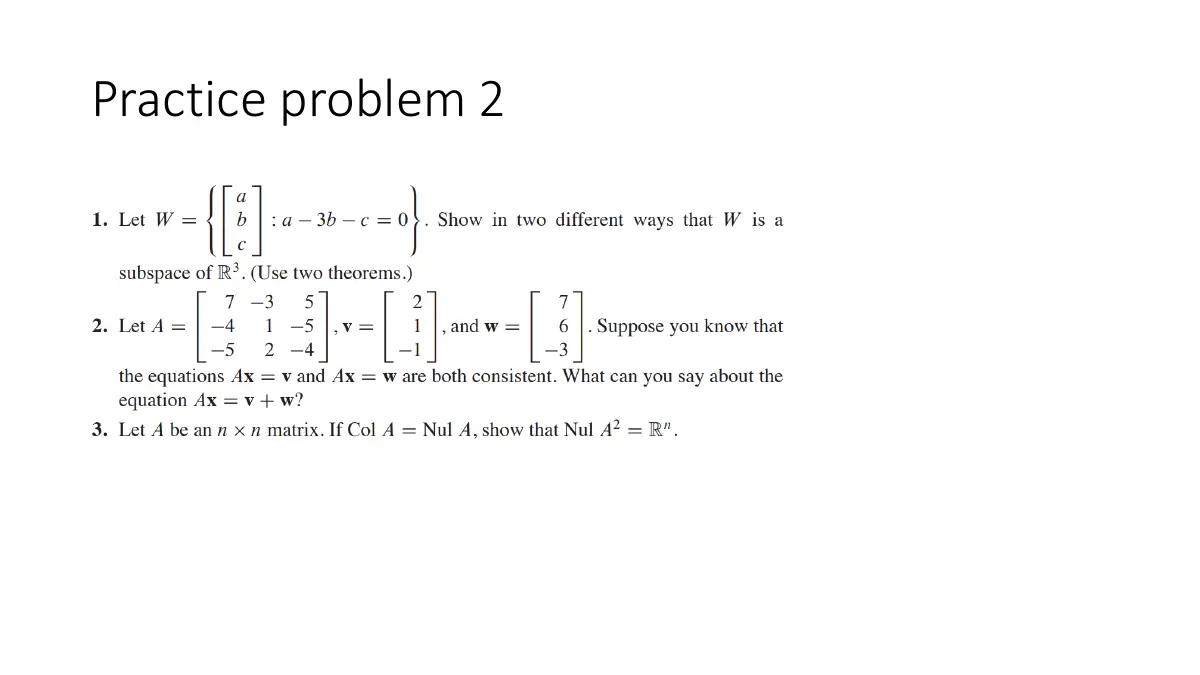

Slide 28: Practice problem 2

Exam weight Low

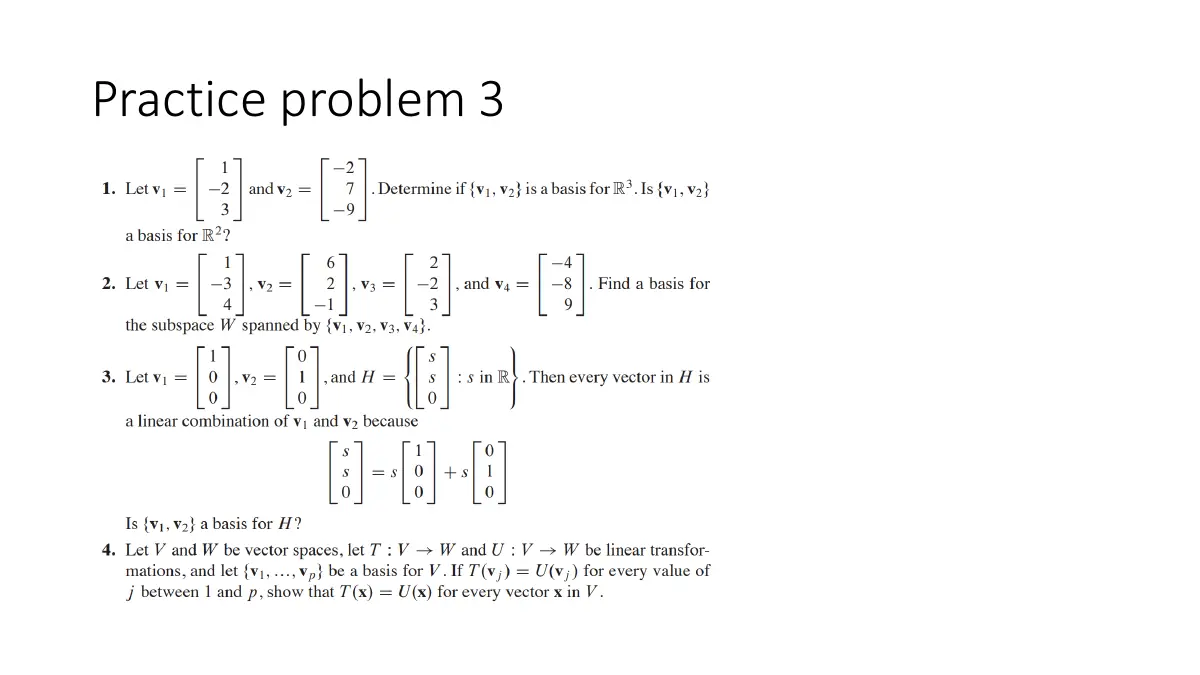

Slide 29: Practice problem 3

Exam weight Low
