CS223 · Annotated SlidesChapter 2 — Subspaces of ℝⁿ
Chapter 2 · Annotated slides

Subspaces of ℝⁿ

Subspaces, the column space and null space of a matrix, bases, finding bases for Col A (pivot columns of A) and Nul A (parametric solution of Ax = 0), coordinates, dimension and rank, and the Rank Theorem.

Slide text Study notes Highlight: key words Tips, tricks & traps Seen again elsewhere How it can come up

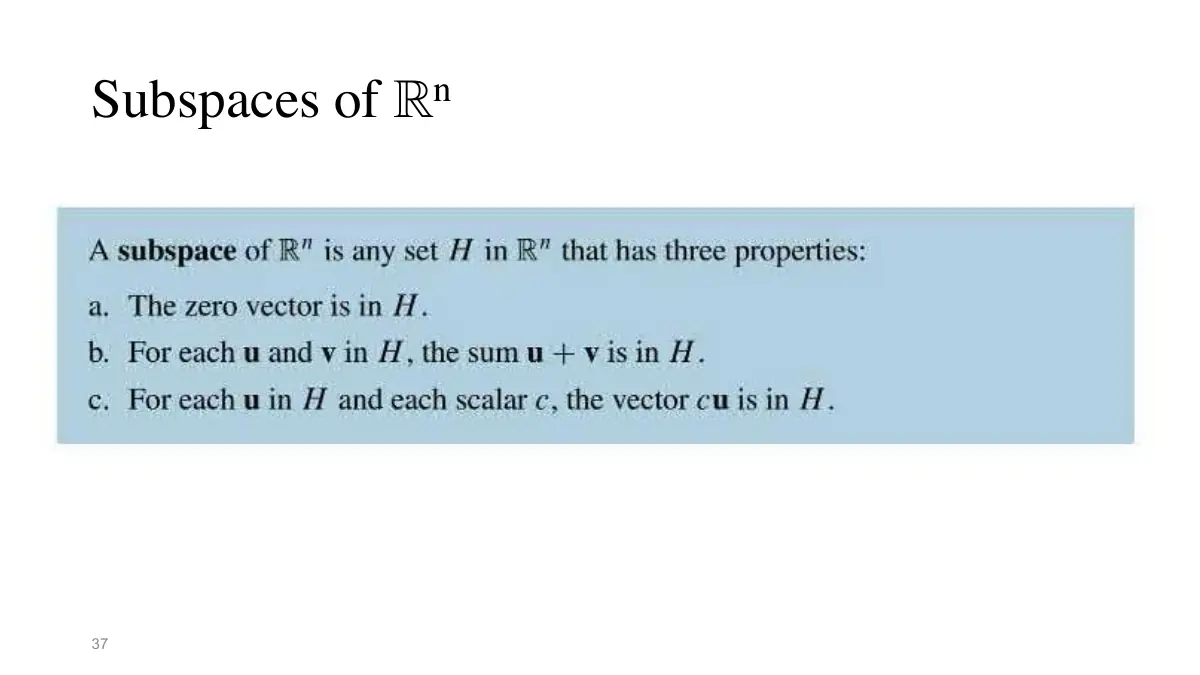

Slide 1: Subspaces of R
Exam weight High
  1. A subspace H of ℝⁿ contains 0 and is closed under addition and scalar multiplication.
🎯 How this can come up · 1 question
MCQ

Which is a subspace of ℝ²?

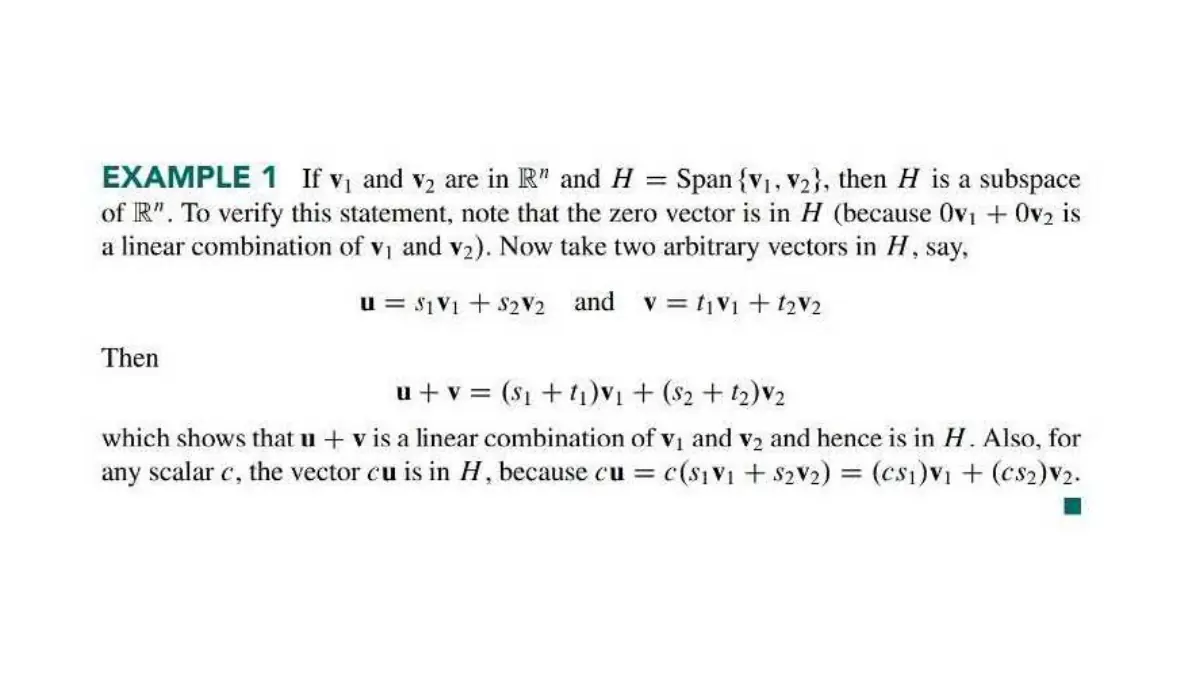

Slide 2: Slide 2
Exam weight Low

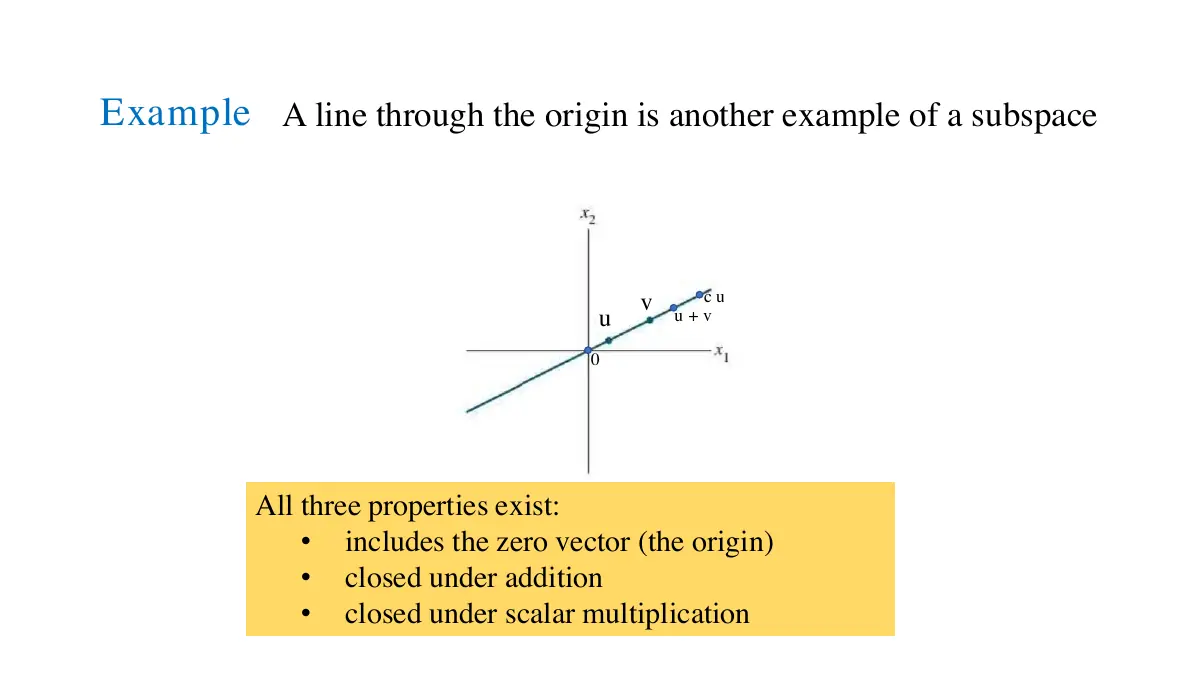

    Slide 3: Example A line through the origin is another example of a subspace
    Exam weight Low

      4
      Exam weight Low

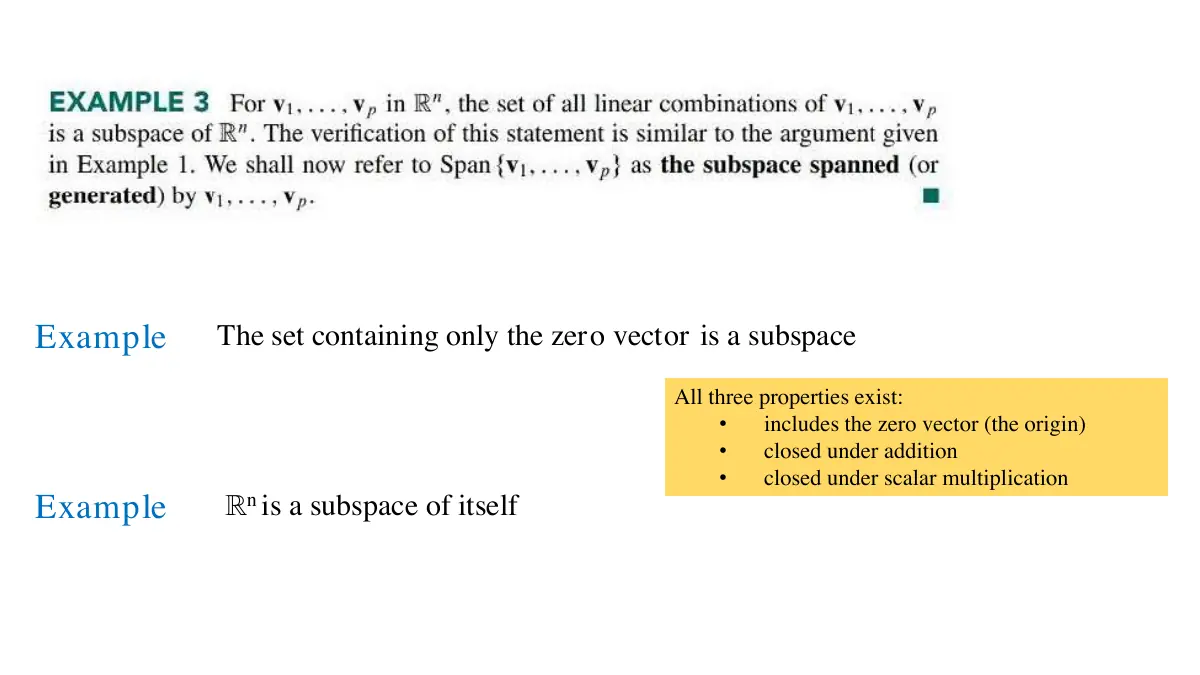

        Slide 5: Slide 5
        Exam weight Low

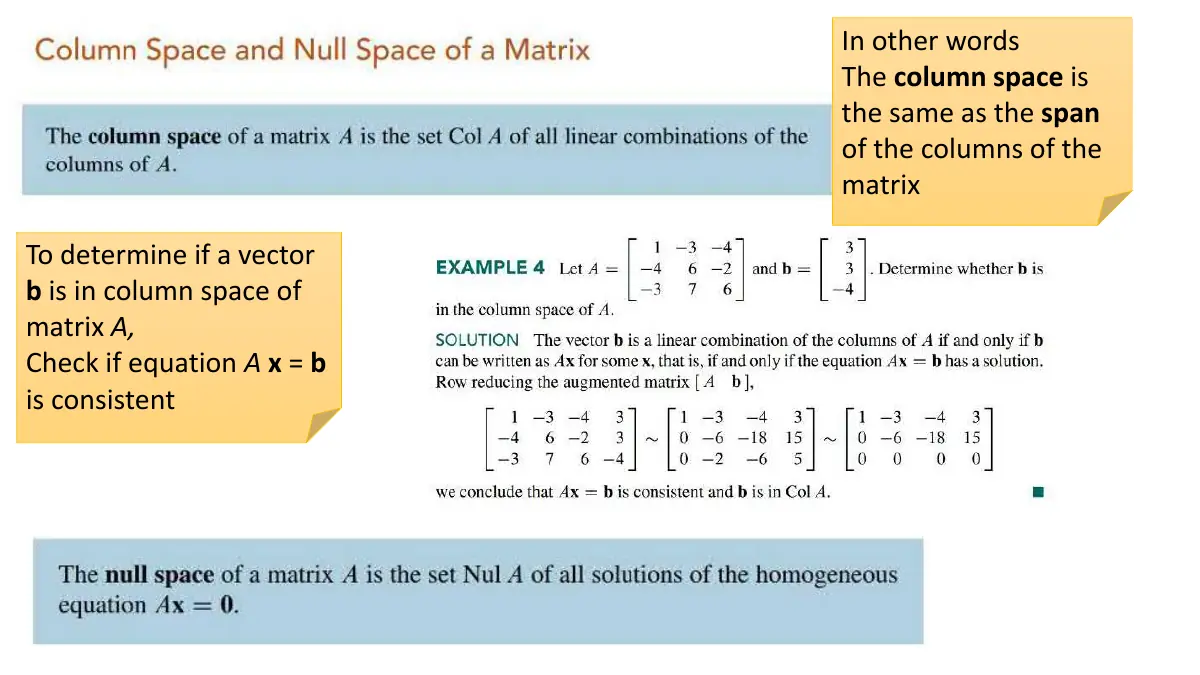

          Slide 6: In other words The column space is the same as the span of the columns of the matrix
          Exam weight Low
          1. Col A: span of A’s columns (subspace of ℝᵐ). Nul A: all solutions of Ax = 0 (subspace of ℝⁿ).

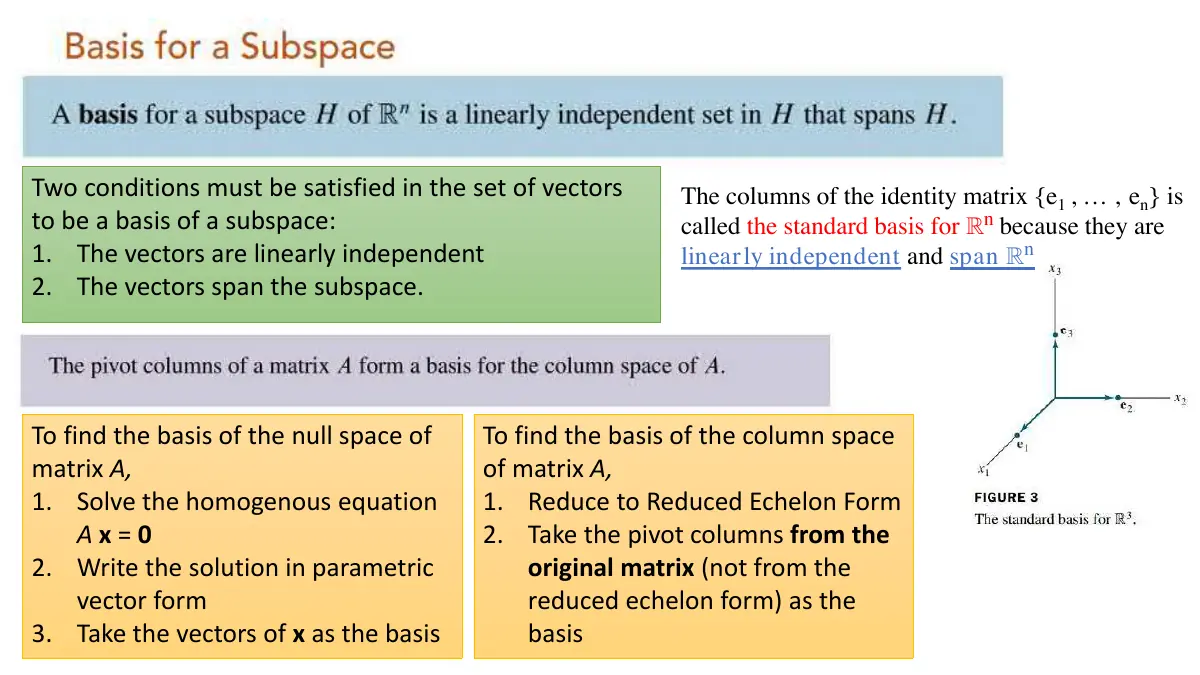

          Slide 7: Slide 7
          Exam weight Low

            8
            Exam weight Low

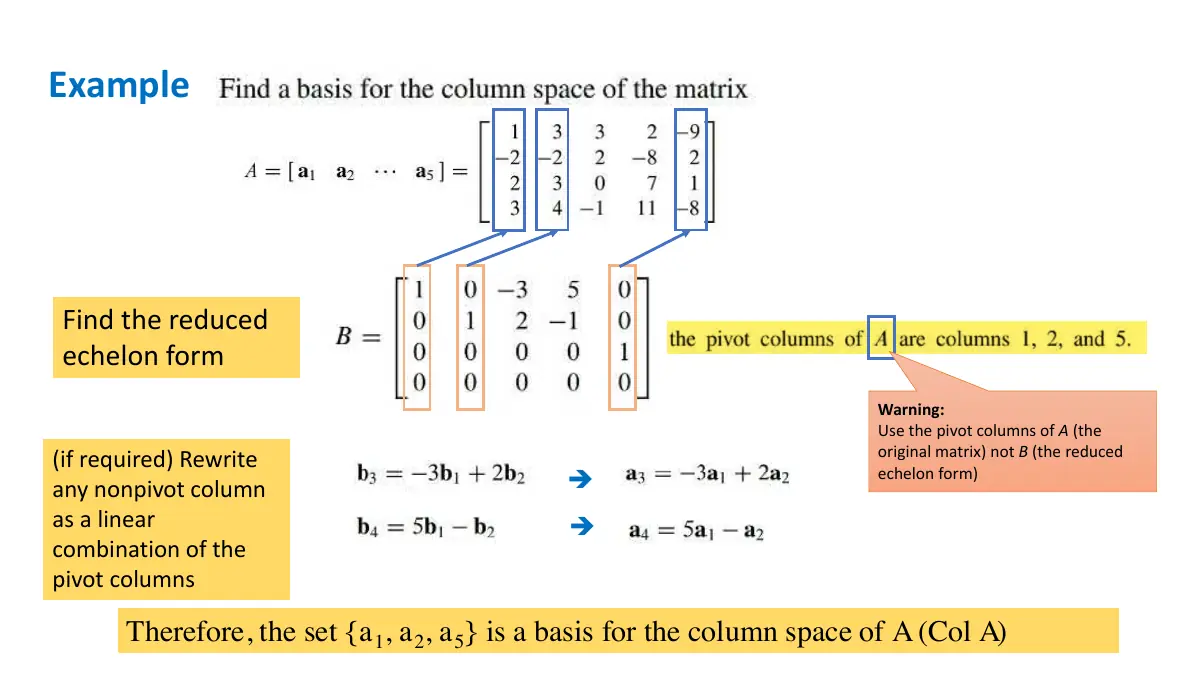

              Slide 9: Example
              Exam weight Low

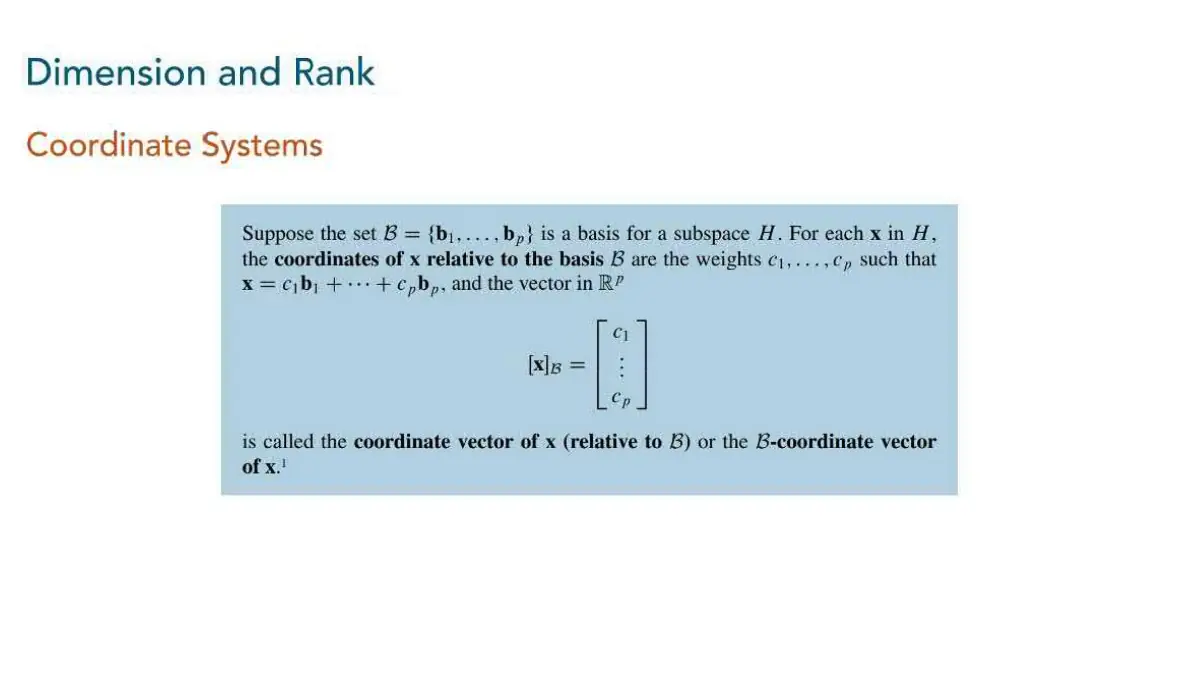

                Slide 10: Slide 10
                Exam weight Low

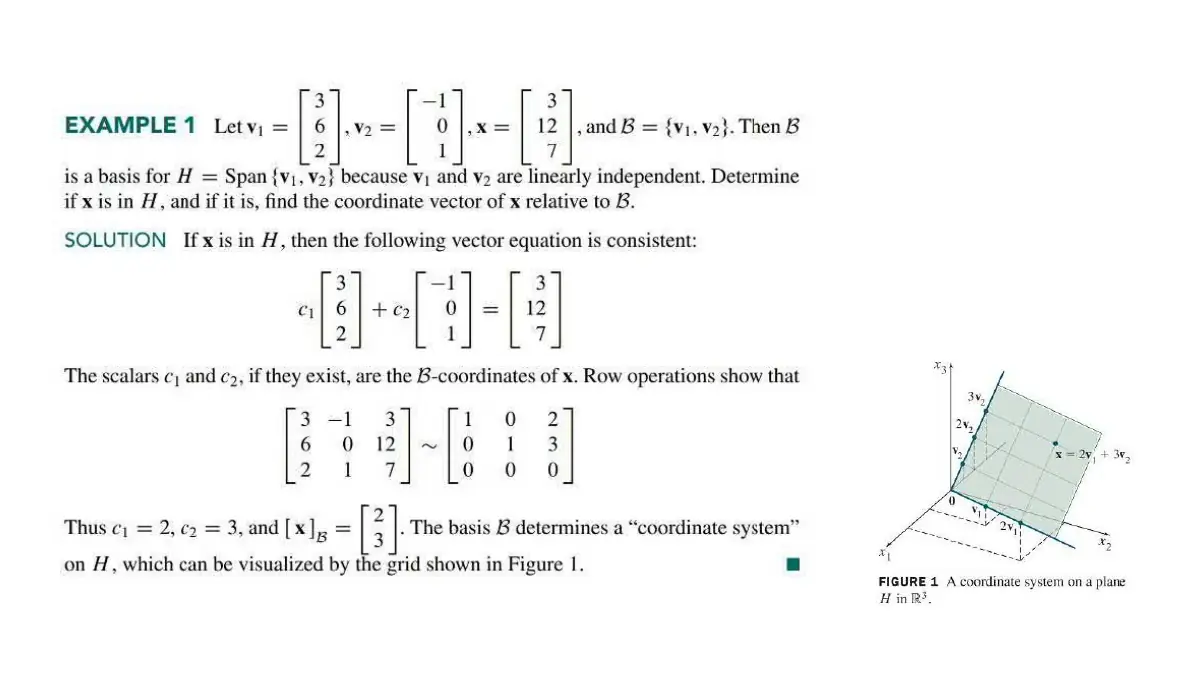

                  Slide 11: Slide 11
                  Exam weight Low

                    13
                    Exam weight Low

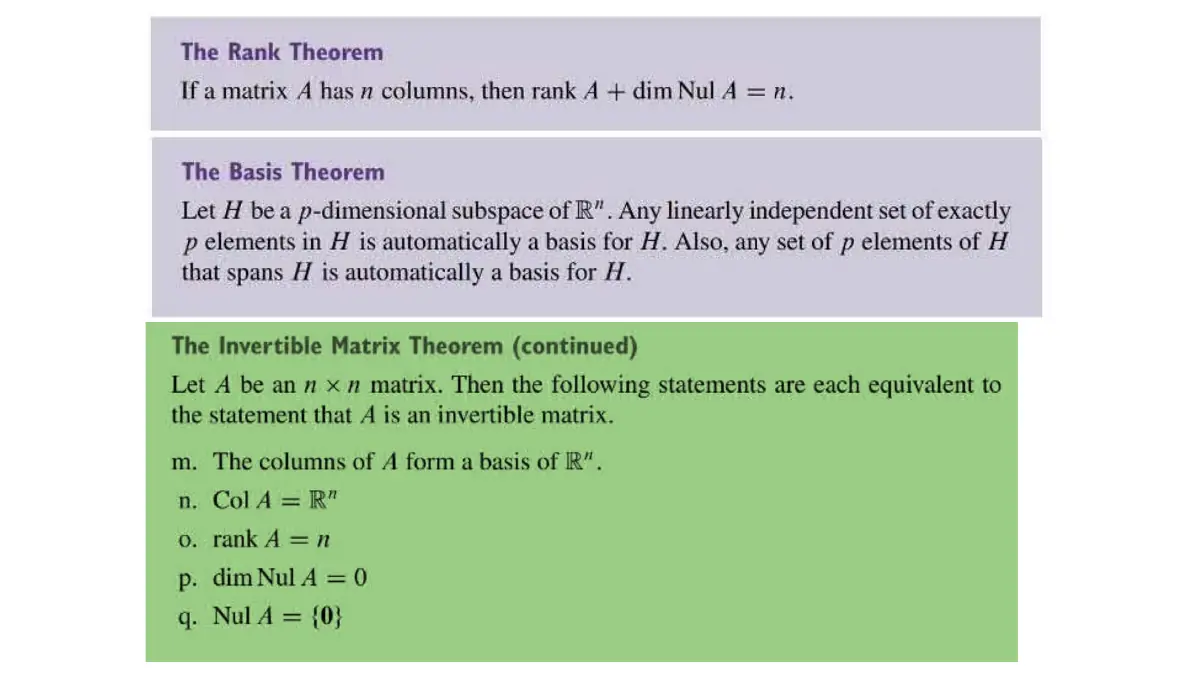

                      Slide 14: Slide 14
                      Exam weight Low

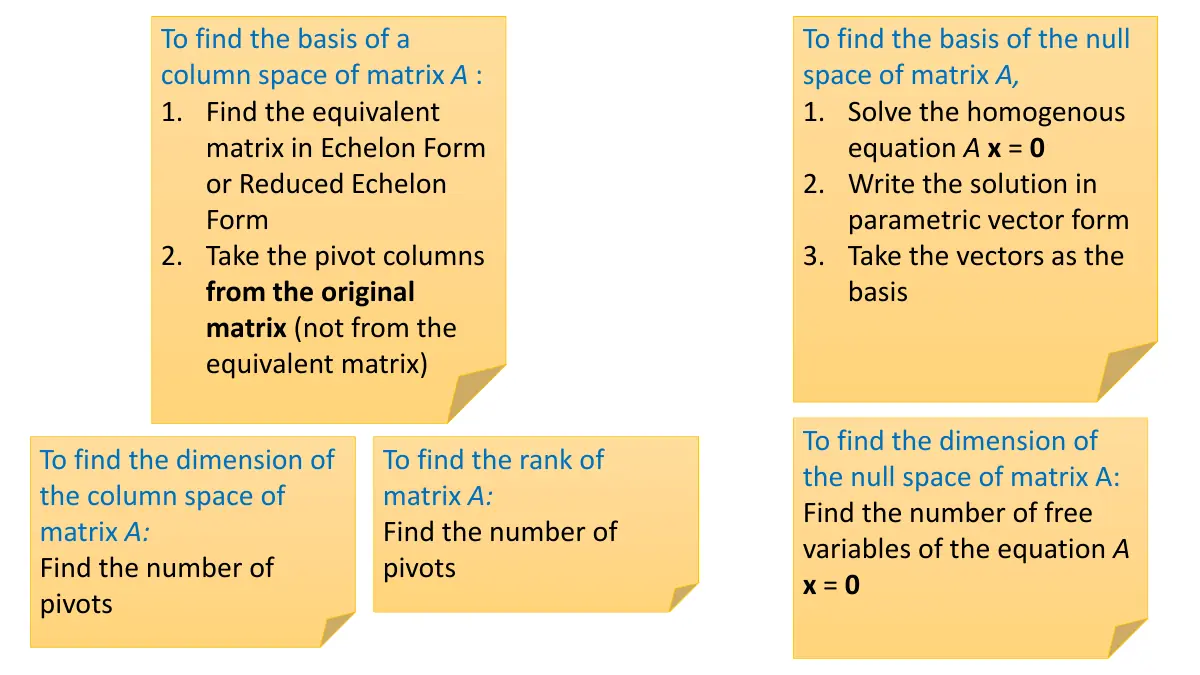

                        Slide 15: To find the basis of a To find the basis of the null column space of matrix A : space of matrix A, 1. Find the equivalent 1. Solve the homogenous matrix in Echelon Form equation A x = 0 or Reduced Echelon 2. Write the solution in
                        Exam weight High
                        1. Basis of Col A: the pivot columns of the ORIGINAL A (not of its echelon form). Basis of Nul A: the vectors in the parametric solution of Ax = 0.
                        Exam trapTake the pivot columns from A itself, not from the reduced matrix.

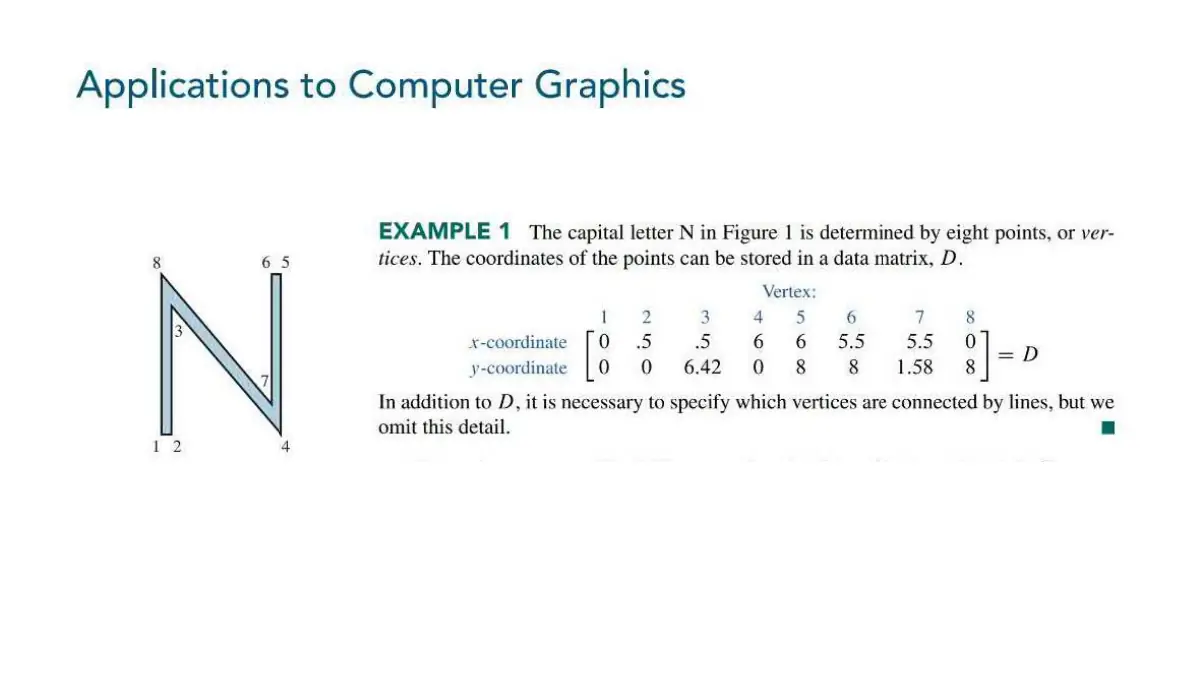

                        Slide 16: Slide 16
                        Exam weight Low

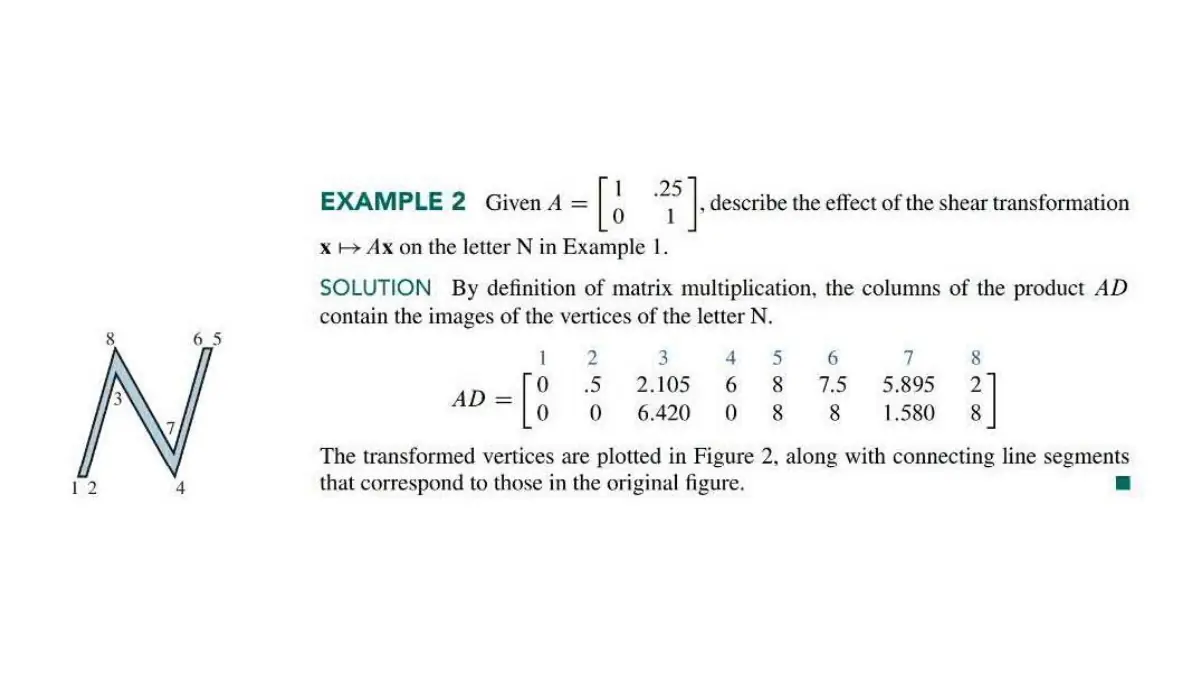

                          Slide 17: Slide 17
                          Exam weight Low

                            18
                            Exam weight Low

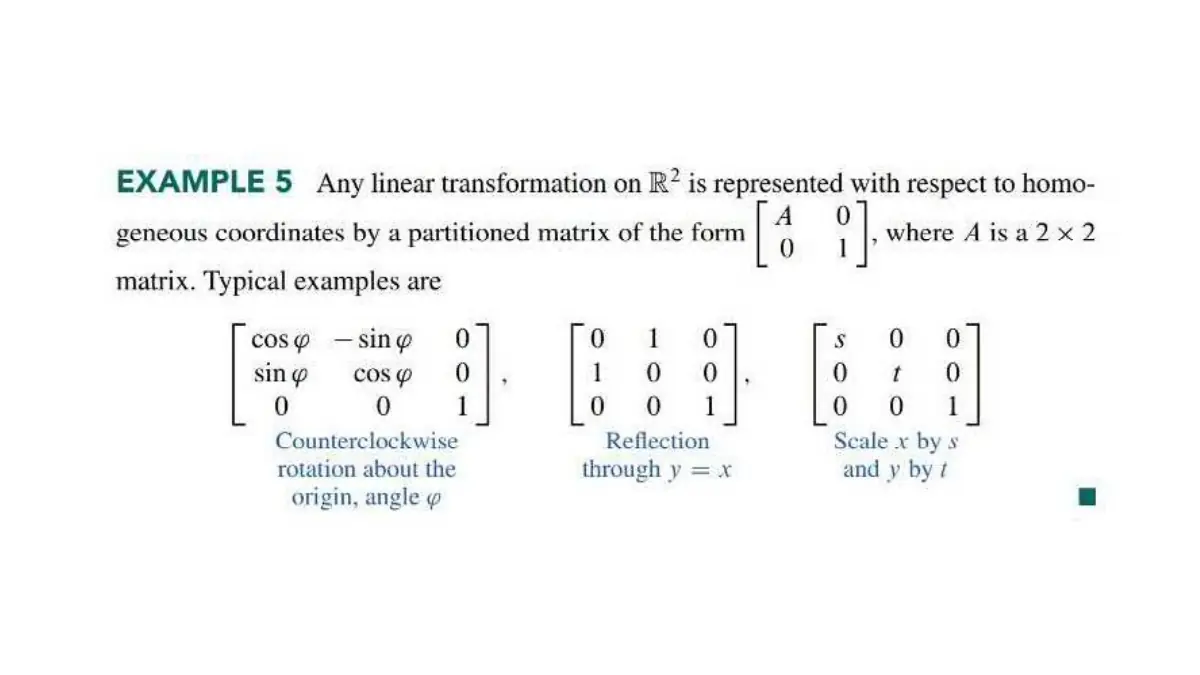

                              Slide 19: Slide 19
                              Exam weight High
                              1. Rank Theorem: rank A + dim Nul A = n (number of columns).
                              🎯 How this can come up · 1 question
                              MCQ

                              A 5×7 matrix has rank 4. dim Nul A =

                              20
                              Exam weight Low

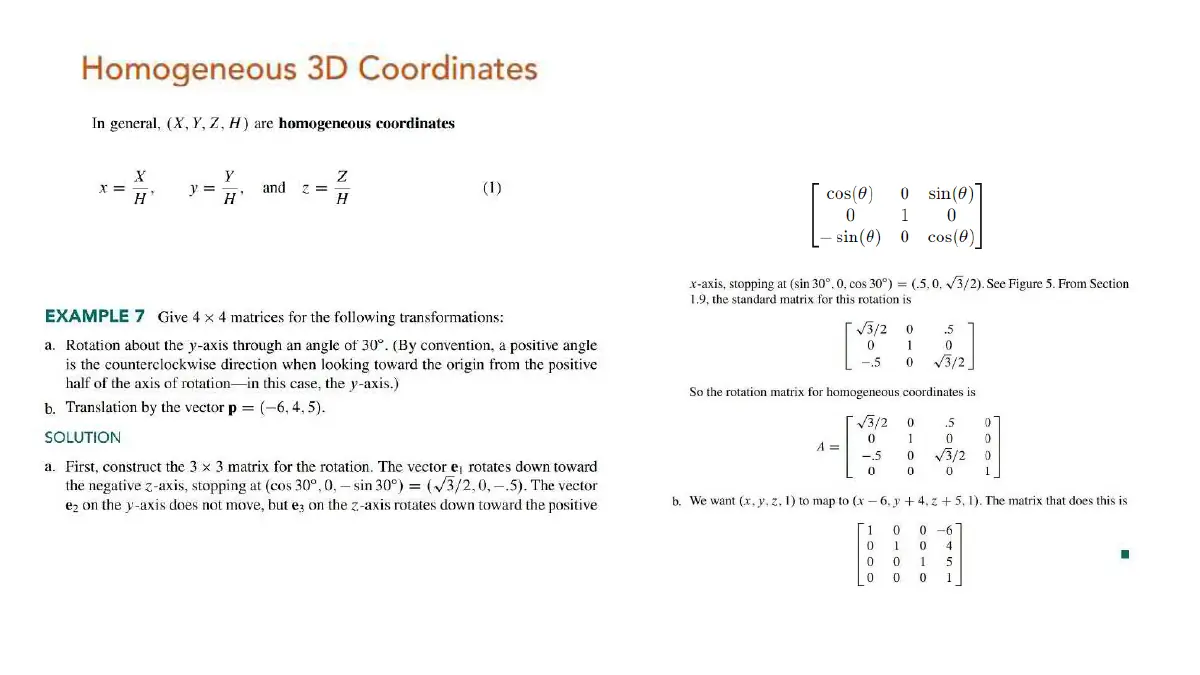

                                Slide 21: Slide 21
                                Exam weight Low

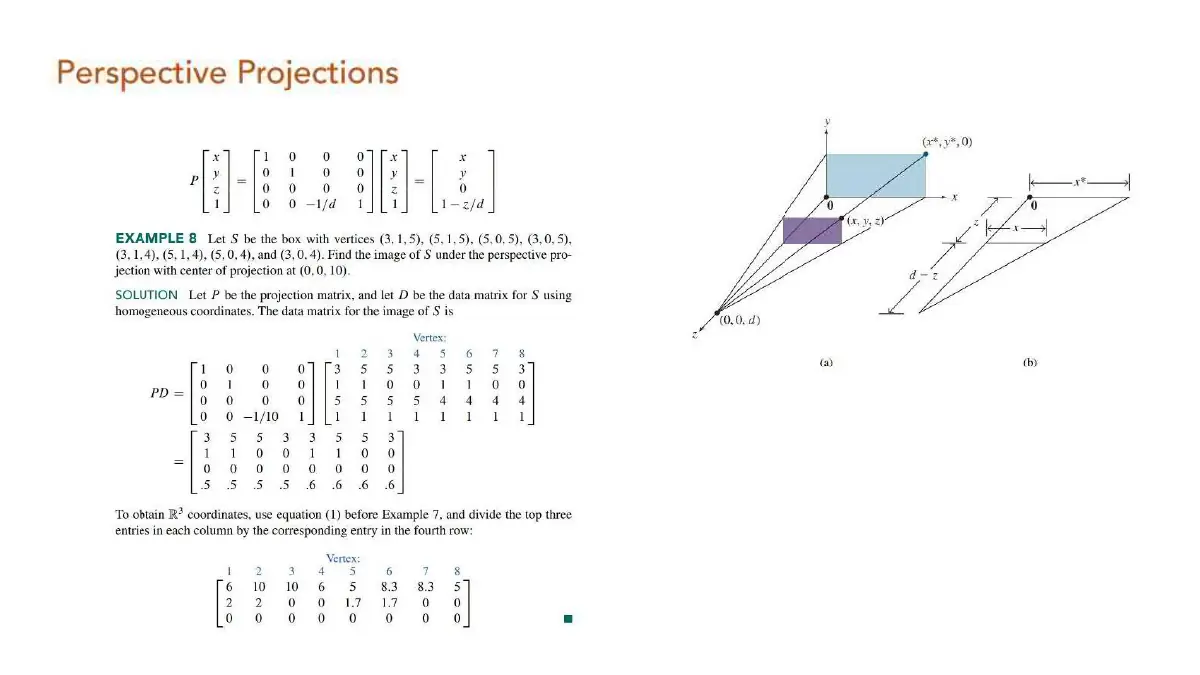

                                  Slide 22: Slide 22
                                  Exam weight Low
