CS223 · Annotated SlidesChapter 1 — Linear Transformations
Chapter 1 · Annotated slides

Linear Transformations

Matrix transformations x ↦ Ax, domain, codomain and range, linearity and superposition, shear, rotation, reflection and projection examples, the standard matrix A = [T(e₁) … T(eₙ)], and one-to-one and onto transformations.

Slide text Study notes Highlight: key words Tips, tricks & traps Seen again elsewhere How it can come up

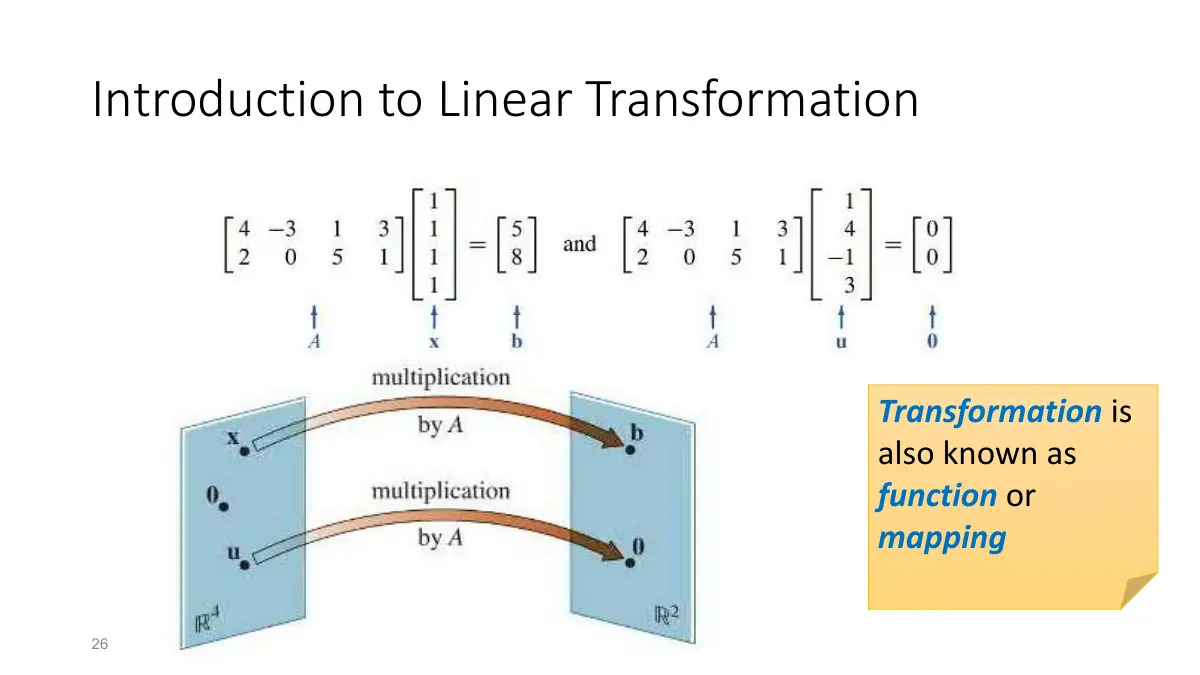

Slide 1: Introduction to Linear Transformation
Exam weight Low

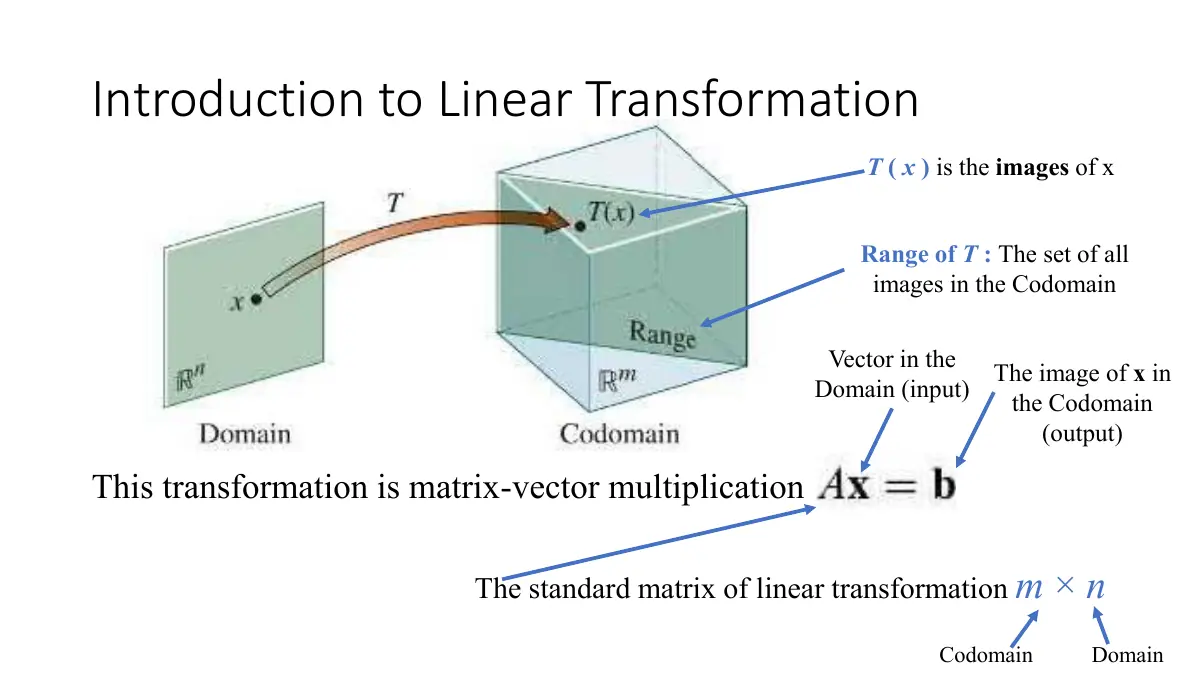

    Slide 2: Introduction to Linear Transformation
    Exam weight Low
    1. T: ℝⁿ → ℝᵐ, x ↦ Ax. Domain ℝⁿ, codomain ℝᵐ, range = set of all Ax (= Col A).

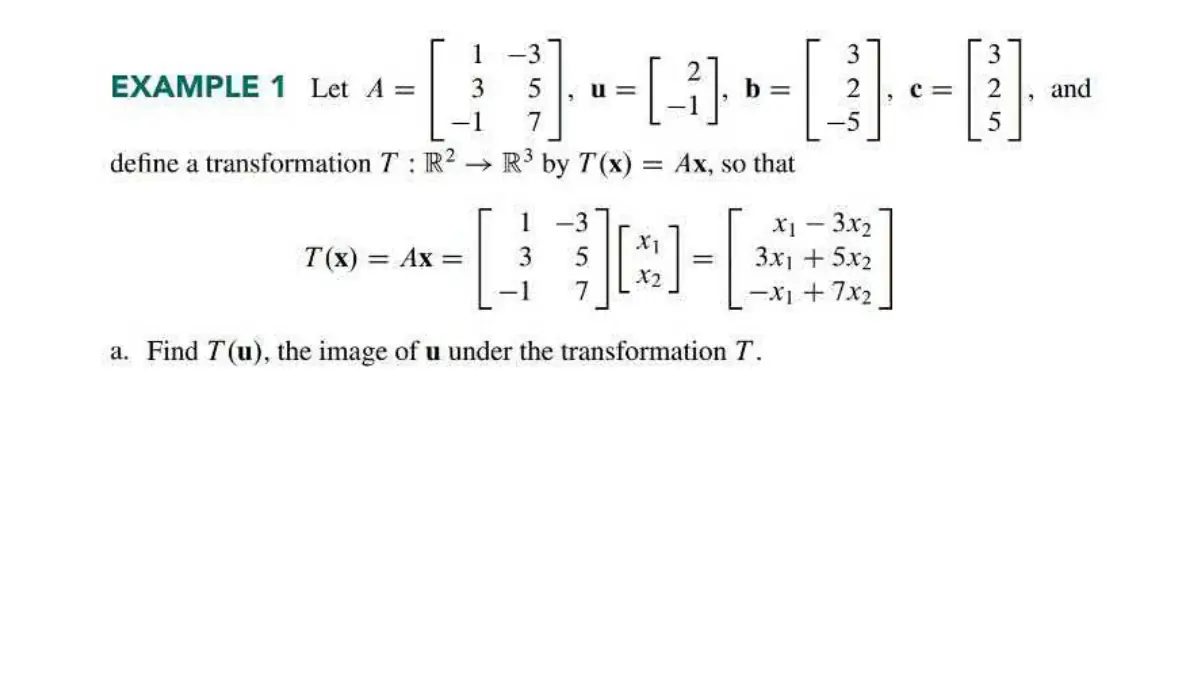

    Slide 3: Slide 3
    Exam weight Low

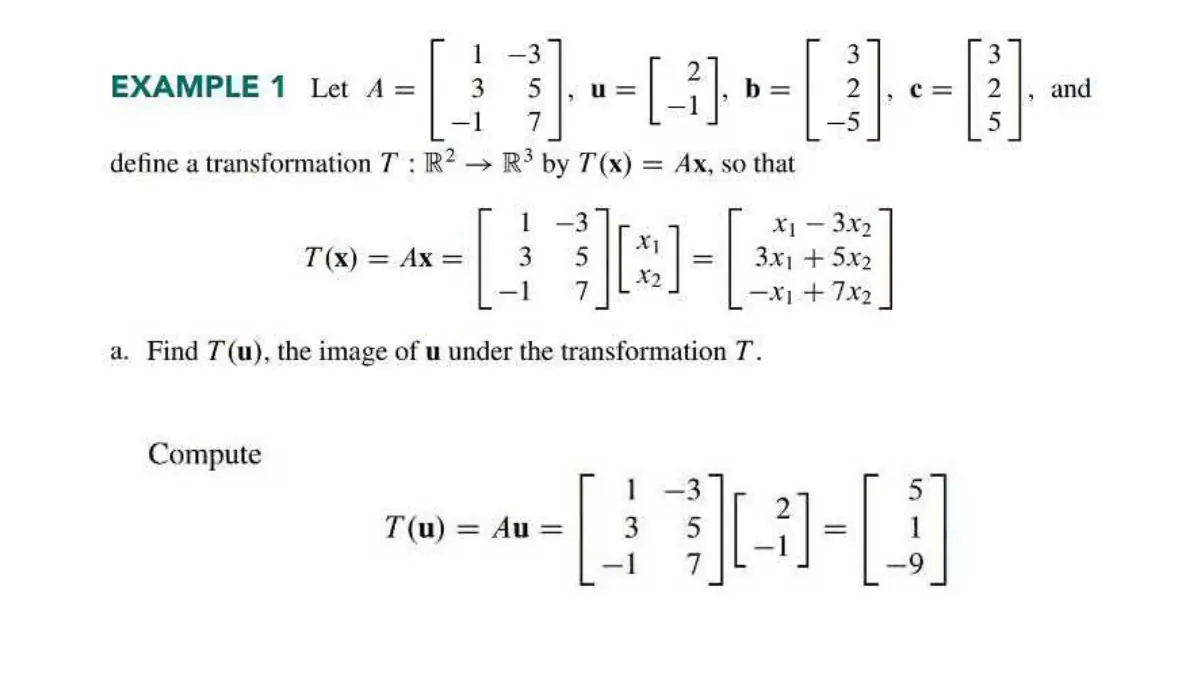

      Slide 4: Slide 4
      Exam weight Low

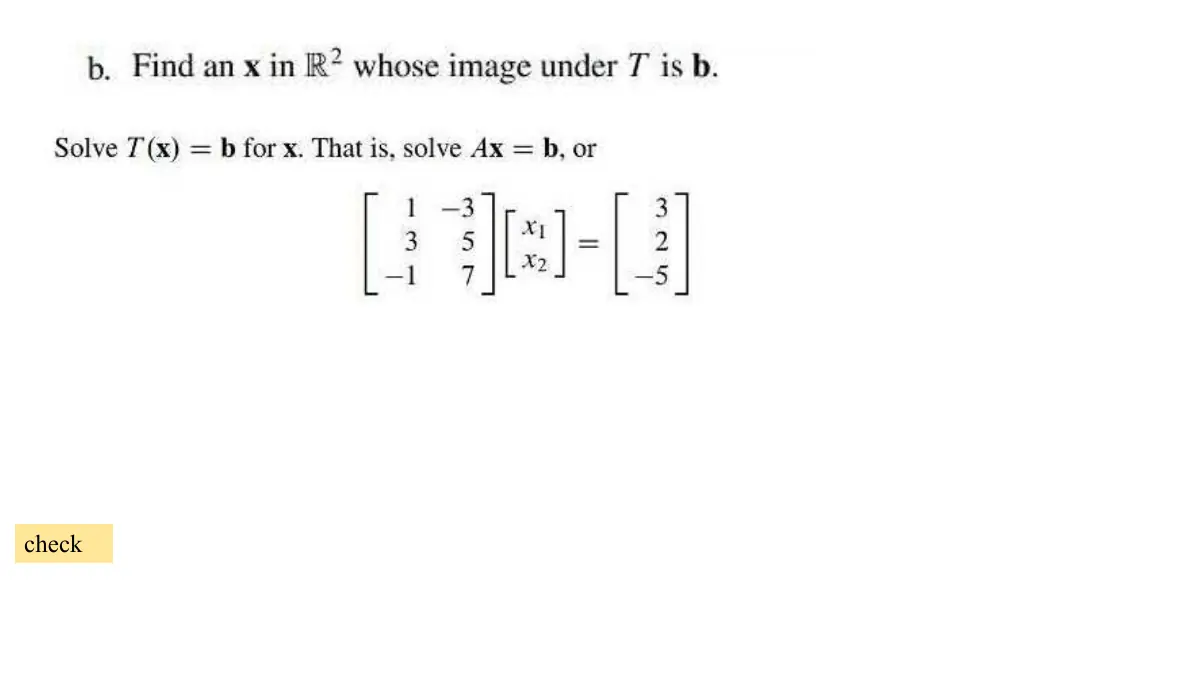

        Slide 5: Slide 5
        Exam weight Low

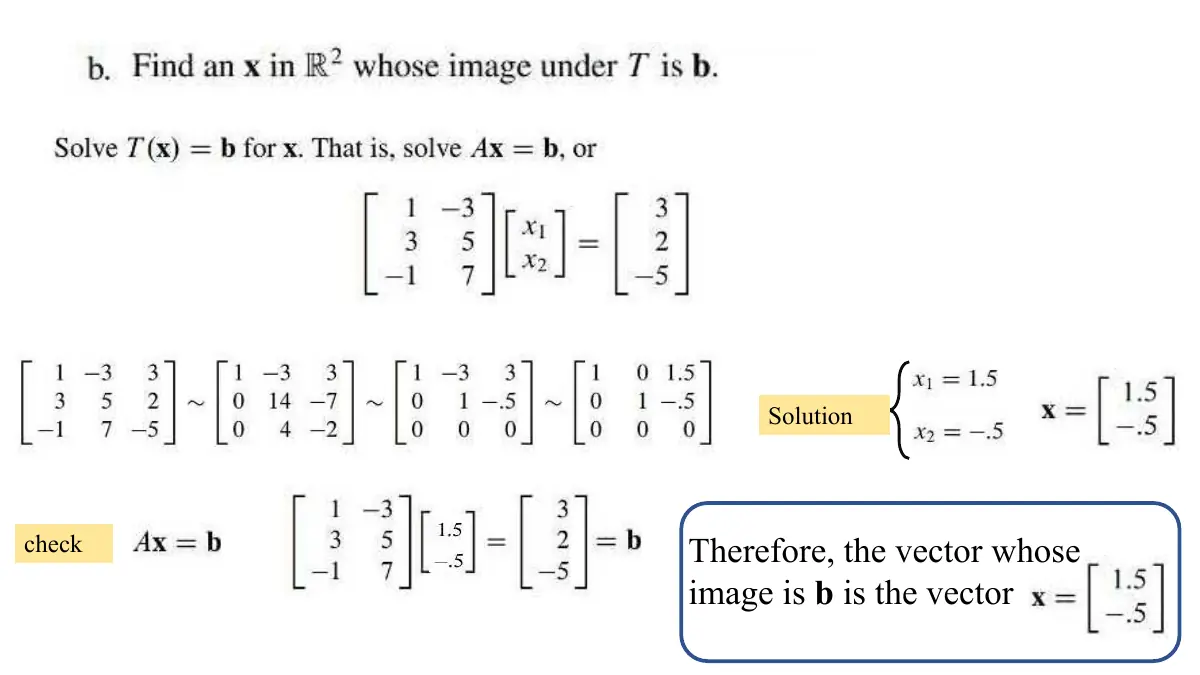

          Slide 6: Slide 6
          Exam weight Low

            Slide 7
            7
            Exam weight Low

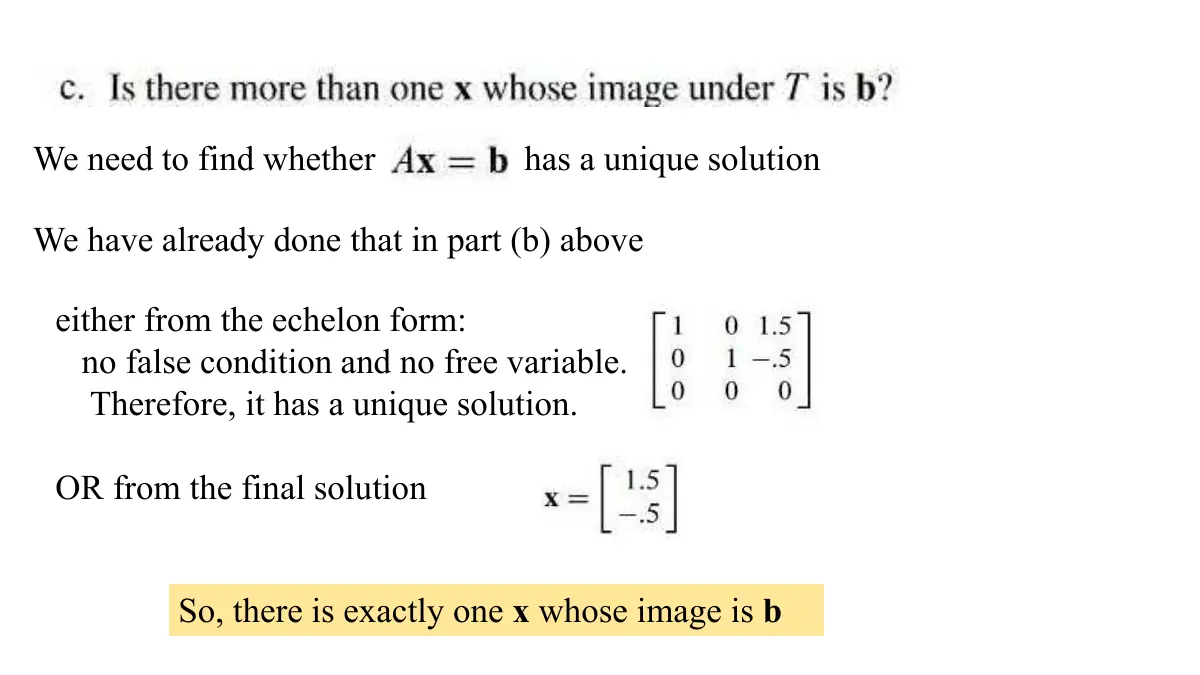

              Slide 8: Slide 8
              Exam weight Low

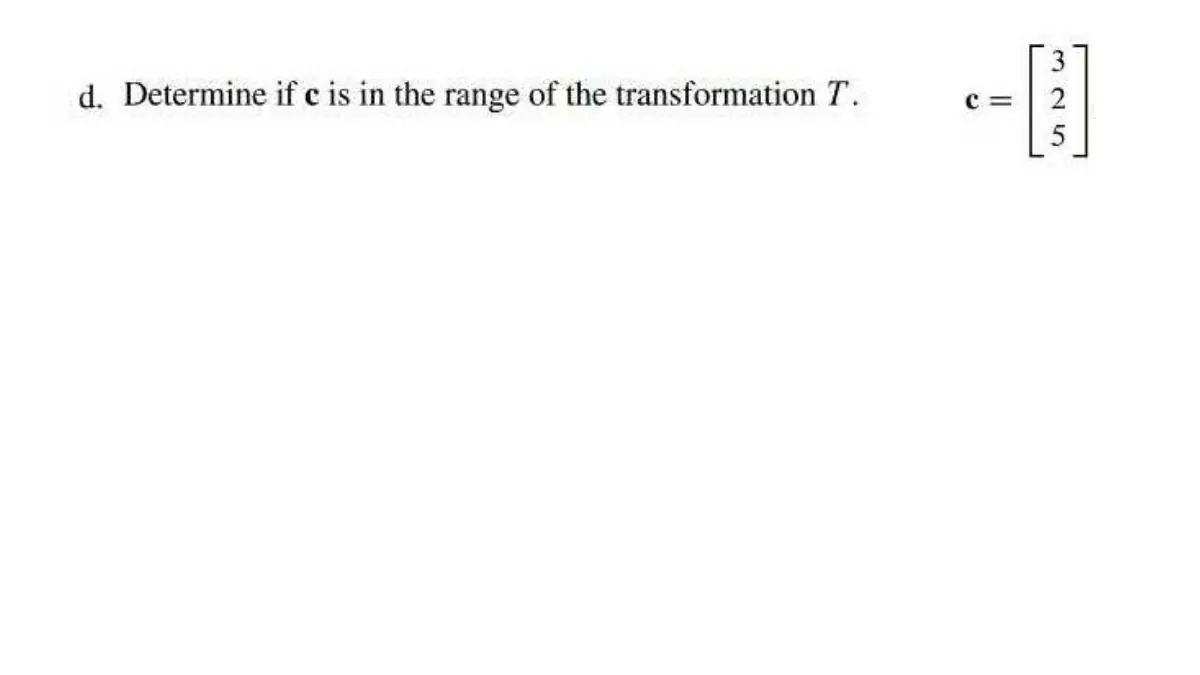

                Slide 9: Slide 9
                Exam weight Low

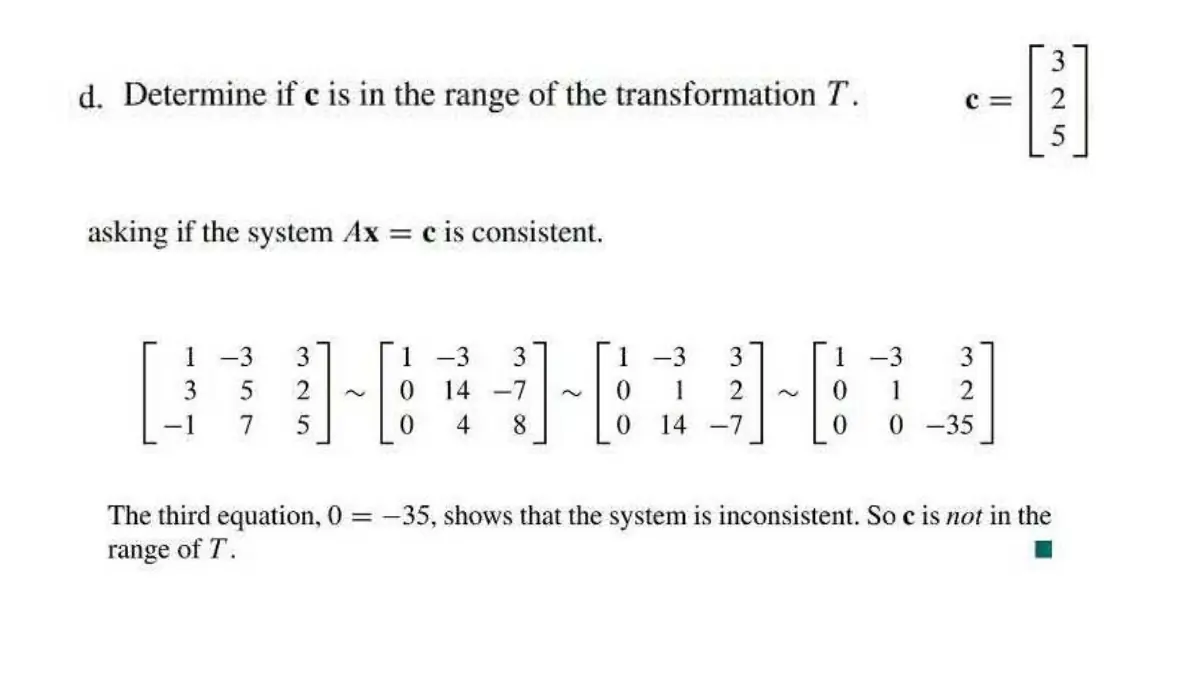

                  Slide 10: Slide 10
                  Exam weight Low

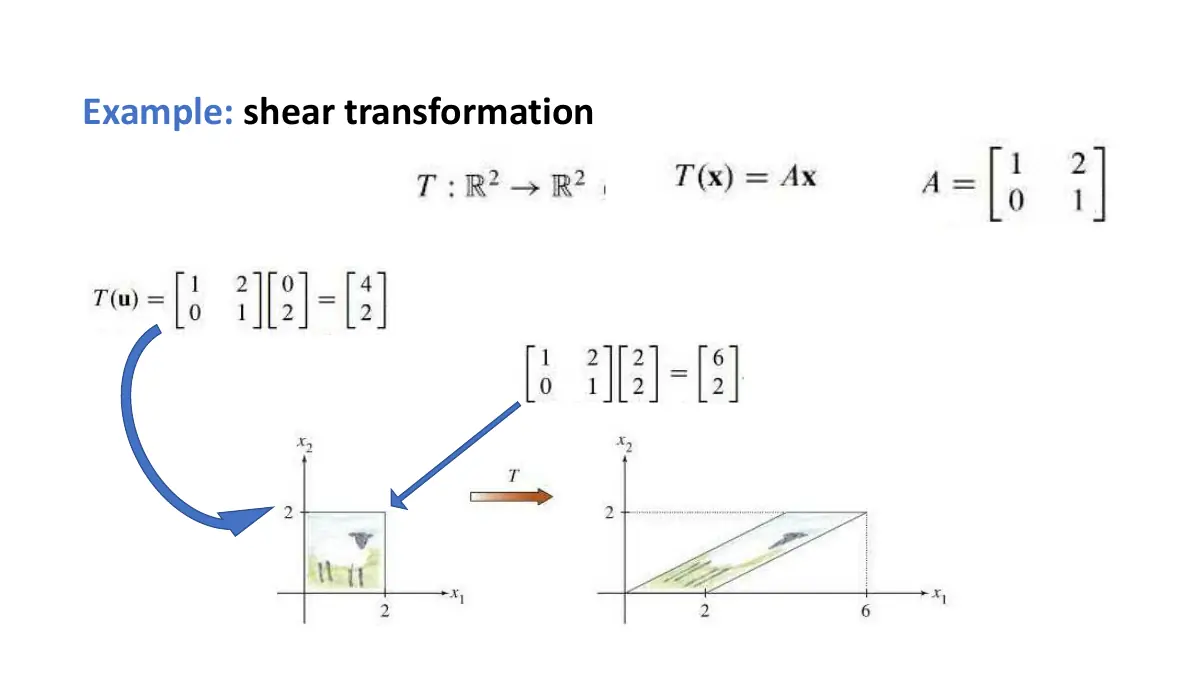

                    Slide 11: Example: shear transformation
                    Exam weight Low

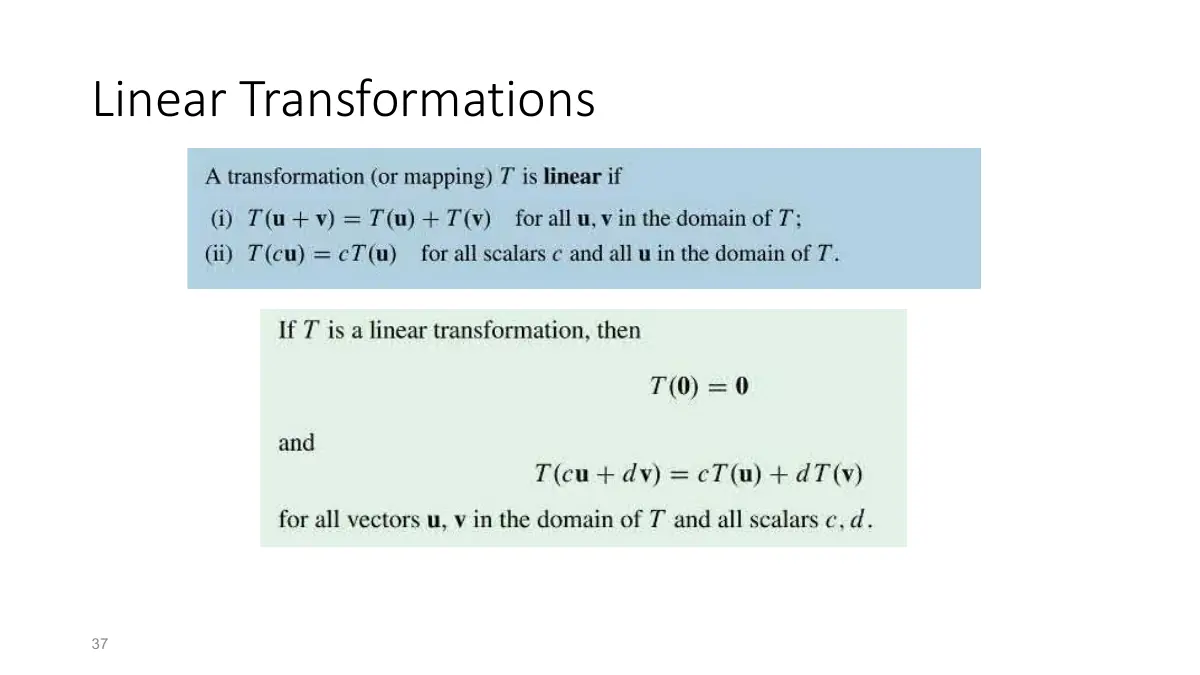

                      Slide 12: Linear Transformations
                      Exam weight High
                      1. T is linear ⇔ T(u + v) = T(u) + T(v) and T(cu) = cT(u). Consequently T(0) = 0.
                      Memory trickQuick test: if T(0) ≠ 0, T is NOT linear.
                      🎯 How this can come up · 1 question
                      MCQ

                      Which map is NOT linear?

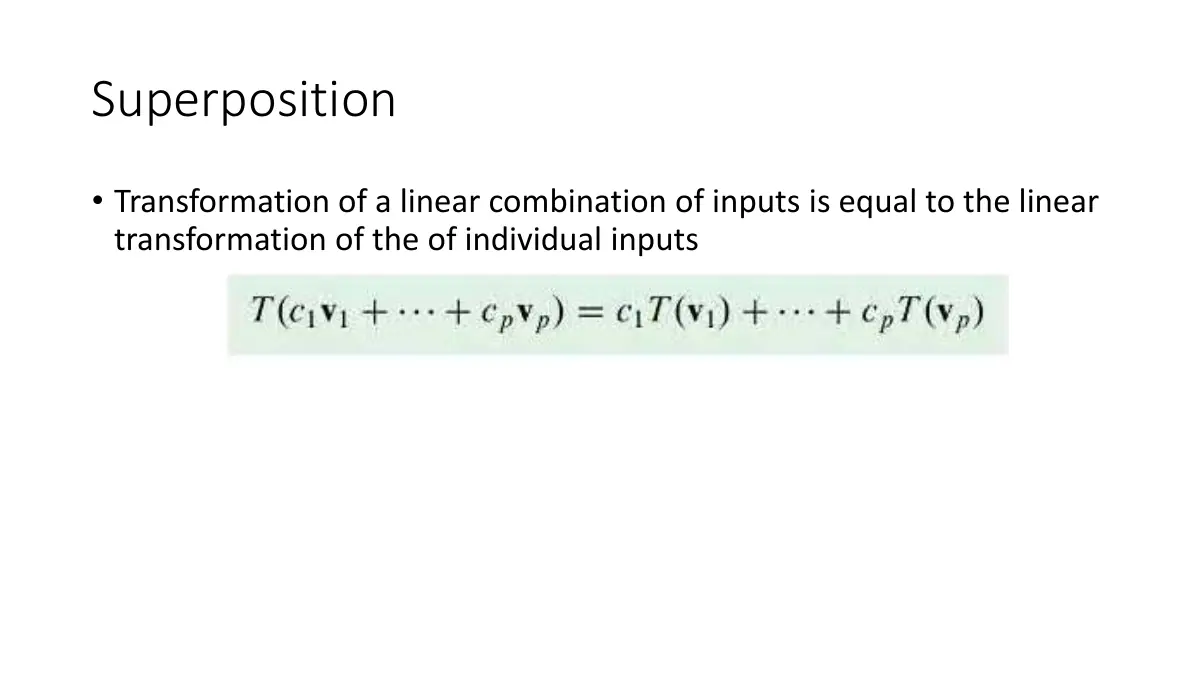

                      Slide 13: Superposition
                      Exam weight Low

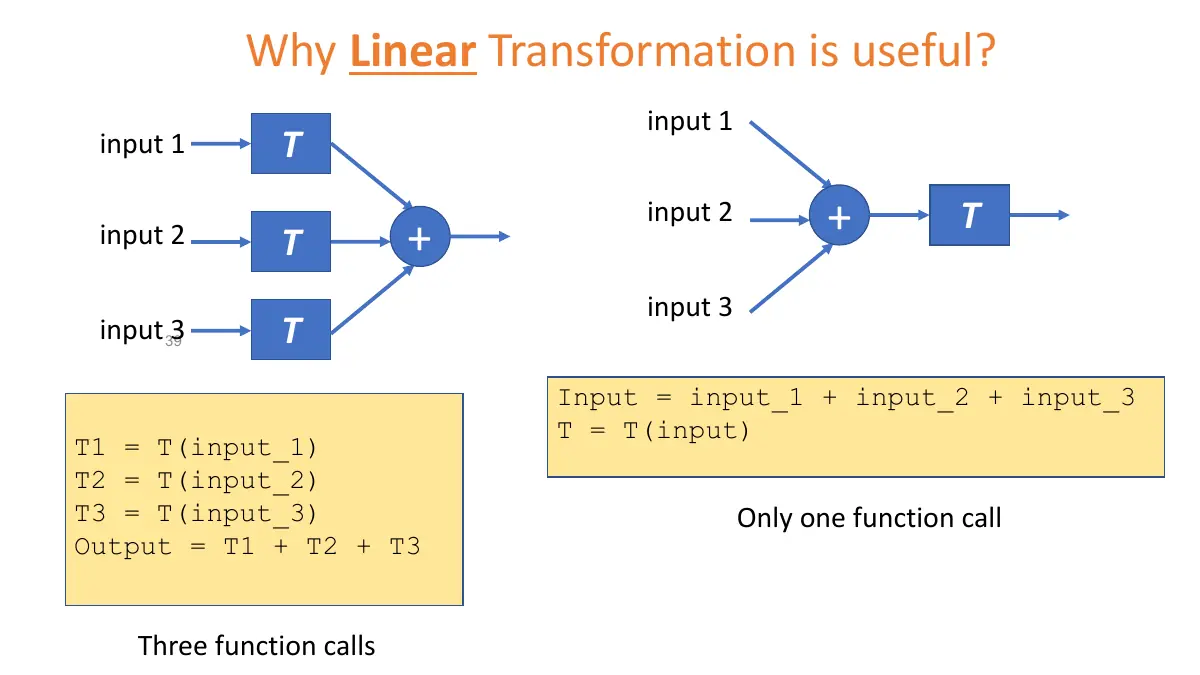

                        Slide 14: Why Linear Transformation is useful?
                        Exam weight Low

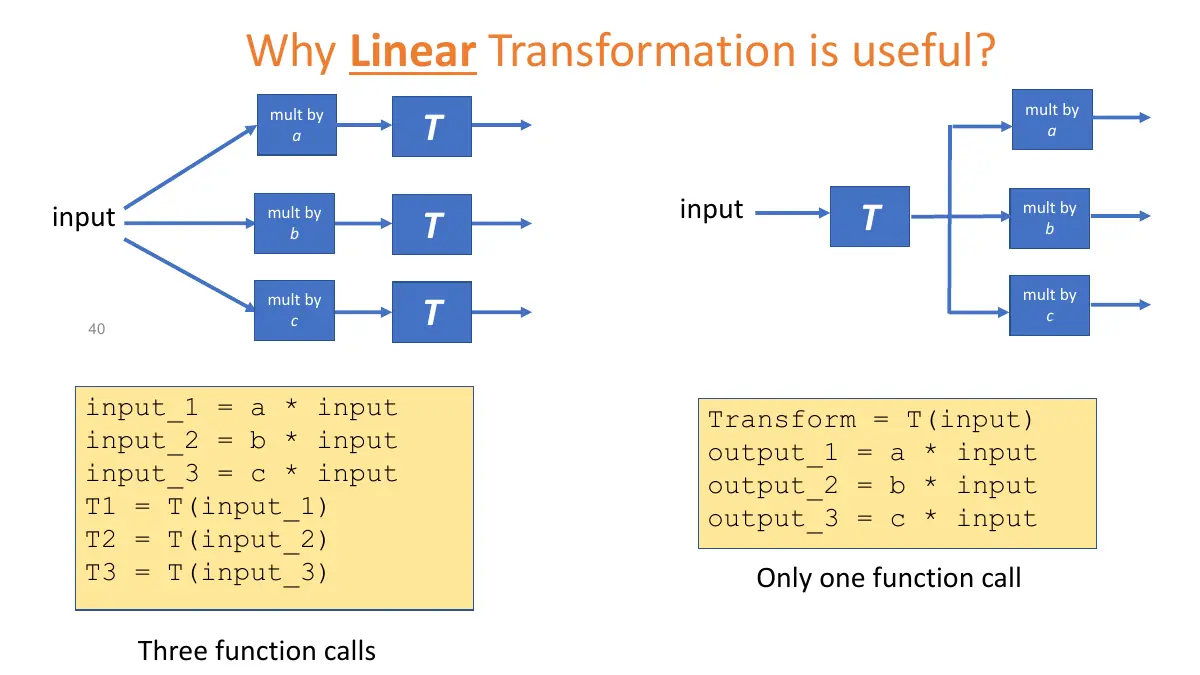

                          Slide 15: Why Linear Transformation is useful?
                          Exam weight Low

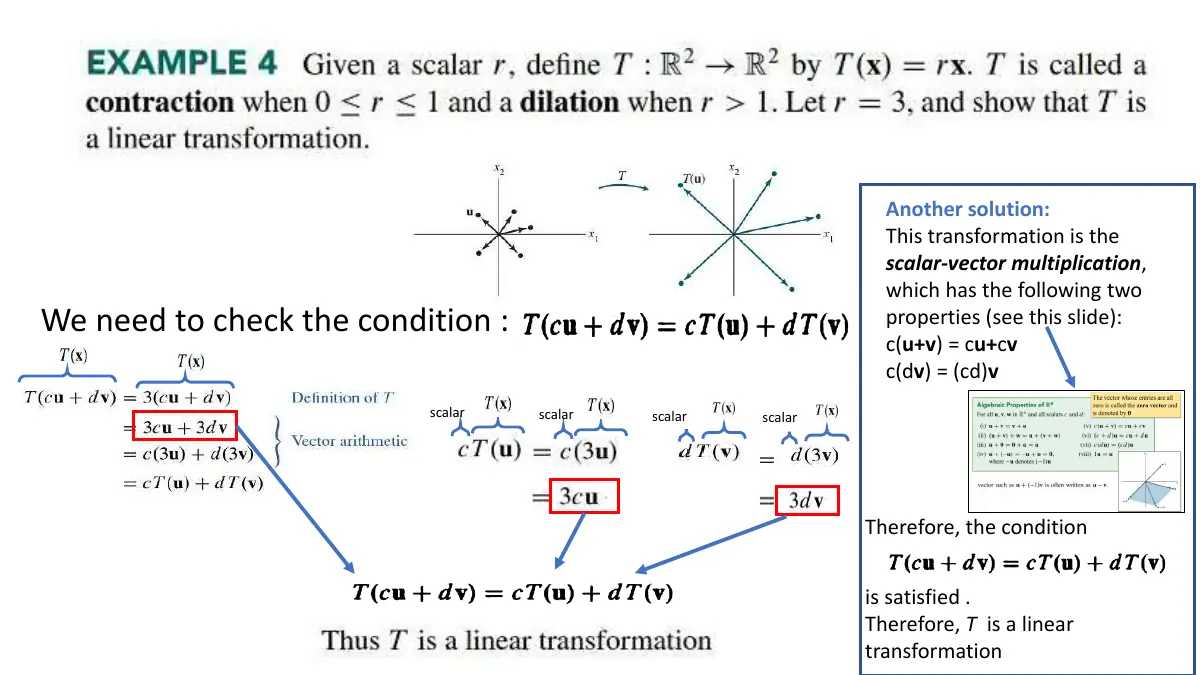

                            Slide 16: Slide 16
                            Exam weight Low

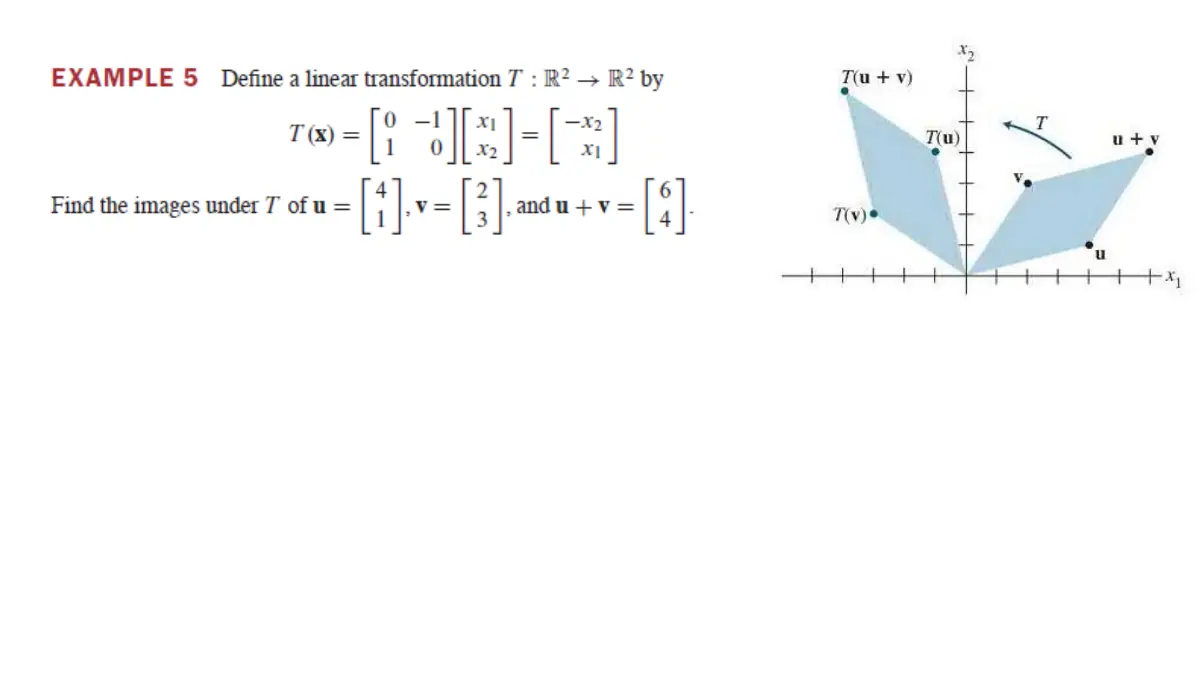

                              Slide 17: Slide 17
                              Exam weight Low

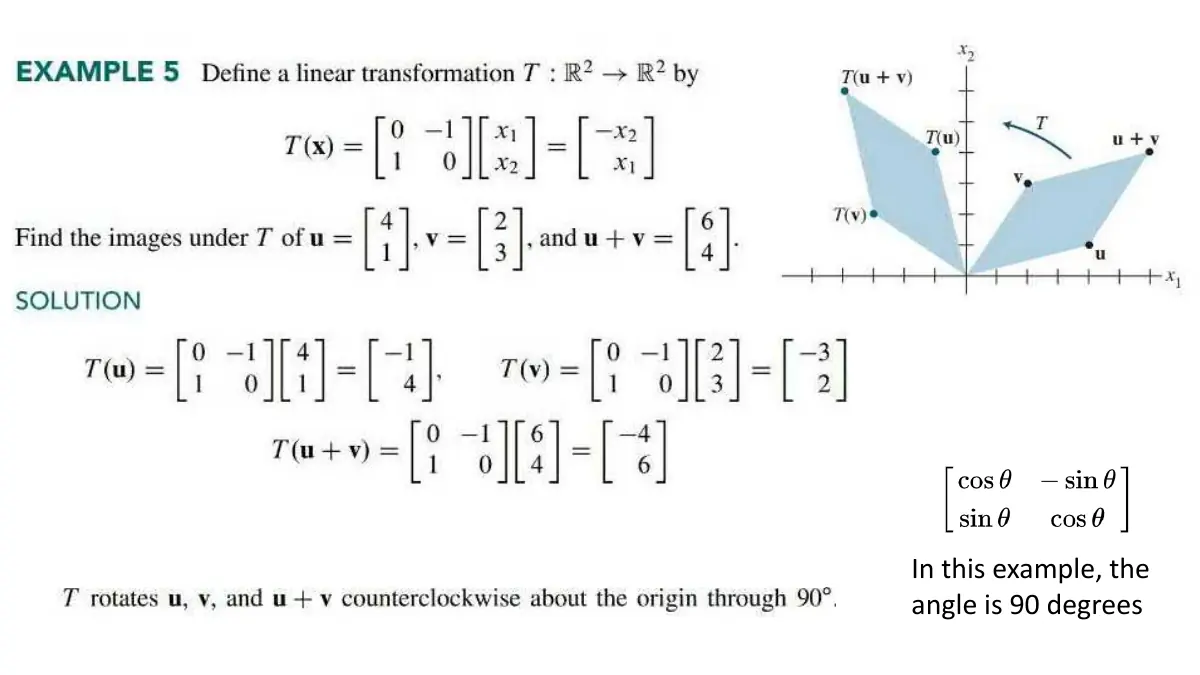

                                Slide 18: Slide 18
                                Exam weight Low

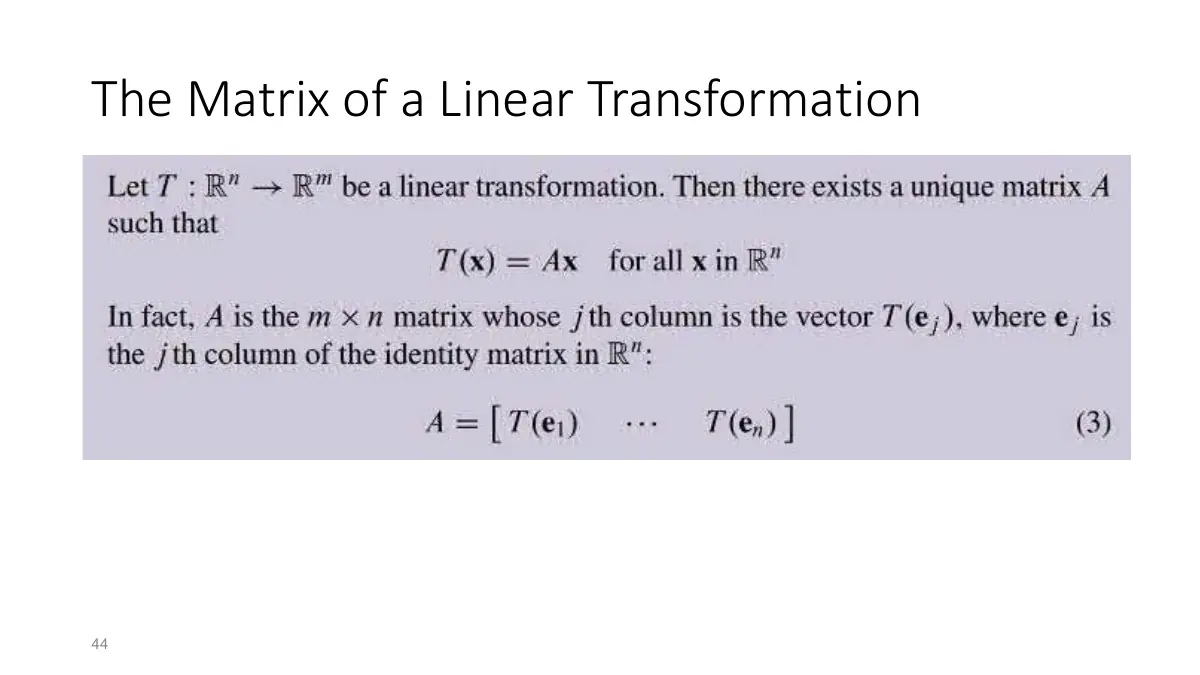

                                  Slide 19: The Matrix of a Linear Transformation
                                  Exam weight High
                                  1. Standard matrix: A = [T(e₁) T(e₂) … T(eₙ)], the images of the identity columns.
                                  🎯 How this can come up · 1 question
                                  Written

                                  Find the standard matrix of the rotation of ℝ² by 90° counter-clockwise.

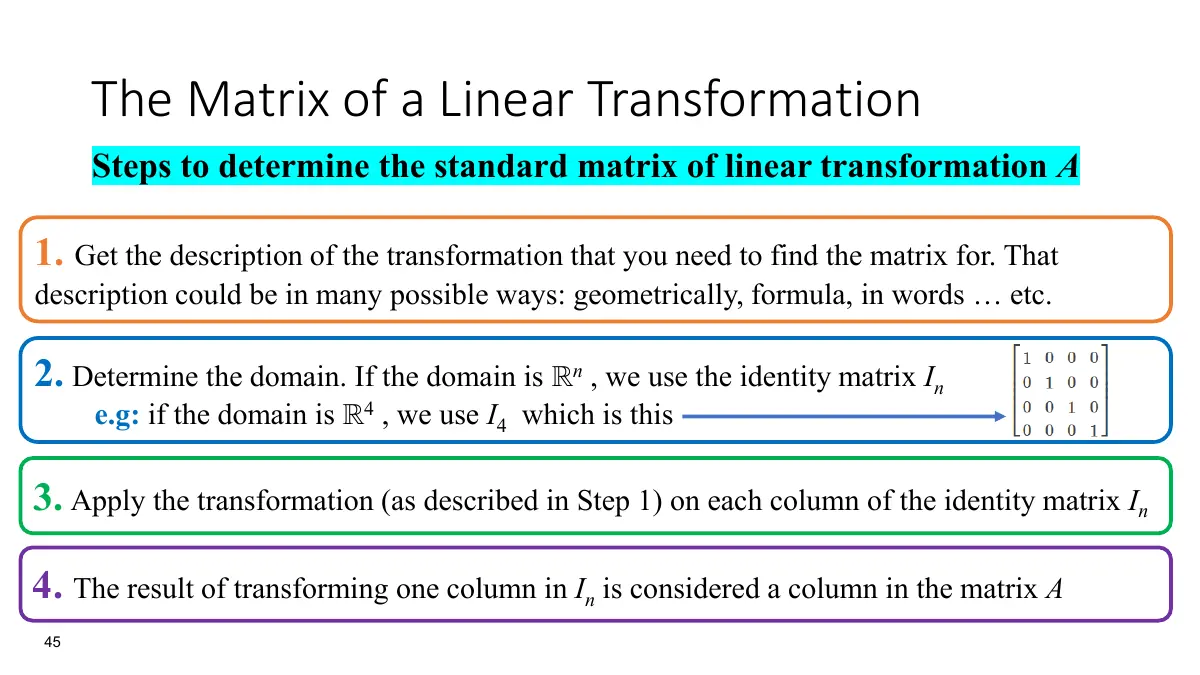

                                  Slide 20: The Matrix of a Linear Transformation
                                  Exam weight Low

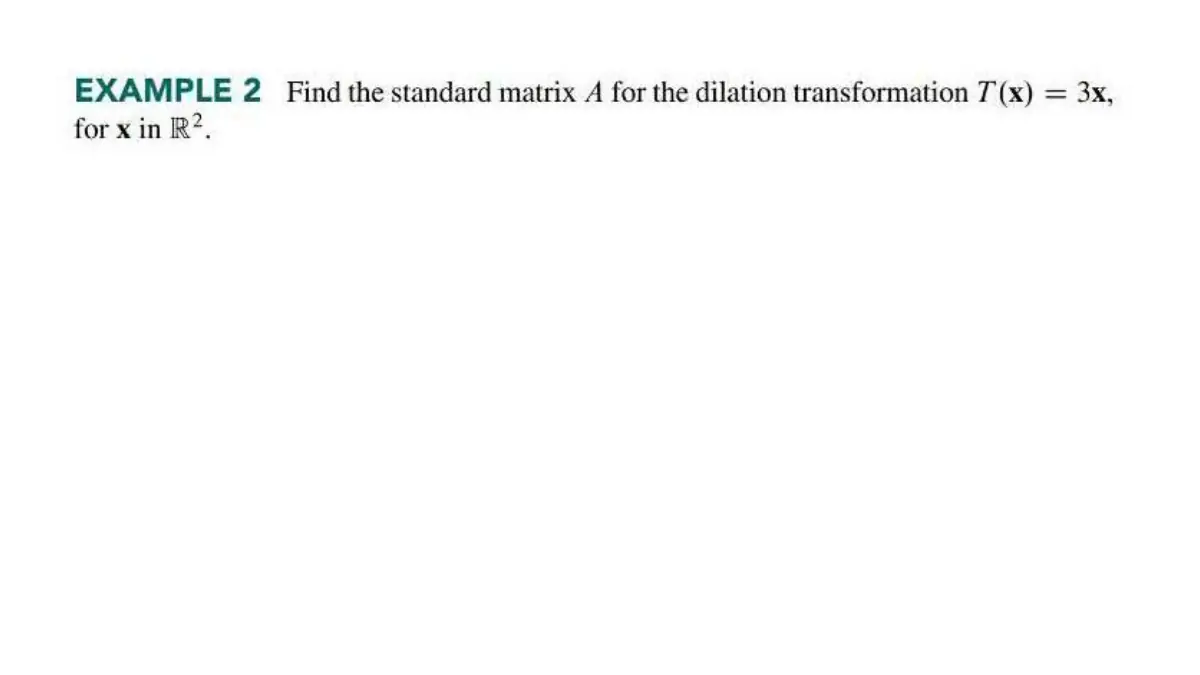

                                    Slide 21: Slide 21
                                    Exam weight Low

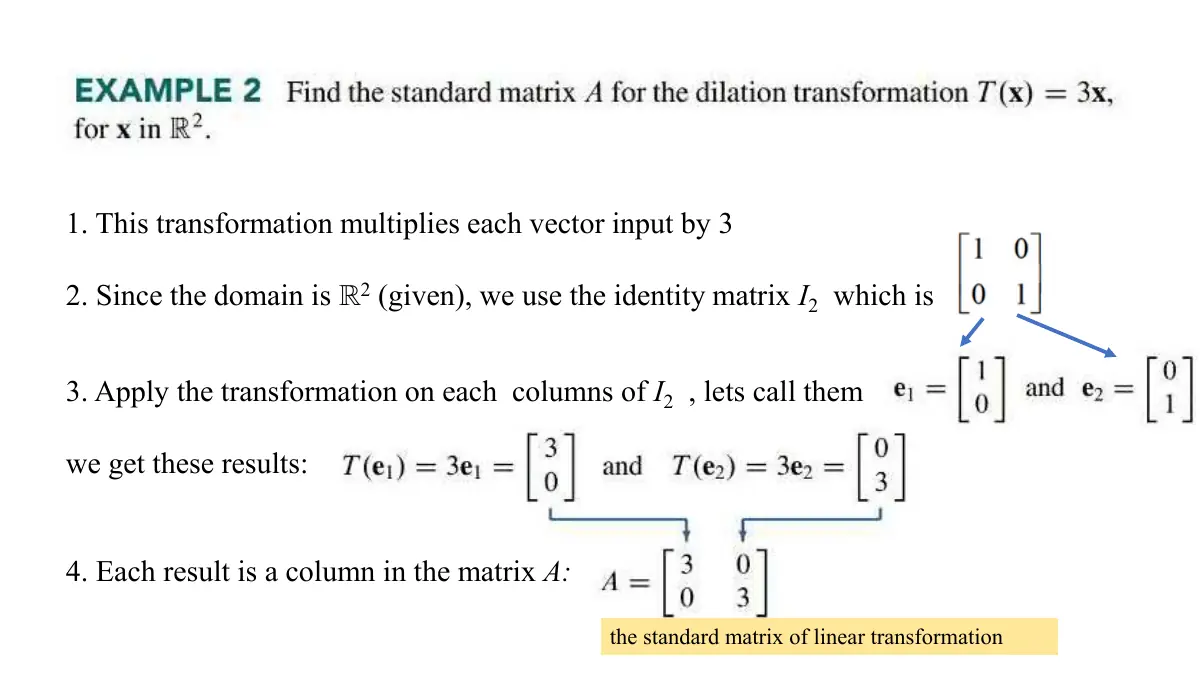

                                      Slide 22: Slide 22
                                      Exam weight Low

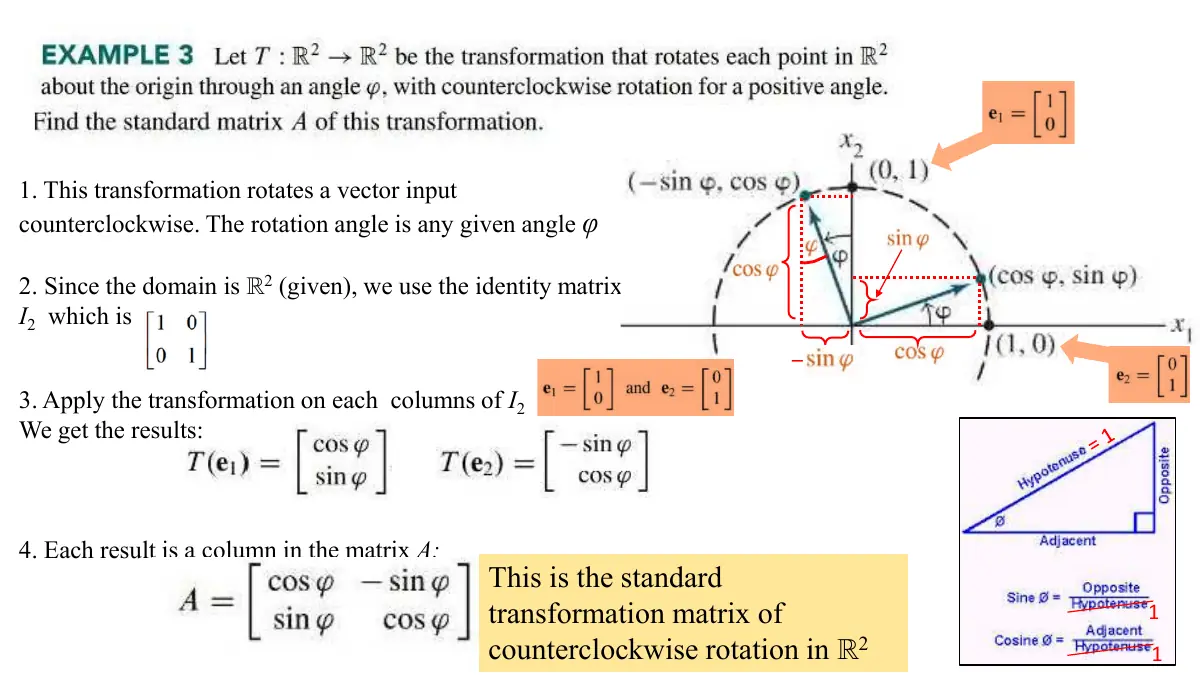

                                        Slide 23: Slide 23
                                        Exam weight Low

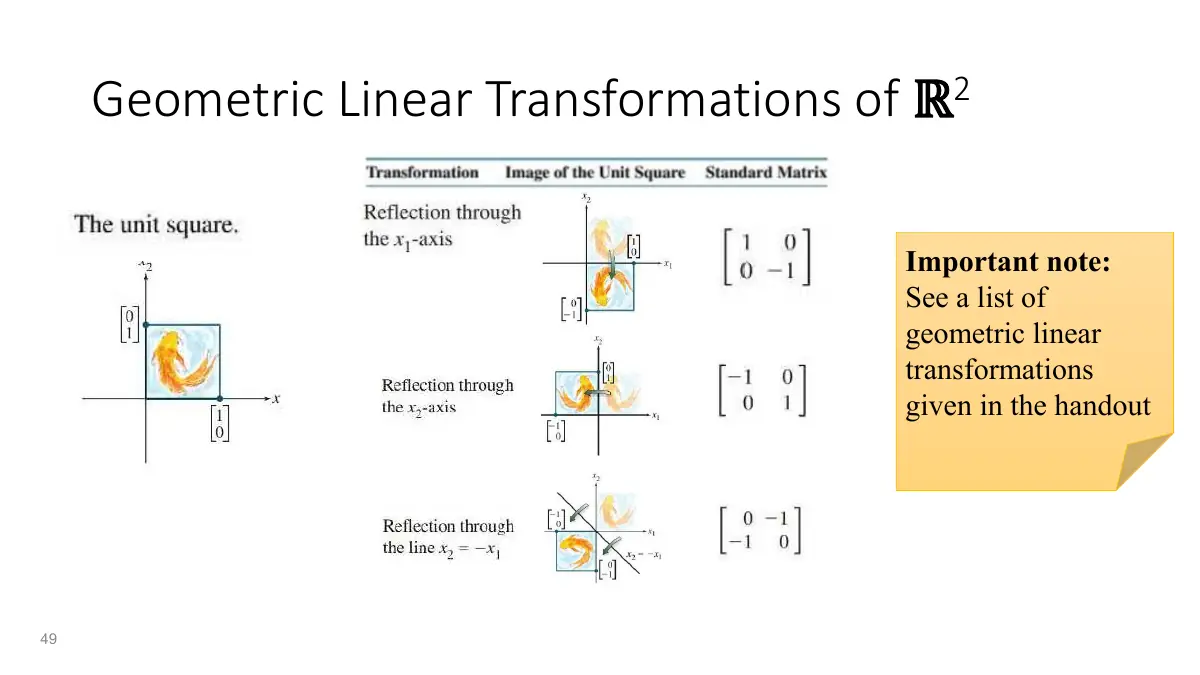

                                          Slide 24: Geometric Linear Transformations of
                                          Exam weight Low
                                          1. Geometric maps: reflections, contractions/expansions, shears, projections (see the tables).

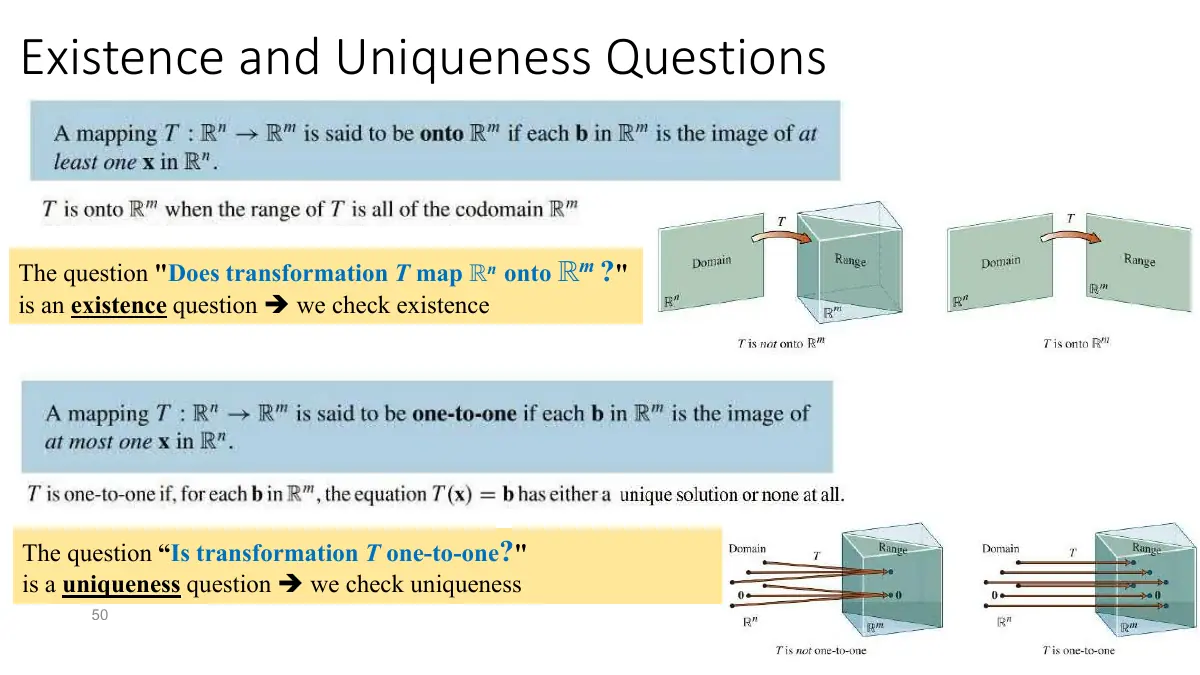

                                          Slide 25: Existence and Uniqueness Questions
                                          Exam weight High
                                          1. Onto ℝᵐ ⇔ columns span ℝᵐ ⇔ pivot in every row. One-to-one ⇔ T(x) = 0 has only the trivial solution ⇔ columns independent ⇔ pivot in every column.

                                          Related real-exam questions

                                          🎯 How this can come up · 1 question
                                          MCQ

                                          T: ℝ³ → ℝ² can never be:

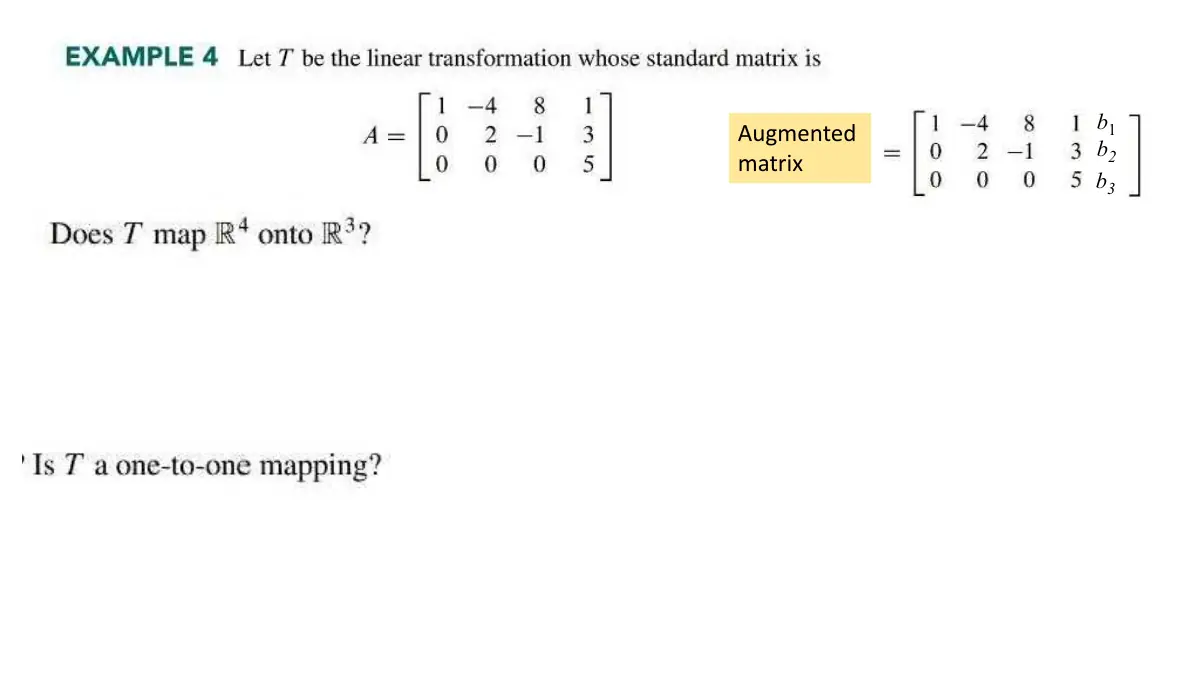

                                          Slide 26: b
                                          Exam weight Low

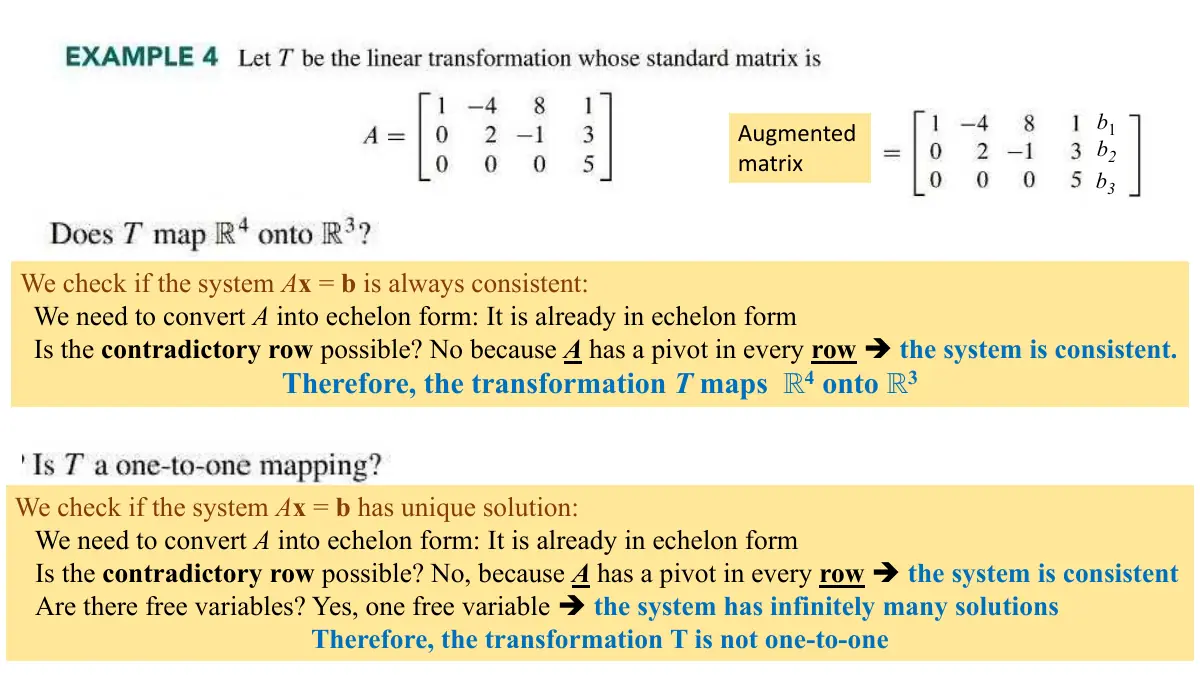

                                            Slide 27: b
                                            Exam weight Low

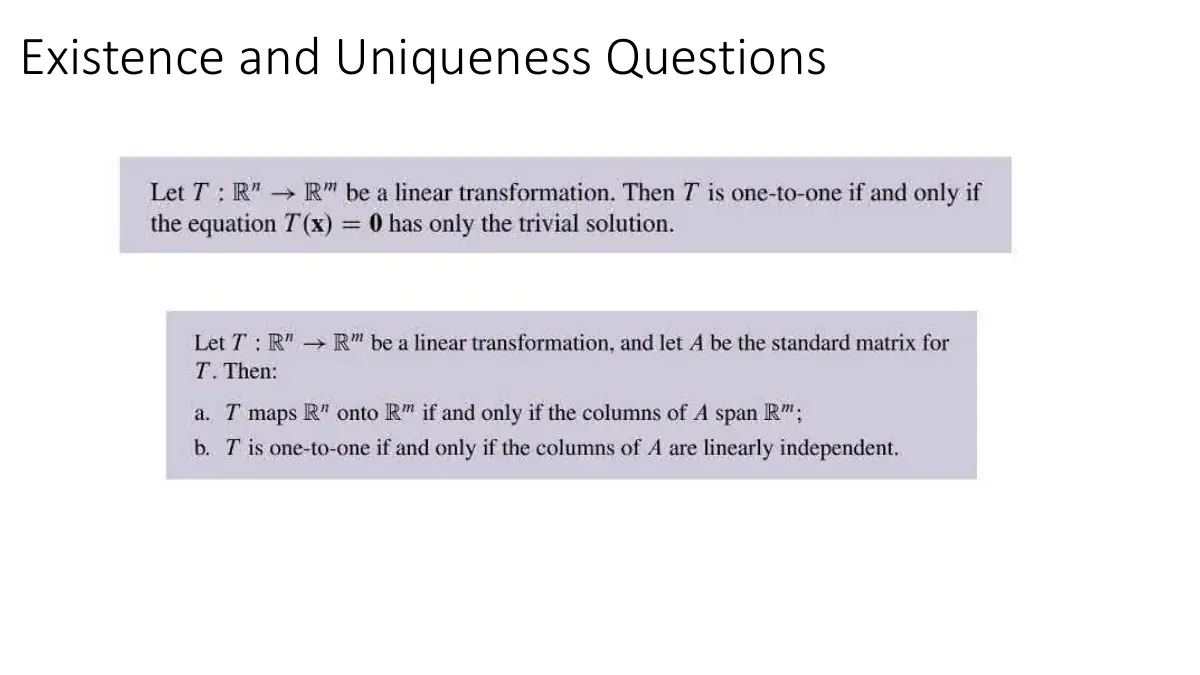

                                              Slide 28: Existence and Uniqueness Questions
                                              Exam weight Low

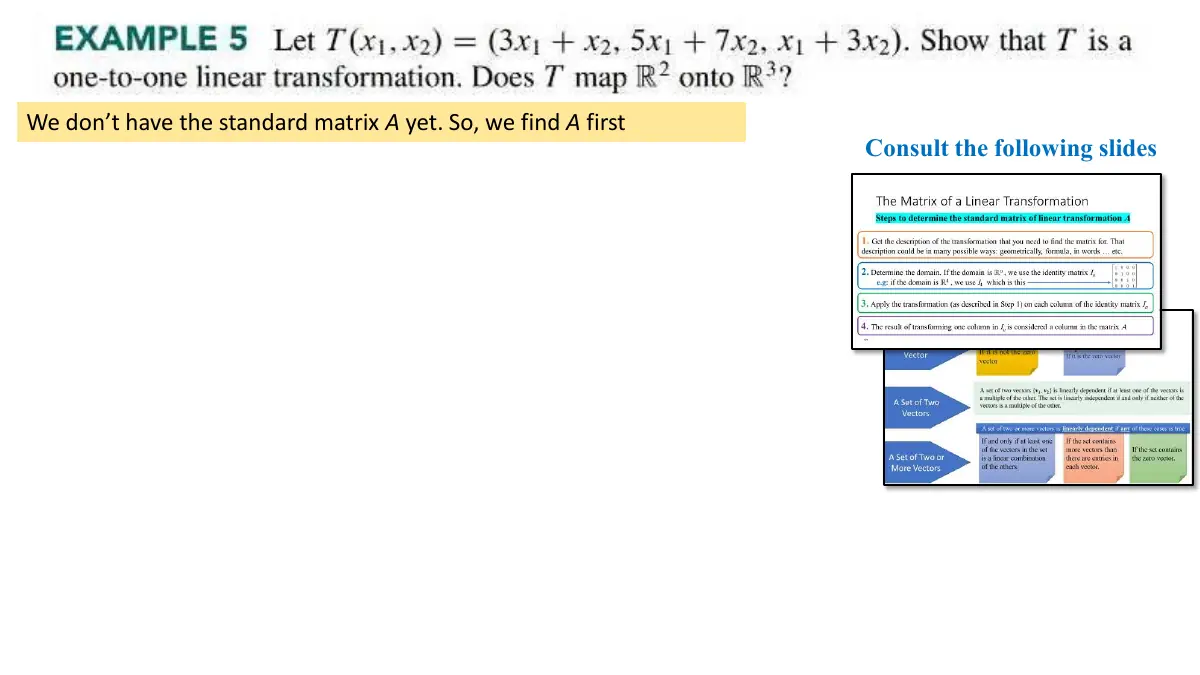

                                                Slide 29: A yet. So, we find first A We don t have the standard matrix ’ Consult the following slides
                                                Exam weight Low

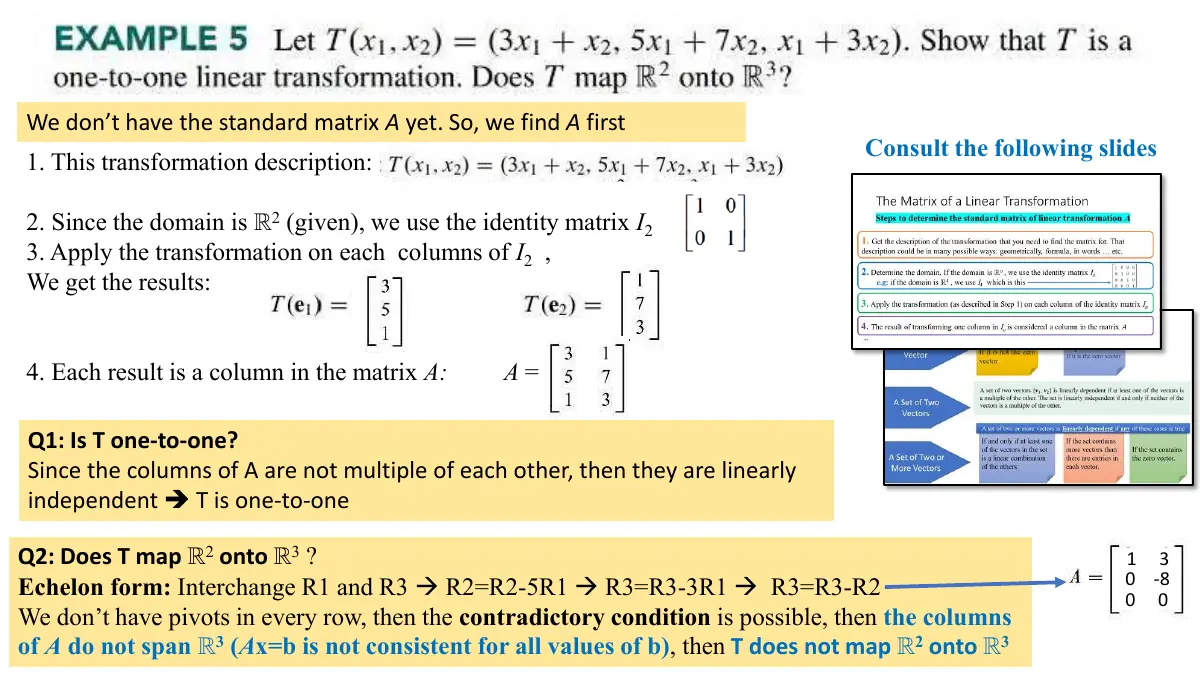

                                                  Slide 30: A yet. So, we find first A We don t have the standard matrix ’ Consult the following slides 1. This transformation description:
                                                  Exam weight Low

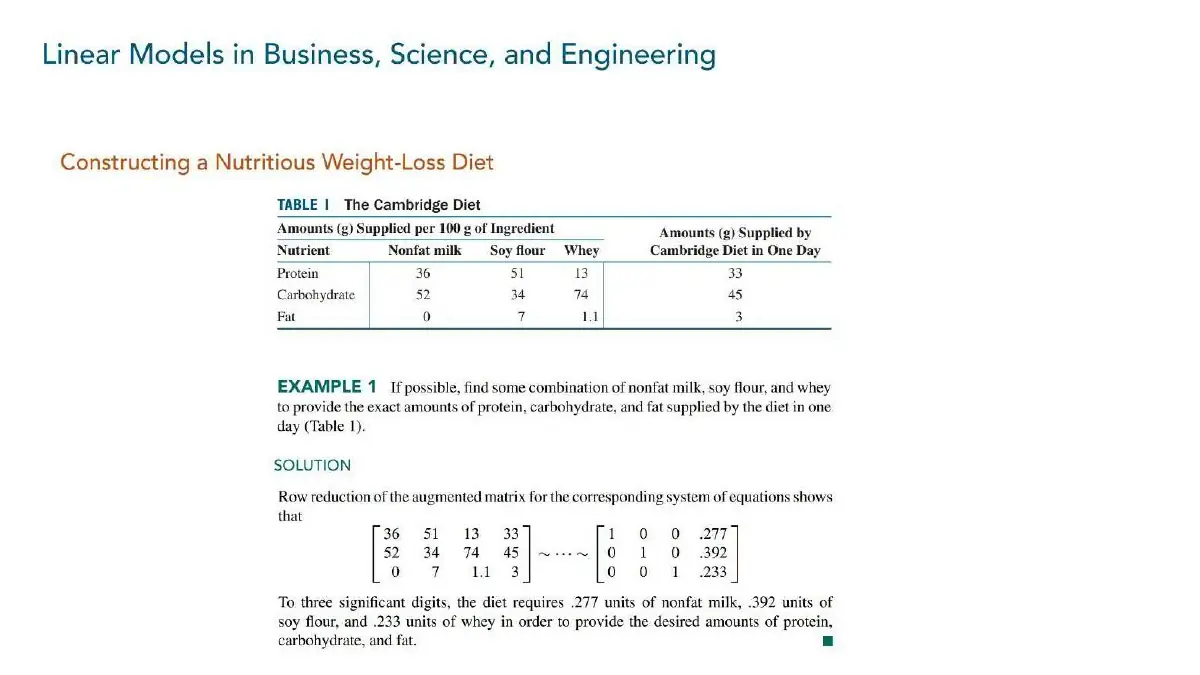

                                                    Slide 31: Slide 31
                                                    Exam weight Low

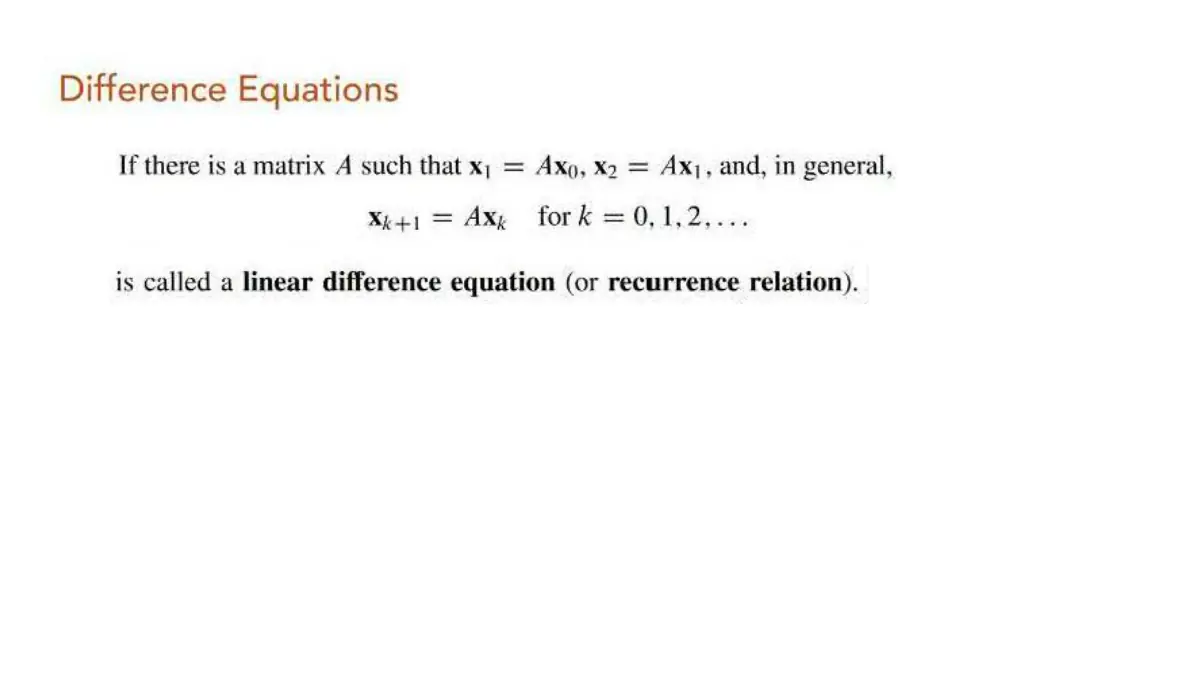

                                                      Slide 32: Slide 32
                                                      Exam weight Low

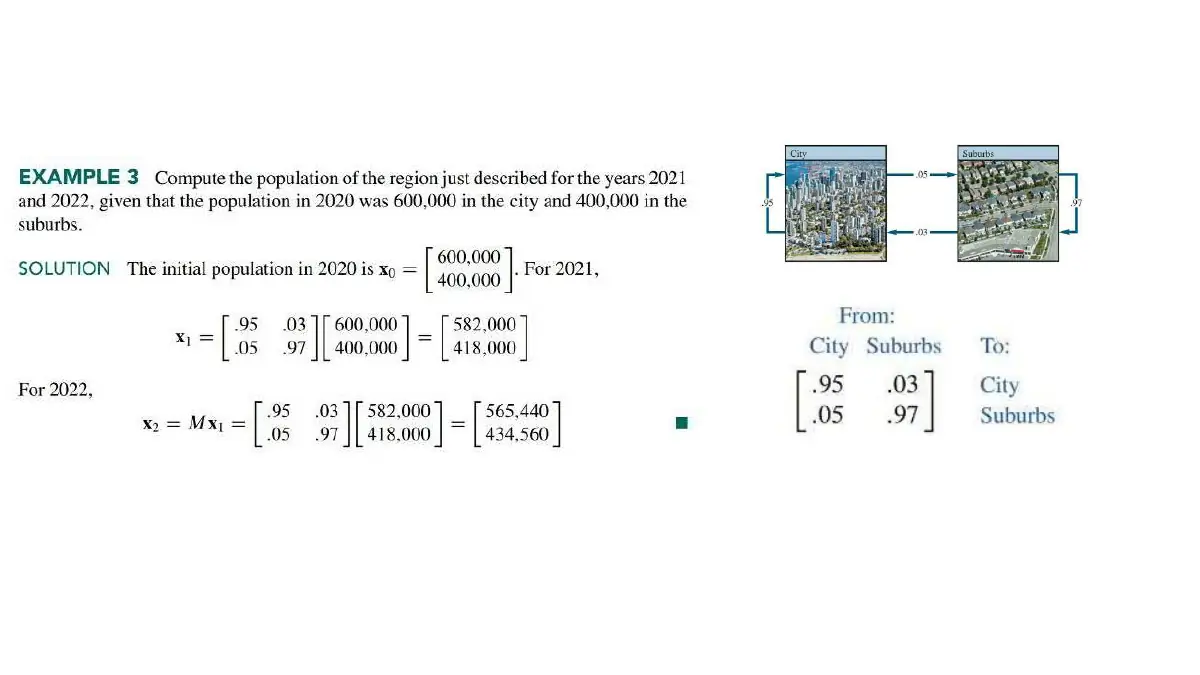

                                                        Slide 33: Slide 33
                                                        Exam weight Low
