CS223 · Annotated SlidesChapter 1 — Vector Equations
Chapter 1 · Annotated slides

Vector Equations

Vectors in ℝ², ℝ³ and ℝⁿ, the parallelogram rule, linear combinations, writing a system as a vector equation, Span{v₁, …, vₚ} and its geometric meaning.

Slide text Study notes Highlight: key words Tips, tricks & traps Seen again elsewhere How it can come up

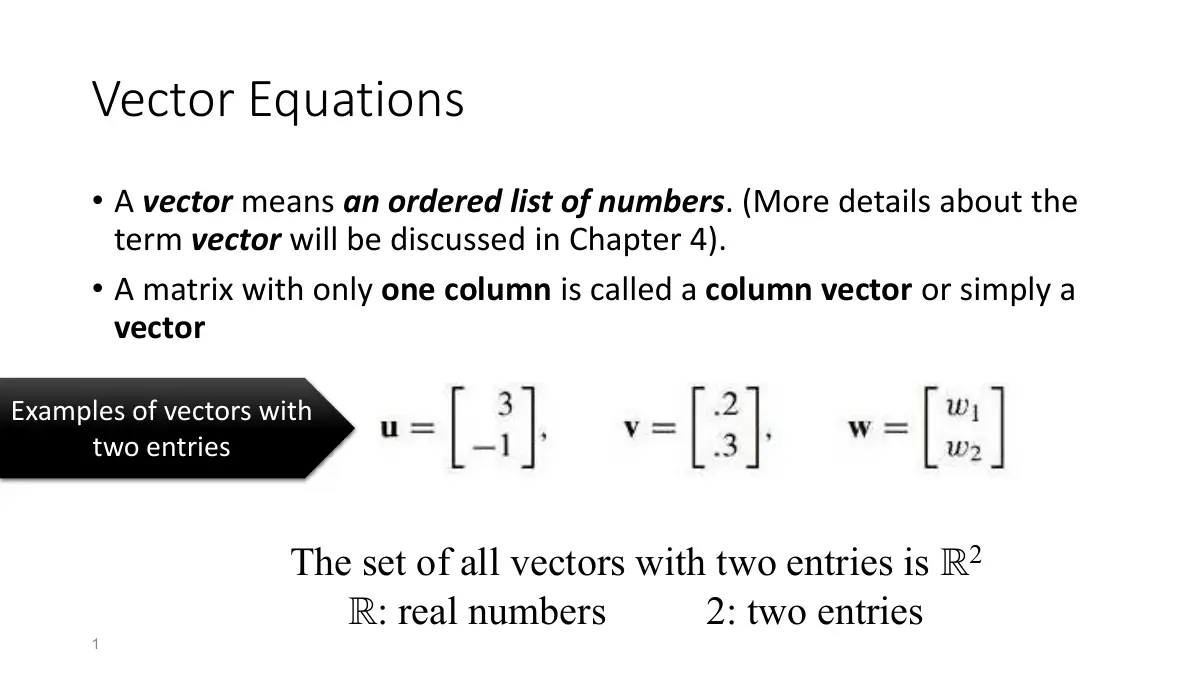

Slide 1: Vector Equations
Exam weight Low

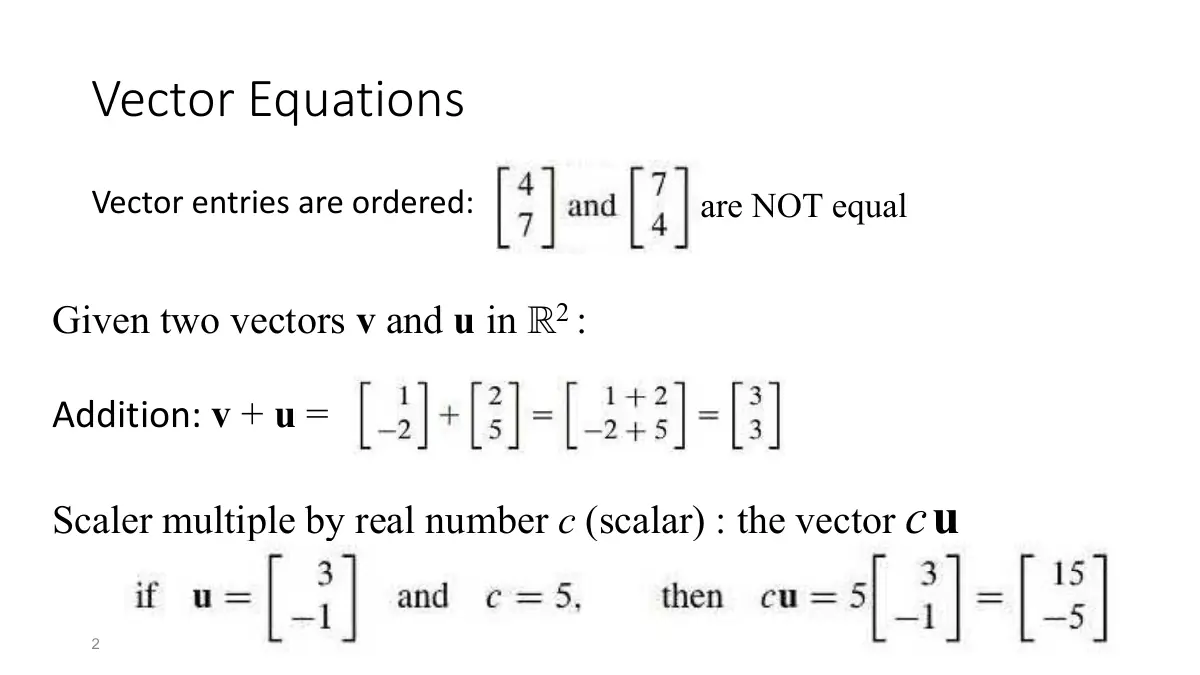

    Slide 2: Vector Equations
    Exam weight Low

      Example

      3
      Exam weight Low

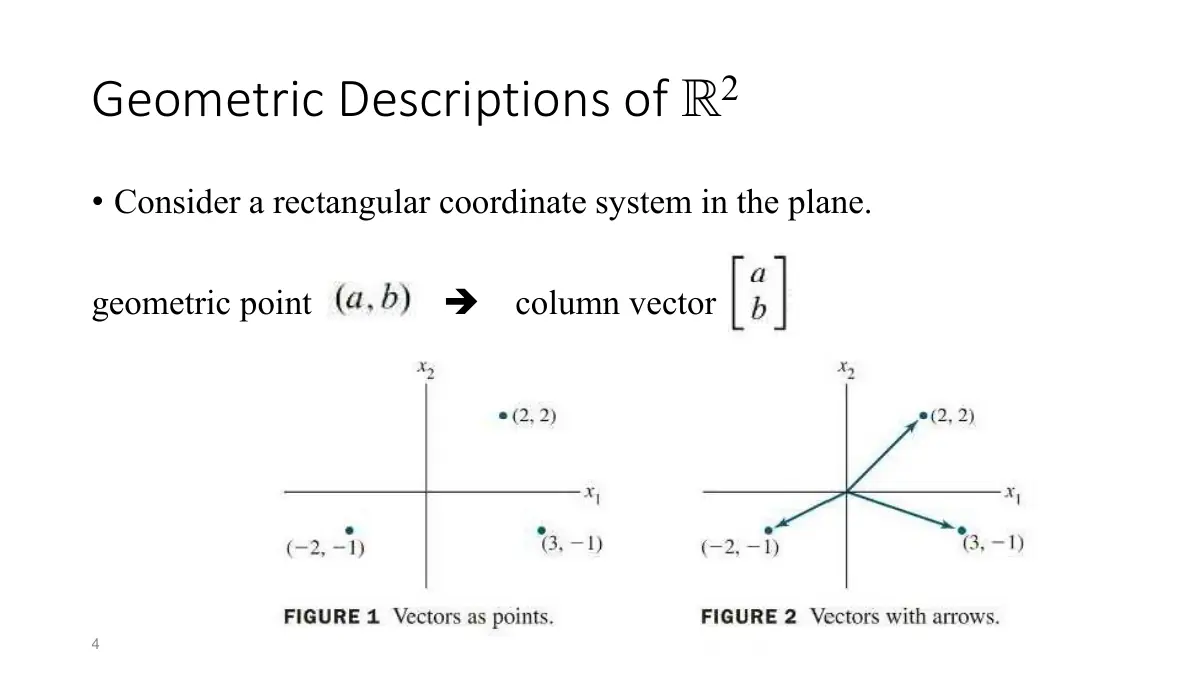

        Slide 4: Geometric Descriptions of 2 R
        Exam weight Low

          Geometric Descriptions of 2 R

          5
          Exam weight Low

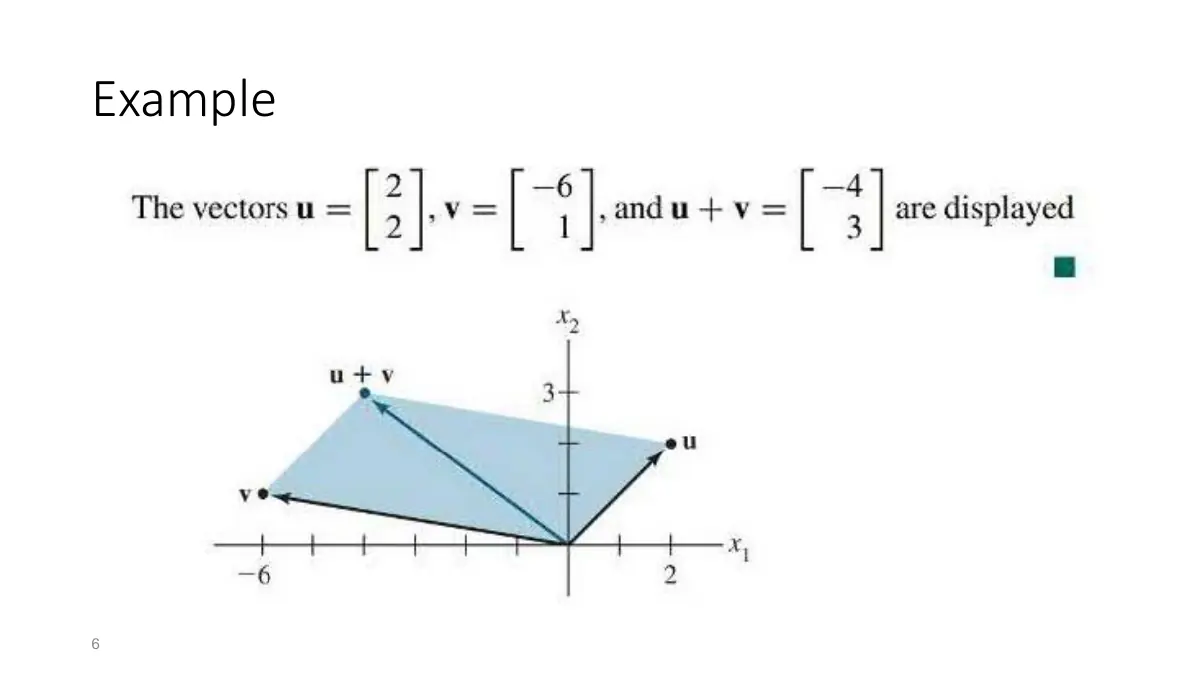

            Slide 6: Example
            Exam weight Low

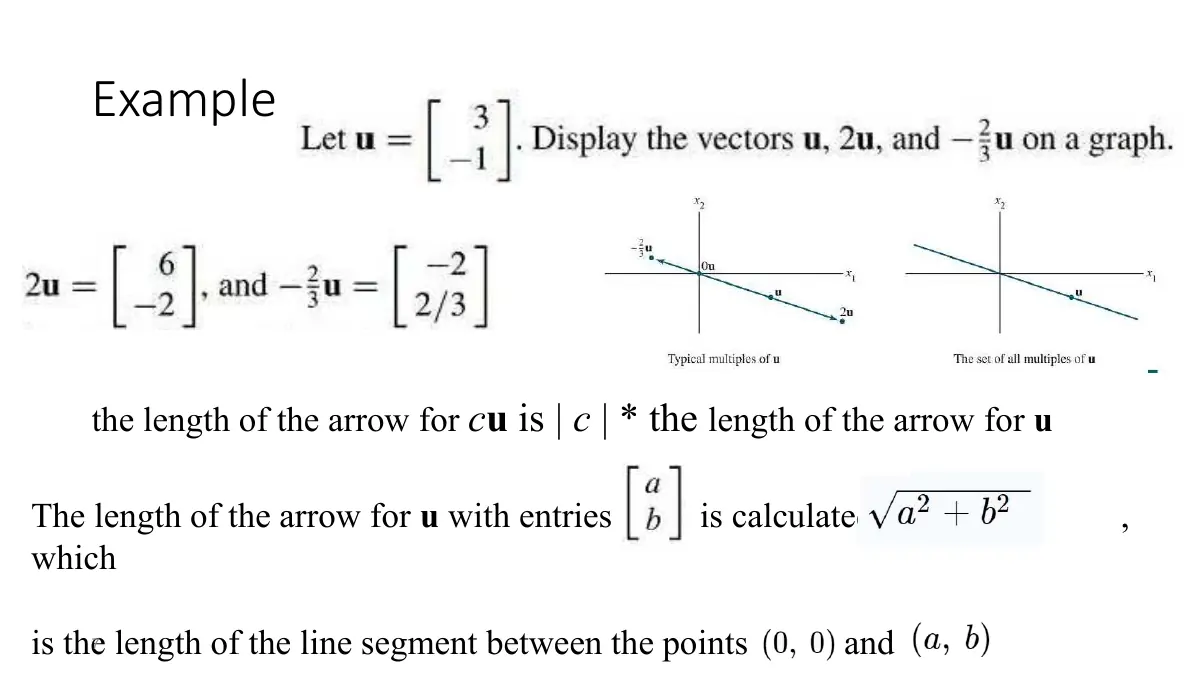

              Slide 7: Example
              Exam weight Low

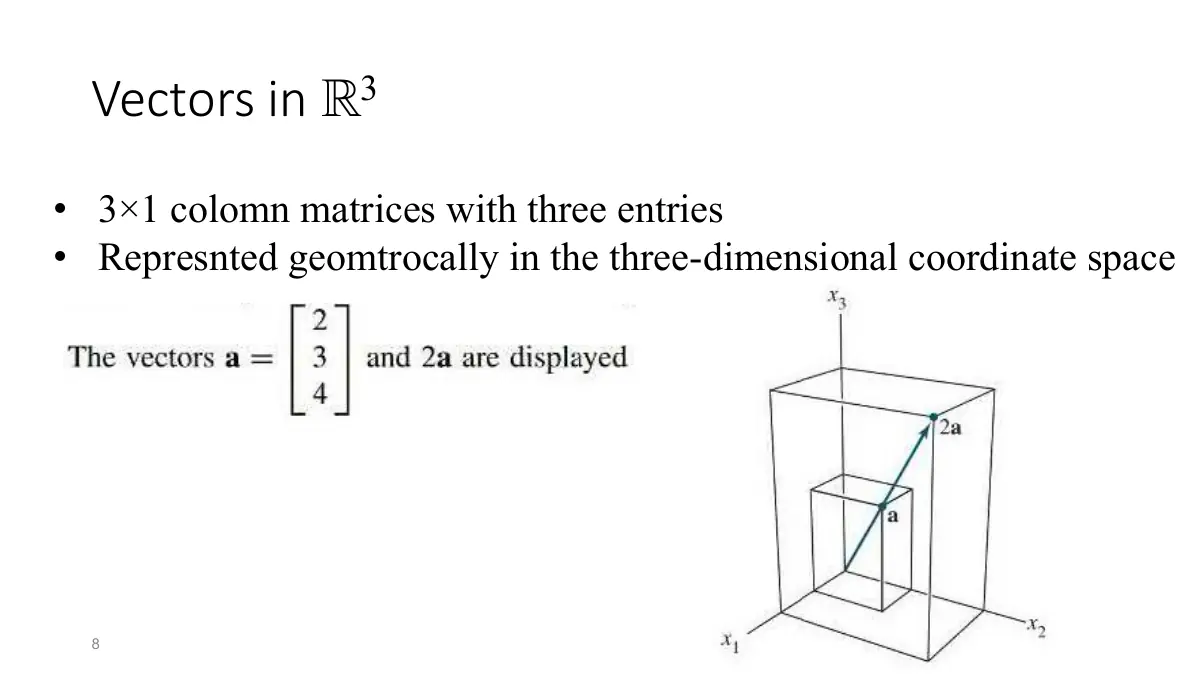

                Slide 8: Vectors in 3 R
                Exam weight Low

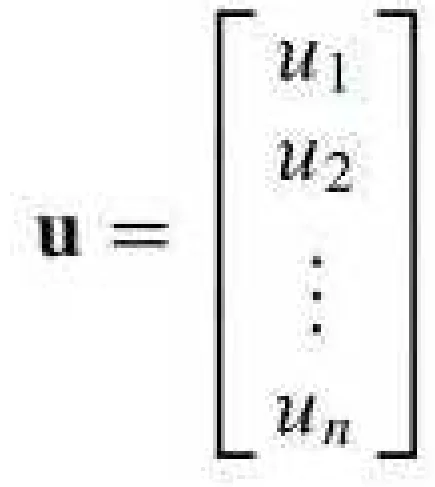

                  Vectors in n R

                  • n ×1 colomn matrices with n entries n is the collection of all ordered n-tuples
                  • R
                  Vectors in n R
                  9
                  Exam weight Low

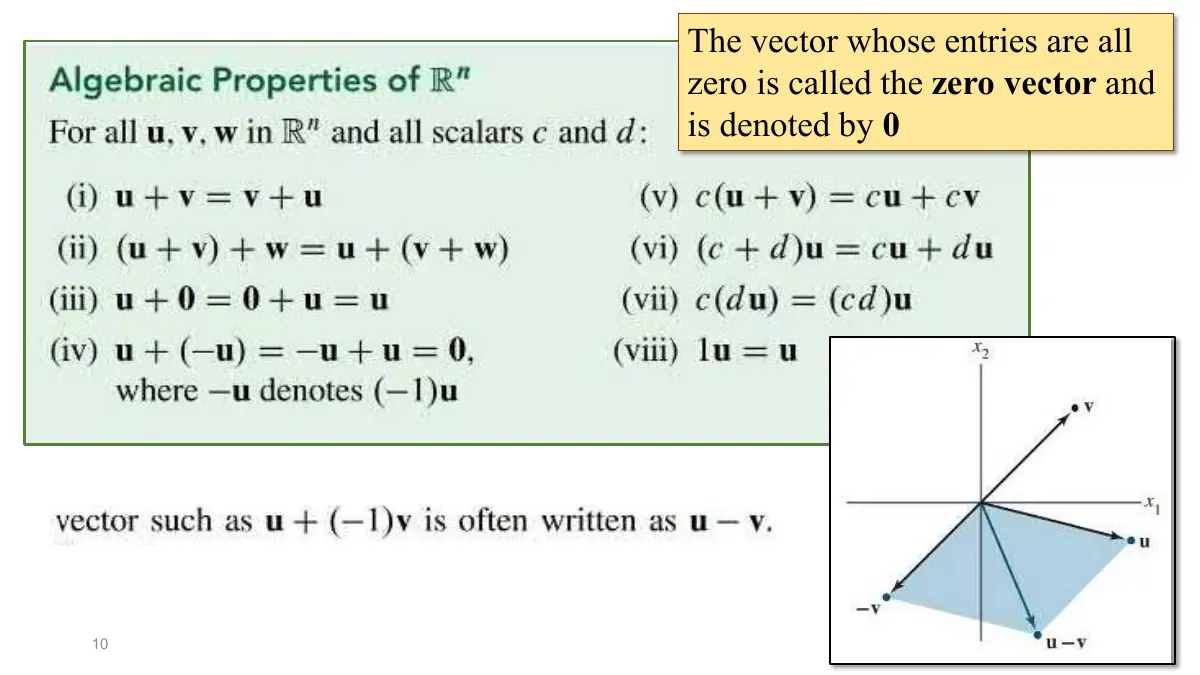

                    Slide 10: Slide 10
                    Exam weight Low

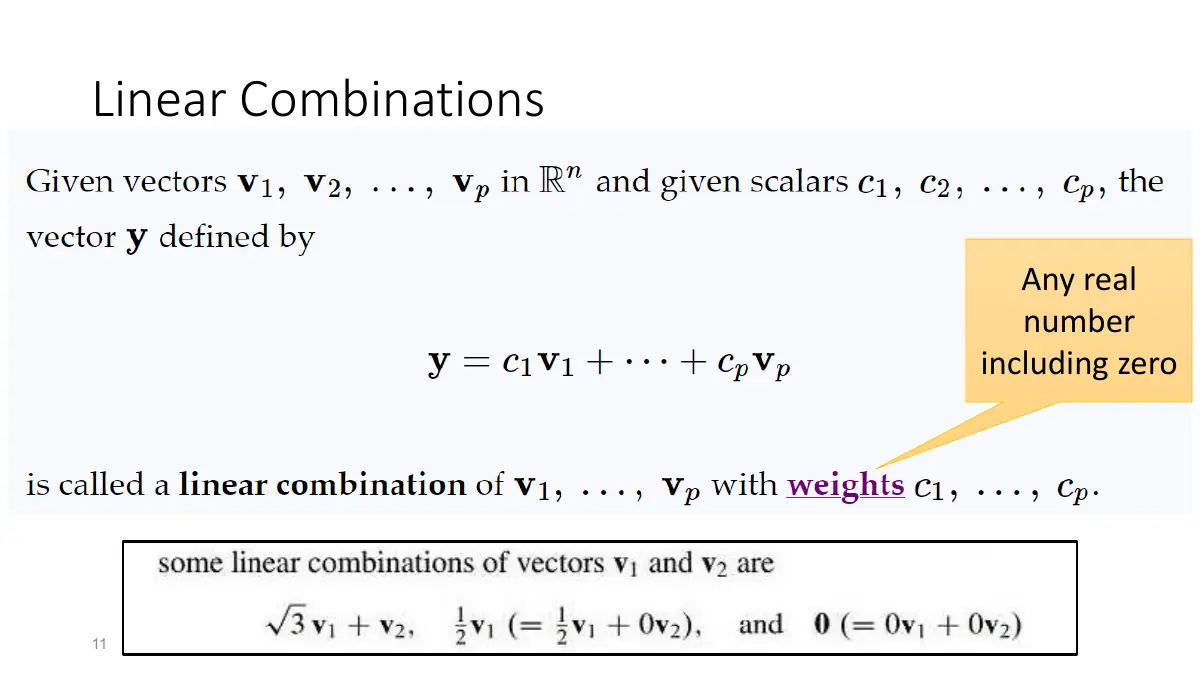

                      Slide 11: Linear Combinations
                      Exam weight Low
                      1. y = c₁v₁ + … + cₚvₚ is a linear combination with weights c₁ … cₚ.

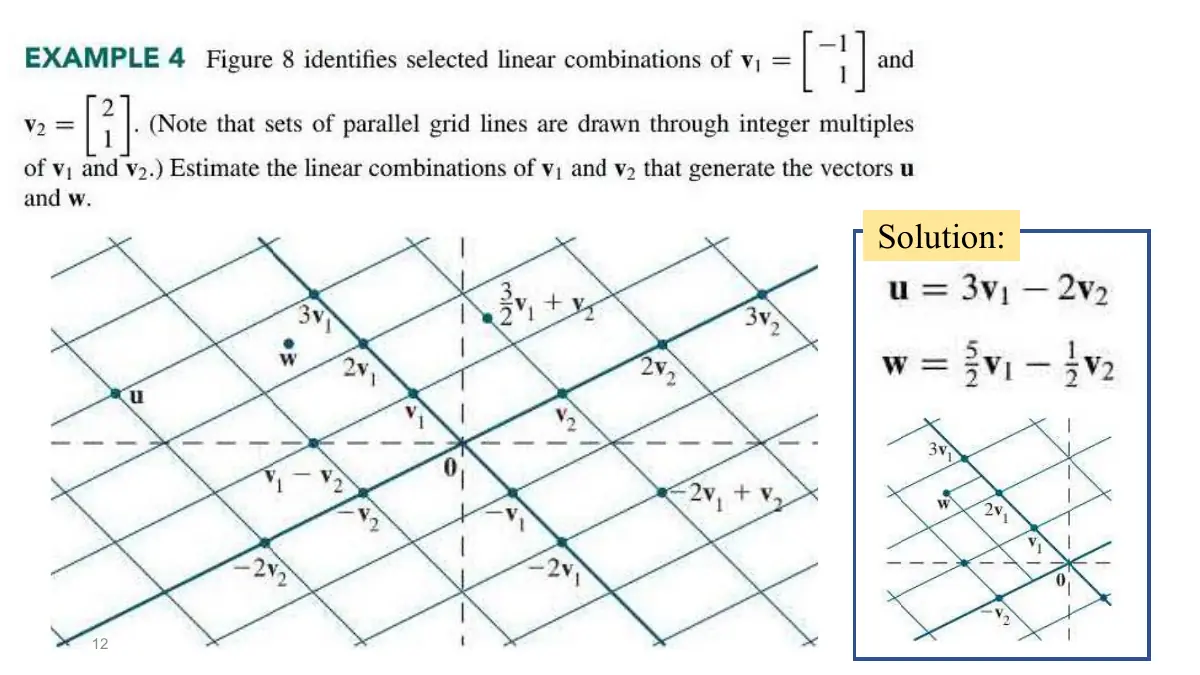

                      Slide 12: Slide 12
                      Exam weight Low

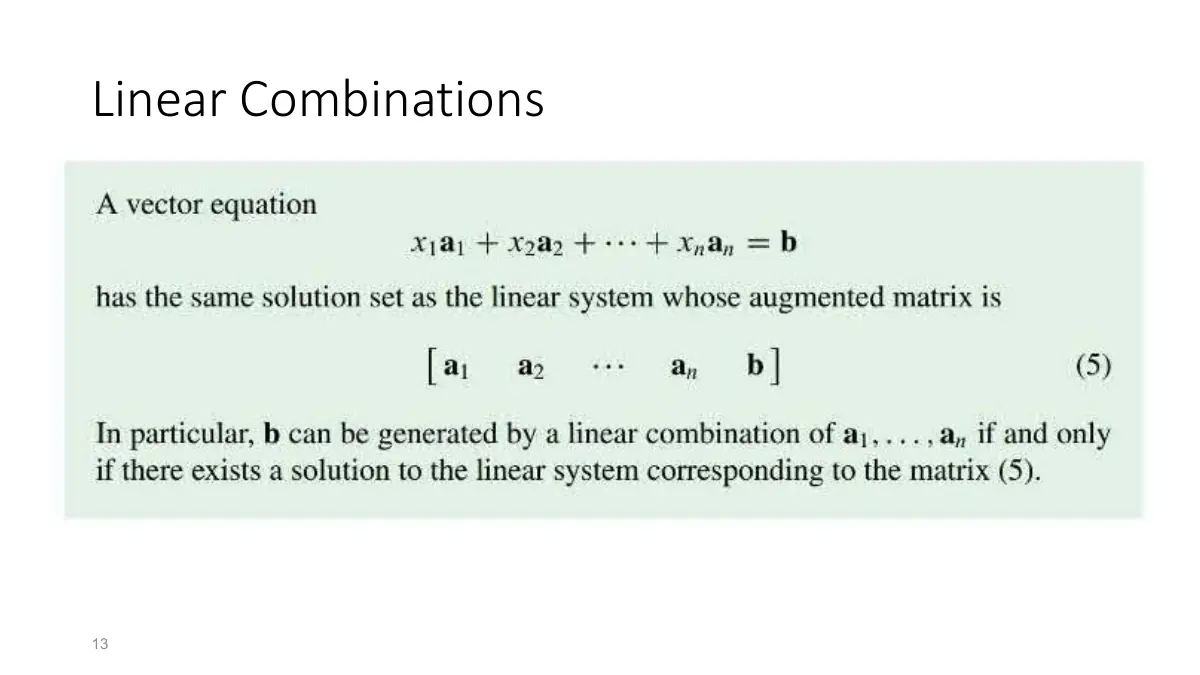

                        Slide 13: Linear Combinations
                        Exam weight High
                        1. b is a linear combination of a₁, …, aₙ ⇔ the augmented matrix [a₁ … aₙ | b] is consistent.
                        🎯 How this can come up · 1 question
                        Written

                        How do you decide whether b is a linear combination of a₁ and a₂?

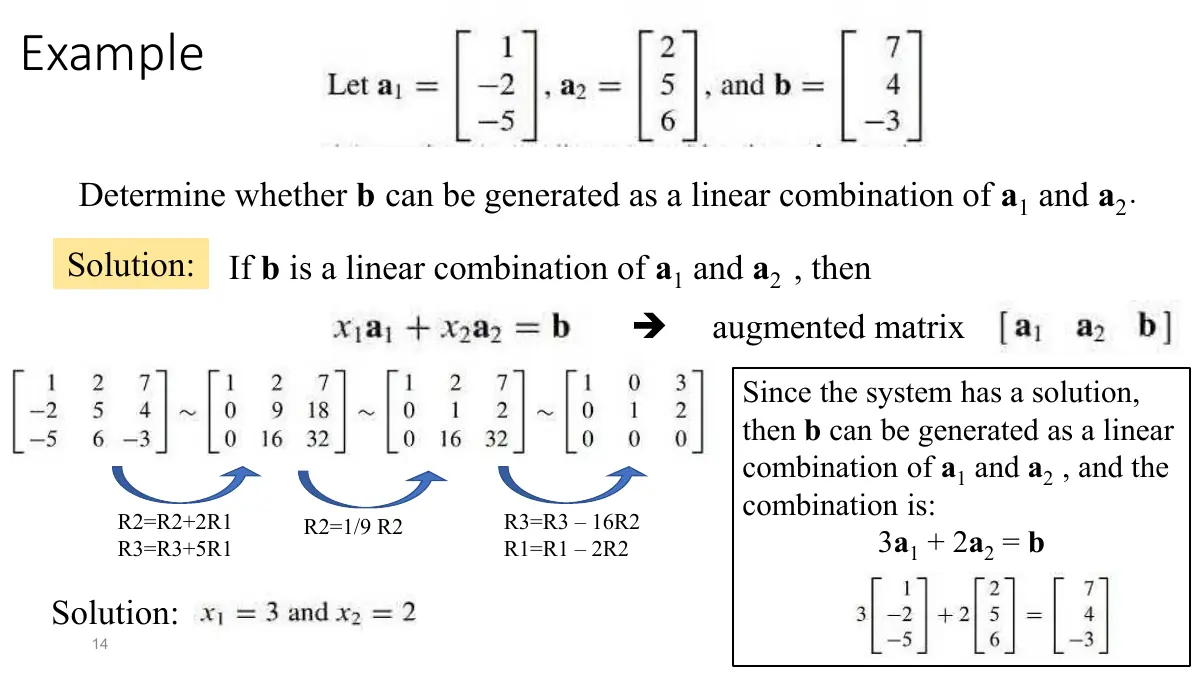

                        Slide 14: Example
                        Exam weight Low

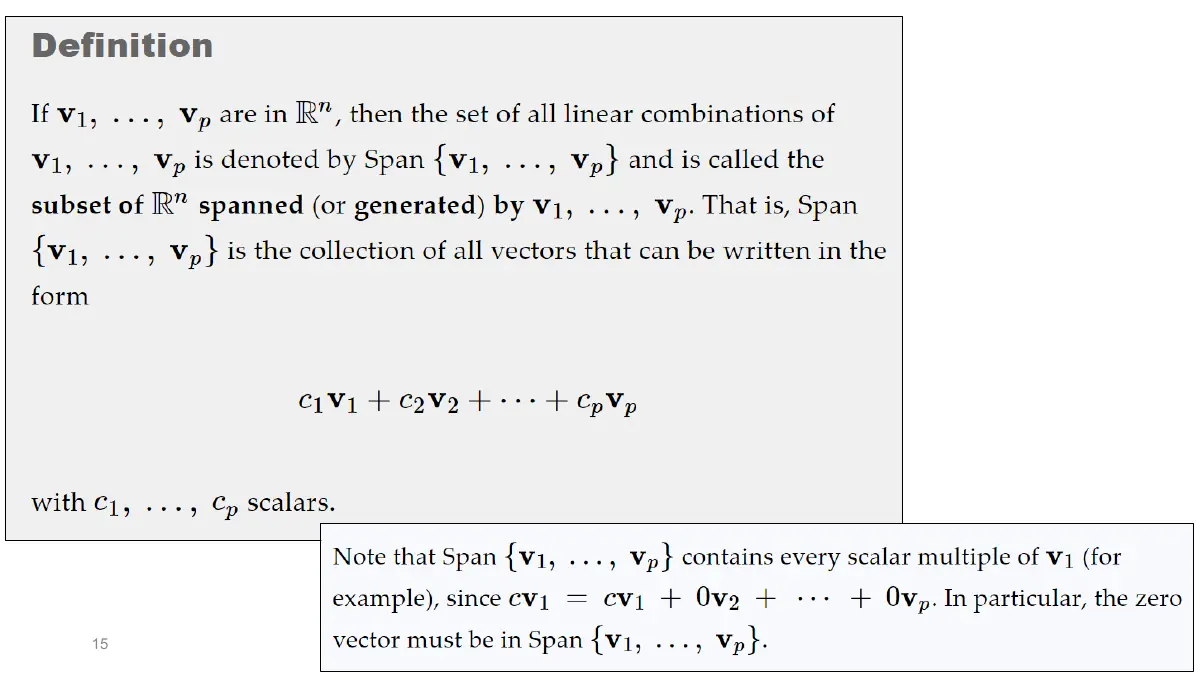

                          Slide 15: Slide 15
                          Exam weight Low

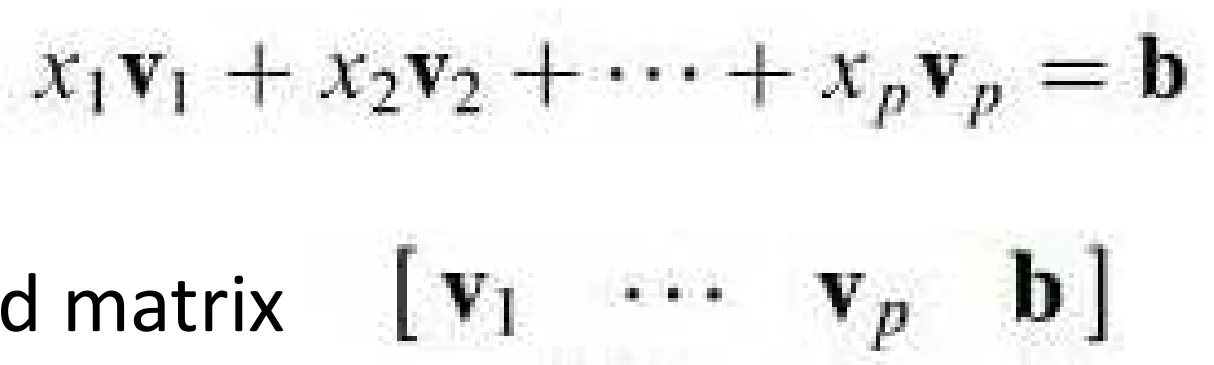

                            The following questions are equivalent:

                            • Is vector b in Span { v, , v }? ... 1 p
                            • Is there a solution for the equation
                            • Is there a solution for the augmented matrix
                            • And some other questions explained next .. ......
                            The following questions are equivalent:
                            16
                            Exam weight Low

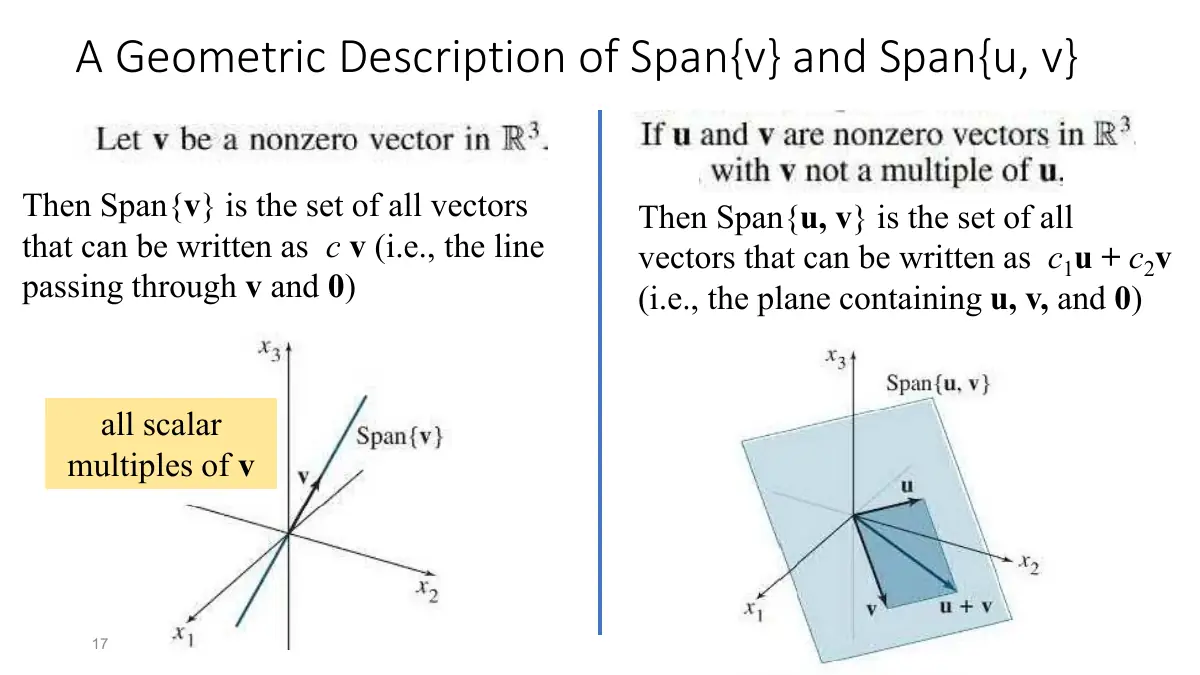

                              Slide 17: A Geometric Description of Span{v} and Span{u, v}
                              Exam weight High
                              1. Span{v} = a line through the origin; Span{u, v} (not parallel) = a plane through the origin.
                              🎯 How this can come up · 1 question
                              True / False

                              Span{u, v} always contains the zero vector.

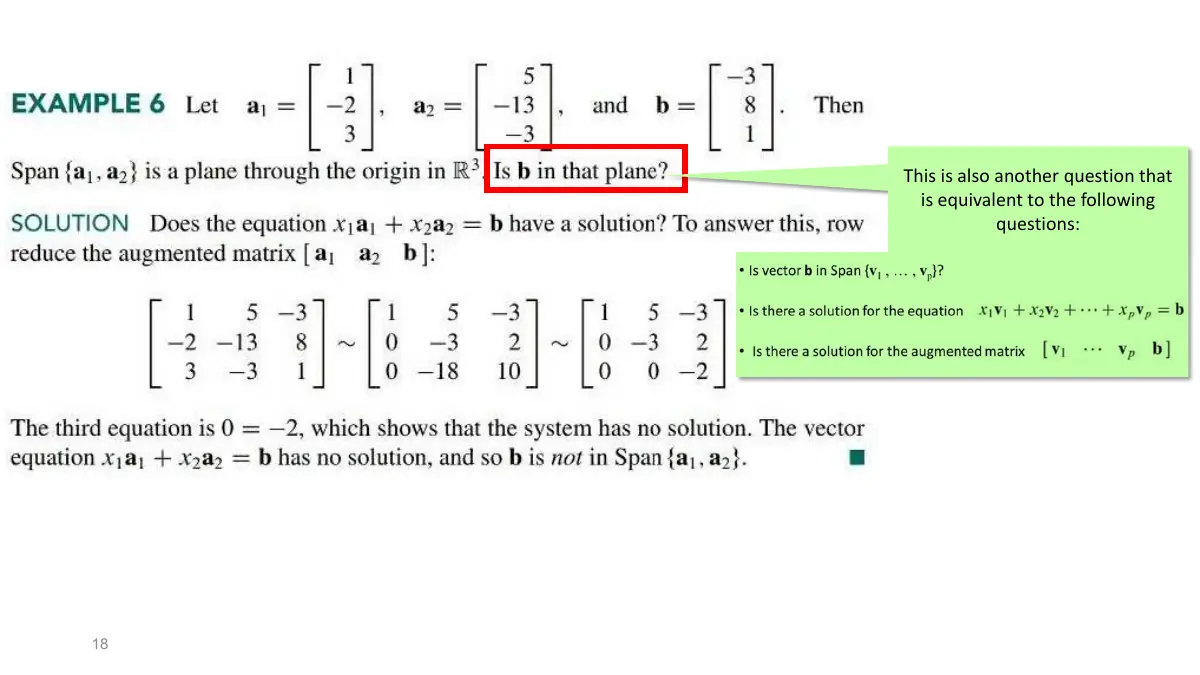

                              Slide 18: Slide 18
                              Exam weight Low

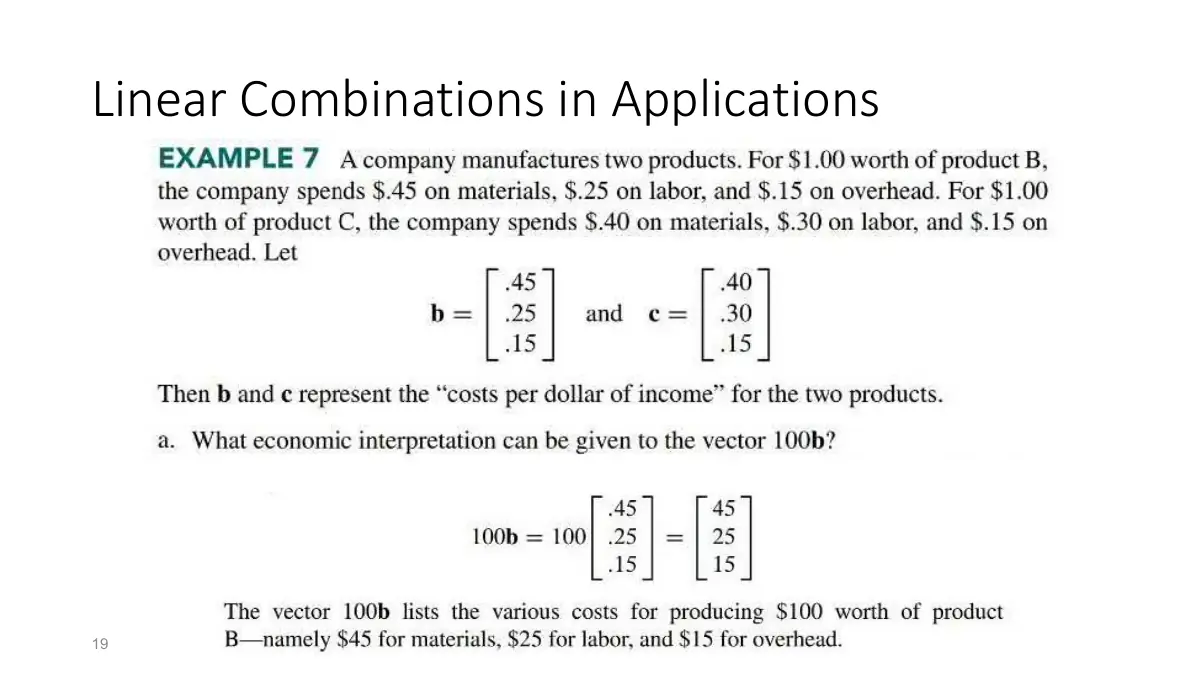

                                Slide 19: Linear Combinations in Applications
                                Exam weight Low

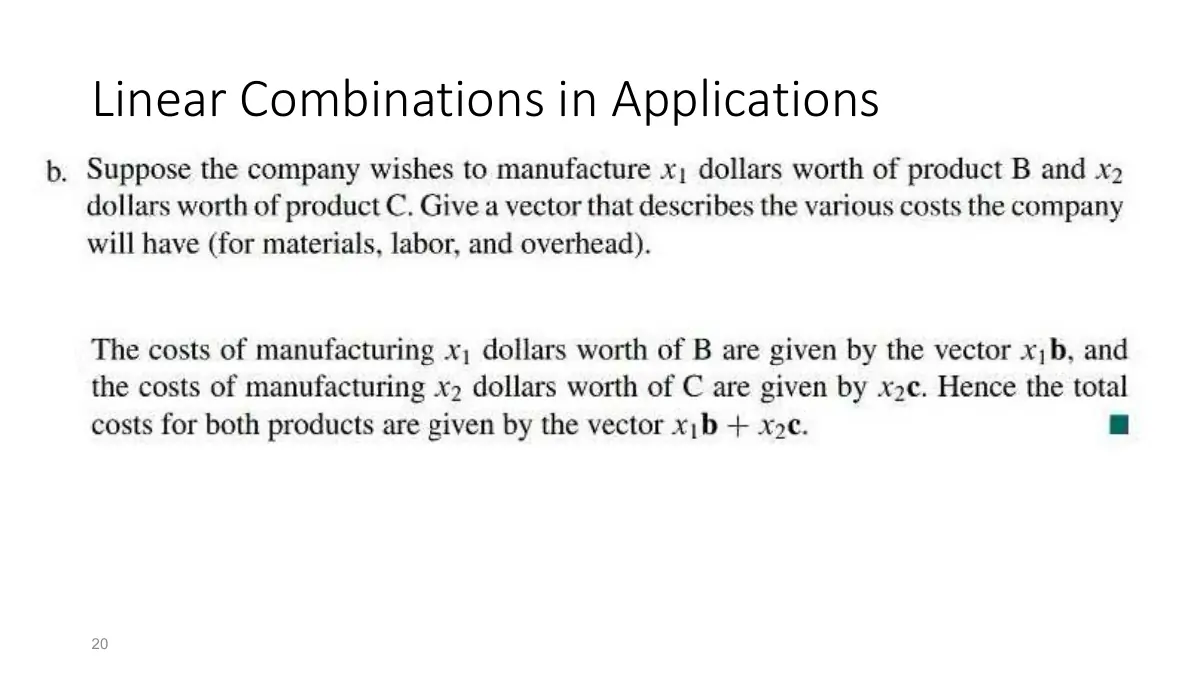

                                  Slide 20: Linear Combinations in Applications
                                  Exam weight Low

                                    The Matrix Equation Ax=b

                                    21
                                    Exam weight Low
                                    1. The vector equation x₁a₁ + … + xₙaₙ = b, the matrix equation Ax = b and the augmented matrix all describe the same system.

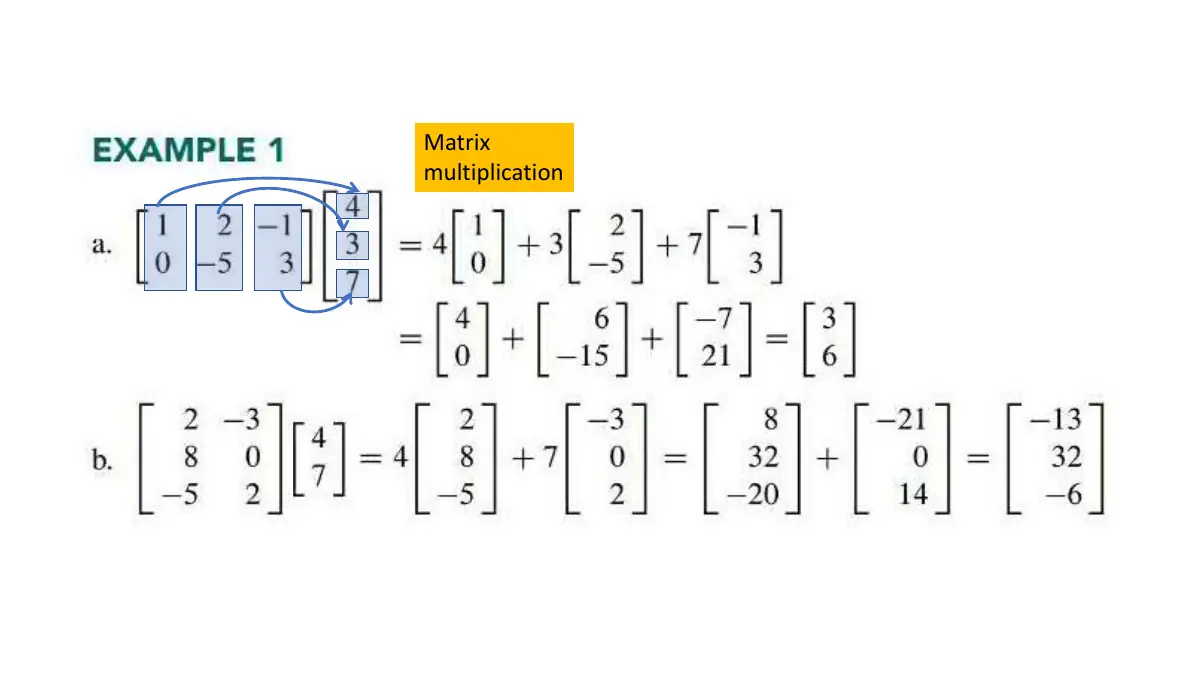

                                    Slide 22: Slide 22
                                    Exam weight Low

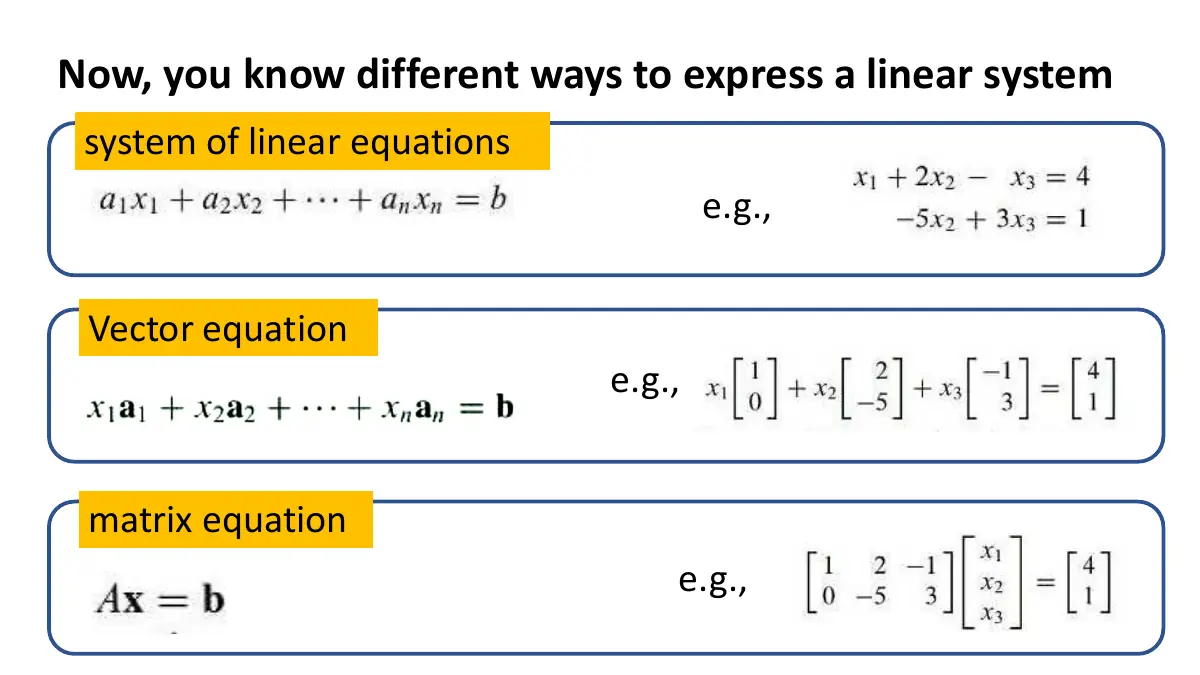

                                      Slide 23: Now, you know different ways to express a linear system
                                      Exam weight Low

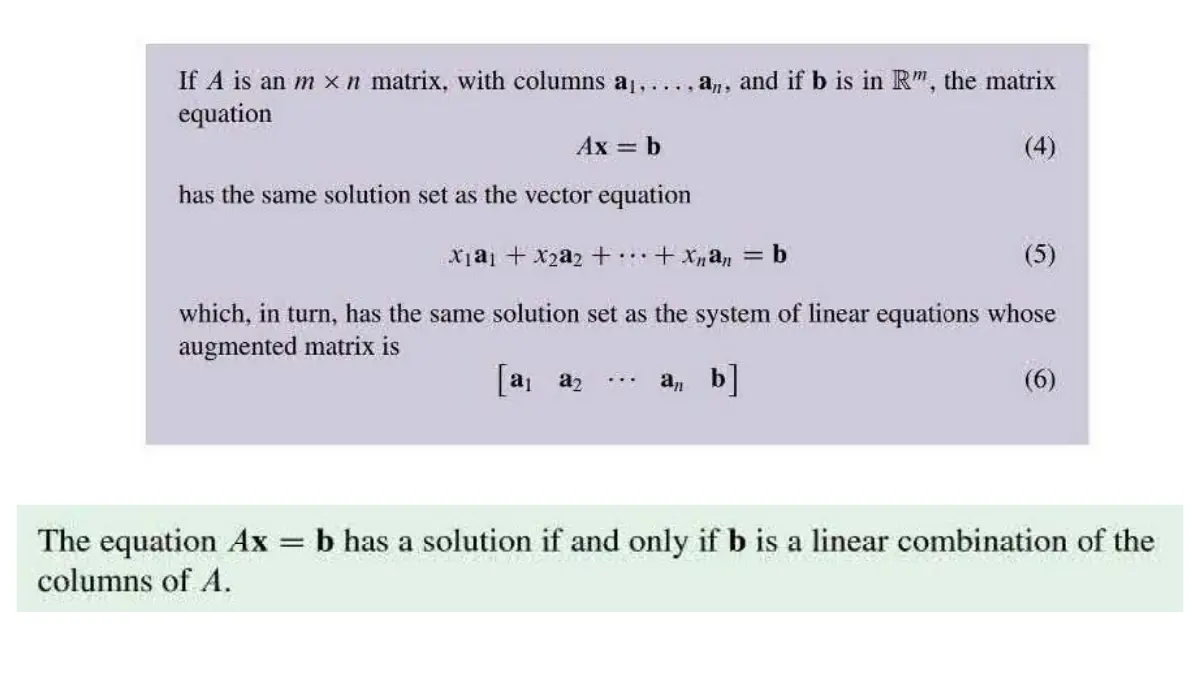

                                        Slide 24: Slide 24
                                        Exam weight Low

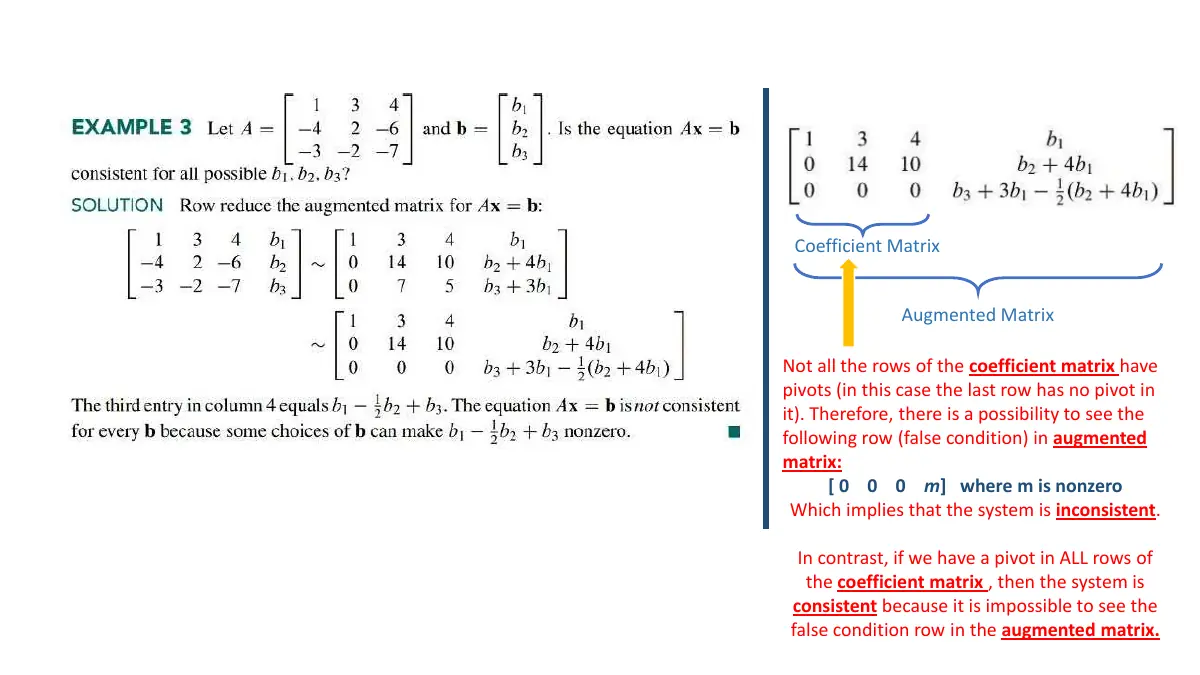

                                          Slide 25: Slide 25
                                          Exam weight Low
