CS223 · Annotated SlidesChapter 1 — Row Reduction and Echelon Forms
Chapter 1 · Annotated slides

Row Reduction and Echelon Forms

Echelon and reduced echelon form, pivot positions and columns, the row reduction algorithm, basic and free variables, parametric solutions, and existence and uniqueness of solutions.

Slide text Study notes Highlight: key words Tips, tricks & traps Seen again elsewhere How it can come up

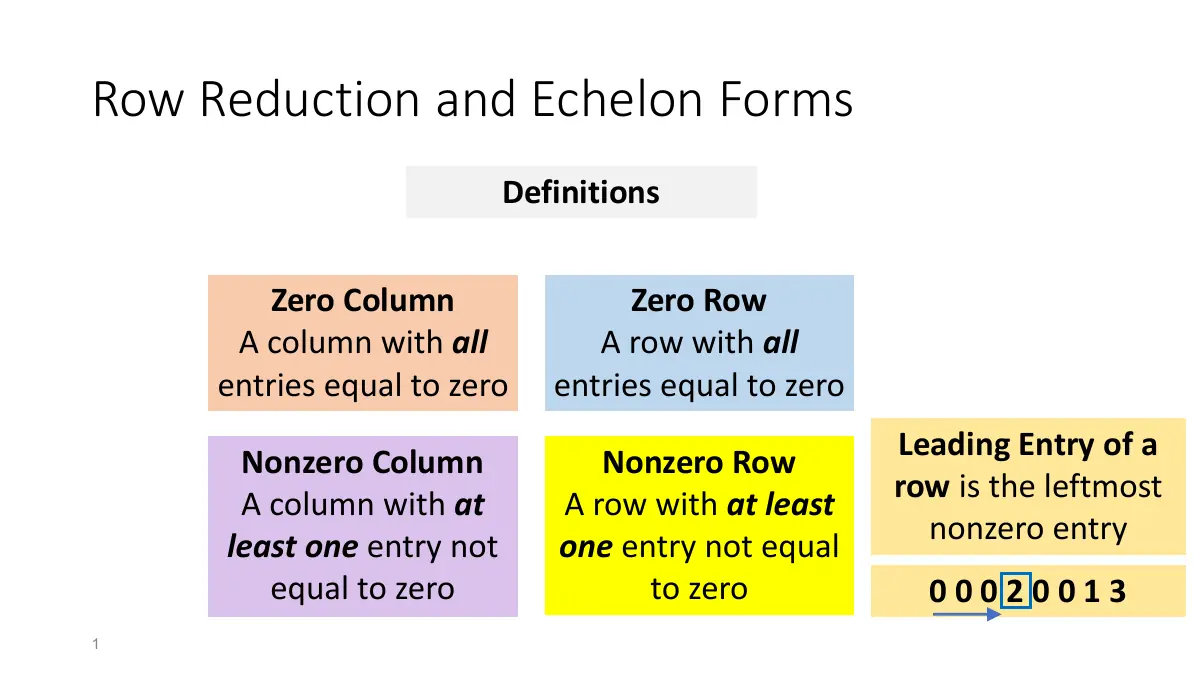

Slide 1: Row Reduction and Echelon Forms
Exam weight Low

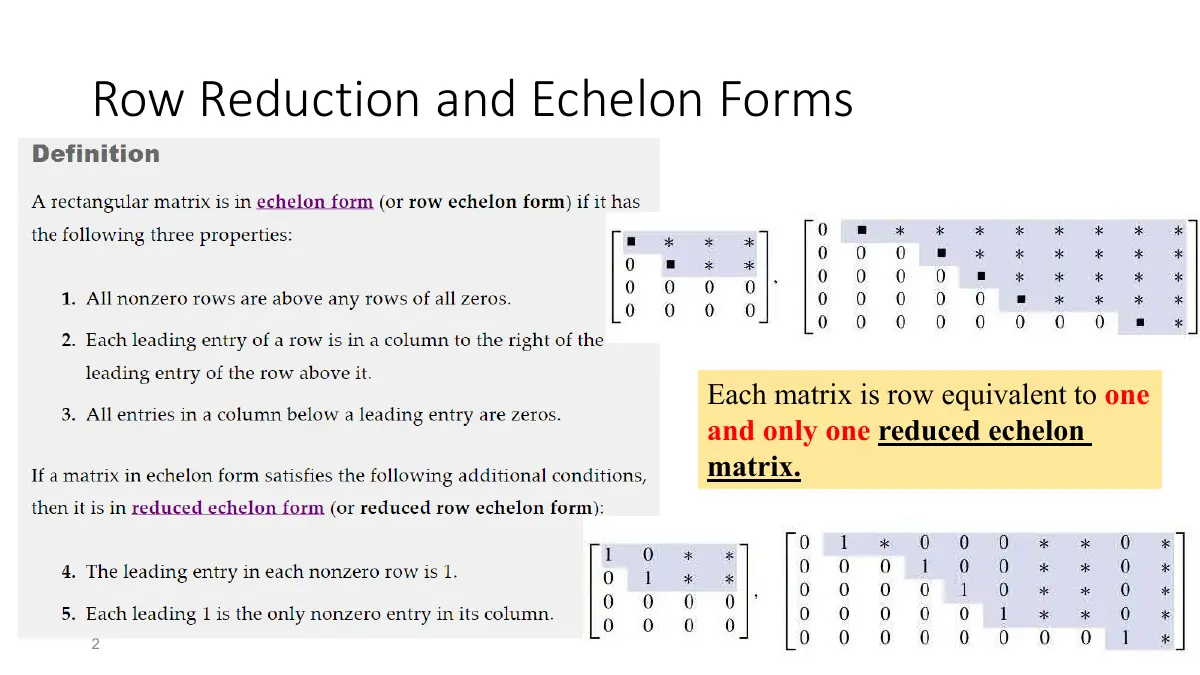

    Slide 2: Row Reduction and Echelon Forms
    Exam weight Low

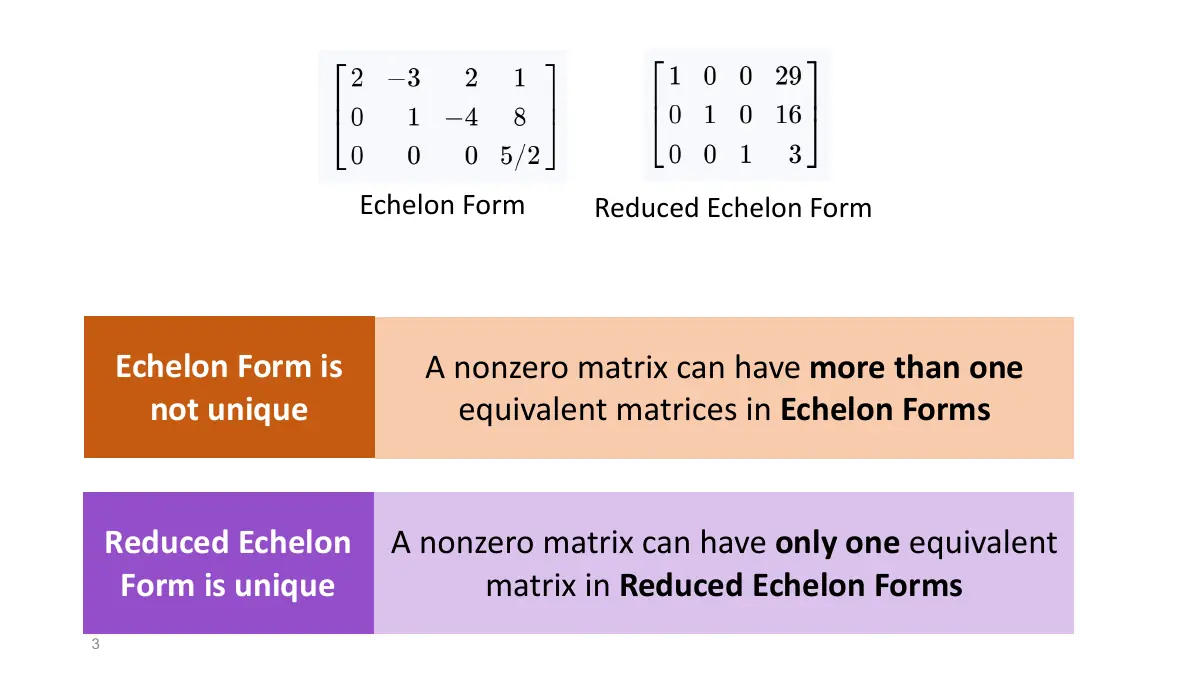

      Slide 3: Slide 3
      Exam weight High
      1. Echelon form: zero rows at the bottom, each leading entry to the right of the one above, zeros below each leading entry. REDUCED: leading entries are 1 and are the only nonzero entries in their columns.
      Exam trapA matrix has many echelon forms but only ONE reduced echelon form.
      🎯 How this can come up · 1 question
      True / False

      Each matrix is row equivalent to exactly one reduced echelon matrix.

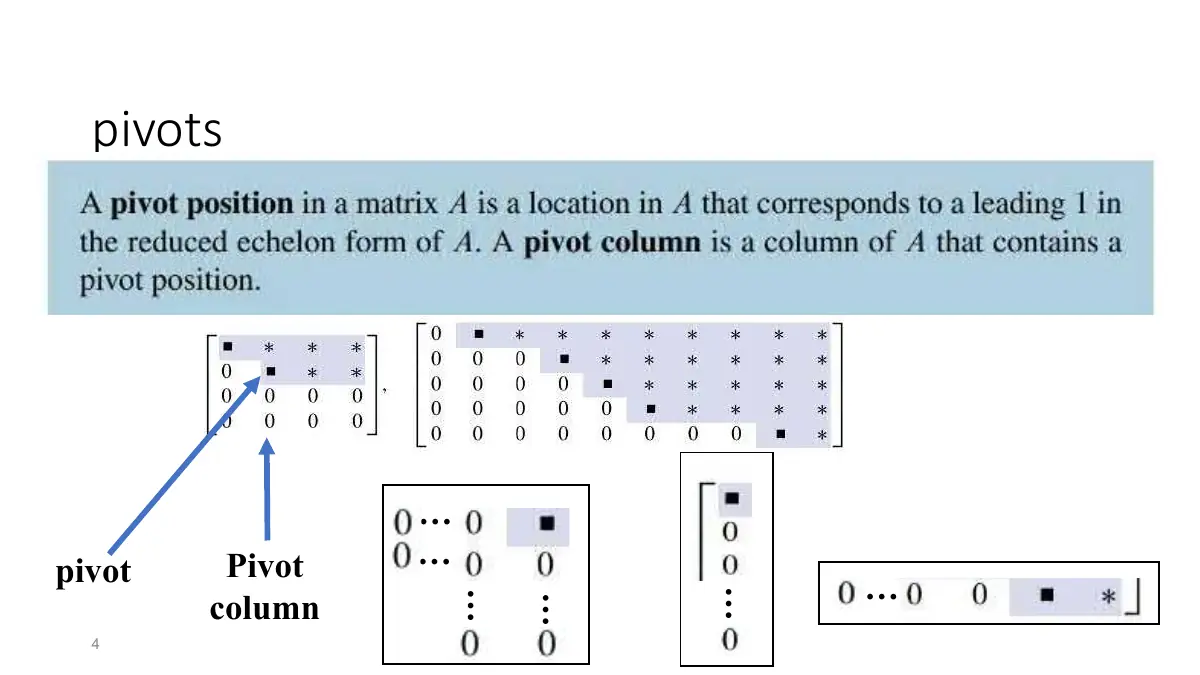

      Slide 4: pivots
      Exam weight Low
      1. Pivot position: location of a leading 1 in the reduced echelon form; pivot column: a column containing one.

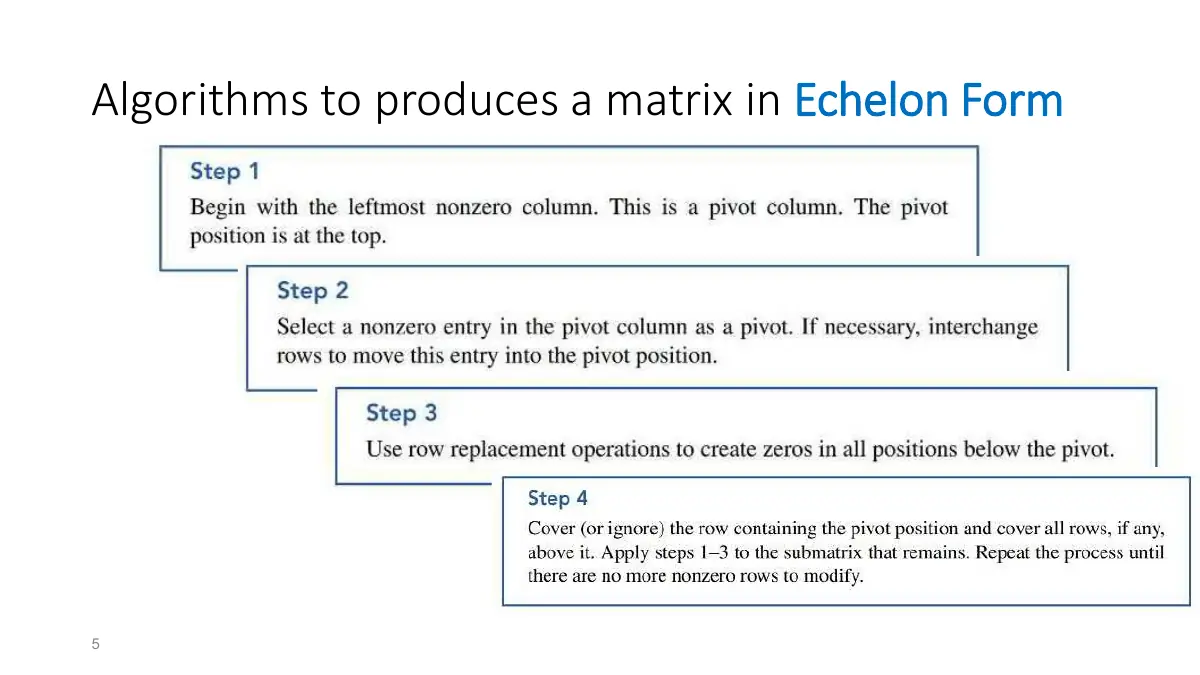

      Slide 5: Algorithms to produces a matrix in Echelon Form
      Exam weight Low

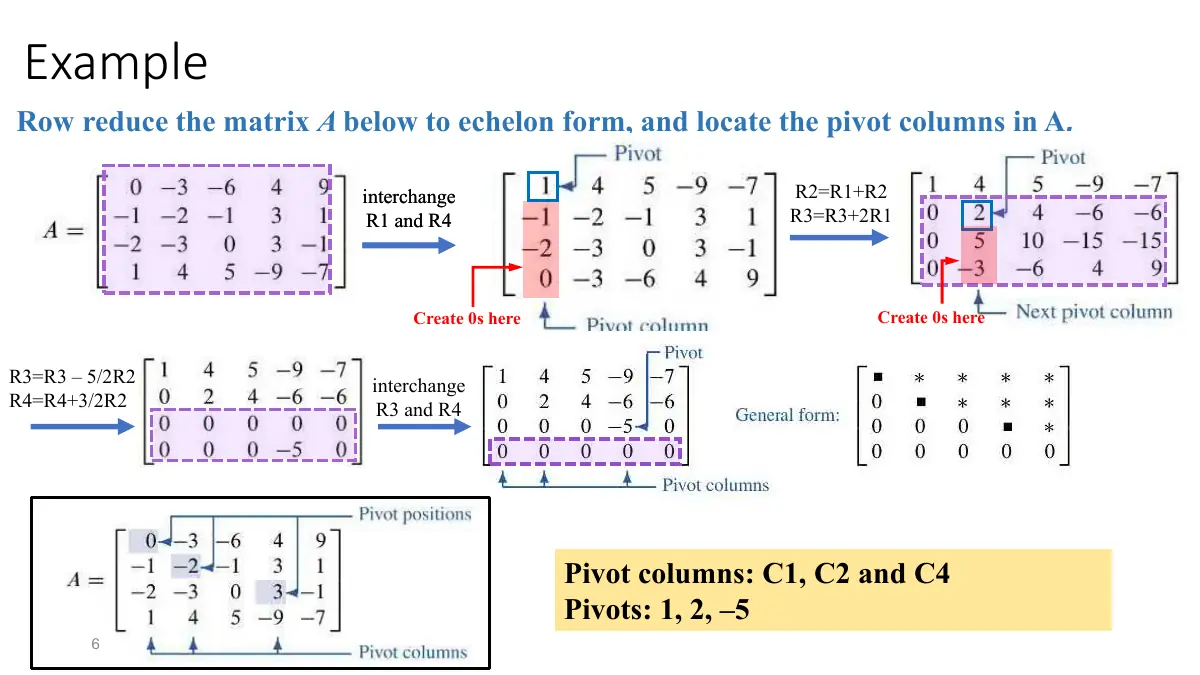

        Slide 6: Example
        Exam weight Low

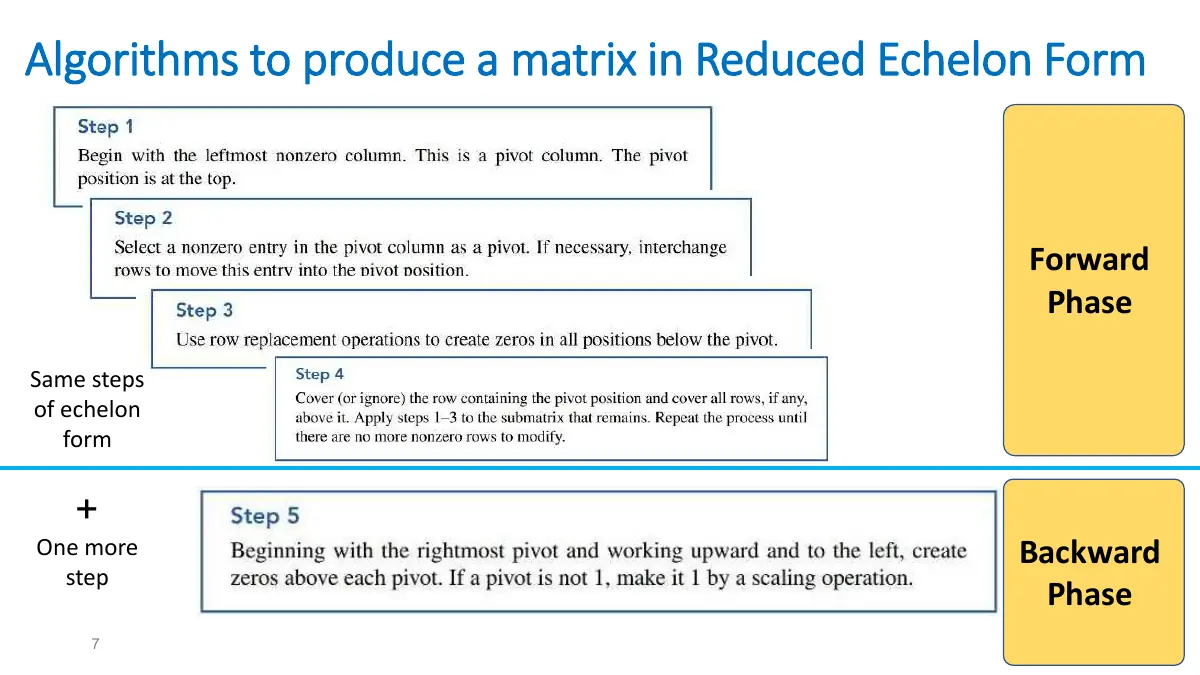

          Slide 7: Algorithms to produce a matrix in Reduced Echelon Form
          Exam weight Low

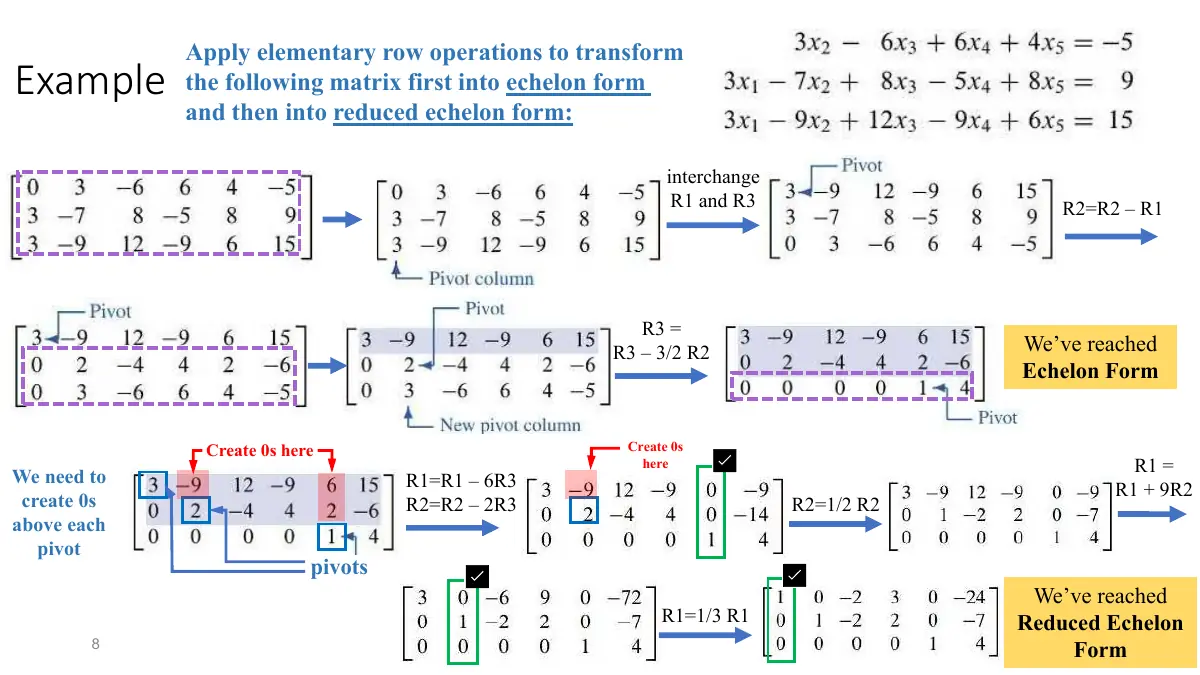

            Slide 8: Apply elementary row operations to transform
            Exam weight Low

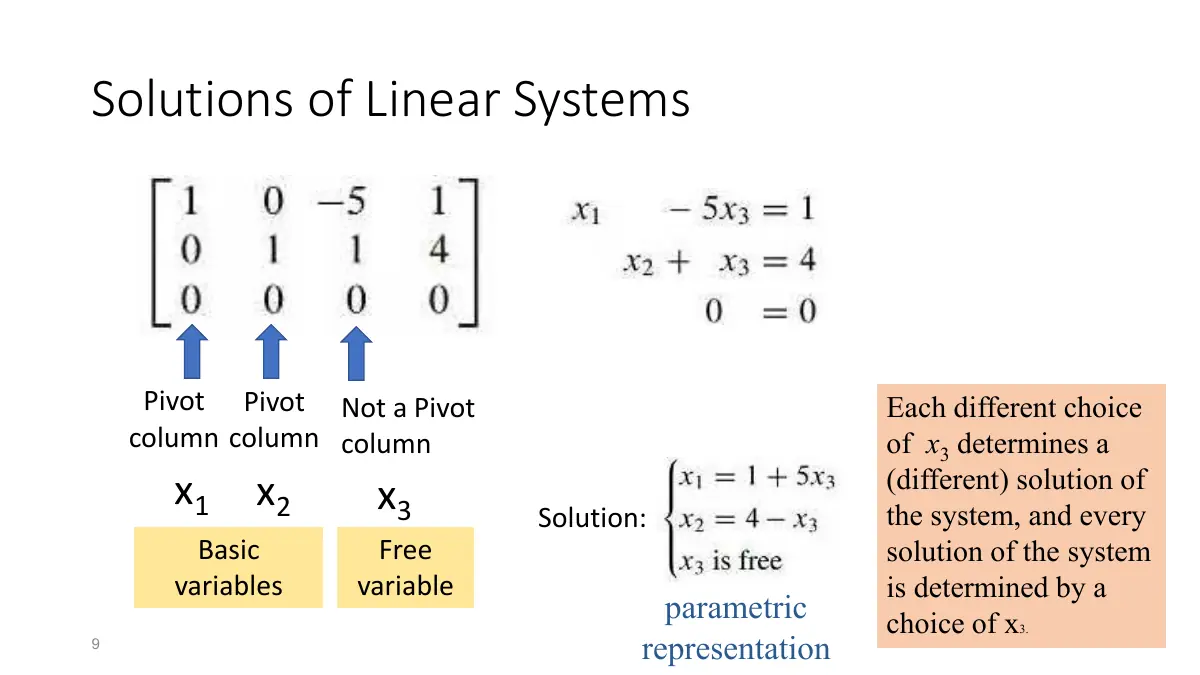

              Slide 9: Solutions of Linear Systems
              Exam weight Low
              1. Basic variables correspond to pivot columns; free variables to the others.

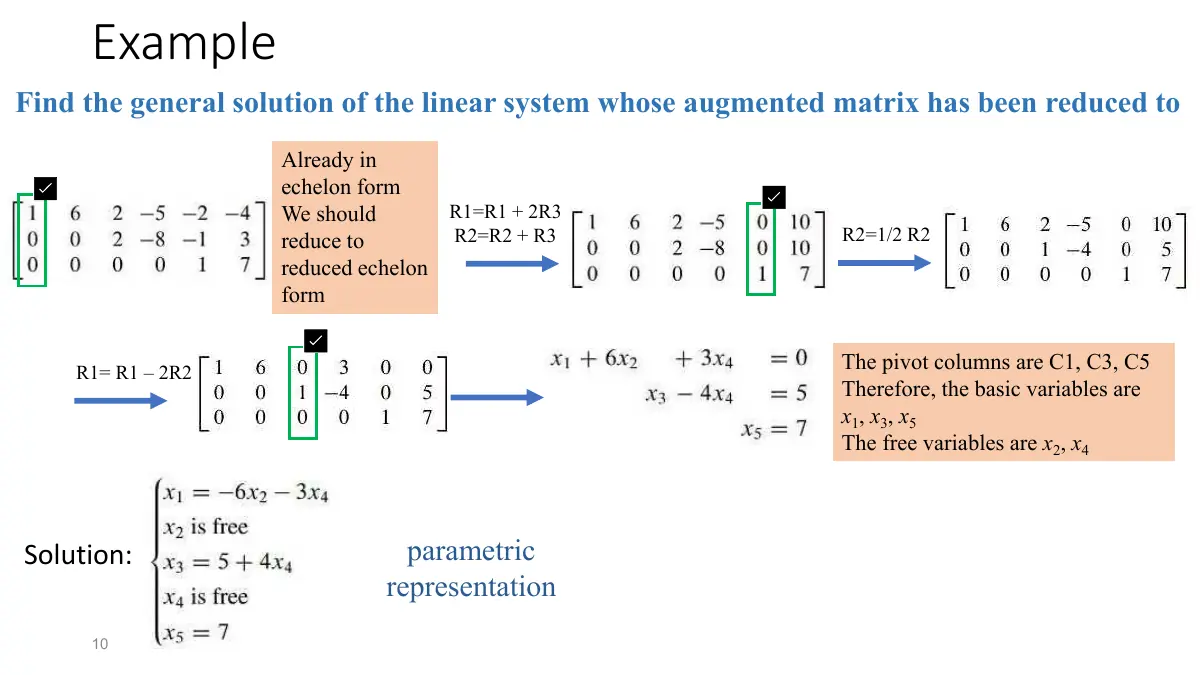

              Slide 10: Example
              Exam weight Low

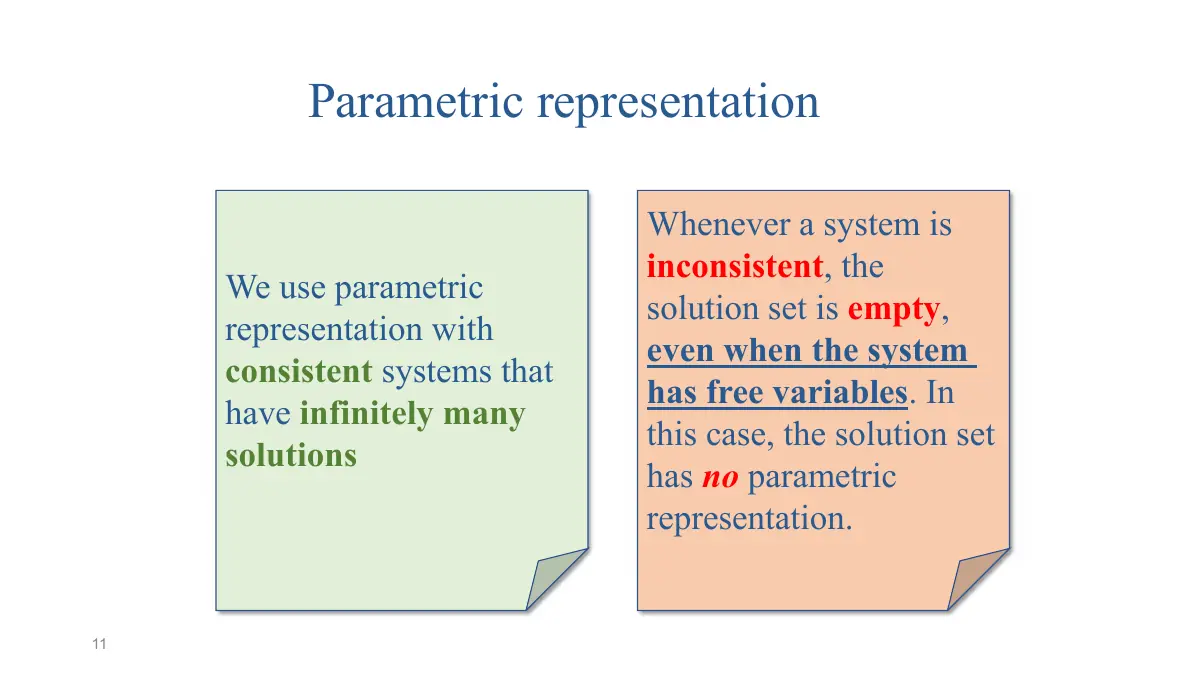

                Slide 11: Parametric representation
                Exam weight Low
                1. Write the general solution in parametric form: basic variables in terms of the free ones.

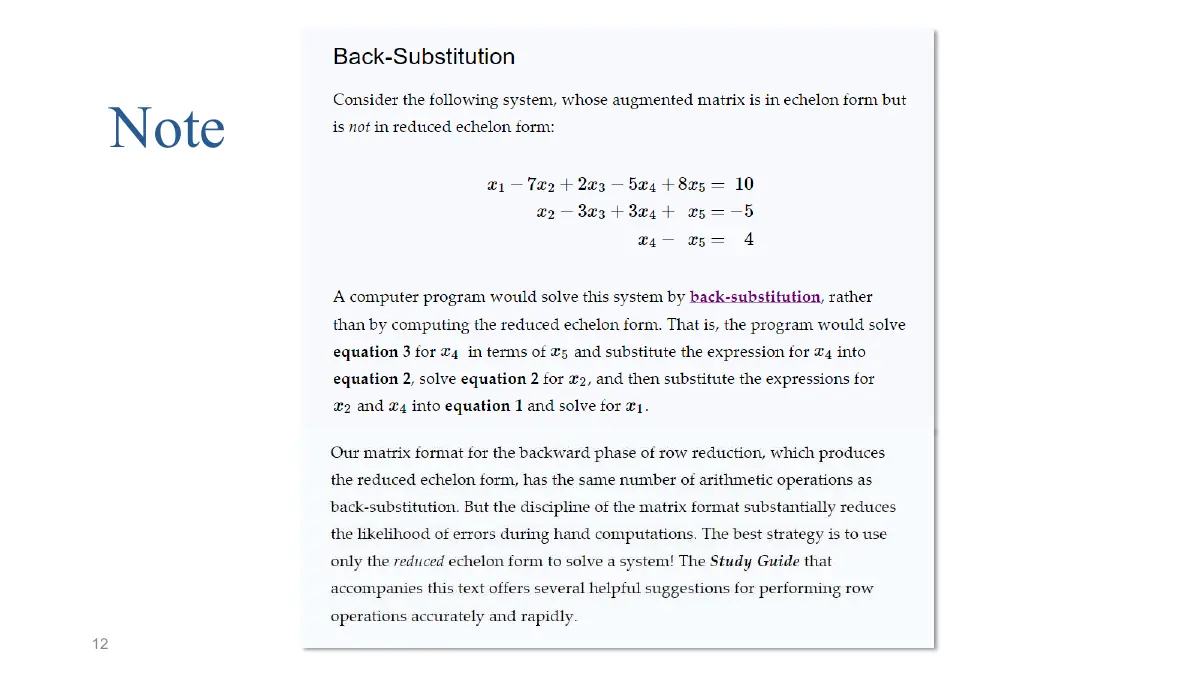

                Slide 12: Note
                Exam weight Low

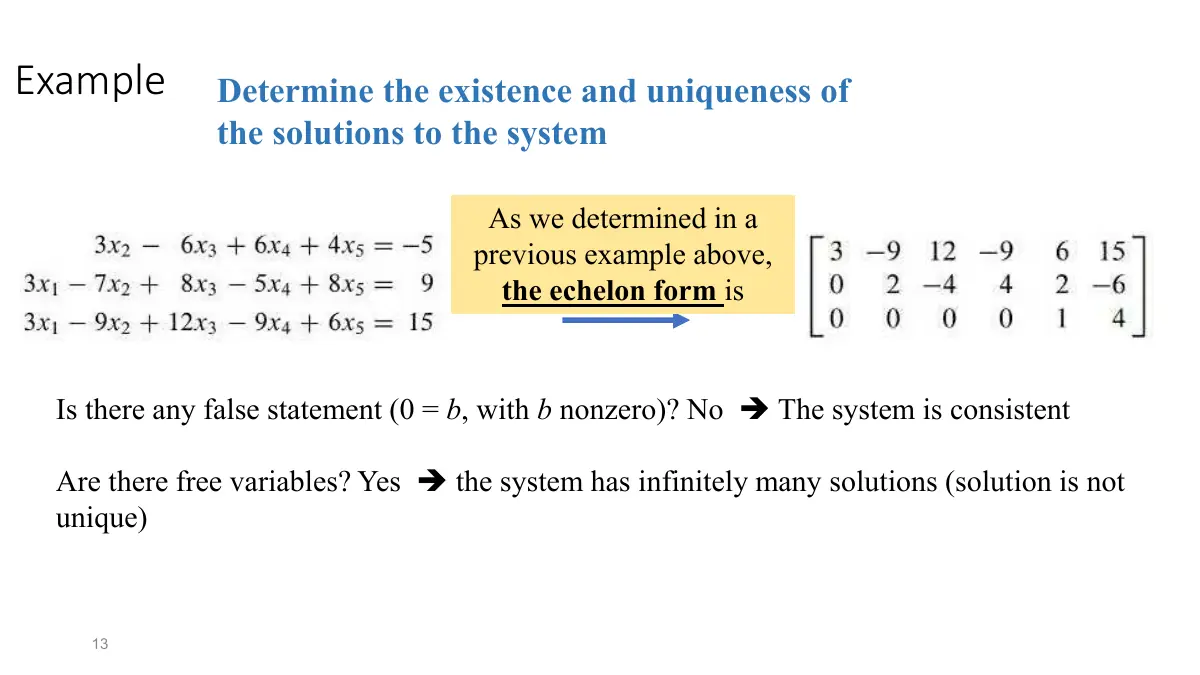

                  Slide 13: Example
                  Exam weight High
                  1. Existence and uniqueness: consistent ⇔ the last column of the augmented matrix is NOT a pivot column (no row [0 … 0 | b], b ≠ 0). If consistent: unique ⇔ no free variables; infinitely many ⇔ at least one free variable.

                  Related real-exam questions

                  Major 1 (251) · this topic is examined
                  🎯 How this can come up · 2 questions
                  MCQ

                  An augmented matrix reduces to a row [0 0 0 | 5]. The system is:

                  MCQ

                  A consistent system with 3 equations, 5 unknowns has:

                  14
                  Exam weight Low

                    15
                    Exam weight Low

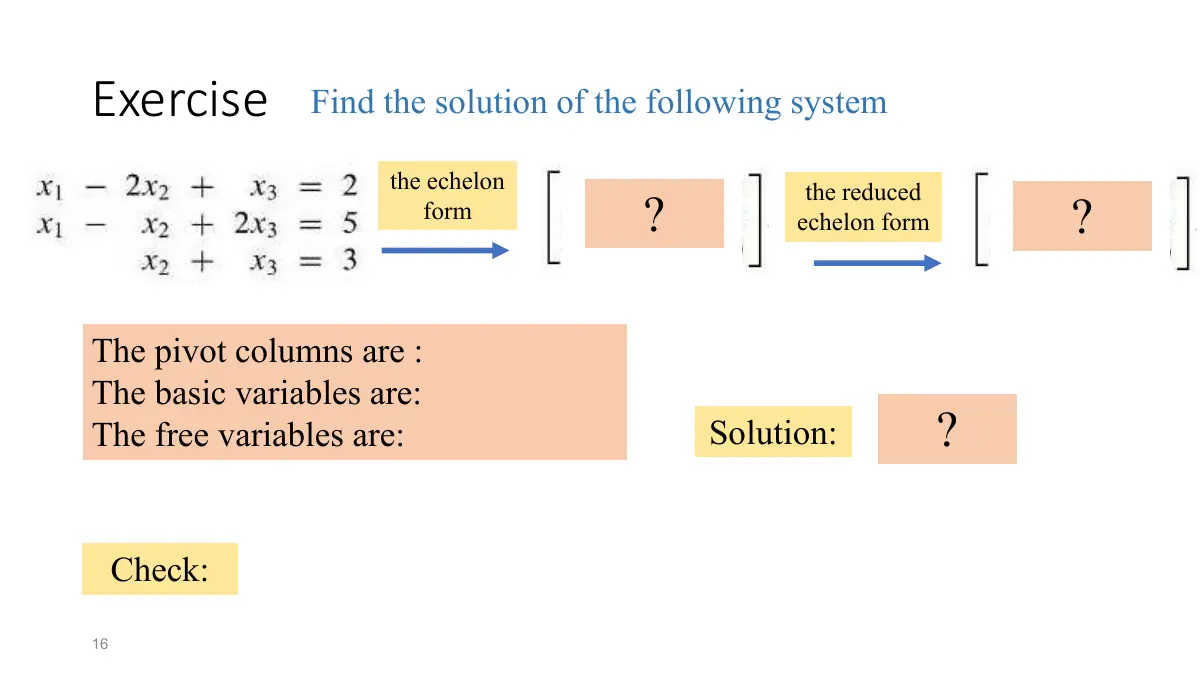

                      Slide 16: Exercise
                      Exam weight Low

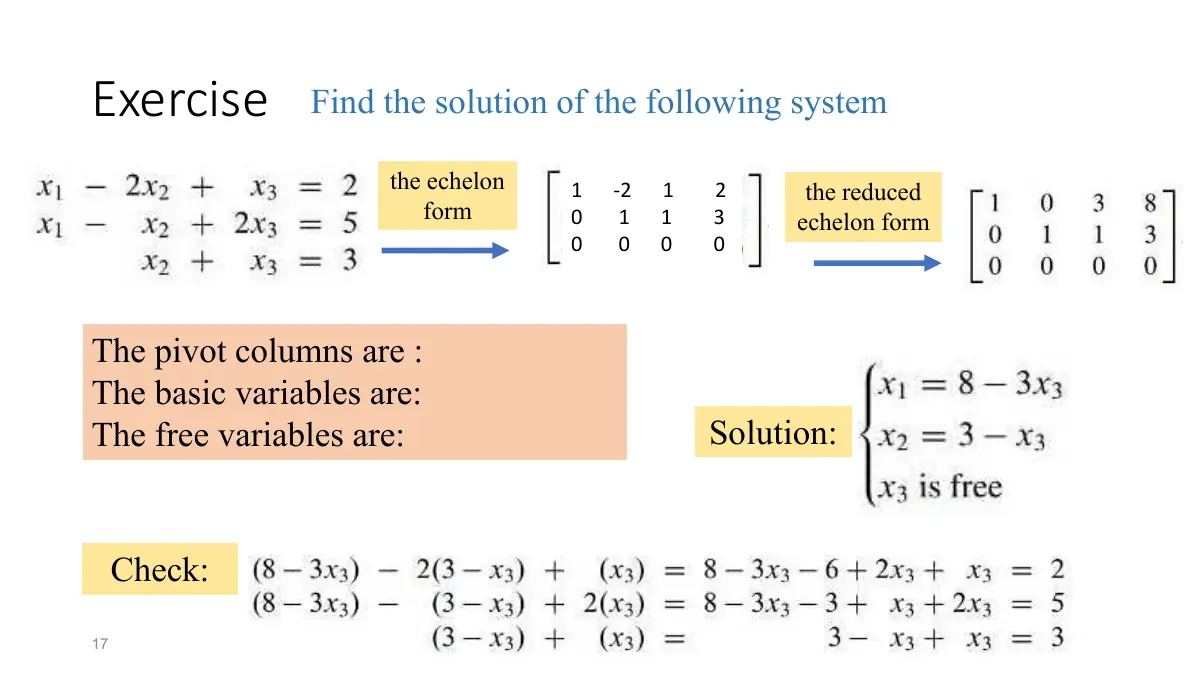

                        Slide 17: Exercise
                        Exam weight Low

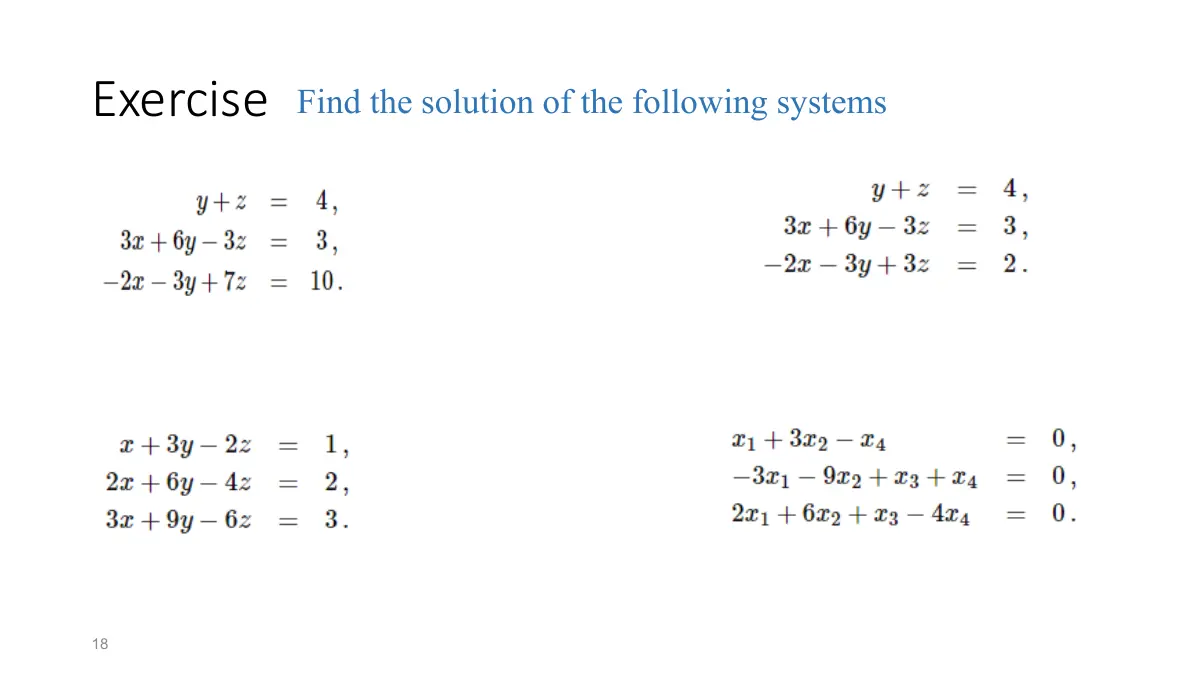

                          Slide 18: Exercise
                          Exam weight Low

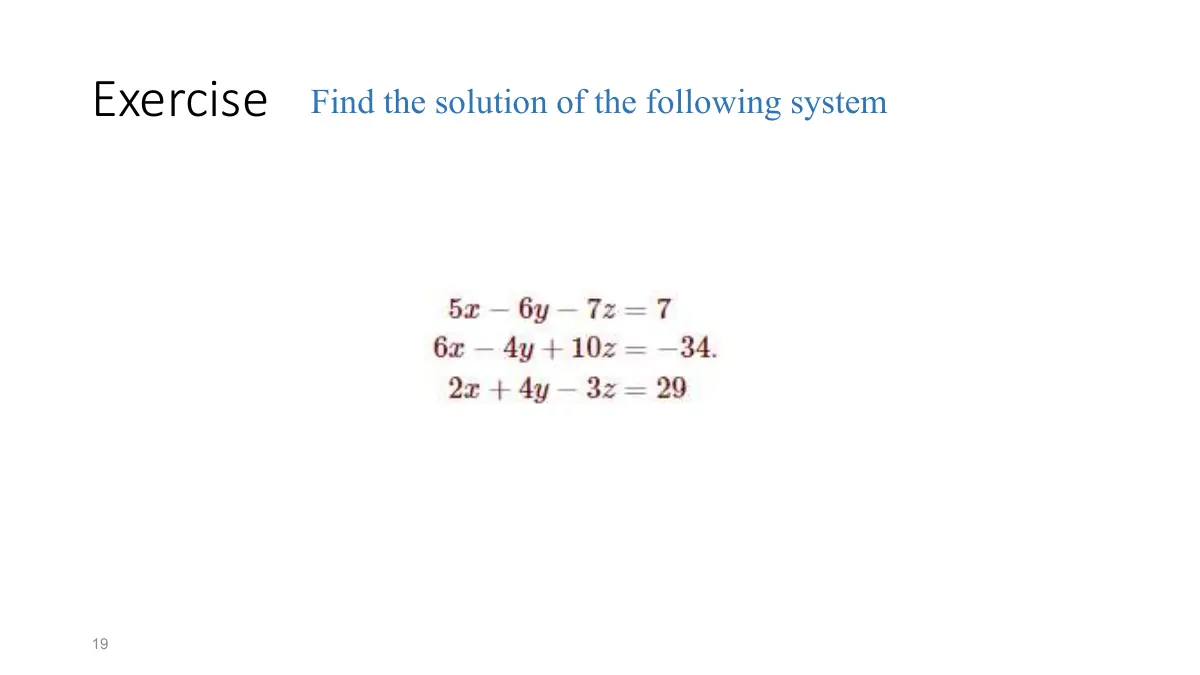

                            Slide 19: Exercise
                            Exam weight Low

                              Exercise

                              Find the solution of the following system

                              x + 2 ݕ − ݖ = 3 2x − ݕ + 3ݖ = 5

                              3x + 6ݕ − 3ݖ = 10

                              20
                              Exam weight Low
