What Is Footprinting?
Footprinting is the process of collecting as much information as possible about a target network, in order to identify various ways to intrude into an organization's network system. Think of it as building a dossier on a target before ever sending a single malicious packet — it is entirely (or almost entirely) passive and relies on information that is already out there.
Footprinting is the first step of any attack on information systems. An attacker gathers publicly available, sensitive information and then uses it to perform social engineering, system attacks, and network attacks — activities that can lead to huge financial loss and reputational damage for the victim organization. For an ethical hacker, the exact same techniques are used defensively: to find out what an attacker could see, and fix it before they look.
Why Footprint? (4 Reasons)
- Know Security Posture — footprinting lets an attacker understand the external security posture of the target organization: what defenses are visible from the outside.
- Reduce Focus Area — it narrows the attacker's focus down to a specific range of IP addresses, networks, domain names, remote-access points, etc., instead of guessing blindly.
- Identify Vulnerabilities — it helps the attacker spot weaknesses in target systems so they can pick the right exploits.
- Draw Network Map — it lets the attacker sketch a map or outline of the target's network infrastructure, so they understand the actual environment they are about to break into.
Mnemonic — Why Footprint?
K.R.I.D. — Know security posture, Reduce focus area, Identify vulnerabilities, Draw the network map. Read it as "the KID who footprints" narrows down, learns, finds cracks, and draws the map.
Open-Source Intelligence (OSINT)
There are a lot of places an ethical hacker can find information about a target. Open-Source Intelligence (OSINT) is the term used to describe identifying information about a target using only freely and publicly available sources — no hacking, no exploiting, just looking at what is already published.

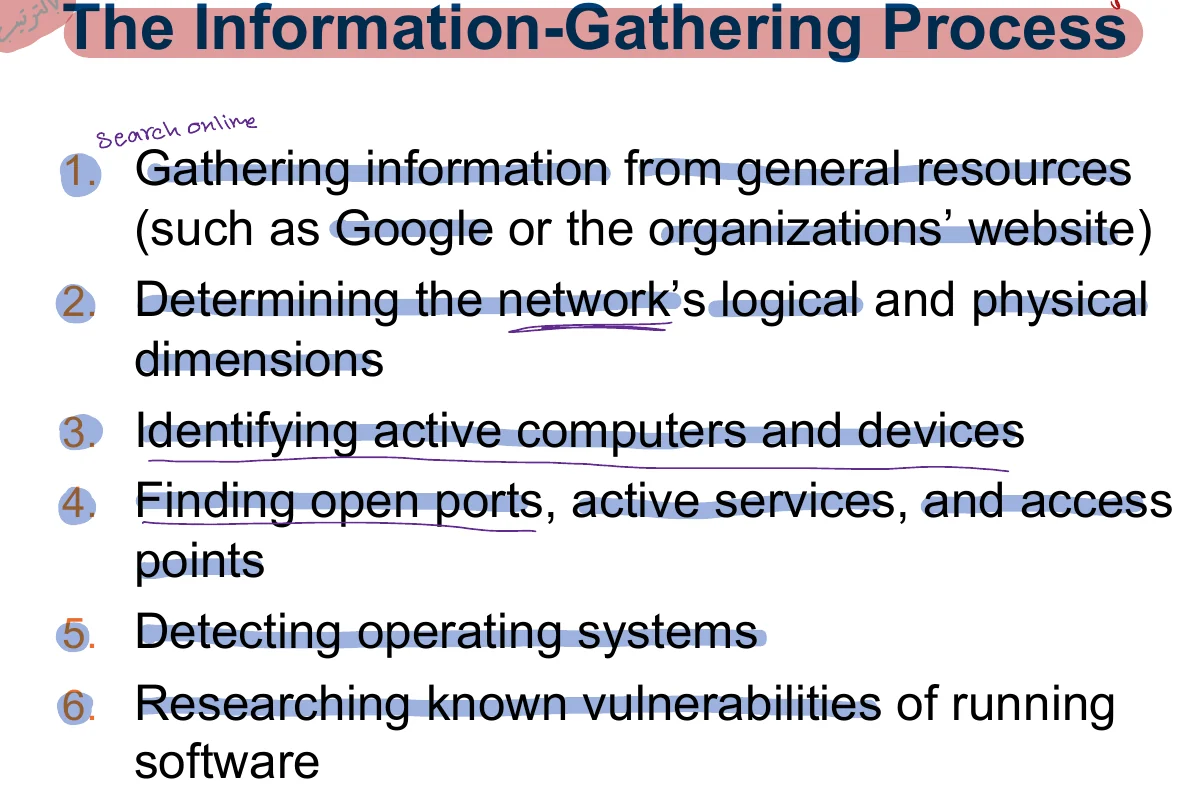

The Information-Gathering Process
Footprinting follows a broad, structured six-step process that moves from very general public information down to specific technical detail about the target's systems.
Gather information from general resources
Start broad — Google, the organization's own website, news articles, social media.
Determine the network's logical and physical dimensions
Map out IP ranges, domain structure, and physical office/branch locations.
Identify active computers and devices
Determine which hosts within the discovered range are actually alive and reachable.
Find open ports, active services, and access points
Discover what is listening on those live hosts — services, remote-access points, etc.
Detect operating systems
Fingerprint the OS running on discovered devices to narrow down applicable exploits.
Research known vulnerabilities of running software
Once software and OS versions are known, look up their published vulnerabilities (CVEs, advisories) to plan an attack — or, for a defender, to plan patching.
Mnemonic — The 6-Step Process
G.D.I.F.D.R. — "Grandma Drives Into Foggy Ditches Regularly": Gather general info → Determine network dimensions → Identify active hosts → Find open ports/services → Detect OS → Research vulnerabilities. The process narrows from "the whole internet" down to "this exact exploit."
Footprinting Activities
Within that six-step process, the concrete activities a footprinter actually performs include:
Organizational Recon
- Examine the company's website
- Identify key employees
- Analyze open job positions and job requests
- Assess affiliate, parent, or sister companies
- Find technologies and software used by the organization
Technical & Data Recon
- Determine network address and range
- Review the network range to determine whether the organization owns it or whether systems are hosted by a third party
- Look for employee postings, blogs, and other leaked information
- Review all the collected data as a whole to draw conclusions

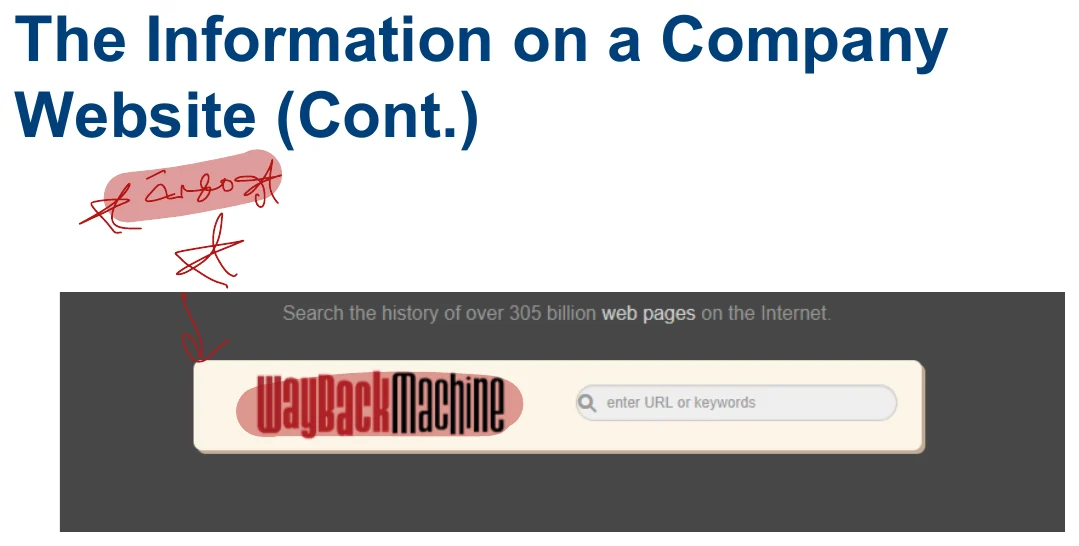

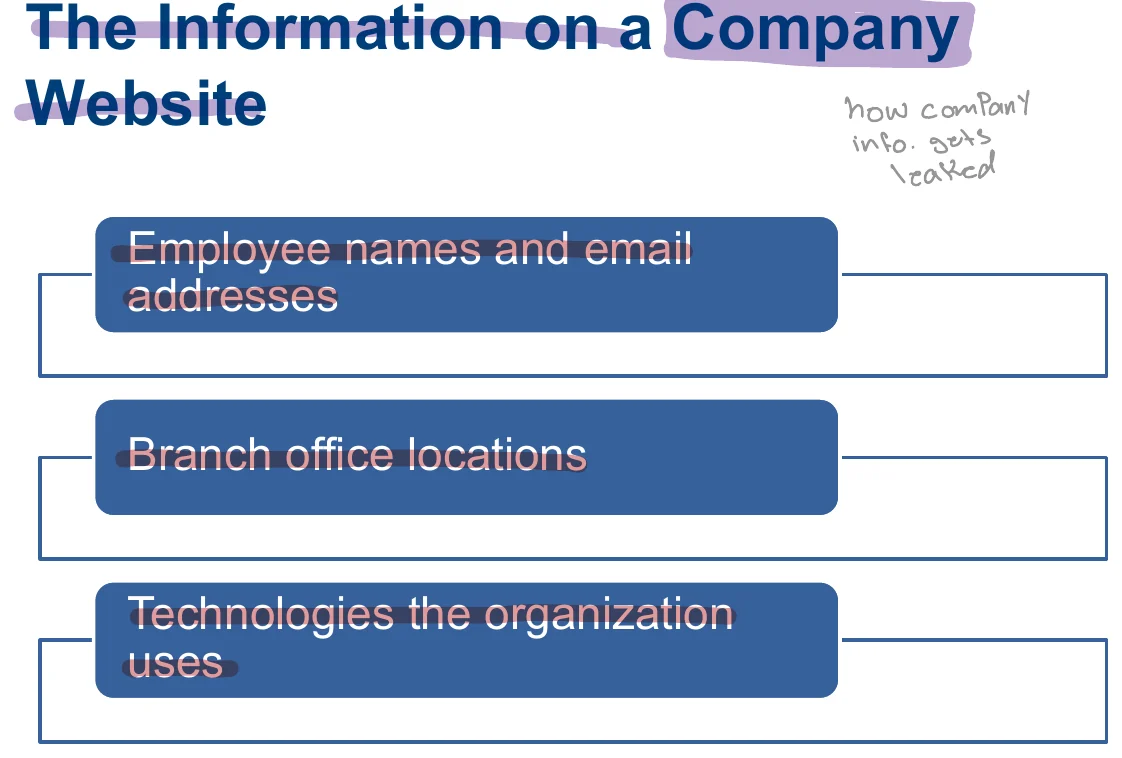

Information Found on a Company Website
A company's own public-facing website is often the single richest, easiest, and most legal source of footprinting data. Slides emphasize three categories typically exposed there:

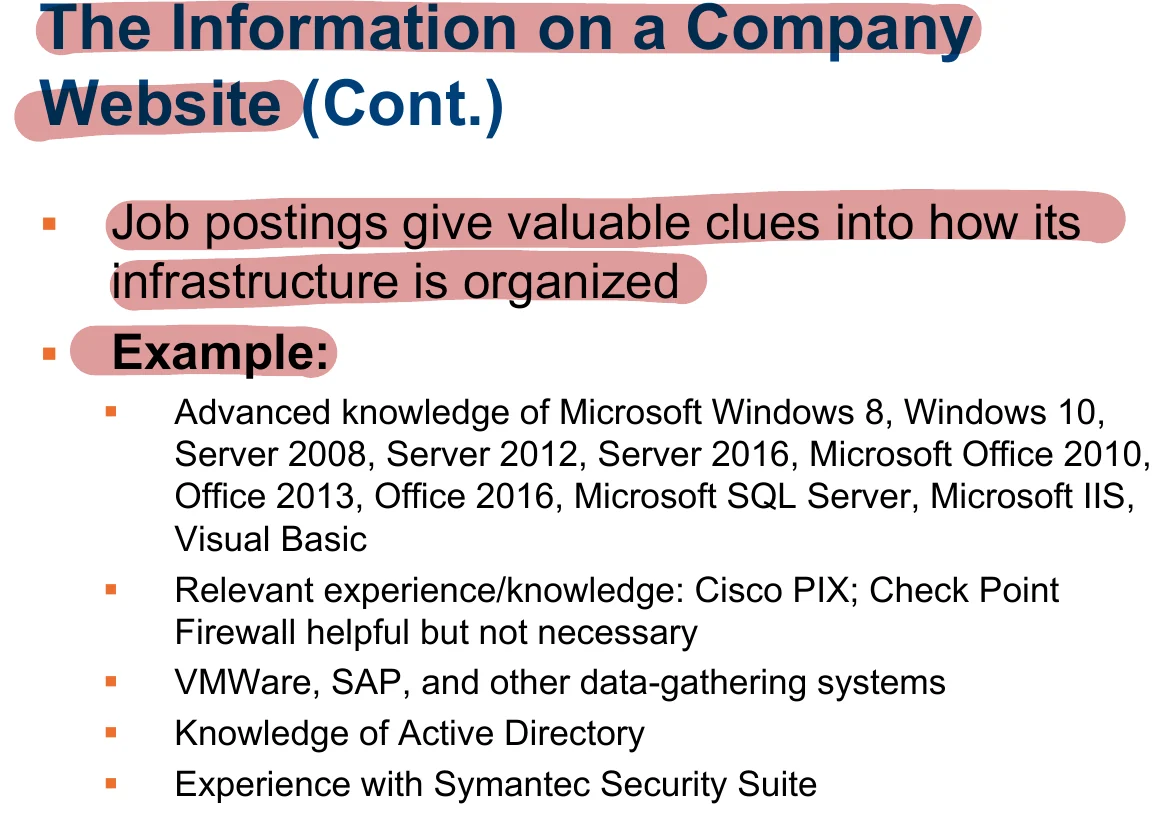

Job Postings as an Infrastructure Clue
Job postings are an underrated goldmine: to attract qualified candidates, HR and IT departments frequently list the exact software, hardware, and vendor products used internally — effectively publishing an infrastructure inventory to the entire internet.
A real IT job posting example from the slides lists these requirements, each of which is a direct clue to the target's environment:
- Advanced knowledge of Microsoft Windows 8, Windows 10, Server 2008, Server 2012, Server 2016
- Microsoft Office 2010, Office 2013, Office 2016
- Microsoft SQL Server, Microsoft IIS, Visual Basic
- Relevant experience/knowledge: Cisco PIX; Check Point Firewall helpful but not necessary
- VMware, SAP, and other data-gathering systems
- Knowledge of Active Directory
- Experience with Symantec Security Suite
From this single posting alone, an attacker can infer: a Windows Server/Active Directory domain environment, SQL Server and IIS web infrastructure, a Cisco PIX or Check Point perimeter firewall, VMware virtualization, SAP for ERP, and Symantec for endpoint security — a near-complete infrastructure sketch, with zero packets sent to the target.
Footprinting Using Advanced Google Hacking Techniques
Google hacking (a.k.a. "Google dorking") is the goal of locating useful information using techniques the search engine already provides, but applying them in creative, offensive ways. The same idea works with Yahoo and Bing as well — Google is simply the most commonly discussed because of its market dominance and rich operator set.

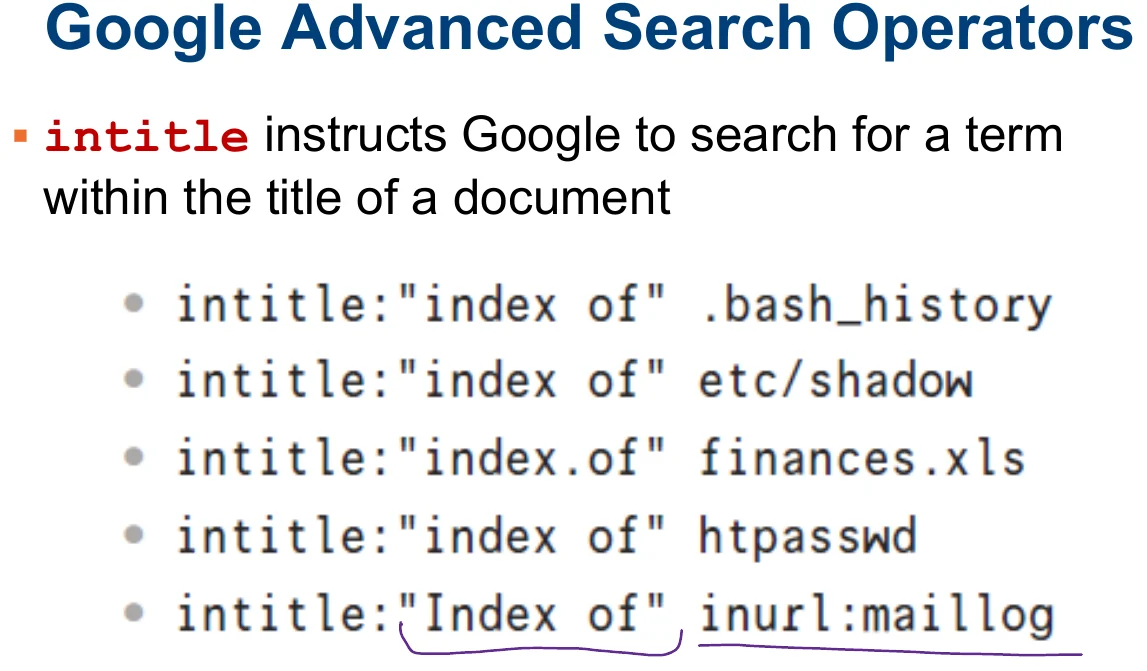

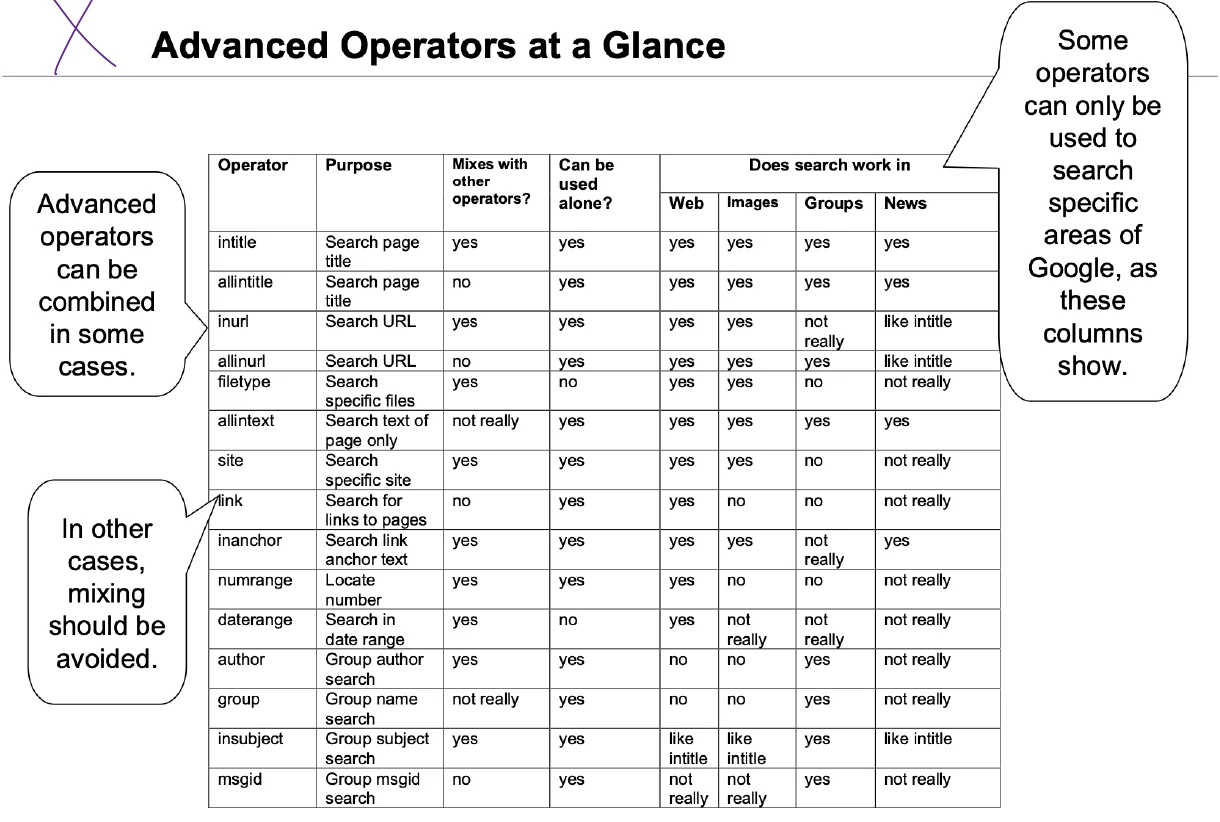

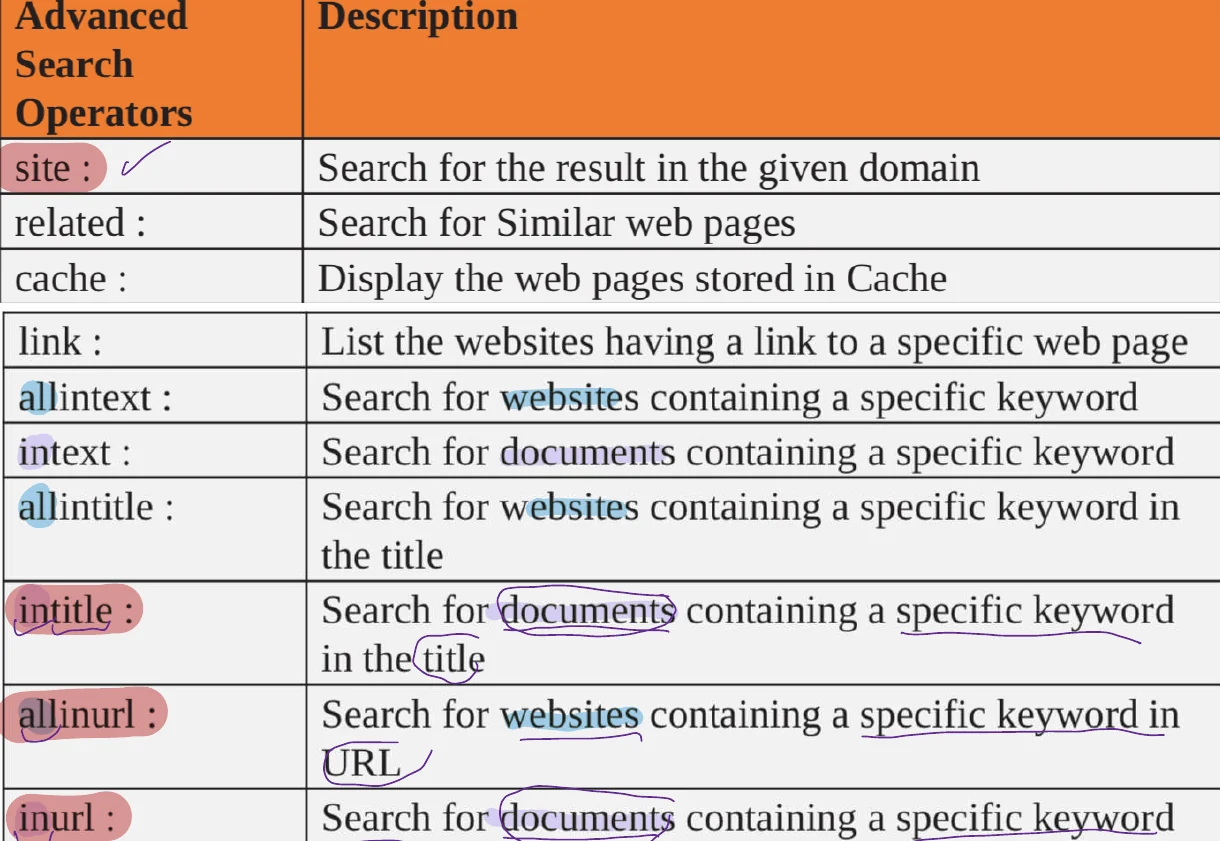

Google Advanced Search Operators
| Operator | Purpose | Example |
|---|---|---|
| intitle: | Instructs Google to search for a term within the title of a document/page. | intitle:"index of" |
| filetype: | Restricts the search to results of a particular file type only (PDF, DOC, XLS, etc.). | filetype:pdf "confidential" |
| inurl: | Searches within a site's URL string. Useful when the attacker knows standard URL patterns used by particular applications/devices. | inurl:"view.shtml" "Network Camera" |
Try this search: inurl:"view.shtml" "Network Camera" — this combination targets the specific URL pattern and title text used by a common brand of web-accessible security camera, potentially surfacing camera feeds left open to the public internet with no authentication.
Mnemonic — The 3 Core Operators
T.F.U. = Title (intitle), File type (filetype), URL (inurl). Picture a "TFU" checklist: what's the page's Title, what File type is it, what's in the URL?
Practice Exercises From the Slides
- Use the site: operator to search for armchairs on IKEA's site, www.ikea.com.
- Use the Advanced Search form to find the page whose title is "Detect Plagiarism."
- Find pages on google.com but not on answers.google.com nor directory.google.com whose titles include "FAQ" or "help."
- Use the link: operator to see who links to googleguide.com or another site of choice.
- Find pages whose titles include "surfing" that are not about surfing the World Wide Web.
- Search for [google help] restricted to Google Guide (www.googleguide.com) and the UC Berkeley library site (www.lib.berkeley.edu).

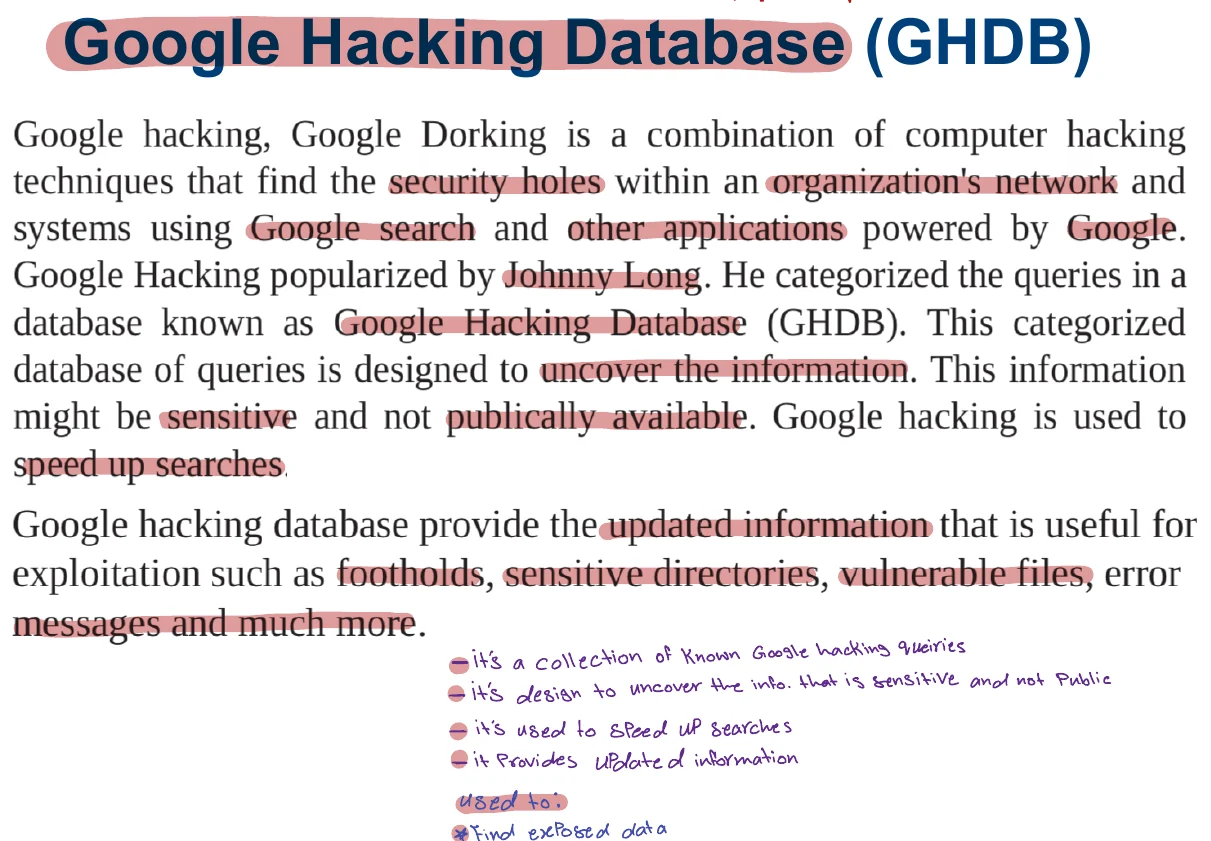

The Google Hacking Database (GHDB) is a curated, community-maintained collection of proven Google dorks, hosted as a project at www.offensive-security.com/community-projects/google-hacking-database/. Instead of inventing your own dorks from scratch, the GHDB catalogs ready-made queries organized by category (e.g. exposed files, login portals, vulnerable servers, sensitive directories) so pentesters can quickly test known-effective searches against a target.
Exploring Domain Information Leakage
Beyond the website itself, domain registration and DNS infrastructure leak a huge amount about a target. The key techniques and tools are:

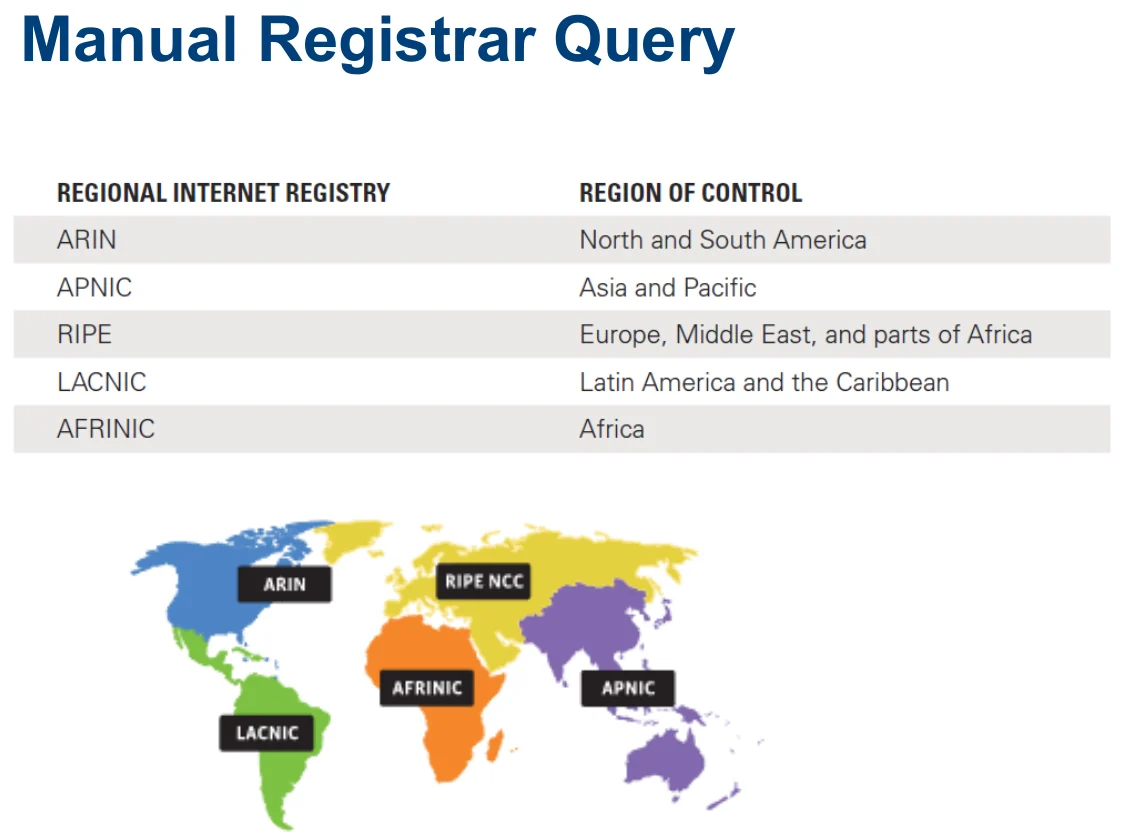

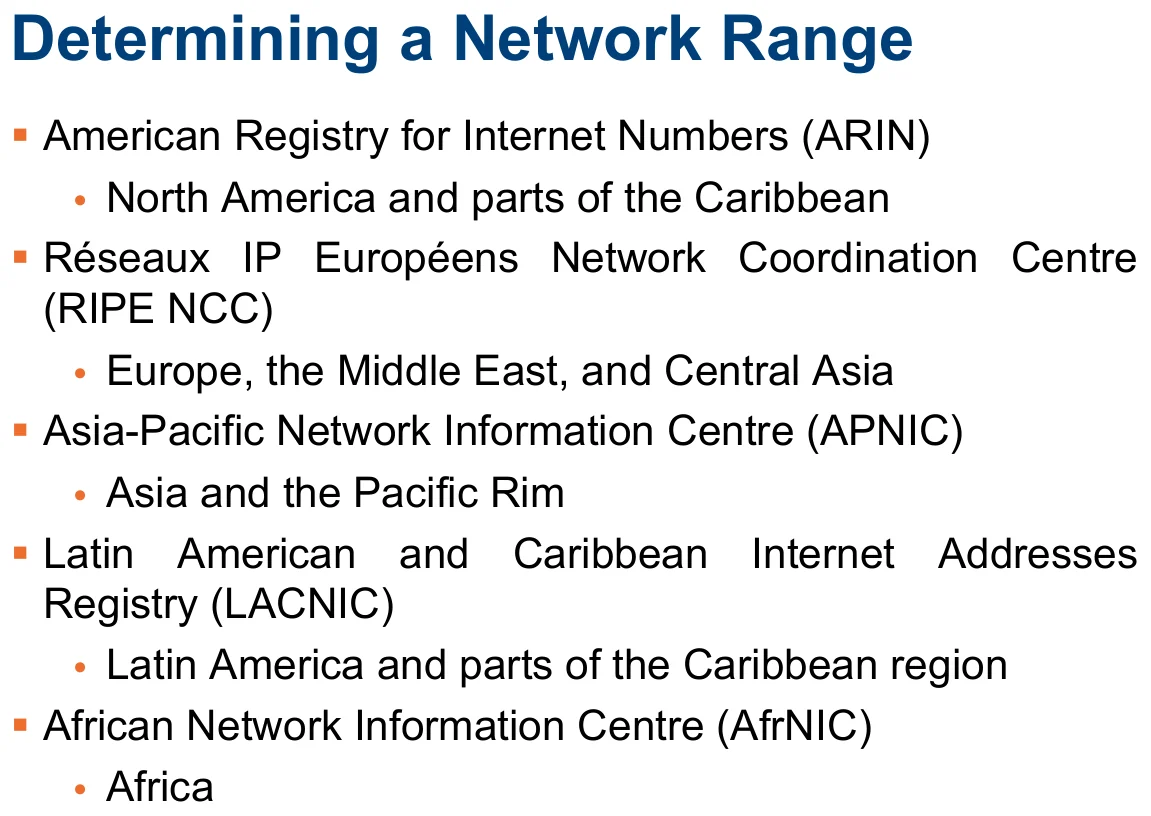

The 5 Regional Internet Registries (RIRs)

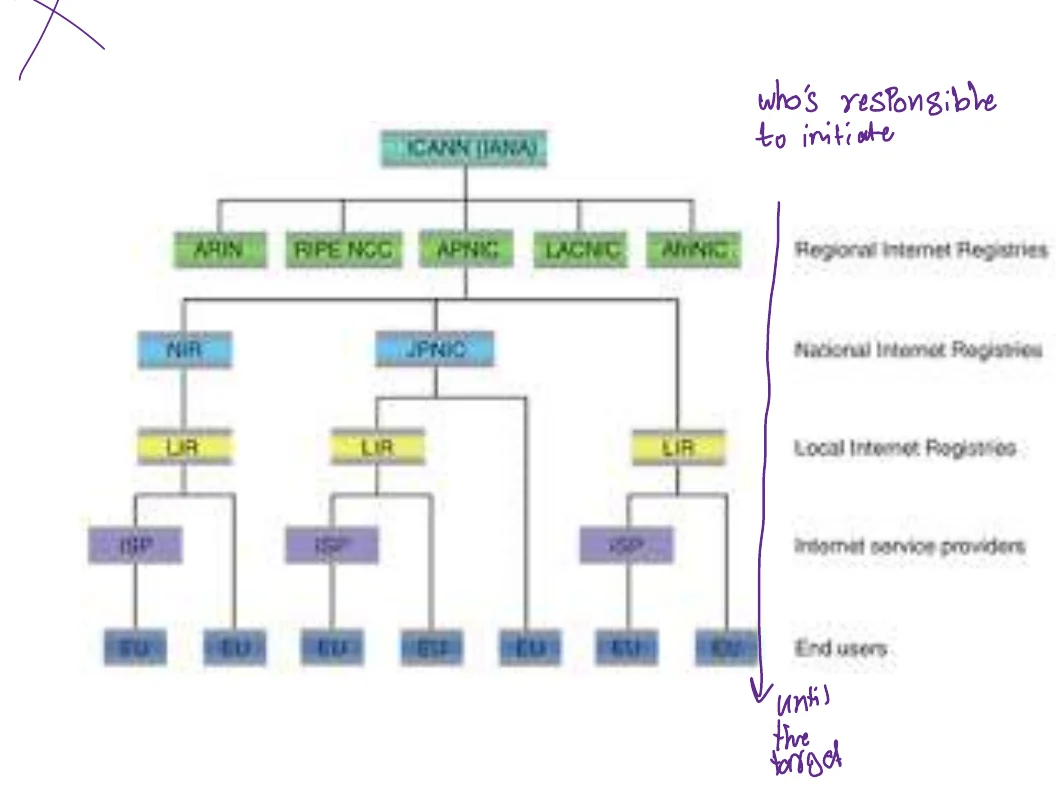

Determining a network range means figuring out which Regional Internet Registry allocated the target's IP space, then querying that registry directly. There are exactly five RIRs, each responsible for a distinct region of the world:
| Registry | Full Name | Region Covered |
|---|---|---|
| ARIN | American Registry for Internet Numbers | North America and parts of the Caribbean |
| RIPE NCC | Réseaux IP Européens Network Coordination Centre | Europe, the Middle East, and Central Asia |
| APNIC | Asia-Pacific Network Information Centre | Asia and the Pacific Rim |
| LACNIC | Latin American and Caribbean Internet Addresses Registry | Latin America and parts of the Caribbean region |
| AfriNIC | African Network Information Centre | Africa |
Mnemonic — The 5 RIRs
"A Rapper And Lil' Africa" — ARIN (North America), RIPE NCC (Europe/Middle East/Central Asia), APNIC (Asia-Pacific), LACNIC (Latin America), AfriNIC (Africa). Five continents, five registries — walk around the globe from the Americas → Europe → Asia → Latin America → Africa.

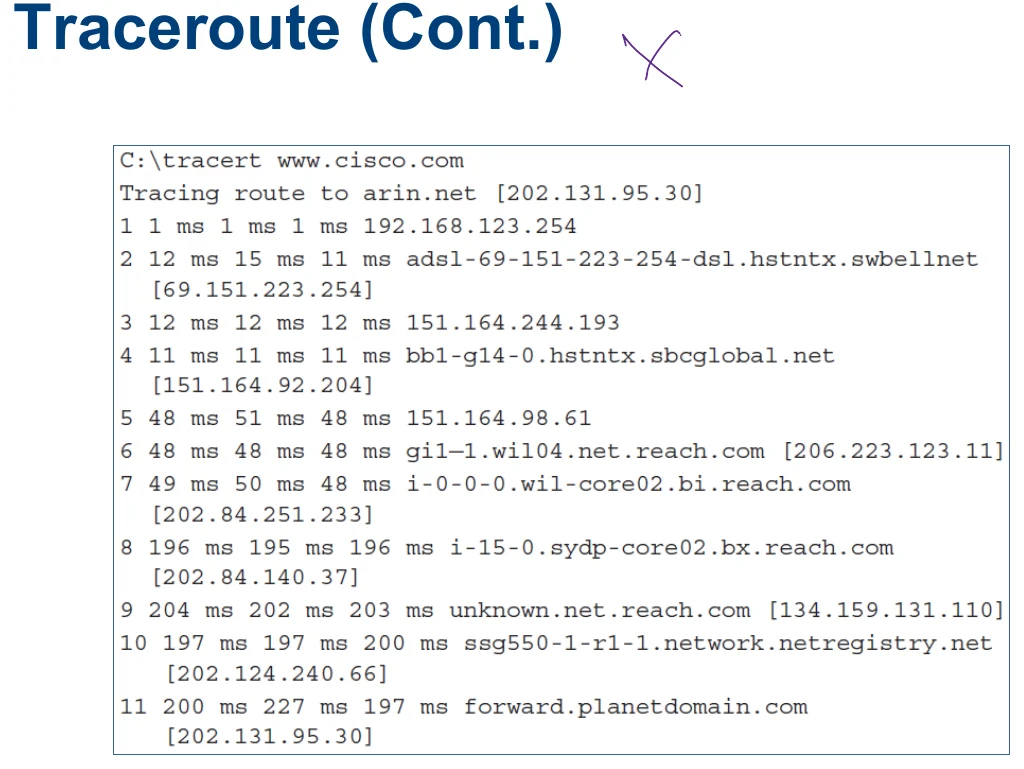

Traceroute
Traceroute is a software program that helps determine the path a data packet traverses to reach a specific IP address. It is one of the easiest ways to identify the path to a targeted website, and by extension can reveal internal network topology, ISPs in the path, and sometimes internal hostnames of routers.
Traceroute works by displaying the list of routers on the path to a network destination, using time-to-live (TTL) timeouts and Internet Control Message Protocol (ICMP) error messages: it sends packets with increasing TTL values, and each router along the path that decrements the TTL to zero sends back an ICMP "time exceeded" message, revealing itself as one hop in the path.
Command: tracert
Command: traceroute
Mnemonic — Command Names
tracert = "tract" (short, Windows-y), traceroute = full word (UNIX likes verbose names). Windows abbreviates almost everything (ipconfig, tracert); UNIX/Linux tends to spell things out (traceroute, ifconfig).

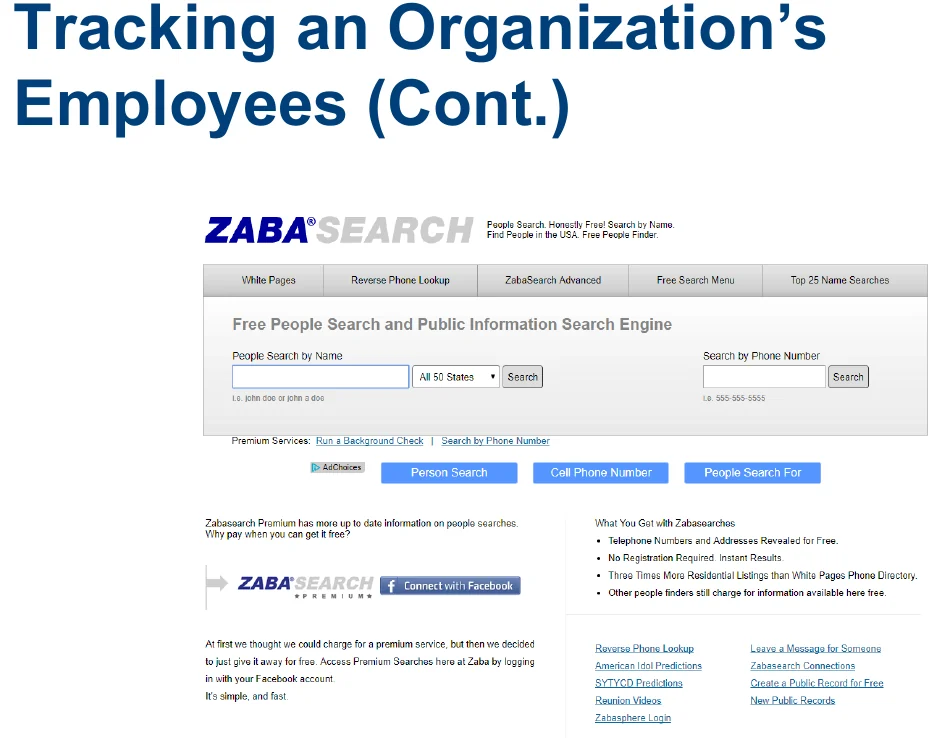

Tracking an Organization's Employees
People are frequently the weakest link, and they leave a huge amount of footprinting-relevant data behind online, often without realizing it.
Information That Can Be Uncovered Online
- Posted photographs, videos, or other personal information
- Posted content about personal activities, political or activist affiliations, and beliefs
- Derogatory information posted about previous employers, coworkers, or clients
- Discriminatory comments or fabricated qualifications
Sites Worth Examining
These sites can be examined for names, email addresses, phone numbers, photographs, and more:
Blogs
Personal or professional blogs often contain unfiltered opinions, work details, and identifying info.
Social Networking Profiles
Facebook, YouTube, LinkedIn, Instagram, Twitter, and even "[company] sucks"-style domains created by disgruntled current or former employees.
Organizational Social Media
The organization's own official social media outlet pages, which reveal branding, staff, partners, and announcements.

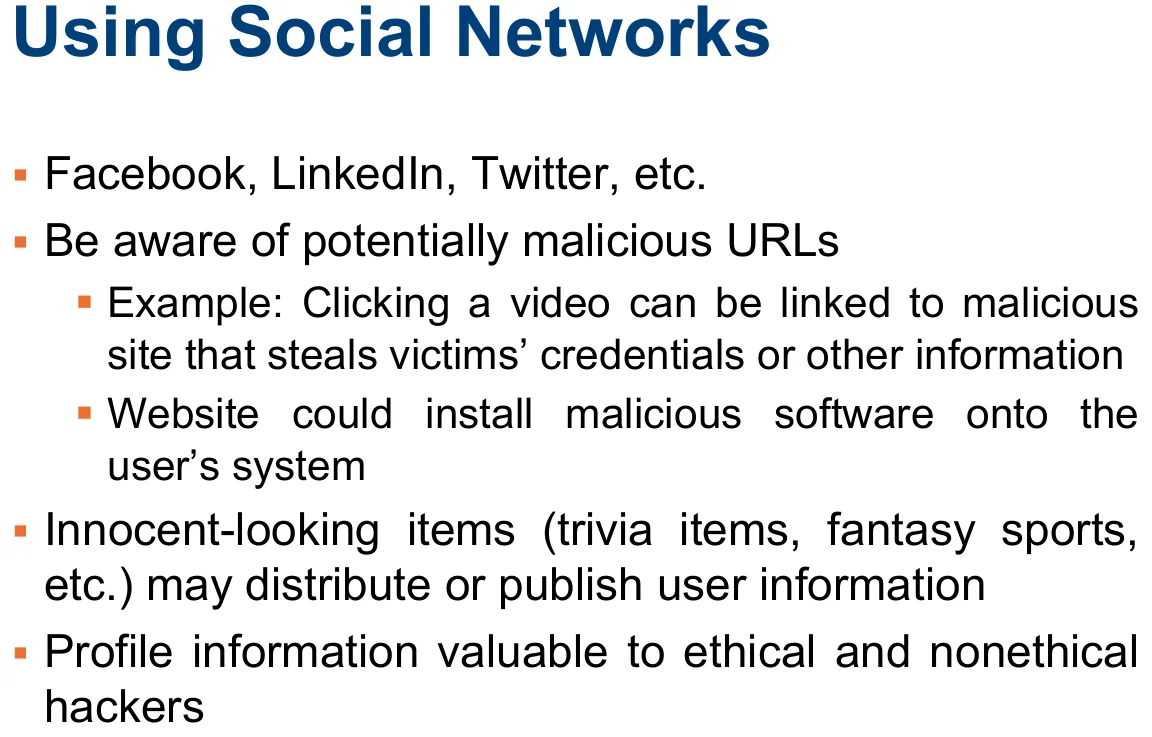

Using Social Networks
Platforms like Facebook, LinkedIn, and Twitter are both a footprinting goldmine and an active attack vector in their own right.
Clicking a video on a social network can be linked to a malicious site that steals the victim's credentials or other information, or the site itself could install malicious software onto the user's system — a reminder that footprinting and initial compromise are often just one click apart.
- Be aware of potentially malicious URLs shared or embedded in posts
- Innocent-looking items (trivia quizzes, fantasy sports apps, personality tests, etc.) may harvest and distribute or publish user information without obvious consent
- Profile information is valuable to both ethical hackers (for legitimate security assessments) and non-ethical hackers (for social engineering and attacks)

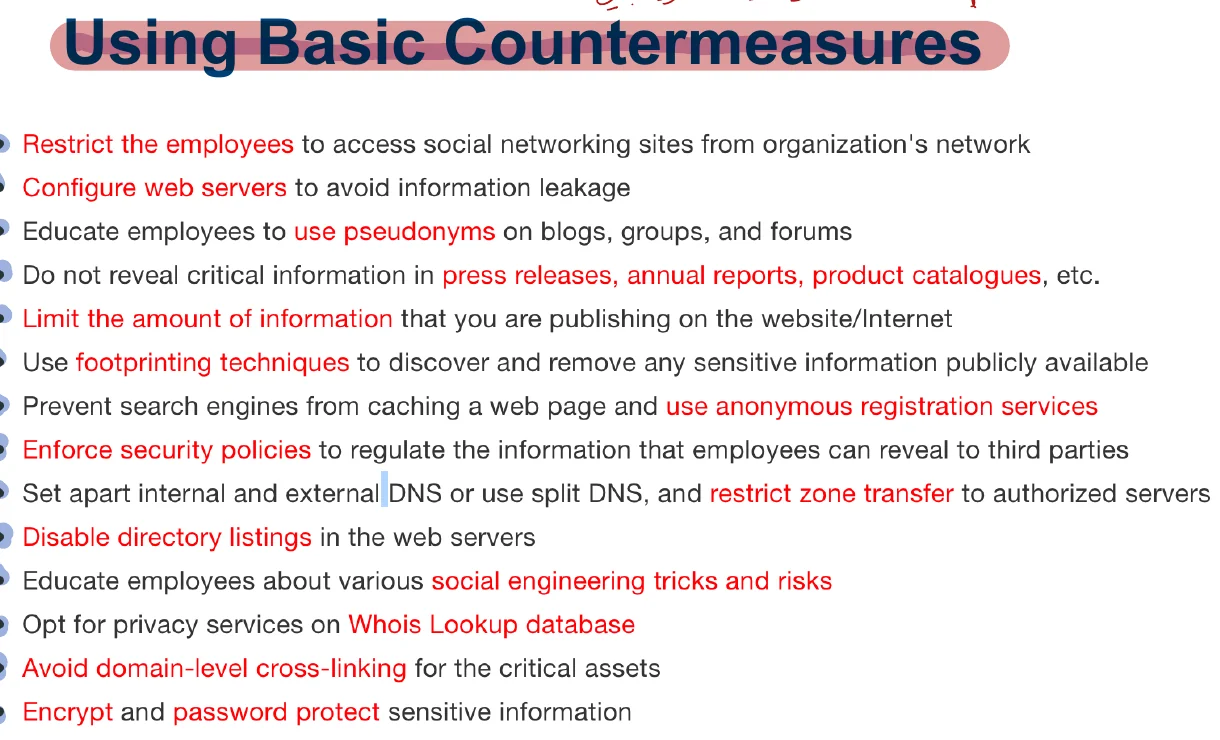

Basic Countermeasures Against Footprinting
Since almost all footprinting relies on information an organization or its employees have made public, the core countermeasure philosophy is minimize the public attack surface: publish only what is operationally necessary, train staff on what not to share, and monitor what is already out there.
Limit Public Disclosure
Avoid publishing detailed employee names/emails, exact software/hardware versions, or internal network details in job postings and website content.
Employee Awareness Training
Train staff on social media hygiene — what not to post about employer, projects, or infrastructure — and on recognizing malicious/social-engineering links.
Domain Privacy
Use WHOIS privacy/proxy services where possible to reduce the personal and organizational detail exposed in domain registration records.
Self-Footprint Regularly
Periodically run the same OSINT/Google-hacking techniques against your own organization to discover and remove leaked information before attackers find it.
Exam Tips & Tricks
Footprinting = First Step
Remember: footprinting is always the FIRST phase of an attack, and it is (almost entirely) passive — no direct interaction that would alert the target.
4 Reasons to Footprint
Know security posture, Reduce focus area, Identify vulnerabilities, Draw network map — a favorite exam list, know all four exactly.
6-Step Process Order Matters
Exams love asking you to order the 6 steps: general resources → network dimensions → active hosts → open ports/services → OS detection → known vulnerabilities.
3 Google Operators
intitle (title text), filetype (specific file extension), inurl (text within the URL). Know the exact camera example: inurl:"view.shtml" "Network Camera".
GHDB Source
The Google Hacking Database lives at offensive-security.com's community-projects page — a common multiple-choice distractor swaps this for "exploit-db.com" (which hosts exploits, not dorks).

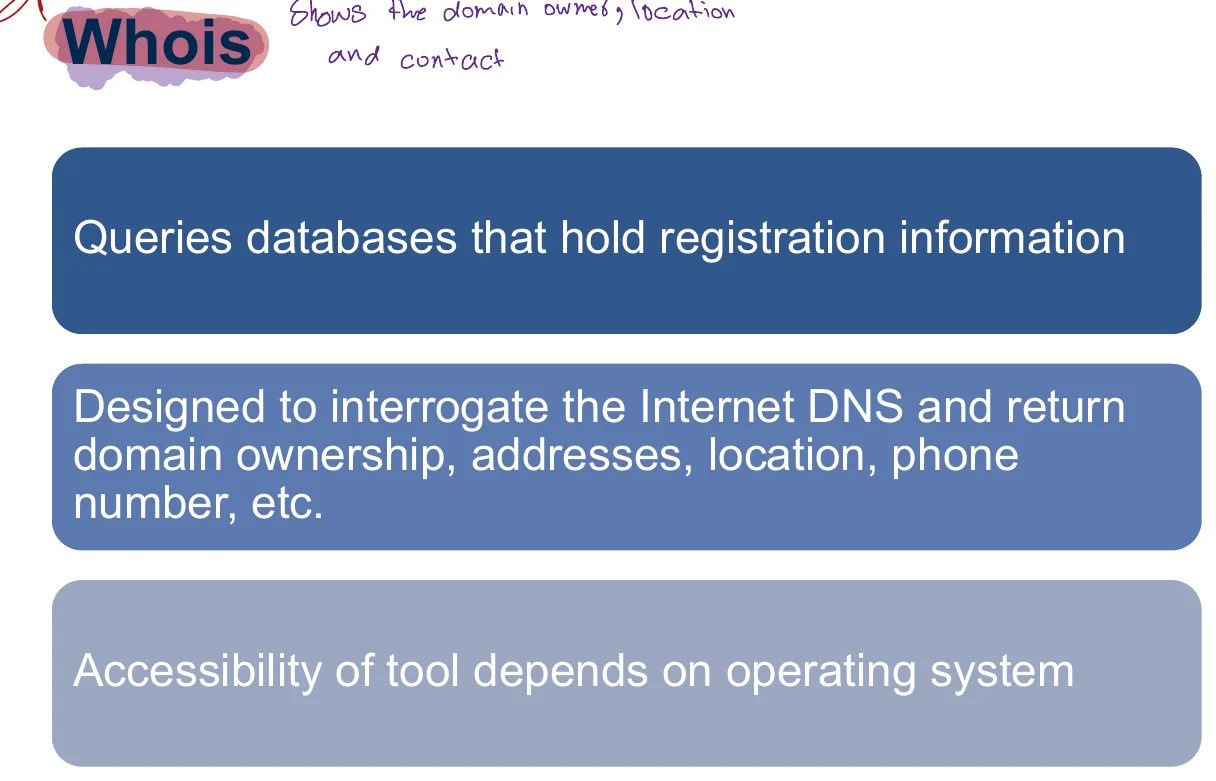

Whois vs Nslookup
Whois = domain REGISTRATION info (owner, address, phone). Nslookup = DNS RESOLUTION info (domain-to-IP mapping). Don't mix them up.
5 RIRs by Region
ARIN=N.America, RIPE NCC=Europe/Mideast/CentralAsia, APNIC=Asia-Pacific, LACNIC=Latin America, AfriNIC=Africa. Exams may ask "which RIR covers the Middle East?" → RIPE NCC.
tracert vs traceroute
Windows uses "tracert" (no second 'e' or 'ou'); UNIX/Linux uses the full "traceroute." Both rely on TTL timeouts and ICMP error messages.
Quick Reference — Everything at a Glance
| Topic | Key Point |
|---|---|
| Footprinting | Collecting as much info as possible about a target network to find ways to intrude; the first step of any attack. |
| Why footprint | Know security posture, reduce focus area, identify vulnerabilities, draw network map. |
| OSINT | Open-Source Intelligence — identifying target info using only freely available public sources. |
| 6-step info-gathering process | General resources → network dimensions → active hosts/devices → open ports/services/access points → OS detection → known vulnerability research. |
| Footprinting activities | Examine website, identify key employees, analyze job postings, assess affiliate companies, find tech used, determine network range, review ownership, find leaked employee info, review all data. |
| Company website leaks | Employee names/emails, branch office locations, technologies used. |
| Job postings | Reveal exact OS, software, firewall, virtualization, and ERP products in use (e.g. Windows Server, SQL Server, Cisco PIX, VMware, Active Directory, Symantec). |
| Google hacking | Using search-engine operators creatively to surface sensitive data; also works on Yahoo/Bing. |
| intitle: | Search for a term within a document's title. |
| filetype: | Restrict results to a specific file type. |
| inurl: | Search within a site's URL string (e.g. inurl:"view.shtml" "Network Camera"). |
| GHDB | Google Hacking Database — curated dork collection at offensive-security.com/community-projects/google-hacking-database/. |
| Manual/automatic registrar query | Manual = query registrar directly; automatic = use aggregator sites like betterwhois.com, dnsstuff.com, whois.domaintools.com. |
| Whois | Queries registration databases for domain ownership, address, location, phone number; OS-dependent availability. |

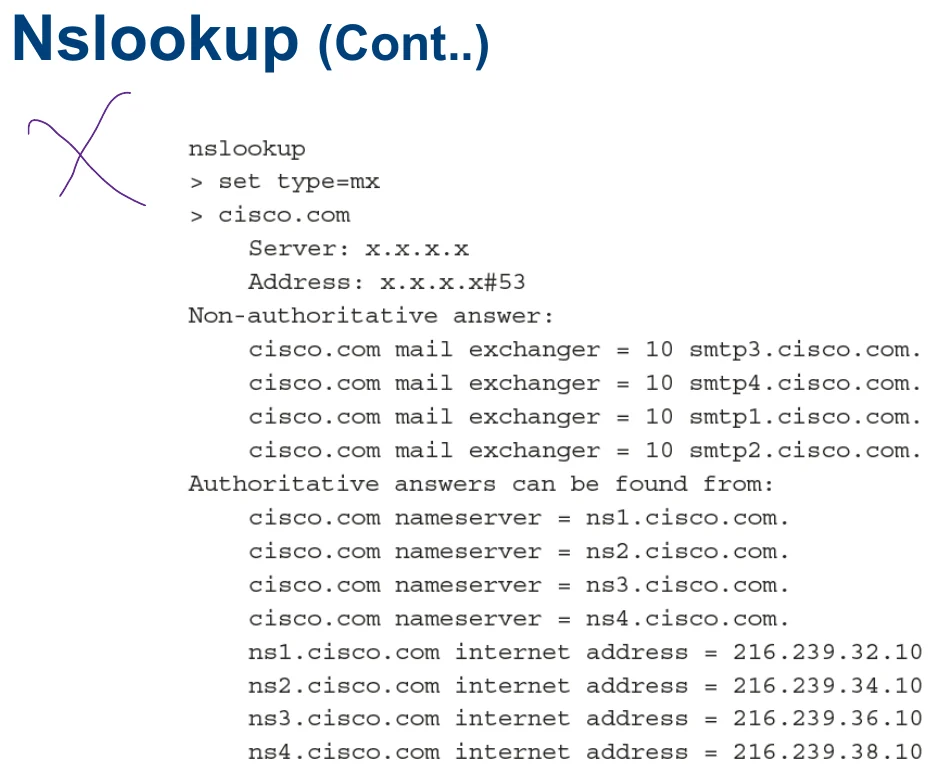

| Nslookup | Command-line DNS query tool for domain-to-IP mapping; "name server lookup"; available on Windows/macOS/Unix. |
| IANA | Internet Assigned Numbers Authority — top-level coordinator of DNS root and IP address resources. |
| ARIN | North America and parts of the Caribbean. |
| RIPE NCC | Europe, the Middle East, and Central Asia. |
| APNIC | Asia and the Pacific Rim. |
| LACNIC | Latin America and parts of the Caribbean. |
| AfriNIC | Africa. |
| Traceroute | Determines the path a packet takes to a destination using TTL timeouts and ICMP error messages. |
| tracert vs traceroute | tracert = Windows command; traceroute = UNIX/Linux command. |
| Tracking employees | Photos, personal activity, complaints about employers, discriminatory comments can all be uncovered online. |
| Sites to check for employee data | Blogs, Facebook, YouTube, LinkedIn, Instagram, Twitter, "sucks" domains, organizational social media pages. |
| Social network risks | Malicious URLs can steal credentials or install malware; innocent-looking quizzes/apps may harvest user data; profile info is valuable to both ethical and non-ethical hackers. |
| Countermeasures | Limit public disclosure, train employees, use WHOIS privacy, and regularly self-footprint the organization. |
