ICS/SCADA System Security

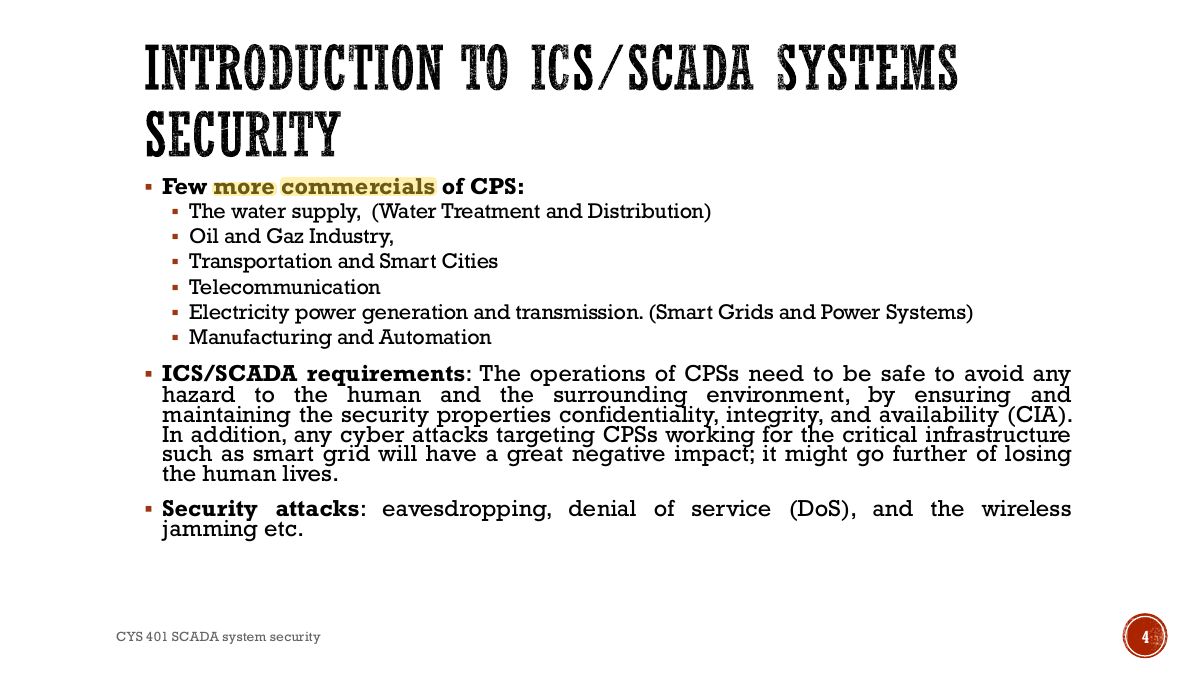

• Cyber-physical systems CPSs are a various collection of information communication technology (ICT) and embedded microprocessors which are communicated to the physical world via sensors and actuators.

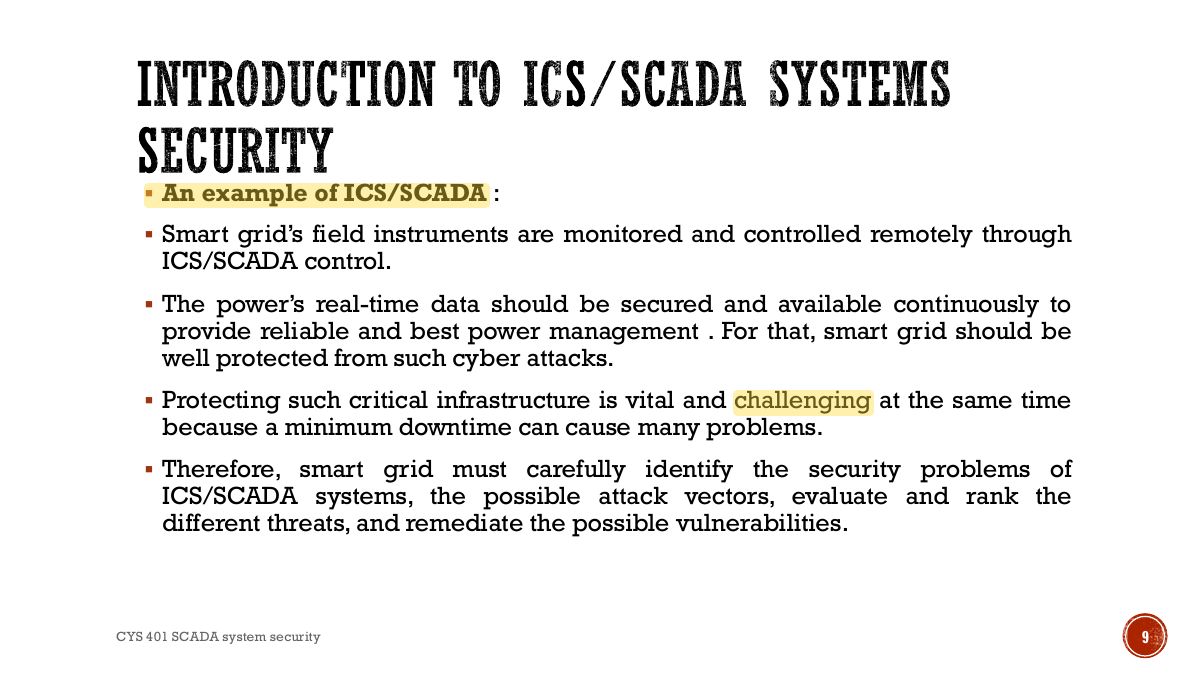

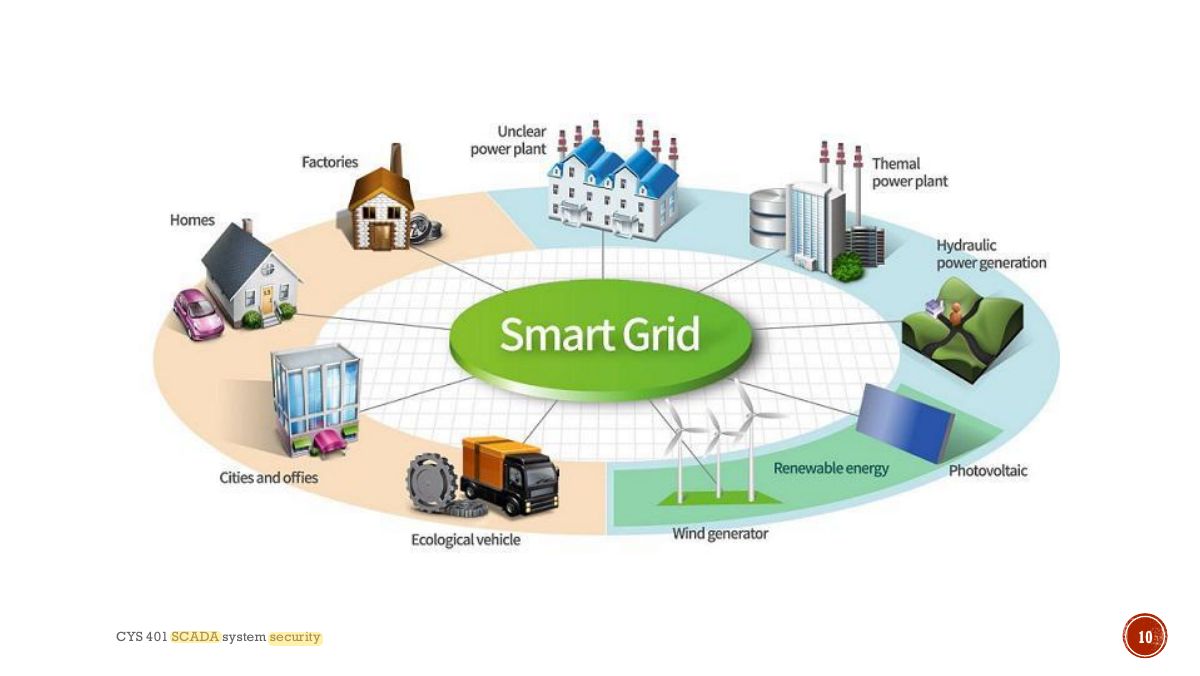

• Applications of CPS: Smart Grid

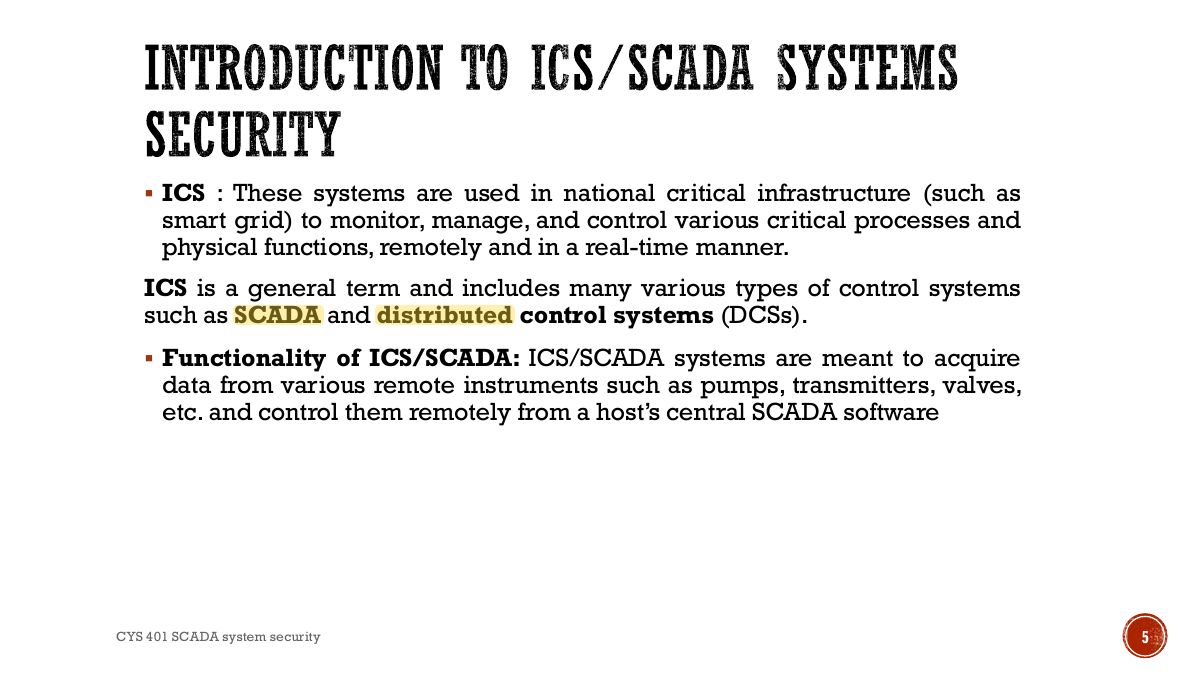

• ICS/SCADA: The remote activities of the CPS applications(smart grid’s) are monitored and controlled by specialized computing system called industrial control systems (ICSs) or super visory control and data acquisition (SCADA) systems (ICS/ SCADA).
• Importance of ICS/SCADA security: It is very crucial to keep ICS/SCADA system safe and secure in order to prevent any cyber attack that causes a physical hazard to the CPS applications(smart grid), which might affect the human life, national safety, or economy.

CYS 401 SCADA system security

embedded devices which work together to monitor, manage, and control vital processes in various industrial and critical infrastructure areas such as oil and power management.

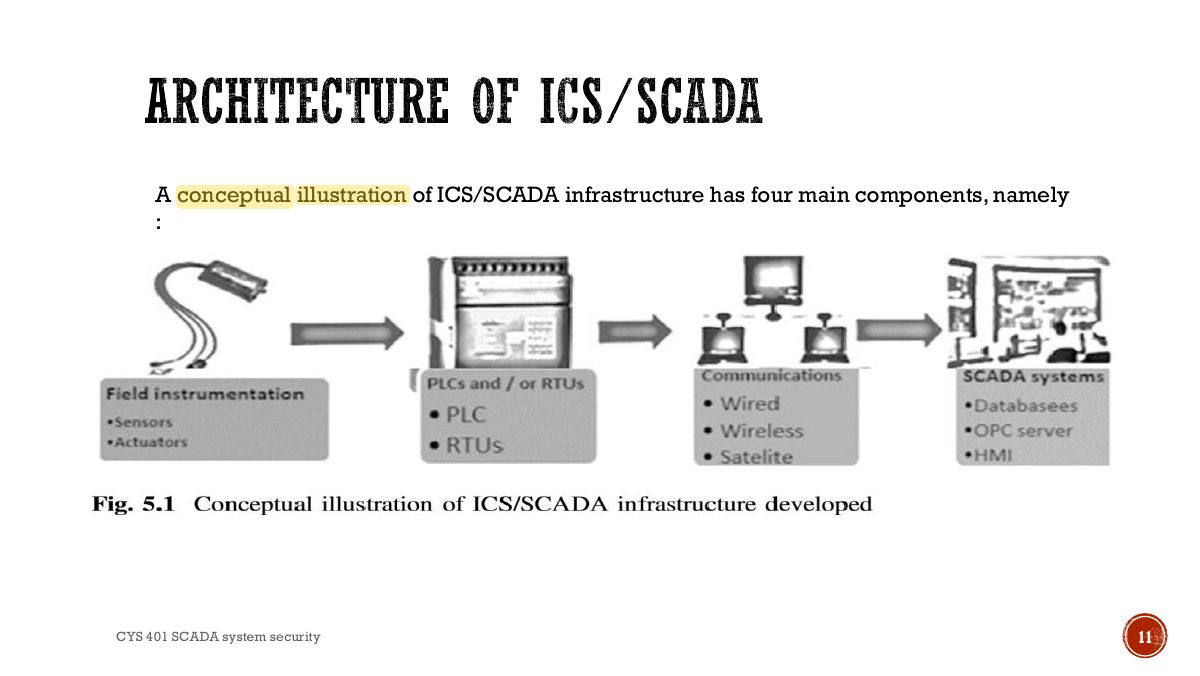

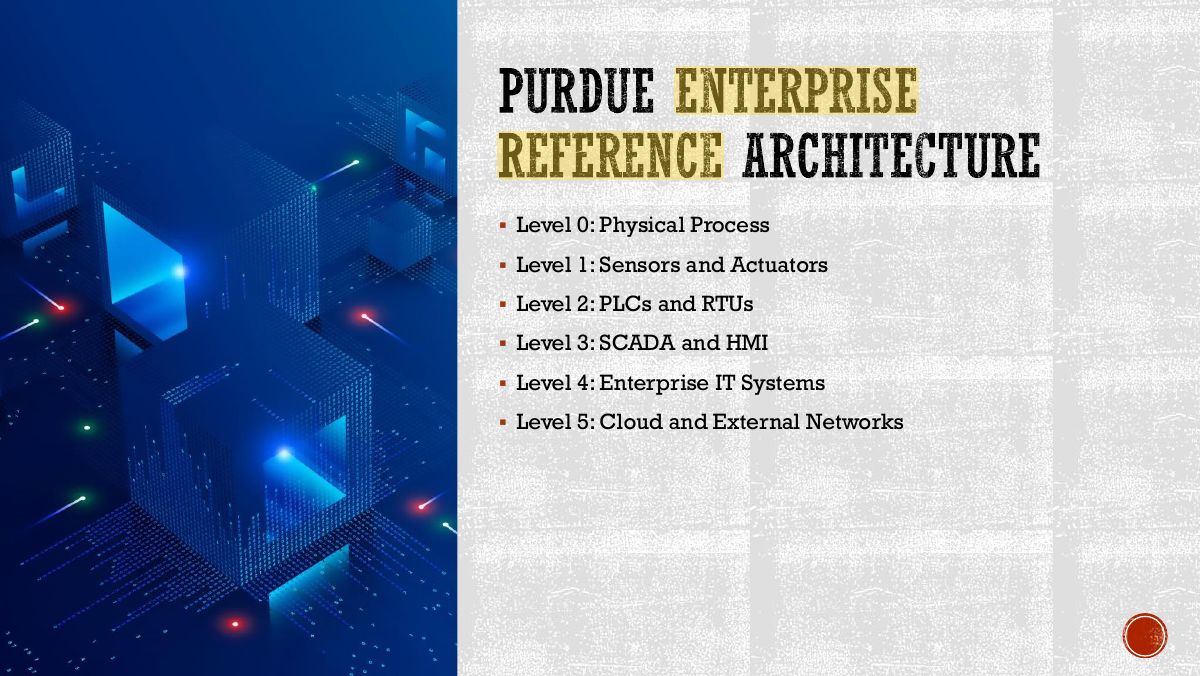

This combination consists mainly of:

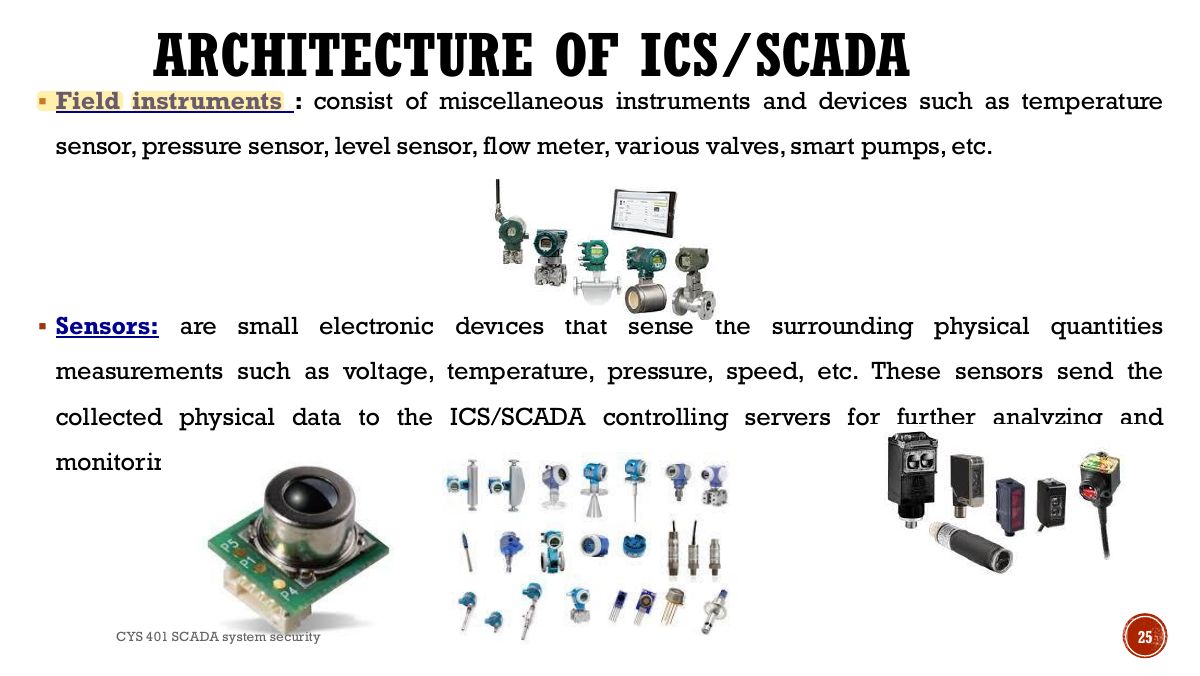

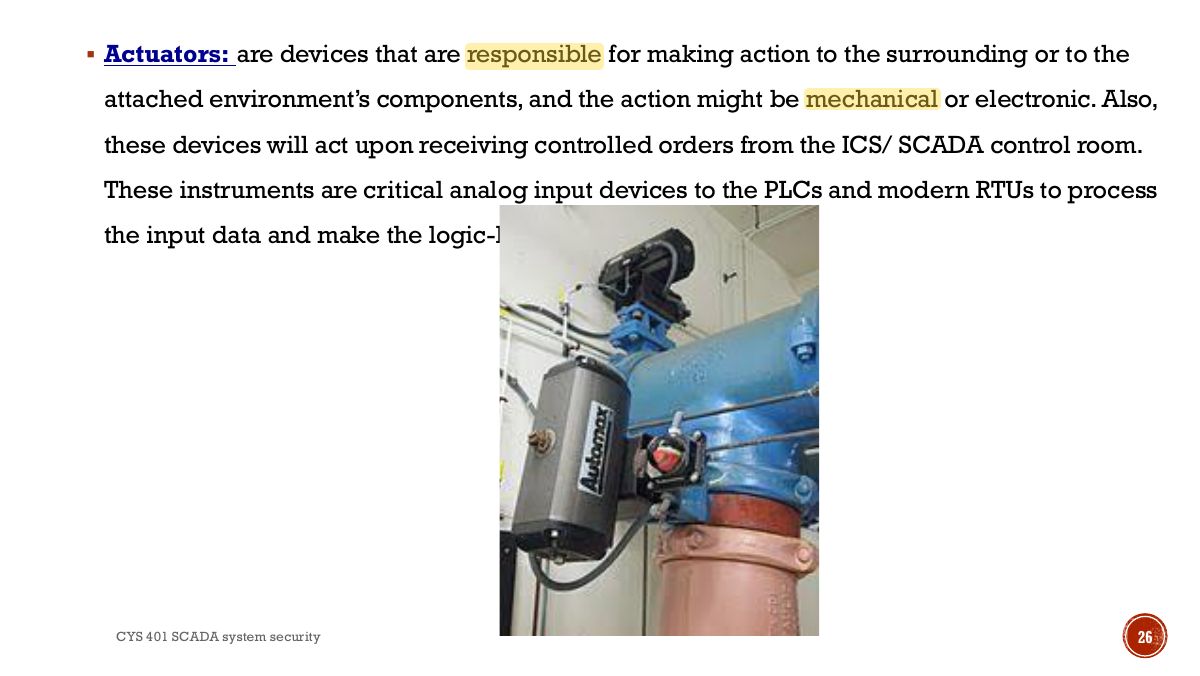

• Field instrumentation (Sensors and Actuators)

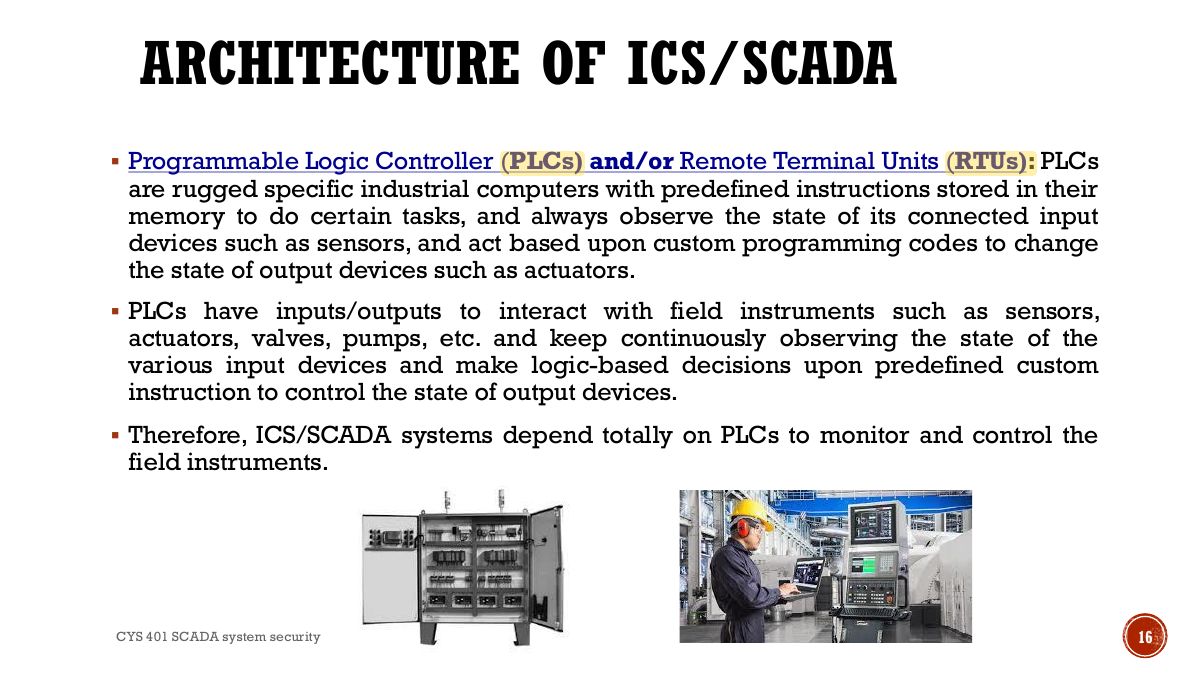

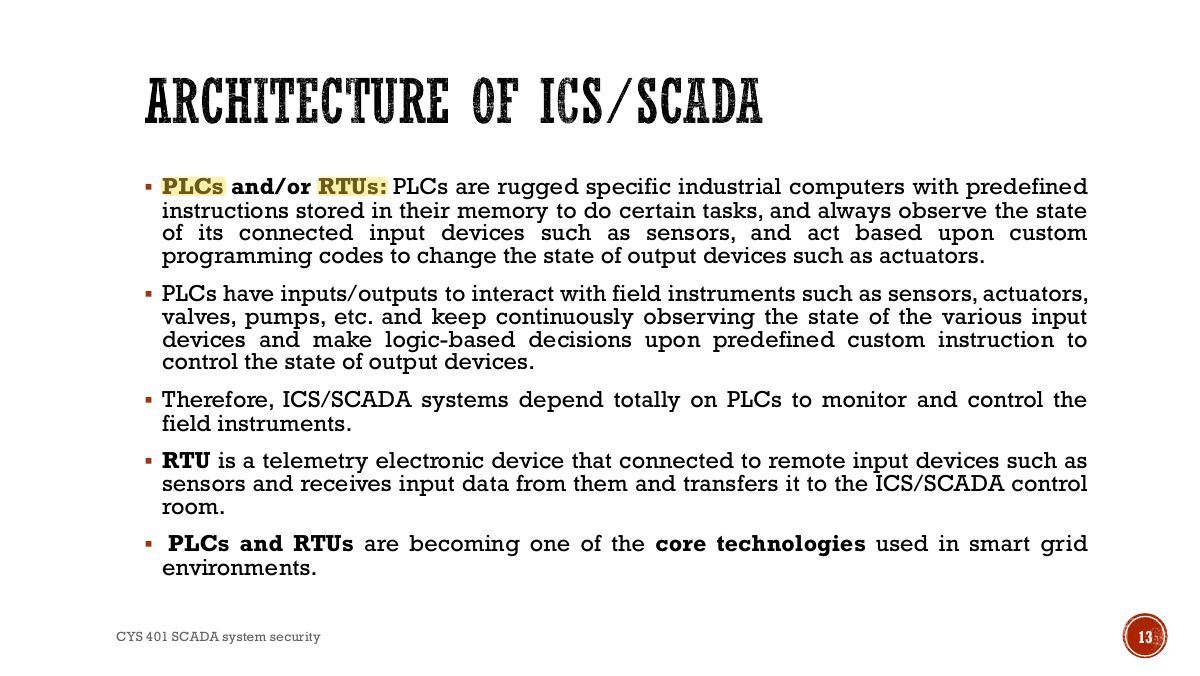

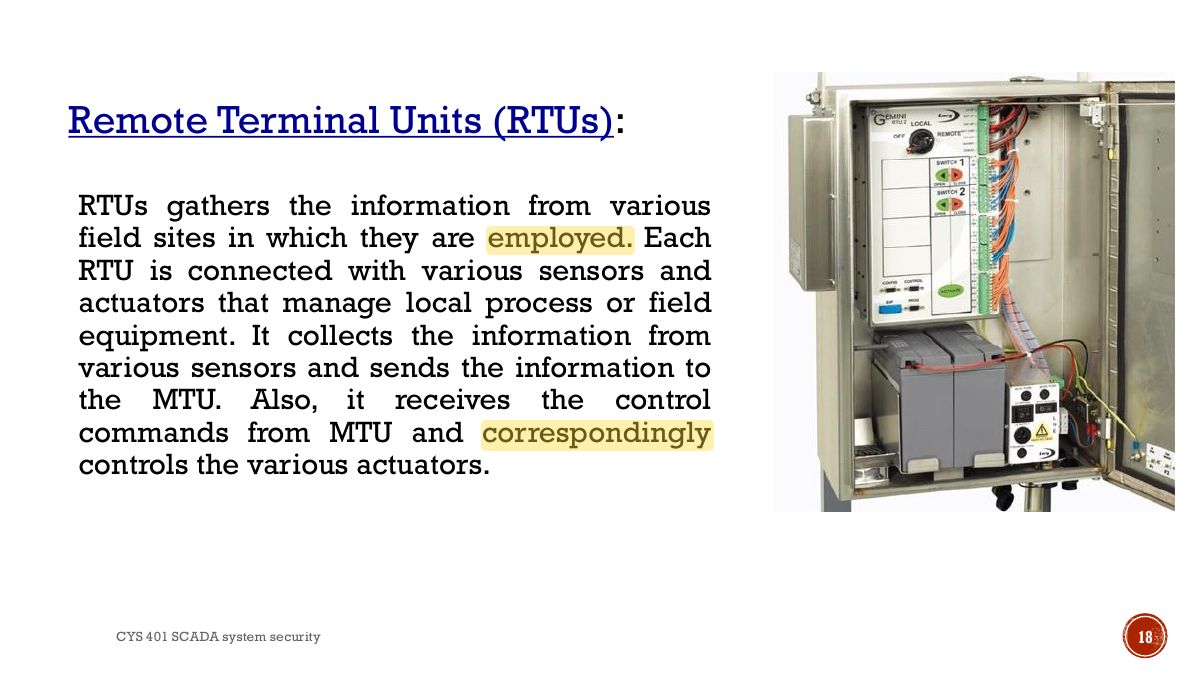

• programmable logic controllers (PLCs) and/or remote terminal unit (RTUs),
• communications networks, and
• ICS/SCADA host software (Human-Machine Interface (HMI)) CYS 401 SCADA system security

CYS 401 SCADA system security

CYS 401 SCADA system security

CYS 401 SCADA system security

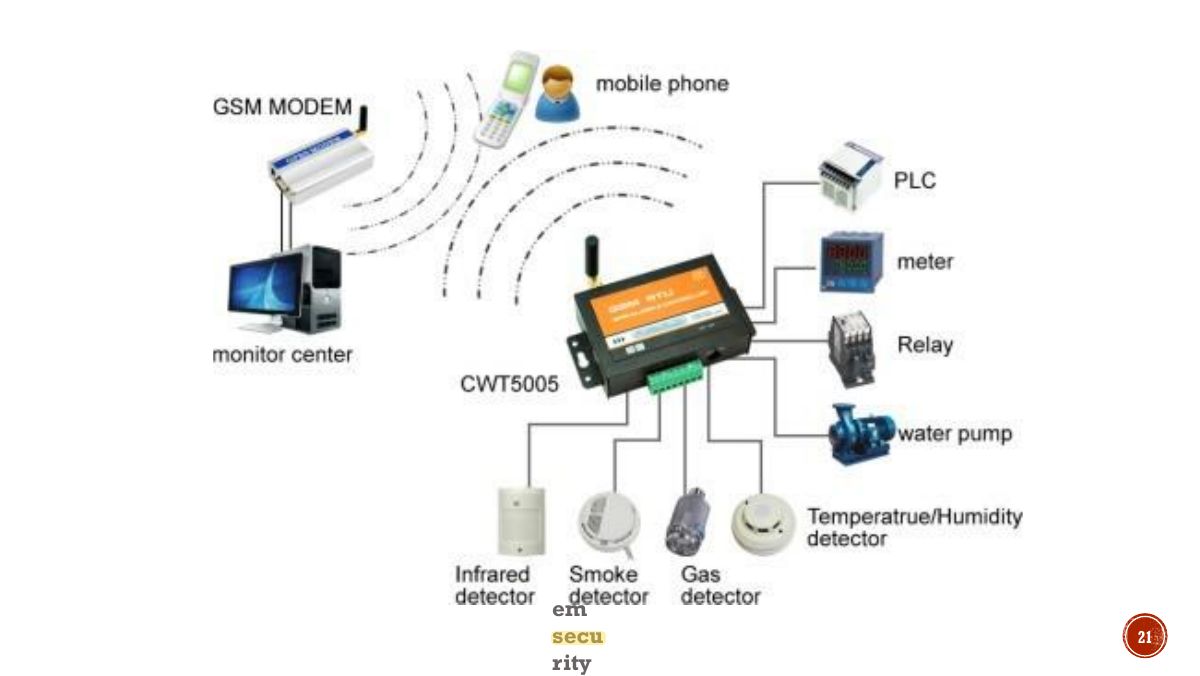

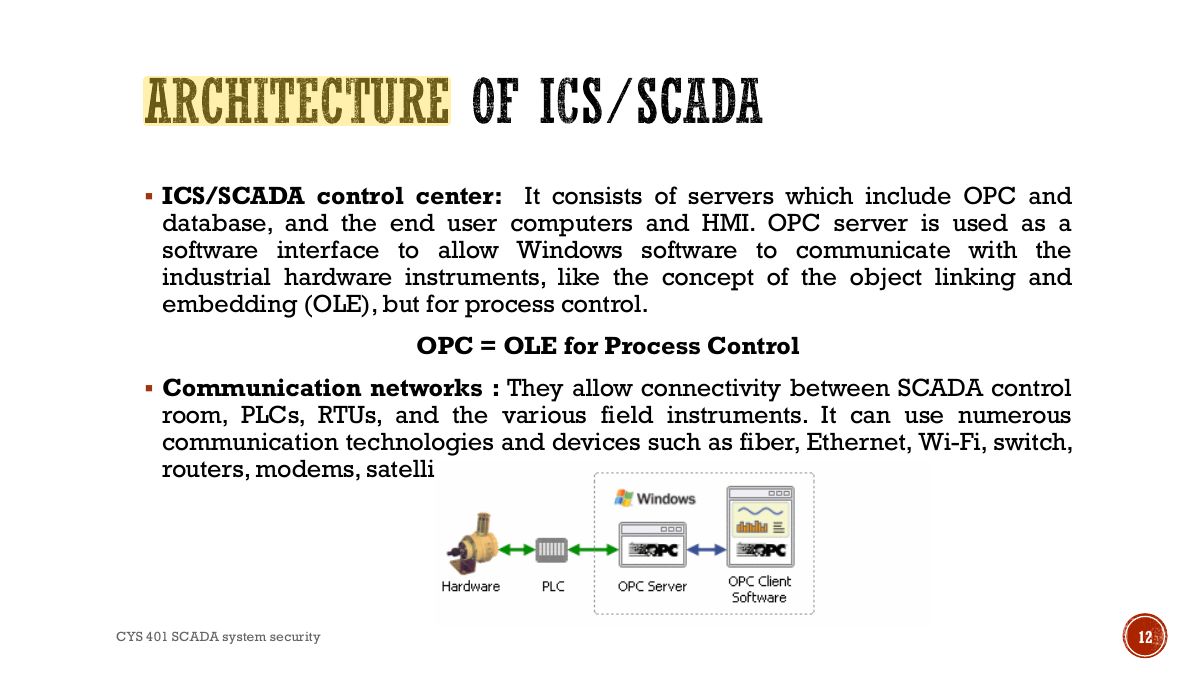

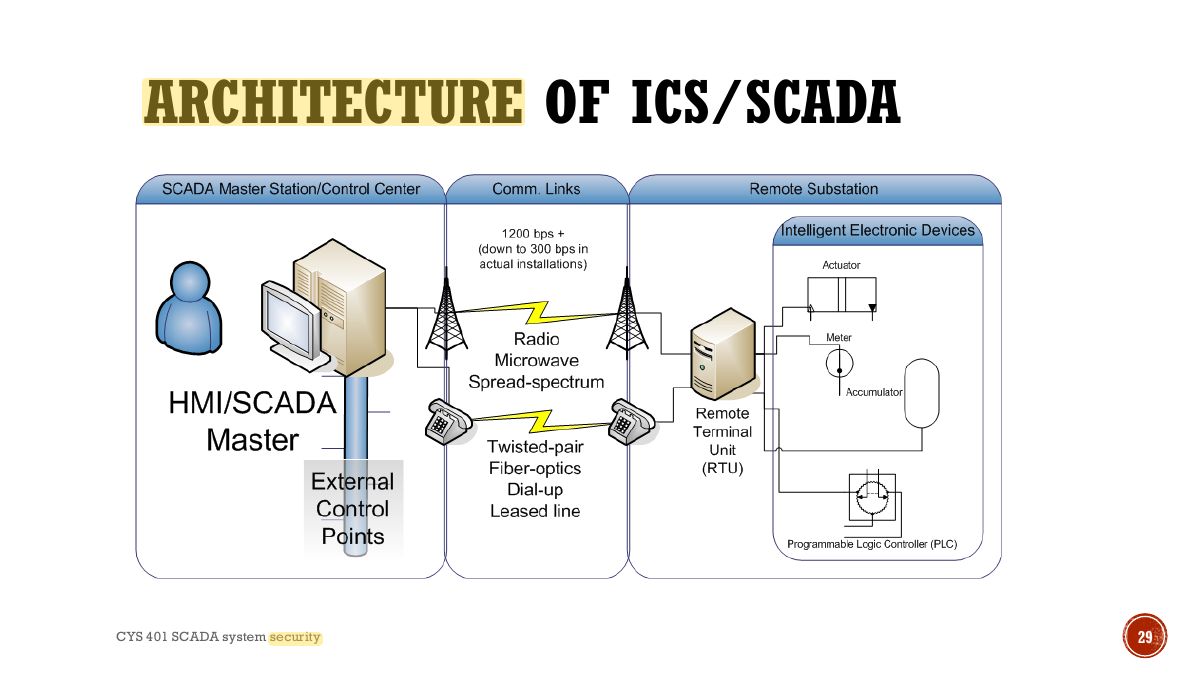

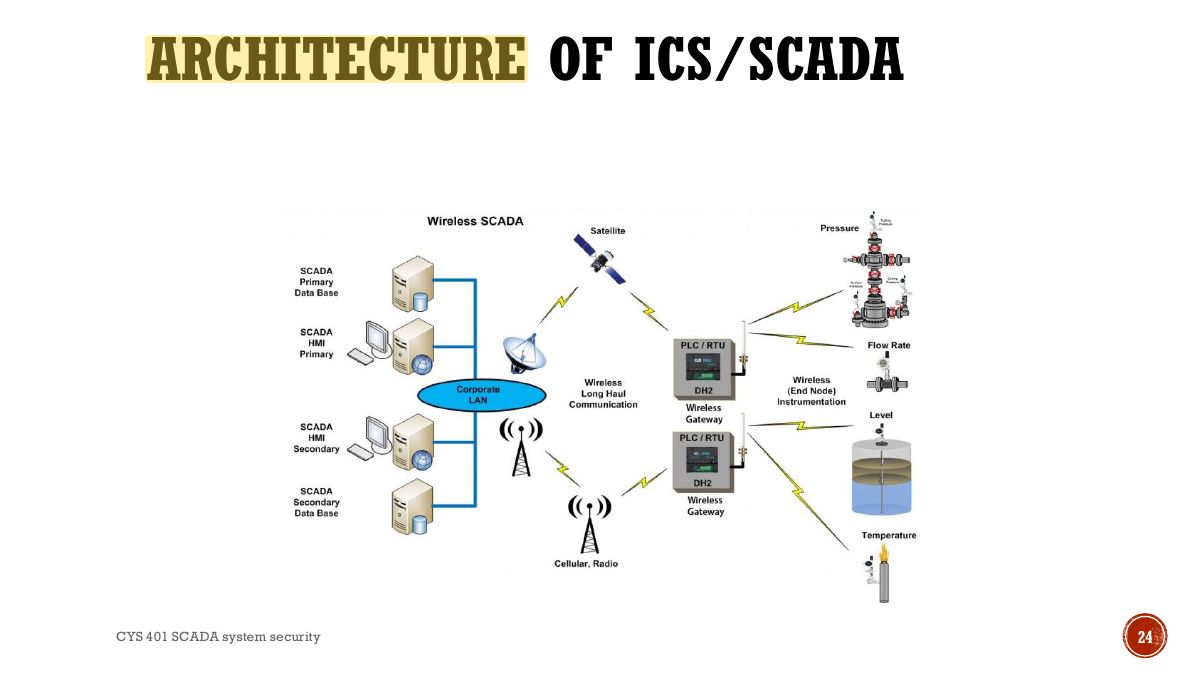

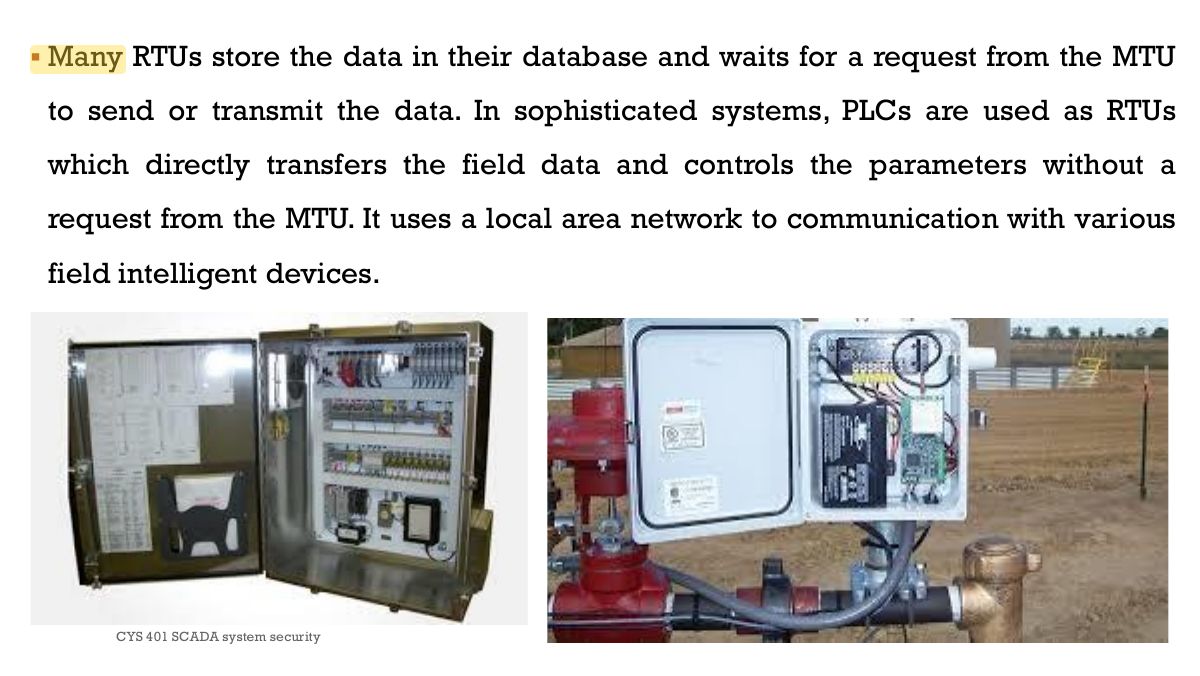

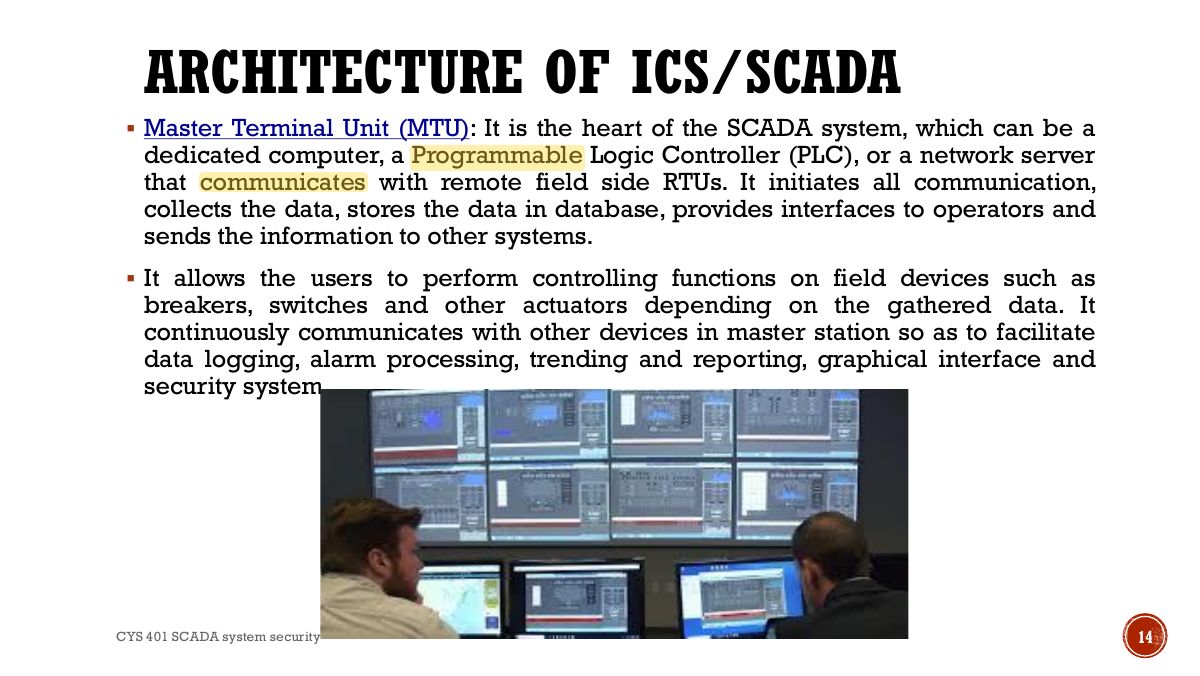

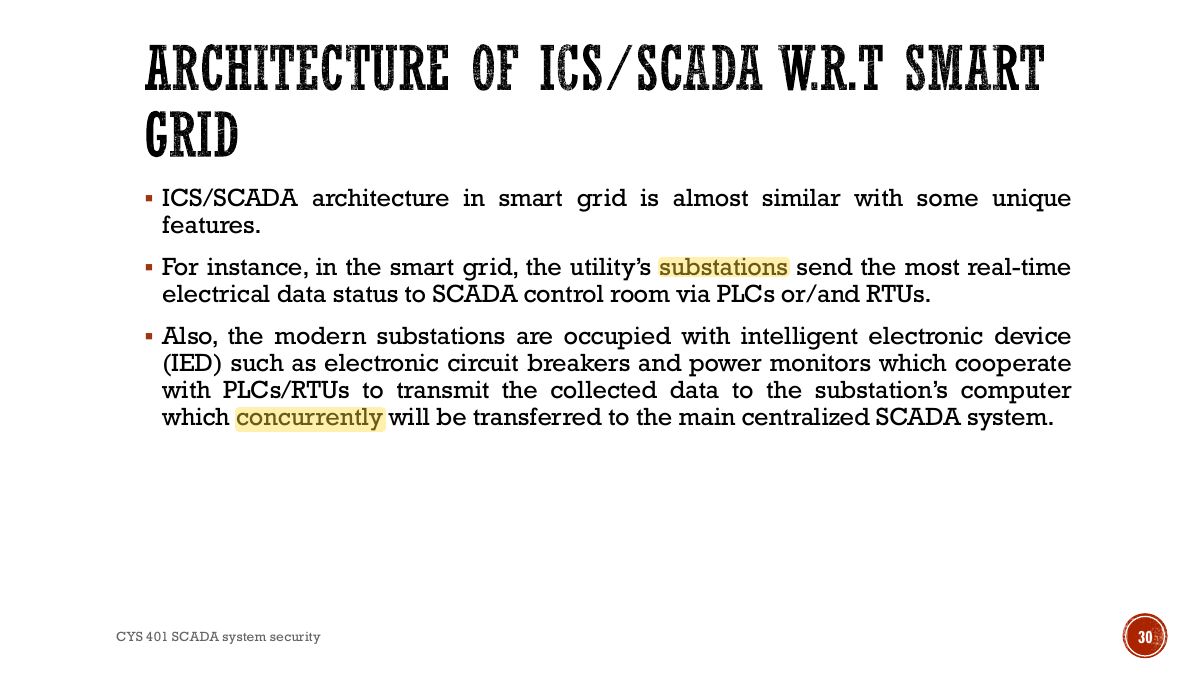

the field) to MTU (in the control center). The communication can be wired or wireless or through internet which provides bidirectional and uninterrupted communication between RTU and MTU.

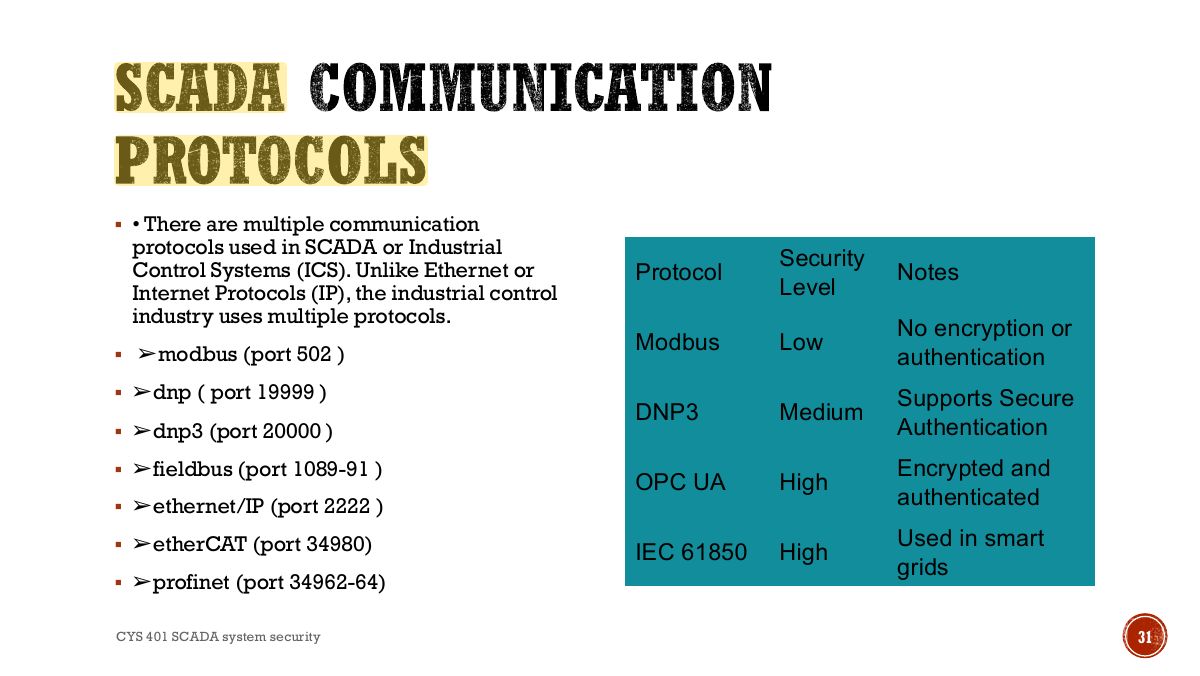

• SCADA systems can be connected using various communication mediums including twisted pair cables, coaxial metal cables, fiber optic cables, satellites, high frequency radio, telephone lines, and microwave radio.
• The topology of the SCADA system network depends on the type of system or application it is intended for. Mostly redundant topology is recommended for critical control applications. CYS 401 SCADA system security

CYS 401 SCADA system security

presents the information to the user and also allows the user to intervene in the process control. Many SCADA systems use commercial proprietary software upon which SCADA system is developed.

• This software comprises a computer operating system which controls the central host computer hardware, communication network management, graphical generation tool for HMI, database management and report generation tools.
• Other components or auxiliary equipment in central station includes HMI station, which gives graphical representation of field parameters, alarm generators to inform normal and abnormal conditions of process and CYS 401 SCADA system security

CYS 401 SCADA system security

• Cyber- physical’s embedded systems are the operation fundamental of the ICS/ SCADA systems which become more vulnerable to exploitation; therefore, they should be well-protected and secured.
• The vulnerability of the ICS/SCADA system is due to many factors such as:
  • the absence of real-time network scanning to detect suspicious activities,
  • identify the threats, and react accordingly,
  • the slowness for systematic and careful updating and patching, and
  • lack of knowledge about the specification and capabilities of the old and new devices.
  • Also, not having enough information about the network’s traffic status is the core reason for the vulnerability because it stops the security specialists to know about any abnormal activities or potential threats to field instruments and ICS/ SCADA system.
  • Neglected, unskilled, and unsafe practices of authentication give chances to the attackers to gain access to these holes.

CYS 401 SCADA system security

• An attacker targeting the ICS/SCADA systems are not in one trial but through a bulkiness of efforts and methods to gather the most applicable and adequate information to create a great negative cause.
• The type and complexity of attacking methods that are used are determined by
  • how much the attacking purpose is vital,
  • what is the impact level must be achieved to satisfy these purposes, and
  • how much the ICS/SCADA system is secured. For instance, if an attacker has no harm objective, s/he might satisfy using DoS.
• However, s/he needs to go further to destruct the ICS/SCADA system by manipulating the operational process to achieve the ultimate damage and harms to the structure, equipment, data, and human. Then, a huge systematically attacking method will be used. CYS 401 SCADA system security

The security of the ICS/SCADA operations is threatened by two main categories of intimidation including 1. Unintentional (inadvertent) threats are mainly originated from inside the premises, and the primary sources are the human, devices, or the surrounding nature.

• The human factor including the employees, contractors, and/or business partners can be a source of threats in the form of neglect, carelessness, or lack of knowledge, so s/he might produce a threat toward the ICS/SCADA system without awareness or intention to do that.
• the machine’s failure, devices safety weakness, and equipment crashing are a great source of threats to the ICS/SCADA security.
• the natural disasters such as avalanches and landslides, earthquakes, sinkholes, volcanic eruptions, floods, tsunami, and blizzards can cause disruption to the ICS/SCADA security.

2. Purposeful threats: The ICS/SCADA system can be targeted by the meaning of purposeful attacks by annoyed employees, industrial espionage, sabotage, cyber hackers, viruses and worms, physical theft, and electronic terrorism.

CYS 401 SCADA system security

There are many security challenges facing the professionals to protect the ICS/ SCADA systems such as:

• The old and basic architecture designs in which the security matter is not considered.
• The message are still transmitted internally and between remote connections using clear text form without adopting any encryption technologies.
• There are many applications and servers’ operating systems and applications that have no regular patching scheme, even some firmware not updated at all.
• Another challenge is to secure the remote communication of the ICS/SCADA components which are geographically scattered such as sensors, actuators, RTUs, and PLC. CYS 401 SCADA system security

technical challenges to secure the ICS/SCADA systems, such as:

• vulnerability tracking problem,
• standardization of devices and systems,
• downtime for maintenance,
• unsupported OS and applications,
• exposed to operational technology (OT) network to public networks,
• unable to pen-test in production real time,
• limited time for remediation once incidents occur,
• share accounts or no authentication within users, and
• secure the connection between information technology (IT) and OT.

CYS 401 SCADA system security

There are many objectives to protect the ICS/SCADA architectures such as

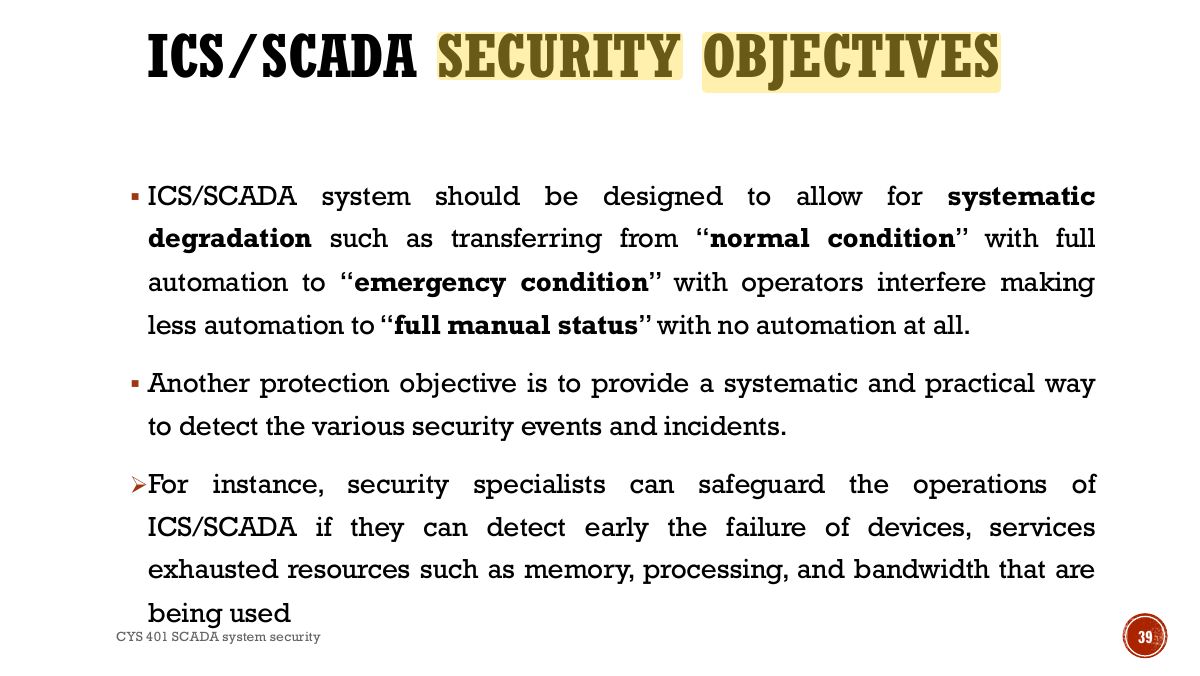

• keeping the ICS/SCADA systems functioning as much as possible during the most difficult conditions.
• This involves creating a redundancy for the most ICS/SCADA critical devices such as historian servers, switches, modems, and the field instrumentations.
• Also, during a failure, the device should not cause unnecessary traffic on the ICS/ SCADA networks or cause extra trouble elsewhere.

CYS 401 SCADA system security

The three traditional security objectives for securing the ICS/ SCADA systems are:

• Availability is on top of security objectives priority list which is focusing on keeping ICS/SCADA systems services offered continuously 24/7 when monitoring and controlling critical infrastructure or life-safety systems.
• Integrity comes the second order in the list by the ability to offer the operators/controllers the confident needed to fully trust the integrity of the various physical information that is received and to take the most suitable actions based on reading feedback or status from the various instruments and devices.
• Confidentiality is not as important as the availability and integrity because the received physical information from sensors, PLCs and RTUs, are used and the transmitted is state-based and only valid for that specific time; then, it will CYS 401 SCADA system security processing and storing them in the historian servers. be discarded after

• Importance of Security Countermeasures:
• Security requirements (countermeasures) are an action, device, procedures, or techniques that reduce a threat, vulnerability, or an attack.
• These requirements are aimed to eliminate or prevent the threat by decreasing the negative impacts automatically or by discovering and reporting it so that corrective solutions can be taken by the IT specialists or the operators. CYS 401 SCADA system security

• Protecting the field instruments (e.g., sensors, actuators, PLC, and RTU) is the main security concern for securing the operations of the ICS/SCADA system.
• This protection starts from selecting the right device with compliance to the latest security standards.
• Security of field instrument should go throughout its life cycle: procurement, installation, monitoring, and maintenance.
• Field instruments should have met the core security requirements such as the authentication, authorization, and CIA
• Physical security countermeasures for field instruments should start from providing the applicable secure fences and gates which must be accessed through the combination of traditional hardware and electronic locks.
• A motion detector linked with closed circuit television (CCTV) is recommended to record and discover any intruder to the remote stations. CYS 401 SCADA system security

• ICS/SCADA control room’s servers and hosts must be well protected from the logical and physical attacks.
• Moreover, to provide the optimum availability the redundancy and high-capacity links between the servers must be established.
• It is also recommended establishing load balancing and failover mechanisms between ICS/ SCADA servers and network components, such as switches/routers.
• ICS/SCADA servers should receive the appropriate configuration/patch management and secure importation and execution of only trusted patches CYS 401 SCADA system security which will help to secure the ICS/SCADA servers.

• strong multifactor authentication,
• application whitelisting,
• securing the hosts physically, and logically through adopting and implementing solid access controls using different tools, policies, and protocols to develop the most secure identification, authentication, authorization, and accountability mechanisms. CYS 401 SCADA system security

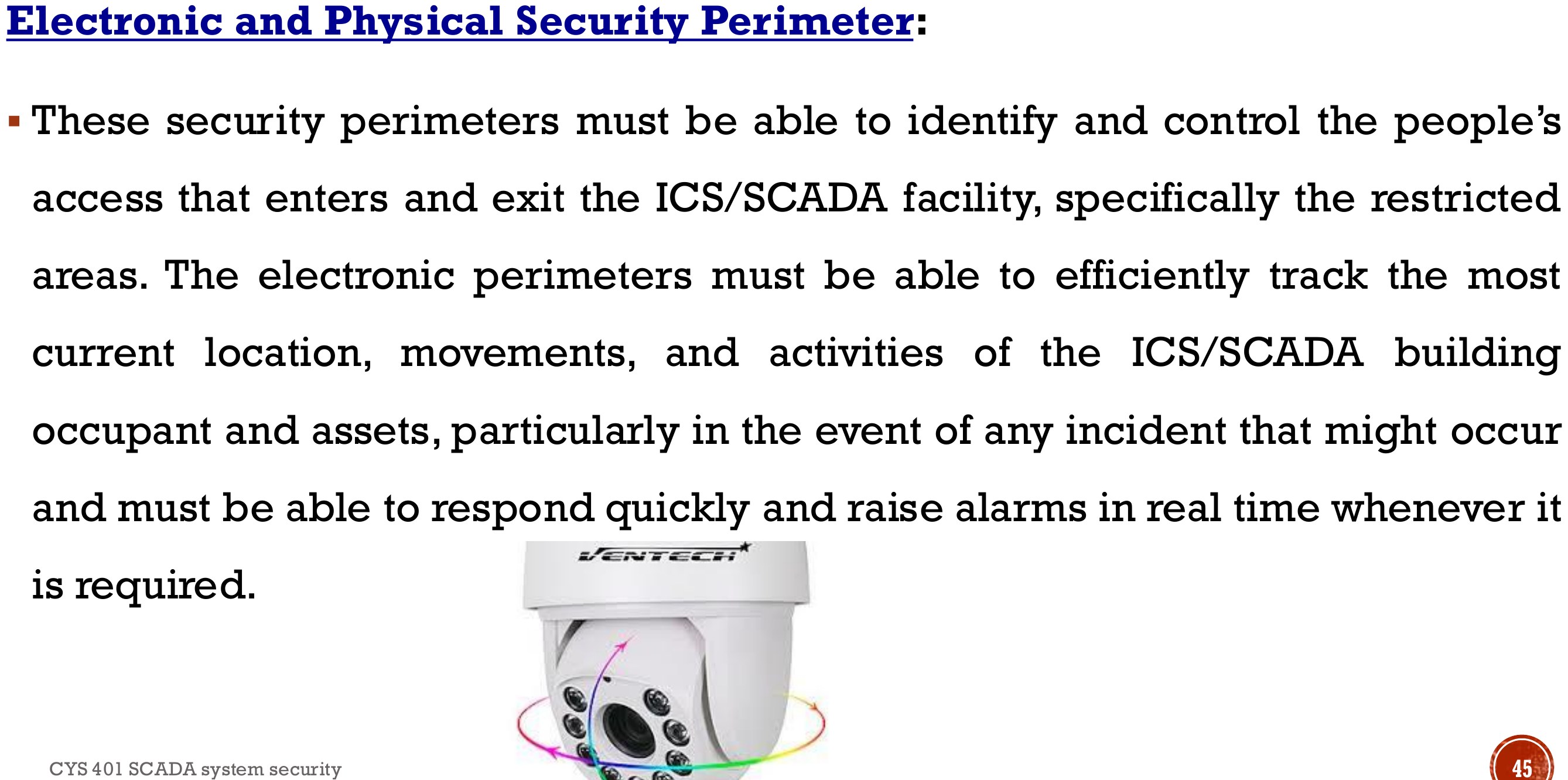

• This unified security package should consist of video surveillance, access control, and perimeter detection tools that are tightly integrated with alarms and events raised in process and safety systems for intelligent, and a coordinated responses mechanism.
• The unified tool also should occupy with the human — machine interface (HMI) which give common look and feel results. The HMI is enhancing the decision-making because both ICS/SCADA control room consoles and security office desktops have visibility of the real-time events and lead to faster responds and feedbacks.
• Adopting Mantrap technique (see next slide)

CYS 401 SCADA system security

• Network Communication Security: ICS/SCADA servers and network components work together to manage all communications, evaluate and examine the received data, and show the alerts and events on the HMI workstations.
• communication technologies include wired such as fiber optics, power line communication, copper-wire line, and wireless such as GSM/GPRS/WiMax/WLAN and Cognitive Radio.
• However, one of these communication technologies could represent a potential threat to the ICS/SCADA system CYS 401 SCADA system security

• Example: using old remote connection technology such as leased-line and dial-up modems for ICS/ SCADA remote communication with distant field devices will facilitate the attacking efforts into the critical networks.
• These old communication technologies mostly have got no or weak authentication and encryption which can be utilized by attackers to gain access to the ICS/SCADA network.
• For example, an attacker can access to the old technology modem which is connected to the smart grid’s breakers, disrupting the altering the control configuration settings causing power outages and damages various electrical equipment. CYS 401 SCADA system security

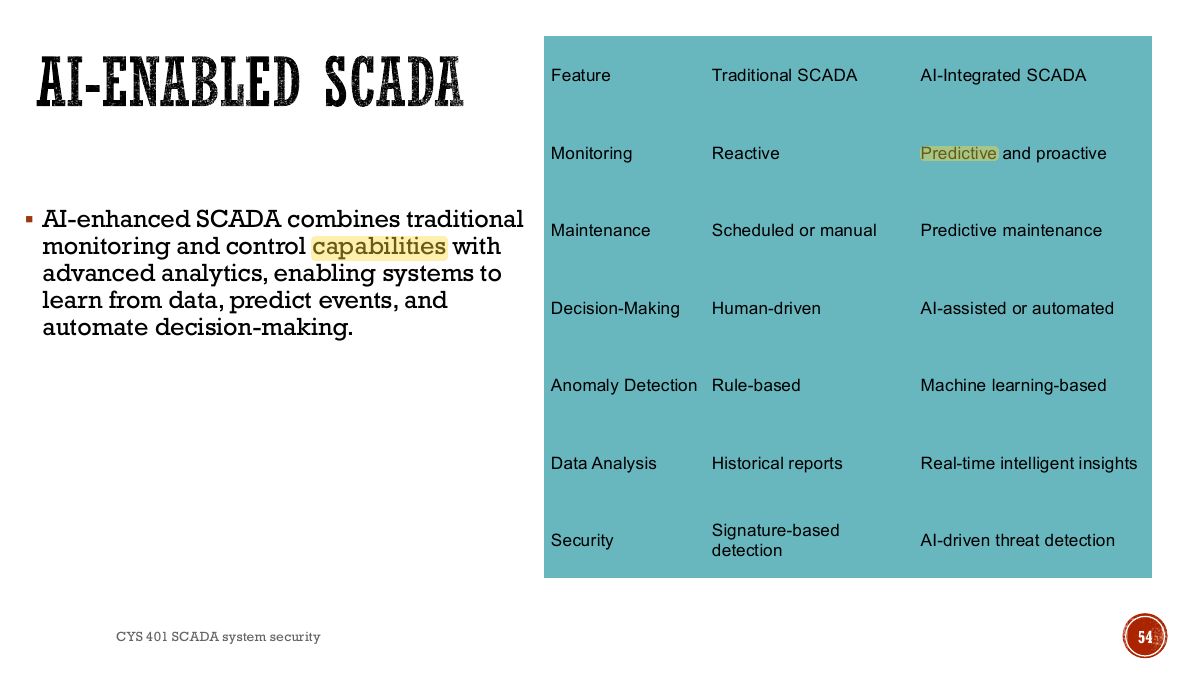

• It is important to utilize network security monitoring (NSM), NDR (Network Detection & Response) and security information event management (SIEM)
• NSM is a mean of gathering, analyzing, and rising the right indications or warnings to detect and respond to intrusions attacks.
• NDR uses passive, behavior-based network monitoring to detect abnormal and malicious activity in SCADA and IT networks in real time, without impacting operations.
• SIEM system is similar to NSM in providing a real-time analysis and performing data aggregation, association, alerting, dashboards, compliance, maintenance, and forensics investigation CYS 401 SCADA system security

• Product, Software, and Hardening:
• The ICS/SCADA infrastructure occupies a wide range of IT products and software, which should be evaluated and certificated to ensure the quality and to ensure that they are per the standing security standards.
• These IT-related products and software should be updated, stable versions, tested, verified, and patched regularly to solid the security of the OT operational requirements.
• Hardening of ICS/SCADA system involves eliminating idle, needless, or unknown components such as modules, services, or ports. The most important in system hardening is selecting and implementing the most secure configuration parameters, as well as installing the security patches. CYS 401 SCADA system security

• The objective of ICS/SCADA security policy is to provide management direction and support security professionals in an alignment of the business requirements and relevant laws and regulations.
• The security policy document should include the individuals who are responsible for the implementing and managing the policy terms, and they should be identified by their names, position details, and the contacts information.
• Furthermore, the security policy should be systematically reviewed and updated to ensure its continuing suitability, adequacy, and effectiveness CYS 401 SCADA system security

• ISO27001 Standard recommended several security policies such as: Clear Desk and Clear Screen Policy,
• Access Control Policy,
• Disposal of Information/Media/ Equipment Policy,
• Data Classification and Control Policy,
• Mobile Computing and Teleworking Policy,
• Password policy,
• Penetration Testing Policy,
• System/Data Backup and Recovery Policy,
• Physical Security Policy,
• System Usage Monitoring Policy,
• Third Party Access Policy, and
• Virus /Malware Policy. CYS 401 SCADA system security

• Governance of the ICS/SCADA Environment
• Regulatory Compliance and Standard Requirements
• The Planning Phase to Protect ICS/SCADA

CYS 401 SCADA system security

• Gover nance of the ICS/SCADA Environment:
• Implementing the ICS/SCADA systems without proper planning processes with a poor risk management study, weak security countermeasures, and inappropriate access control, will lead to ICS/SCADA security program with unsuitable governance.

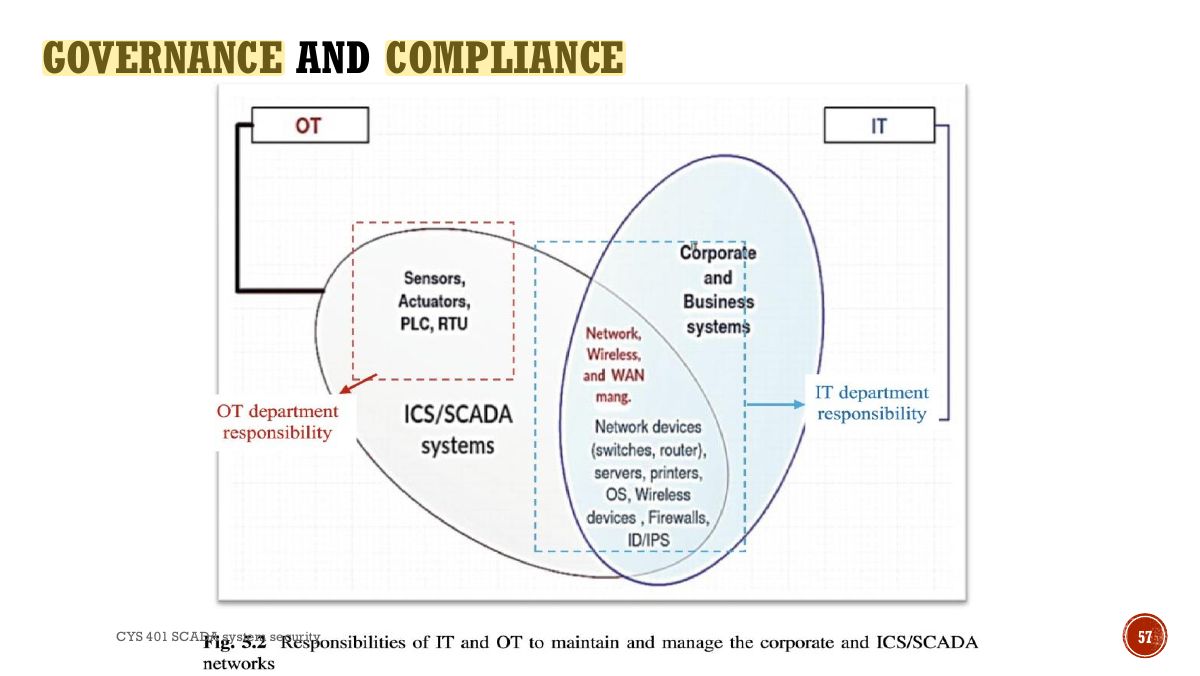

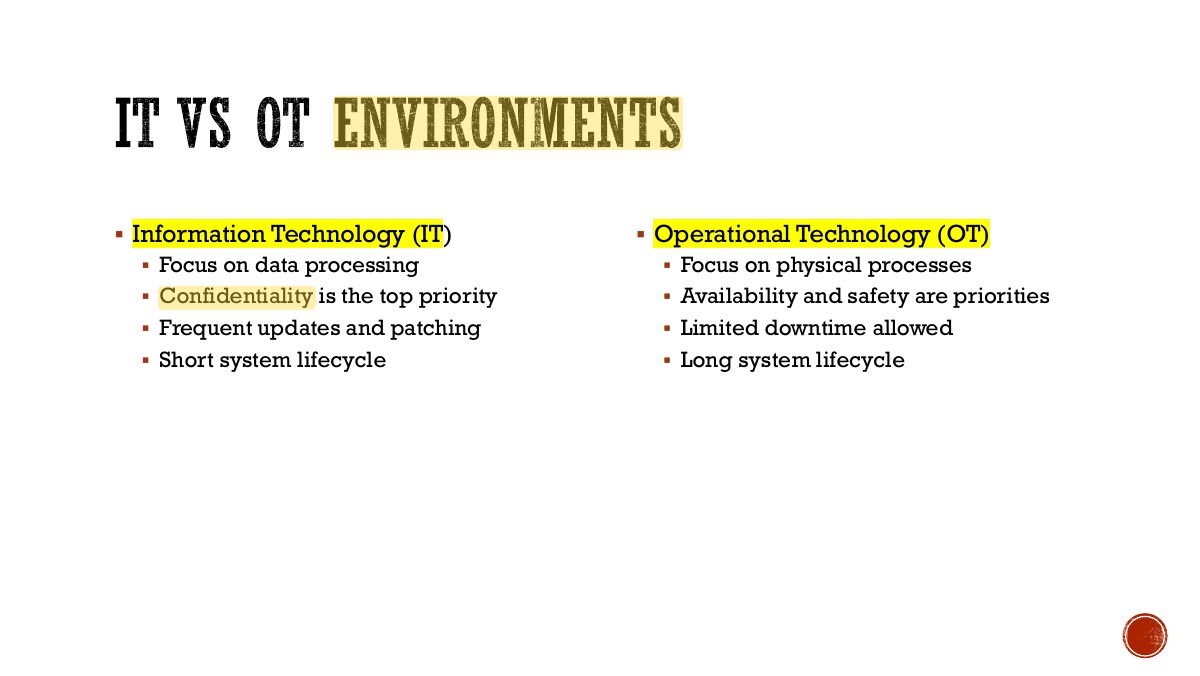

• One of the ICS/SCADA challenges is governance of OT (ICS/SCADA) security and IT security that are typically managed by different professionals.
• The OT devices are managed by the controlling, operating, engineering, or automation department, at the same time as the IT components are maintained by the IT department.
• Moreover, without good coordination, there is often a doubt about which department is responsible for the security of ICS/SCADA infrastructure which might lead to serious gaps in the organization’s security competencies. CYS 401 SCADA system security

• Importance of Governance of the ICS/SCADA Environment:
• Integrating well-known security standards, best practices, frameworks, and guidelines will give good guidance to develop a satisfactory governance structure for the security of ICS/SCADA infrastructure.
• The developed governance policy will help the decision-makers to make a better view of the ICS/ SCADA possible threats. It leads to know how to mitigate them, enhance the stakeholder’s internal communications and resources optimization, and clear the roles and responsibilities for the OT and IT
• Official governance for the management of ICS/SCADA security will help to ensure that stakeholders and departments follow a steady and appropriate security strategy.
• Besides, the governance delivers clear roles and responsibilities, latest and up-to-date approaches to manage ICS/SCADA security threats, and guarantee that the supportive standards, guidelines, and policies are appropriate and are being implemented and followed. CYS 401 SCADA system security

• Regulatory Compliance and Standard Requirements:
• Several standardization bodies and governmental agencies have developed various standards, guidelines, and policies to protect ICS/SCADA systems
• DHS catalog of control systems security, which was developed by Homeland Security of USA (2011).
• North American Electric Reliability Corporation (NERC) Critical Infrastructure Protection (CIP) Standards 002-009 and National Institute of Standards and Technology (NIST) Special Publication 800-82 have good guidance to ICS/SCADA security (NIST 2011).
• Also, NIST organization has developed the “NISTIR 7628 Guidelines for Smart Grid Cyber Security.

CYS 401 SCADA system security

• The Planning Phase to Protect ICS/SCADA: Preparing a comprehensive security program to secure the ICS/SCADA system is not an easy task because it involves so many procedures and steps A suggestion of seven phases to develop a new security plan for the ICS/SCADA system given as follows: Assessing the existing systems, 1 Documenting the policies and procedures, 2 Training the employees and contractors, 3 4 Segmenting the ICS/SCADA system network and security, Controlling the access to the ICS/SCADA system, 5 Hardening the components of the ICS/SCADA system, 6 Monitoring and maintaining the security of ICS/SCADA system 7 CYS 401 SCADA system security

• Cyber-security of SCADA and Other Industrial Control Systems https://www.springer.com/gp/book/9783319321233
• National Institute of Standards and Technology (NIST) framework for cyber security for SCADA https://www.pcvuesolutions.com/index.php/featured-articles/567-national-institute-of-standards-and-technology-nist-framework-for-cyber-security-for-scada
• Cyber Threat and Vulnerability Analysis of the U.S. Electric Sector https://www.energy.gov/sites/prod/files/2017/01/f34/Cyber%20Threat%20and

%20Vulnerability%20Analysis%20of%20the%20U.S.%20Electric%20Sector.pdf

• Security and Privacy in Smart Grids https://www.taylorfrancis.com/books/e/9781439877845/chapters/10.1201/b152

40-14
